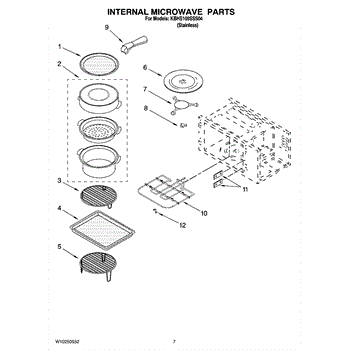

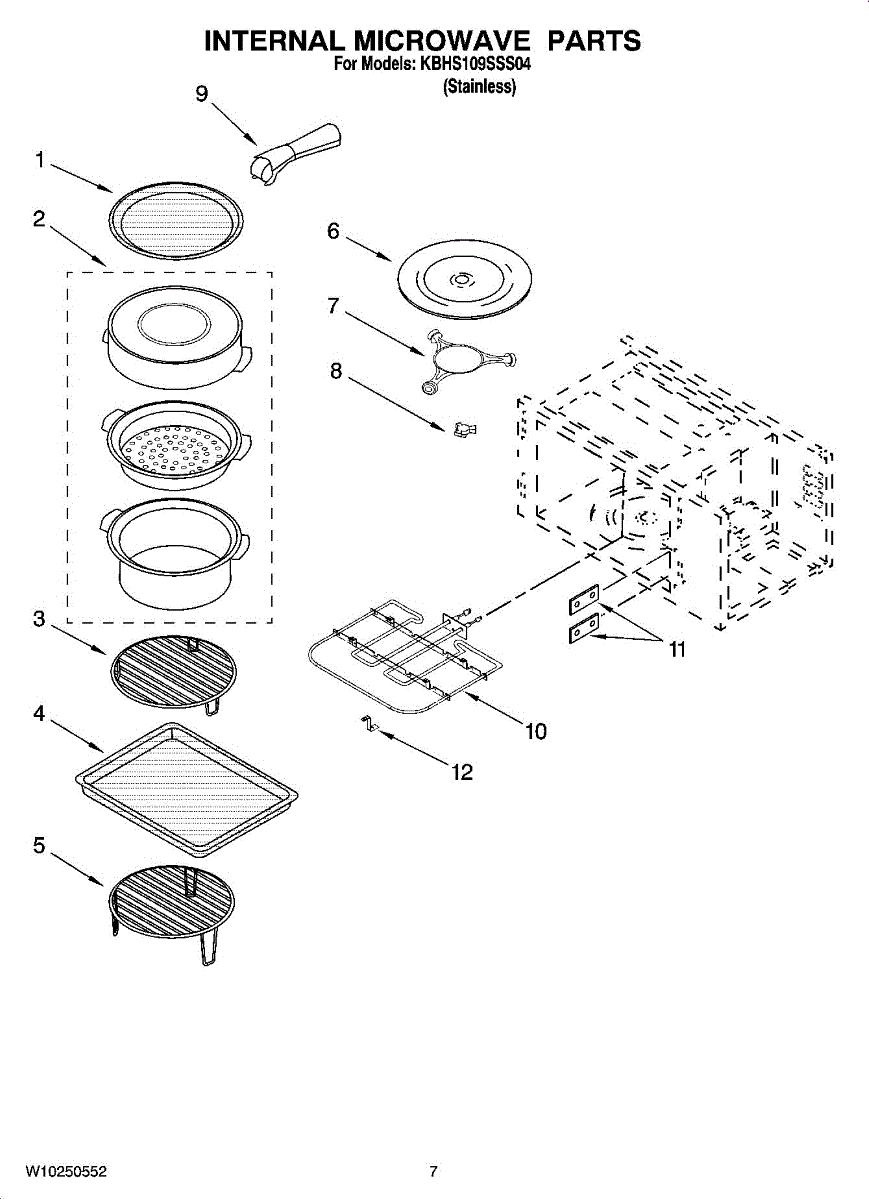

Parts for Kitchenaid KBHS109SSS04: 05 - Internal Microwave Parts, Optional Parts

This replacement cookware piece is designed for use inside compatible appliances to provide the correct, heat-resistant cooking surface. Restore performance and safety when the original accessory is lost, warped, or damaged. What it does:

• Provides the proper cooking surface intended for your unit
• Supports even heating and consistent results when used as directed in the owner's manual
• Restores stability and fit if the original piece is bent or worn
• Common symptoms: missing accessory, uneven or inconsistent results, wobbling or poor fit

• 1 cookware piece

• Check your model's manual for approved uses, placement, and any preheating directions
• Use oven mitts and allow the cookware to cool before handling or cleaning
• Do not use if cracked, chipped, or warped; replace to avoid poor results or breakage
• Clean with non-abrasive methods recommended by the manufacturer; avoid thermal shock

This removable cooking rack is designed for use during convection or combination cycles in compatible microwave ovens. It elevates food for proper airflow and browning, restoring full cooking capacity when the original rack is missing or damaged.

• Provides a stable, elevated surface for cookware in convection and combo-cook modes
• Improves air circulation for more even baking/roasting during convection cycles
• Replaces a lost, bent, or pitted rack that can lead to arcing or uneven results
• Supports two-level cooking when permitted by your model's instructions

• Allow the oven to cool before handling; remove the old rack and clean the support areas
• Seat the rack on the designated guides/hooks and ensure it is level and not touching cavity walls
• Use only as directed in your owner's manual; improper placement or cycle selection can cause arcing/sparking

Replacement oven cook tray that provides a flat, heat-resistant surface for baking and roasting while helping catch drips and spills. Restores a stable cooking surface when your original tray is warped, dented, or has a damaged finish. What it does:

• Provides a flat surface for baking, roasting and broiling that supports cookware and sheet pans.
• Catches drips and crumbs to protect the oven floor and reduce cleaning.
• Use when the original tray is warped, bent, rusted, or has a deteriorated finish that can cause uneven cooking or smoking.
• Fits into the oven rack supports to restore proper clearance and stability.

• Make sure the oven is completely cool and the power is off before removing or installing the tray.
• Slide the tray into the rack supports without forcing; verify correct orientation so edges sit properly.
• Use gloves or oven mitts to avoid cuts from sharp edges during handling.
• Clean by hand with mild detergent; avoid abrasive pads or harsh oven cleaners that can damage the finish.

This replacement rack restores a stable, level surface for loading items inside your appliance. Replace a damaged or worn rack to keep items secure during operation and maintain smooth, reliable use.

• Provides a sturdy surface to support cookware or dishware during operation
• Maintains proper spacing and alignment inside the cavity
• Interfaces correctly with rails/supports for easy loading and removal
• Replace if wires/tines are broken, coating is rusting, or the rack is bent or unstable

• Disconnect power at the breaker; shut off water supply if applicable
• Remove the old rack carefully, noting orientation and any stop clips
• Transfer any reusable accessories (clips, rollers, tine rows) from the old rack if applicable
• The new rack seats/moves smoothly before returning the appliance to service

The Turntable Tray is an OEM part for Whirlpool microwaves. This circular plastic tray sits atop the cavity within the microwave. The turntable tray is responsible for smoothly rotating food items during cooking cycles to ensure even heating exposure. It prevents hot and cold spots that can ruin prepared meals. The tray measures approximately 16 inches in diameter.

Causes relate to extended use over time, warping from high heat exposure, or accumulating residue that impedes free movement.

Symptoms of a worn turntable tray include:

• Inconsistent cooking results with some portions remaining underdone
• Squeaking or scraping noises emitting from below during operation
• The tray no longer spinning smoothly on its post seal track

This genuine OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This turntable support ring sits beneath the microwave's glass tray and lets it roll smoothly during cooking. Replacing a worn or damaged ring restores stable rotation for more even heating and prevents tray wobble or binding.

• Supports the glass turntable as it rotates
• Provides a low-friction track for smooth, consistent movement
• Helps keep the tray level and centered during operation
• Typical symptoms: turntable not turning, uneven heating, grinding/scraping noises, tray wobbling or coming off track

• Disconnect power to the microwave before servicing
• Remove the glass tray and lift out the old ring
• Clean the turntable deck of debris before installing the new ring
• Center the new ring on the deck, reinstall the tray, and test rotation with a cup of water

The Turntable Coupler is an OEM part for Whirlpool microwaves. This part rotates the turntable, ensuring even cooking by moving the food inside the microwave.

Common causes of a bad coupler include wear and tear from frequent use, cracks or breaks from heavy loads, or misalignment due to improper placement.

Symptoms of a bad turntable coupler include:

• The turntable not rotating
• Uneven heating of food
• Grinding or clicking noises during operation
• The turntable wobbling or not sitting correctly

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This cover plate conceals and protects an opening on the appliance cabinet or chassis. Replacing a damaged or missing cover restores a finished look and helps shield internal components from debris, moisture, and accidental contact.

• Closes a service/component opening to maintain proper protection and airflow
• Helps prevent dust, moisture, and accidental contact with internal parts
• Reduces rattles or vibration from a loose or missing cover
• Typical symptoms: cracked or broken cover, visible gaps, rattling, or exposed components

• Disconnect power (unplug or switch off breaker); shut off gas if applicable
• Remove retaining screws or release tabs from the old cover and note orientation
• Transfer any clips/gaskets if present and seat the new cover plate
• Reinstall fasteners snugly without overtightening; verify clearance from moving parts

The Support is an OEM part for Whirlpool microwaves, designed to secure the heating element in place. This support ensures the stability and proper functioning of the microwave's heating element, which is essential for cooking and heating food evenly.

Causes of failure can range from normal wear and tear over time, which can weaken the material of the support, to accidental damage during cleaning or use.

Symptoms of a bad Support include:

• The heating element becoming loose or misaligned, leading to uneven cooking or heating.
• Excessive vibration or noise from the microwave during operation, indicating a lack of stability.
• Visible wear or damage to the support, such as cracks or warping from heat exposure.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

Color: Citrine white. Size: 0.6 fl.oz. Bottle with brush.

Size: 2.8 fl.oz tube. 748 non-corosive sealant.

Color: Citrine white. Size: 4.5 oz. can. Acrylic appliance aerosol can spray paint.

This wire harness connects the appliance's control board to its electrical components, restoring reliable power and signal flow. Replacing a damaged harness helps resolve intermittent operation and restores proper function to affected circuits. What it does

• Transfers power and control signals between the main control and components (motors, switches, heaters)
• Replaces damaged, burned, or corroded wiring that can cause intermittent or no operation
• Commonly used when the appliance won't start, certain functions don't respond, or error codes indicate open/shorted circuits
• Ensures correct connector fit and routing to prevent shorts and improve reliability

• One wire harness

• Disconnect power (unplug or shut off breaker) before starting any repair
• Verify connector orientation and routing before disconnecting old harness; take photos for reference
• Handle connectors gently to avoid bending pins or damaging insulation

Color: Black. Size: 12 oz. Acrylic appliance aerosol can spray paint.

Bottle with brush. Color: Black. Size: 0.6 fl.oz.

The Appliance Touchup Paint is an OEM product for Whirlpool appliances. This touchup paint is used to cover scratches, chips, and minor blemishes on the surface of various appliances, helping to maintain their appearance and protect them from rust and other damage. It is specifically formulated to match the original color and finish of Whirlpool appliances, ensuring a seamless repair.

Causes of needing touchup paint include everyday wear and tear, accidental impacts that cause chipping or scratching, and exposure to harsh cleaning chemicals that can damage the finish. Regular use of touchup paint can help keep appliances looking new and extend their lifespan.

Symptoms indicating the need for Appliance Touchup Paint include:

• Visible scratches or chips on the appliance surface
• Areas of exposed metal prone to rust
• Blemishes that affect the overall aesthetic of the appliance

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Color: White. Size: 13 oz can. Acrylic appliance aerosol can spray paint.

The Appliance Spray Paint is an OEM part for Whirlpool appliances, designed to provide a quick and effective way to touch up or completely refinish the exterior of various appliances. This specialty spray paint is formulated to adhere to metal surfaces, offering a durable and resistant finish that can withstand the routine wear and tear of kitchen environments, including heat, moisture, and everyday use.

The primary reason for using such a specialized paint is to maintain or restore the aesthetic appeal of your appliances while protecting them from further damage.

Symptoms needing for Appliance Spray Paint include:

• Scratches, chips, or rust spots on the appliance's exterior that can lead to further damage or corrosion if left untreated
• A desire to refresh or update the appearance of the appliance without the need for complete replacement
• Discoloration or fading of the original finish due to age, exposure to sunlight, or cleaning agents

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.
