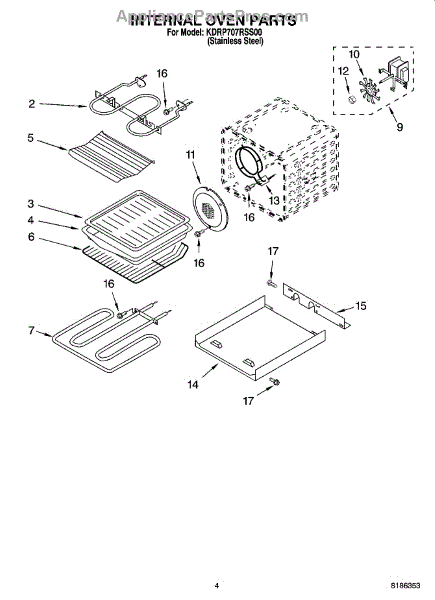

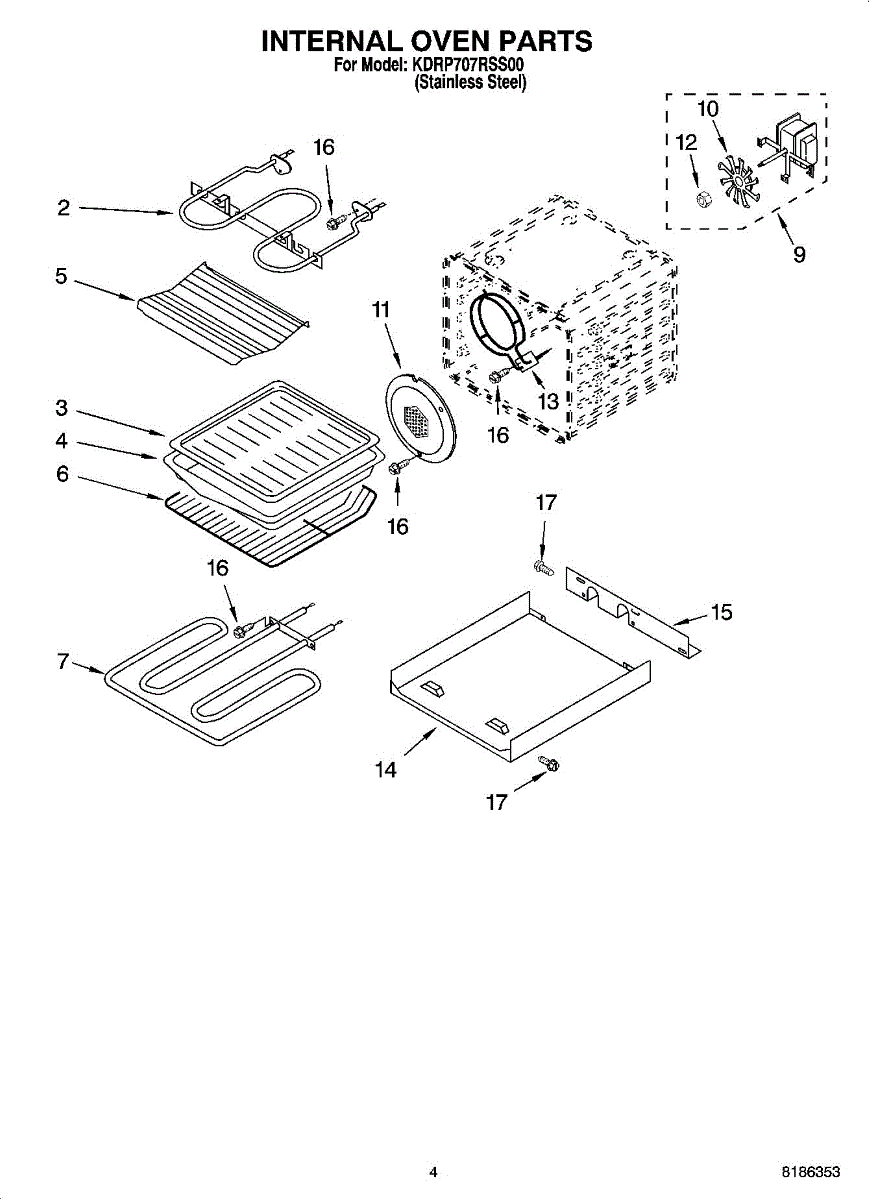

Parts for Kitchenaid KDRP707RSS00: 03 - Internal Oven Parts

Oven not heating or broiling? A failed broil element often shows blistering or breaks. DIY repair in under 30 minutes with a screwdriver.

Replacement broiler pan grid for ovens and ranges. Sits on top of broiler pan to elevate food. Replace if cracked, warped, rusted, or missing.

For broil pan grid use WP3195996.

Replacement broiler pan for ranges and ovens. Holds food under high heat while collecting drippings. Order if your pan is missing, warped, or damaged.

Oven won't heat or bake properly? This bake element kit restores even heating for baking and roasting. Located at oven bottom. DIY repair under 1 hour.

If your oven cooks unevenly or baking results are inconsistent, this convection fan blade restores proper air circulation. Easy 15-minute DIY repair.

Replace your oven's cooling fan cover if it's cracked, broken, or missing. This protective cover installs over the cooling fan assembly to shield internal components.

6mm acorn nut that caps exposed threaded studs on your oven. Replace when worn, stripped, or missing to protect threads and restore a finished look.

This is a convection heating element for an oven, typically a circular or loop-shaped element located at the rear wall of the oven cavity near the convection fan. It provides even heat distribution when using the convection cooking mode. Replace this element if convection baking produces uneven results, the element shows visible damage or burn-through spots, or the convection mode fails to heat at all.

Replaces the bottom cover panel that protects your wall oven's hidden bake element. Needed when original is cracked, stained, warped, or damaged.

Heating element not working? This mounting screw securely fastens the heating element in place. A simple DIY repair that takes about 20 minutes to complete.

Replacement mounting screw for securing panels, brackets, covers, and trim pieces in appliances. Restores fit when hardware is missing, stripped, or lost.
