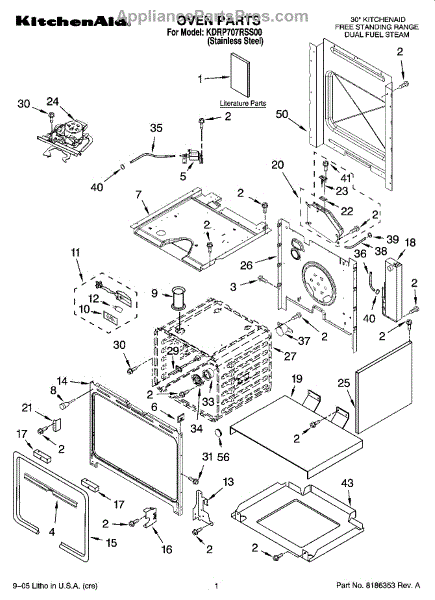

Parts for Kitchenaid KDRP707RSS00: 01 - Oven Parts

Replacement mounting screw for securing panels, brackets, covers, and trim pieces in appliances. Restores fit when hardware is missing, stripped, or lost.

This ground screw secures the appliance's grounding wire or strap to the chassis or terminal area, creating a reliable bonding point. Replace a missing or damaged screw to restore a proper ground connection during installation or service.

• Provides the designated bonding point for the grounding wire/strap
• Fastens to the frame or terminal area using 8-32 machine threads
• Helps maintain a consistent ground path for safe operation
• Typical reasons to replace: stripped head/threads, corrosion, or a missing screw

• Disconnect power at the breaker or unplug the appliance before servicing
• Route the ground wire/strap to the specified grounding location
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Ensure the ground connection is secure and complies with local electrical codes before restoring power

U-type clip

This rubber door bumper cushions and aligns the appliance door to prevent slamming and reduce vibration, helping doors close smoothly and protecting cabinet and door finishes from wear. What it does:

• Acts as a cushion between the door and cabinet, absorbing impact during closing
• Helps keep the door aligned and reduces rattling or vibration during use
• Prevents metal-to-metal contact that can cause chipping, scratching, or noise
• Commonly replaced when worn, flattened, cracked, or missing

• One rubber door bumper

• Remove power to the appliance before accessing the door area or hinges
• Usually presses into a hole or snaps into a mount on the door or cabinet; no special tools required for many models
• Inspect surrounding mounting boss for damage; replace if cracked or deformed

Vent tube for wall ovens and ranges. Directs hot air from the oven cavity through the exhaust opening. Replace if cracked, damaged, or missing.

Replacement mounting screw for electric wall ovens and ranges. Secures panels, brackets, and trim pieces. Replaces lost, stripped, or damaged screws.

Light assembly illuminates your oven cavity during cooking. Replace if light stays off, lens cracks, or wire connection breaks. Verify fit by model number.

Illuminates oven cavity for monitoring food while cooking. Replace when bulb burns out or oven interior is dim. Verify fit with your model number.

Door hinge receiver for wall ovens. Mounts inside the oven frame to hold the door hinge in place. Replace if cracked, deformed, or causing door alignment issues.

Left side hinge receiver for door hinge. For right side hinge receiver use WP4455606.

Seals your oven door to prevent heat loss and maintain cooking temperatures. Replace if worn, cracked, or heat escapes. Confirm fit with your model.

Mounting bracket that secures the bottom trim vent on your wall oven. Replace if the bracket is bent, broken, or missing to properly secure trim pieces.

This boiler is the dishwasher water-heating assembly that provides the hot wash and rinse temperatures needed for effective cleaning. Replaces a failed boiler to restore normal heating during dishwasher cycles. What it does:

• Heats water used during wash and rinse cycles so detergent can clean effectively
• Helps maintain proper cycle temperatures for sanitizing performance
• Stops working when the element fails or the boiler leaks or overheats
• Often linked to no-heat cycles, prolonged wash times, or error codes related to water temperature

• Disconnect power and water supply before starting any repairs
• Inspect for leaks and damaged connectors; replace any worn mounting hardware or seals
• Handle electrical connections carefully and follow the appliance's service manual for wiring and testing

Right and left hand side.

Oven won't heat properly or overheats? A faulty temperature sensor may be the cause. Simple 15-minute DIY repair with basic tools and our video guide.

Heating element not working? This mounting screw securely fastens the heating element in place. A simple DIY repair that takes about 20 minutes to complete.

Size: 8-18 x 3/8 inch.

Oven won't heat properly or overheats after self-cleaning? A faulty lower thermostat often causes temperature regulation issues. Moderate DIY repair.

This hose clamp secures a rubber or plastic hose to its fitting to maintain a tight, leak-resistant seal. Replace a worn or missing clamp to stop drips and keep appliance water connections secure.

• Fastens a hose to a barb or port to prevent leaks
• Helps keep hoses from slipping off due to vibration or pressure
• Restores proper sealing when a clamp is rusted, bent, or stripped
• Common symptoms: water dripping at a hose joint, loose hose connection, or a clamp that won't tighten

• Disconnect power and shut off the water supply before servicing
• Place a towel to catch residual water when removing hoses
• Position the clamp just behind the hose barb/bead and secure with the appropriate tool
• Restore water and power, then run a quick check for leaks at the connection

This hose clamp secures a rubber or plastic hose to its fitting to maintain a tight, leak-resistant seal. Replace a worn or missing clamp to stop drips and keep appliance water connections secure.

• Fastens a hose to a barb or port to prevent leaks
• Helps keep hoses from slipping off due to vibration or pressure
• Restores proper sealing when a clamp is rusted, bent, or stripped
• Common symptoms: water dripping at a hose joint, loose hose connection, or a clamp that won't tighten

• Disconnect power and shut off the water supply before servicing
• Place a towel to catch residual water when removing hoses
• Position the clamp just behind the hose barb/bead and secure with the appropriate tool
• Restore water and power, then run a quick check for leaks at the connection

Replaces worn, damaged, or missing foam insulation panel that lines the oven cabinet. Restores heat retention and temperature efficiency inside the unit.

Replaces worn, damaged, or missing foam insulation panel that lines the oven cabinet. Restores heat retention and temperature efficiency inside the unit.
