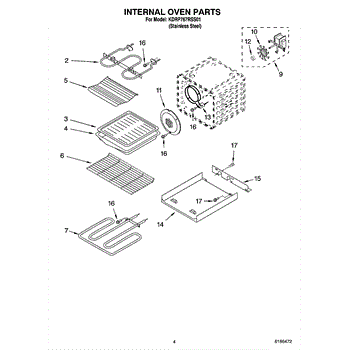

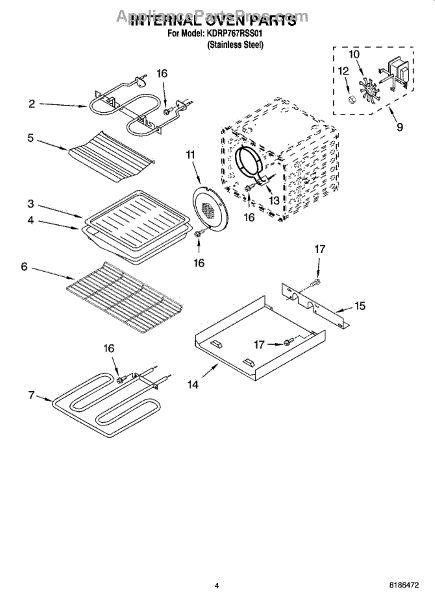

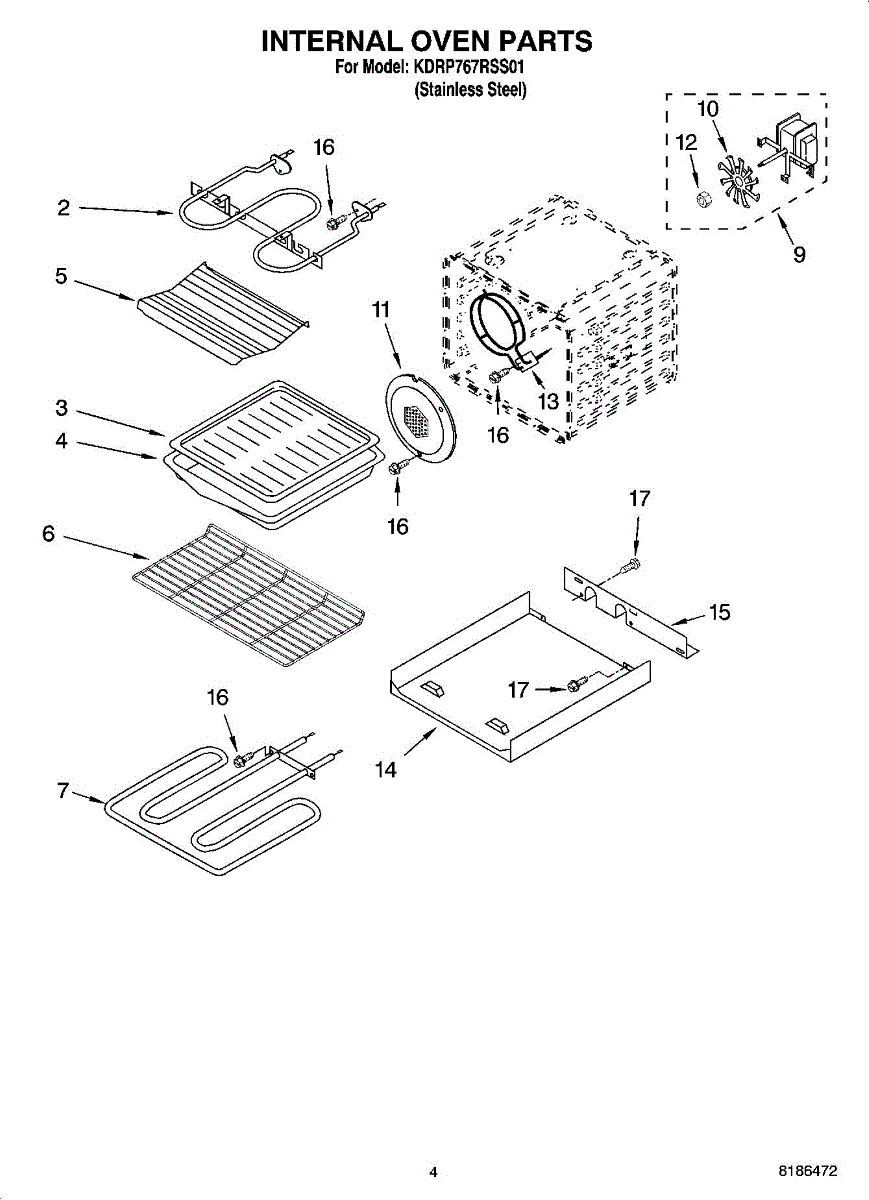

Parts for Kitchenaid KDRP767RSS01: 03 - Internal Oven Parts

Broil element provides the oven's upper heating for broiling and surface browning. Replacing a failed broil element restores broil performance so foods brown evenly and the oven properly completes broil cycles. What it does:

• Produces the high, direct heat used for broiling and top-surface browning.
• Restores heat in the oven's upper cavity when the broil setting is selected.
• Common fix when food doesn't brown, the element doesn't glow, or the broil cycle delivers little heat.
• Works with the oven's broil control and thermostat to achieve required broiling temperatures.

• Disconnect power to the appliance at the breaker before starting any repair.
• Remove oven racks and access the element mounting screws or rear terminal cover as required by your model.
• Handle the element carefully and avoid touching terminals; ensure connections are tight and insulated.
• Replace damaged mounting hardware or connectors before re-energizing the oven.

Replacement broiler pan grid for ovens and ranges. Sits on top of broiler pan to elevate food. Replace if cracked, warped, rusted, or missing.

For broil pan grid use WP3195996.

Replacement broiler pan for ranges and ovens. Holds food under high heat while collecting drippings. Order if your pan is missing, warped, or damaged.

If your oven cooks unevenly or baking results are inconsistent, this convection fan blade restores proper air circulation. Easy 15-minute DIY repair.

Replace your oven's cooling fan cover if it's cracked, broken, or missing. This protective cover installs over the cooling fan assembly to shield internal components.

6mm acorn nut that caps exposed threaded studs on your oven. Replace when worn, stripped, or missing to protect threads and restore a finished look.

This surface cooktop element provides the heating source for electric ranges and replaces a damaged or non-working burner to restore normal cooking heat. Designed to match OEM fit and function for compatible Whirlpool ranges. What it does:

• Heats cookware for stovetop cooking when the burner control is turned on
• Replaces a burned-out or broken surface element that no longer heats
• Can resolve symptoms like no heat from the burner, intermittent heating, or visible damage to the element
• Restores even heating when the original element has hot spots or partial failure

• Disconnect power at the breaker or unplug the range before servicing to avoid shock
• Allow the element and cooktop to cool completely before removing or installing
• Remove the old element by unplugging the connector or detaching mounting hardware, then connect the new element securely

Heating element not working? This mounting screw securely fastens the heating element in place. A simple DIY repair that takes about 20 minutes to complete.

Replacement mounting screw for securing panels, brackets, covers, and trim pieces in appliances. Restores fit when hardware is missing, stripped, or lost.
