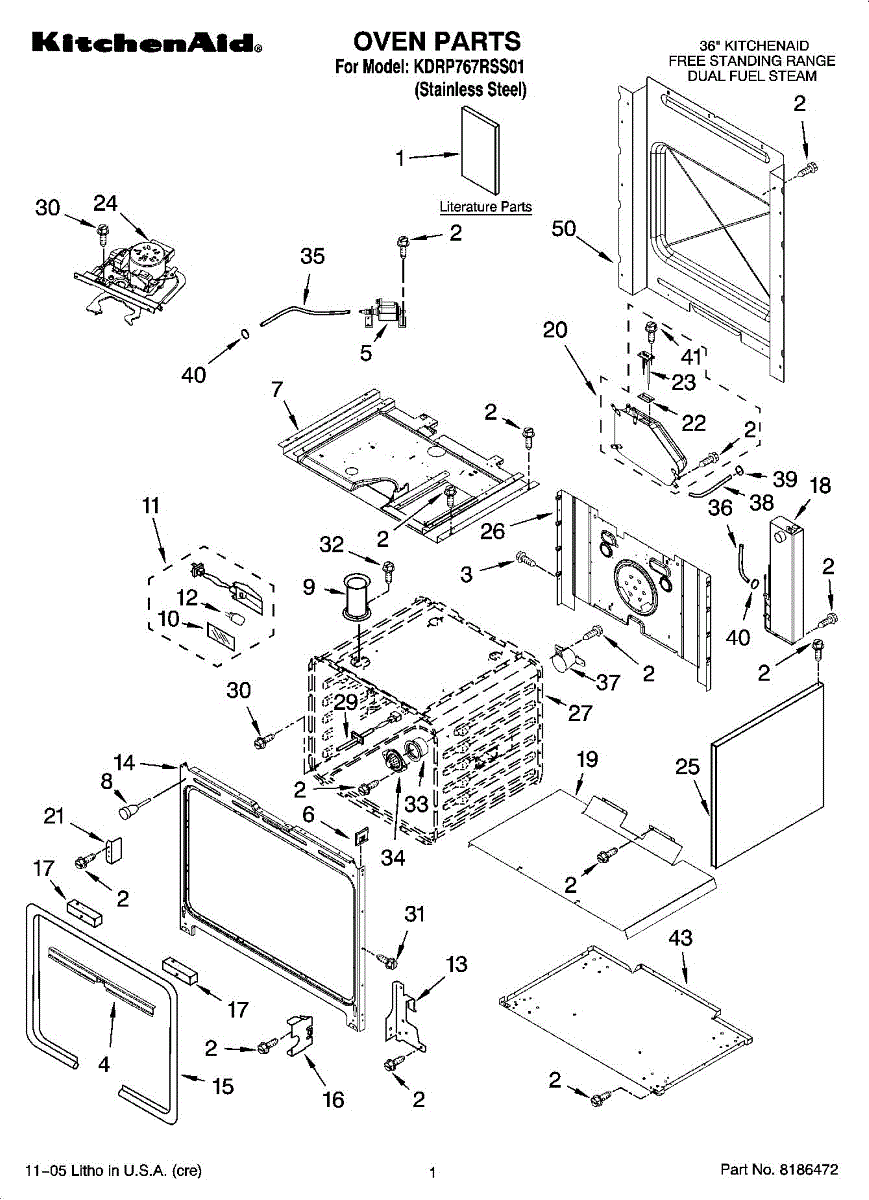

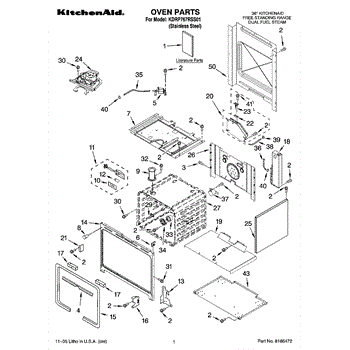

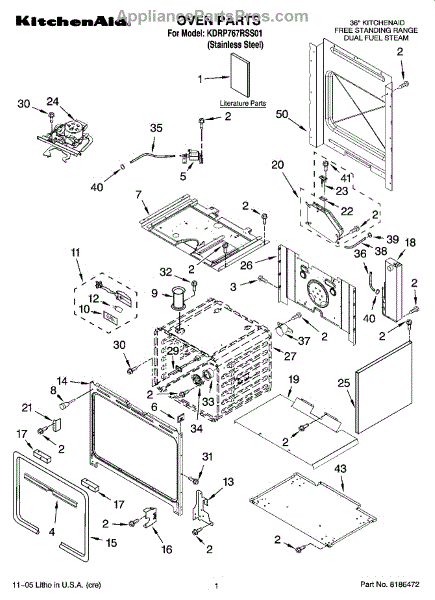

Parts for Kitchenaid KDRP767RSS01: 01 - Oven Parts

This factory replacement screw secures panels, brackets, and covers in your appliance. Replacing missing or stripped hardware restores a solid fit, reduces vibration and rattles, and keeps components properly aligned during everyday use. What it does:

• Fastens panels, trim, brackets, and internal components to the cabinet or chassis
• Helps maintain alignment and reduce vibration or rattling noises
• Replaces missing, rusted, or stripped screws discovered during service
• Matches the OEM spec for locations where this part is called out on your model's diagram

• Disconnect power (and gas or water, if applicable) before servicing
• Use the appropriate driver; start threads by hand to avoid cross-threading
• Tighten snugly—do not overtighten to prevent stripping metal or plastic
• Replace hardware one screw at a time to keep parts aligned

This ground screw secures the appliance's grounding wire or strap to the chassis or terminal area, creating a reliable bonding point. Replace a missing or damaged screw to restore a proper ground connection during installation or service.

• Provides the designated bonding point for the grounding wire/strap
• Fastens to the frame or terminal area using 8-32 machine threads
• Helps maintain a consistent ground path for safe operation
• Typical reasons to replace: stripped head/threads, corrosion, or a missing screw

• Disconnect power at the breaker or unplug the appliance before servicing
• Route the ground wire/strap to the specified grounding location
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Ensure the ground connection is secure and complies with local electrical codes before restoring power

U-type clip

This rubber door bumper cushions and aligns the appliance door to prevent slamming and reduce vibration, helping doors close smoothly and protecting cabinet and door finishes from wear. What it does:

• Acts as a cushion between the door and cabinet, absorbing impact during closing
• Helps keep the door aligned and reduces rattling or vibration during use
• Prevents metal-to-metal contact that can cause chipping, scratching, or noise
• Commonly replaced when worn, flattened, cracked, or missing

• One rubber door bumper

• Remove power to the appliance before accessing the door area or hinges
• Usually presses into a hole or snaps into a mount on the door or cabinet; no special tools required for many models
• Inspect surrounding mounting boss for damage; replace if cracked or deformed

This replacement mounting screw secures panels and components on compatible Whirlpool appliances, helping restore proper fit and reduce movement or noise. Use it when a lost or damaged screw prevents parts from staying in place. What it does:

• Fastens panels, brackets, trim pieces or small assemblies
• Helps stop rattling, loose parts, or misaligned panels
• Restores secure attachment after hardware is lost or stripped
• Matches common OEM thread and head style for a correct fit when specified by model

• One replacement screw

• Turn off and unplug the appliance before servicing to avoid shock or injury
• Use the correct driver bit to avoid stripping the screw head
• Do not overtighten; snug until parts are secure to prevent damage
• If the original screw is corroded or stripped, replace it with this part for reliable fastening

Includes light bulb.

The Light Bulb is an OEM replacement part for Whirlpool ovens. As an important illumination component, it works to provide clear visibility inside the oven cavity during cooking. The 5-watt, 12-volt halogen bulb illuminates the interior for easy food monitoring.

Symptoms of a bad light bulb include:

• Dim or inconsistent lighting inside the oven
• The bulb failing to turn on at all
• Increased difficulty seeing food while baking

Normal wear dictates the average lifespan before filaments burn out. Choosing a genuine Whirlpool replacement prolongs safety and usability by preventing cooking blindness.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore oven models.

Left side hinge receiver for door hinge. For right side hinge receiver use WP4455606.

Right side hinge receiver for door hinge. For left side hinge receiver use WP4455605.

This oven door gasket restores a tight seal between the door and oven cavity so your appliance can hold set temperatures. Replacing a worn seal helps reduce heat loss for more consistent preheating and baking results.

• Seals the gap between the oven door and frame to keep heat and moisture inside
• Helps maintain accurate oven temperatures and reduce energy loss
• Replace if the gasket is torn, hardened, flattened, frayed, or falling out of its channel
• Common symptoms: heat escaping around the door, long preheat, uneven baking, odors or smoke leaking from the oven

• Disconnect power and allow the oven to cool completely before servicing
• Gently pull the old gasket from the channel or unhook its retainers; note clip locations/orientation
• Press the new gasket evenly into the groove without stretching; align any corner pins/clips to match the original
• Close the door and check for uniform contact around the seal

Mounting bracket for bottom trim.

This boiler is the dishwasher water-heating assembly that provides the hot wash and rinse temperatures needed for effective cleaning. Replaces a failed boiler to restore normal heating during dishwasher cycles. What it does:

• Heats water used during wash and rinse cycles so detergent can clean effectively
• Helps maintain proper cycle temperatures for sanitizing performance
• Stops working when the element fails or the boiler leaks or overheats
• Often linked to no-heat cycles, prolonged wash times, or error codes related to water temperature

• Disconnect power and water supply before starting any repairs
• Inspect for leaks and damaged connectors; replace any worn mounting hardware or seals
• Handle electrical connections carefully and follow the appliance's service manual for wiring and testing

This genuine replacement part is a door lock motor switch assembly for ovens. The door lock motor switch assembly is the part that locks the oven door. The reason it would need to be replaced is if the motor or switch has failed and is no longer able to keep the oven door locked and secured when closed. This can happen due to excessive wear and tear over time. To replace this part, start by unplugging the oven. After that, pull the oven away from the wall and proceed to remove the upper back access panel of the range. Once removed, lift the panel off and locate the lock motor and switch assembly. Disconnect the wires from the motor and switch. Once removed, unthread the two mounting screws that hold the assembly in place. Remove the connection rod. Proceed to install the new switch and motor assembly by reattaching the connection rod and refastening the mounting screws. Reattach the wires to the motor and switch and proceed to reinstall the back panel of the oven. This genuine OEM part is sold individually and is compatible with Whirlpool, Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Sears/Kenmore brand ovens.

Right and left hand side.

The Oven Temperature Sensor is an OEM part for Whirlpool ovens. This component is responsible for monitoring the oven's internal temperature, sending data to the control board to maintain the desired cooking temperature. It ensures accurate temperature readings, which are essential for baking, roasting, and other cooking functions.

Causes of a bad Oven Temperature Sensor include prolonged exposure to high temperatures, which can degrade its responsiveness over time. Additionally, physical damage or wear and tear can lead to inaccurate temperature readings.

Symptoms of a bad Oven Temperature Sensor include:

• The oven temperature is inconsistent with the setting.
• Food is not cooking evenly or as expected.
• The oven fails to reach the set temperature, or it overshoots it significantly.
• Error codes related to temperature regulation appear on the oven's display.

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

The Whirlpool element mounting screw is an OEM replacement part responsible for securely fastening the heating element to the designated location inside the oven. This part ensures that the heating element remains firmly attached to the appliance's structure. The element mounting screw is crafted from durable materials to withstand high temperatures to provide a reliable and stable connection between the heating element and the oven.

This part fixes the following symptoms:

• Loose or wobbly heating element
• Uneven heating inside the oven
• Excessive vibrations or rattling noises during operation

The Whirlpool element mounting screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

Size: 8-18 x 3/8 inch.

This factory screw secures appliance components to their mounting points. Replace missing, worn, or stripped hardware to restore a tight fit, proper alignment, and quieter operation across the affected assembly.

• Fastens panels, brackets, covers, or internal parts to the chassis or frame
• Helps maintain alignment and support, reducing rattle, vibration, or looseness
• Replaces missing or damaged screws that have backed out, broken, or stripped
• Restores secure mounting after service when original hardware is lost

• Disconnect power; shut off water or gas supplies before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Match length and thread to the original location; do not substitute with longer hardware
• Tighten snugly; do not overtighten into plastic or thin metal

This lower thermostat monitors and helps regulate temperature in the appliance's lower compartment by opening and closing an electrical contact. Replacing a failing thermostat can restore normal cycling and help the compartment maintain correct temperatures. What it does:

• Senses lower-compartment temperature and completes or breaks the circuit to control cooling cycles.
• Helps the compressor/fan cycle on and off to maintain set temperatures.
• A defective thermostat may cause warm temperatures, continuous compressor operation, or inconsistent cooling.
• Matches the OEM function and mounting location for lower compartment temperature control.

• Disconnect power to the appliance before beginning any service.
• Label or tag wires before removal and reconnect exactly to the same terminals.
• Handle the sensor and capillary carefully; avoid kinking or excessive bending. After installation, restore power and verify normal cycling.

This hose clamp secures a rubber or plastic hose to its fitting to maintain a tight, leak-resistant seal. Replace a worn or missing clamp to stop drips and keep appliance water connections secure.

• Fastens a hose to a barb or port to prevent leaks
• Helps keep hoses from slipping off due to vibration or pressure
• Restores proper sealing when a clamp is rusted, bent, or stripped
• Common symptoms: water dripping at a hose joint, loose hose connection, or a clamp that won't tighten

• Disconnect power and shut off the water supply before servicing
• Place a towel to catch residual water when removing hoses
• Position the clamp just behind the hose barb/bead and secure with the appropriate tool
• Restore water and power, then run a quick check for leaks at the connection

This hose clamp secures a rubber or plastic hose to its fitting to maintain a tight, leak-resistant seal. Replace a worn or missing clamp to stop drips and keep appliance water connections secure.

• Fastens a hose to a barb or port to prevent leaks
• Helps keep hoses from slipping off due to vibration or pressure
• Restores proper sealing when a clamp is rusted, bent, or stripped
• Common symptoms: water dripping at a hose joint, loose hose connection, or a clamp that won't tighten

• Disconnect power and shut off the water supply before servicing
• Place a towel to catch residual water when removing hoses
• Position the clamp just behind the hose barb/bead and secure with the appropriate tool
• Restore water and power, then run a quick check for leaks at the connection
