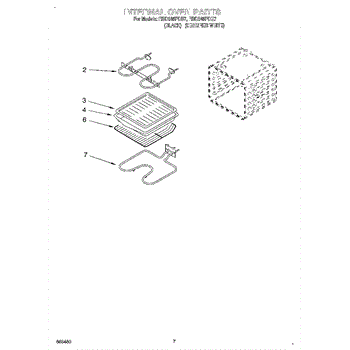

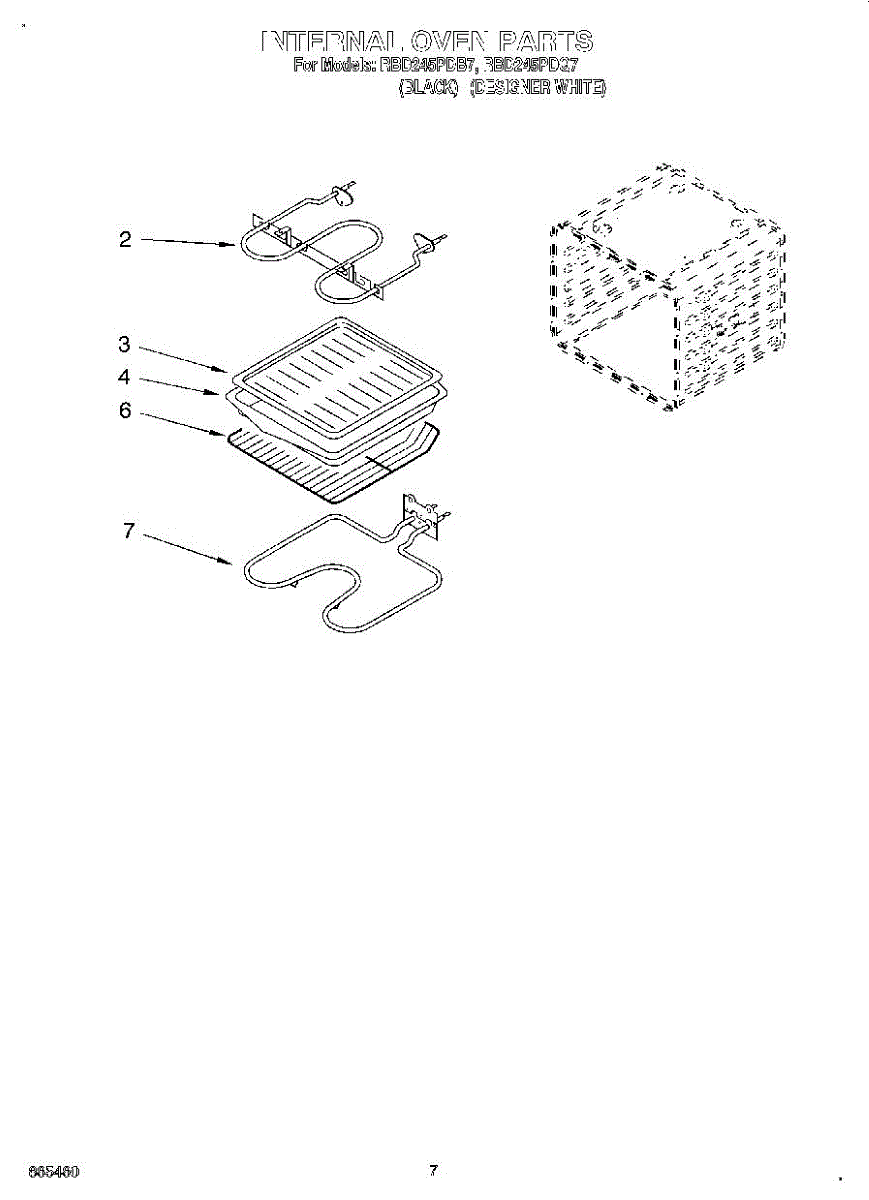

Parts for Whirlpool RBD245PDB7: 05 - Internal Oven Parts

Heating element not working? This mounting screw securely fastens the heating element in place. A simple DIY repair that takes about 20 minutes to complete.

The Broil Element is an OEM replacement part for Whirlpool ranges. It works to radiate intense heat from the top of the oven cavity, allowing for quick and effective broiling of foods placed directly underneath. The broil element relies on protective coatings to withstand high temperatures and insulated filaments to safely conduct electric current without damage.

Symptoms of a bad broil element include:

• Slow or ineffective broiling
• Uneven or lackluster browning of broiled foods
• The oven cavity not reaching high enough temperatures for broiling
• Ovens not functioning properly on the broil setting

Causes of a bad broil element can be deterioration of protective coatings over long-term use, damage to filaments from wear and tear, or burns/breaks from contact with other oven surfaces.

This OEM replacement is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Replacement broiler pan set for ovens. Includes pan and insert to catch drippings during broiling. Order if your original is missing, warped, or damaged.

Replacement broiler pan set for ovens. Includes pan and insert to catch drippings during broiling. Order if your original is missing, warped, or damaged.

Replaces a bent, rusted, or missing oven rack. Slides smoothly on cavity rails to provide stable, level support for pans during baking and roasting.

Heating element not working? This mounting screw securely fastens the heating element in place. A simple DIY repair that takes about 20 minutes to complete.

The Oven Heating Element is an OEM replacement part for Whirlpool ovens. It is a crucial component responsible for generating the heat necessary for baking, roasting, and broiling in the oven cavity.

Causes of a bad oven heating element can include mechanical failure, electrical malfunctions, or simply reaching the end of its lifespan due to repeated heating and cooling cycles.

Symptoms of a bad oven heating element:

• Oven not heating up properly or failing to reach the set temperature
• Uneven heating or hot spots within the oven cavity
• Visible damage or breaks in the heating element coil
• Unusual smells or burning odors emanating from the oven

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore ovens.

Size: 1/3 oz.

Size: 25ft, 12 Ga. 150 c Black

This part has been discontinued and is no longer available.

Specs: 25ft, 14 Ga. 150 c Black

Specs: 25ft, 14 Ga. 150 c Blue

Specs: 25ft, 14 Ga. 150 c Brown

Specs: 25 ft, 14 Ga., 150 c Green

Splicing 25 Ft. Black 12 Ga. 150~c (Wire, Orange 14 Ga. 150~c)

Splicing 25 Ft. Black 12 Ga. 150~c (Wire, Red 14 Ga. 150~c)

Splicing 25 Ft. Black 12 Ga. 150~c (Wire, Yellow 14 Ga. 150~c)

Splicing 25 Ft. Black 12 Ga. 150~c (Wire, Red 14 Ga. 200~c)

Insulation wrap that lines the oven cavity to retain heat and improve efficiency. Replace if torn, compressed, or missing to restore proper insulation.

This mounting bracket is a replacement support bracket that secures appliance components and keeps assemblies aligned for reliable operation. It restores proper fit and helps prevent rattling or movement from loose fittings. What it does:

• Secures panels or assemblies to the appliance frame to maintain proper alignment
• Reduces vibration and rattling caused by loose or damaged supports
• Restores mounting points that prevent sagging or separation of connected parts
• Helps ensure stable operation after repairs involving removed or replaced hardware

• Follow the appliance service manual for exact location and fastener torque
• Disconnect power (and gas if applicable) before beginning any repair
• Use appropriate tools and replace any damaged screws or clips with OEM-equivalent fasteners

A replacement mounting screw used to secure appliance panels and components. Restores a missing or stripped fastener so parts sit flush and stay in place for reliable operation. What it does

• Fastens panels, brackets, and trim to the appliance chassis
• Prevents rattling, loose panels, and misaligned parts when installed correctly
• Replaces missing or damaged screws to restore proper fit and function

• Disconnect power to the appliance before working on it
• Use the correct-size screwdriver or driver bit to avoid cam-out or stripping
• Install by hand until started, then snug; avoid over-tightening to prevent damage
• Keep removed hardware organized and compare to the replacement before installing

Specs: 25ft,14 Ga., 200 c Brown

Color: Citrine white. Size: 0.6 fl.oz. Bottle with brush.

Non-corrosive silicone adhesive sealant for appliance repairs. Replace cracked or missing seals on door panels, trim strips, and interior edges.

Color: Citrine white. Size: 4.5 oz. can. Acrylic appliance aerosol can spray paint.

Replacement hex nut for dryer terminal blocks and electrical connections. Secures terminal components. Needed when original is stripped, missing, or damaged.

Color: Black. Size: 12 oz. Acrylic appliance aerosol can spray paint.

Kit of 4 pins that insert into oven door hinges to safely remove the door for repairs or cleaning. Replace lost or damaged pins during door removal.

Bottle with brush. Color: Black. Size: 0.6 fl.oz.

Replacement mounting screw for securing panels, brackets, covers, and trim pieces in appliances. Restores fit when hardware is missing, stripped, or lost.

Color: White. Size: 13 oz can. Acrylic appliance aerosol can spray paint.

The Appliance Spray Paint is an OEM part for Whirlpool appliances, designed to provide a quick and effective way to touch up or completely refinish the exterior of various appliances. This specialty spray paint is formulated to adhere to metal surfaces, offering a durable and resistant finish that can withstand the routine wear and tear of kitchen environments, including heat, moisture, and everyday use.

The primary reason for using such a specialized paint is to maintain or restore the aesthetic appeal of your appliances while protecting them from further damage.

Symptoms needing for Appliance Spray Paint include:

• Scratches, chips, or rust spots on the appliance's exterior that can lead to further damage or corrosion if left untreated
• A desire to refresh or update the appearance of the appliance without the need for complete replacement
• Discoloration or fading of the original finish due to age, exposure to sunlight, or cleaning agents

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

Touch-up paint for covering scratches, chips, and minor blemishes on appliance exteriors. Restores appearance and protects surfaces when finish is damaged.
