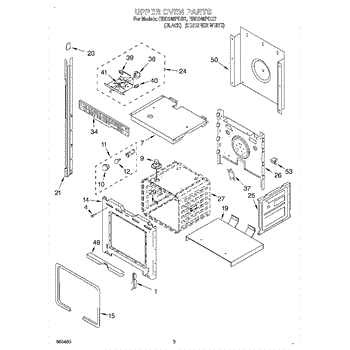

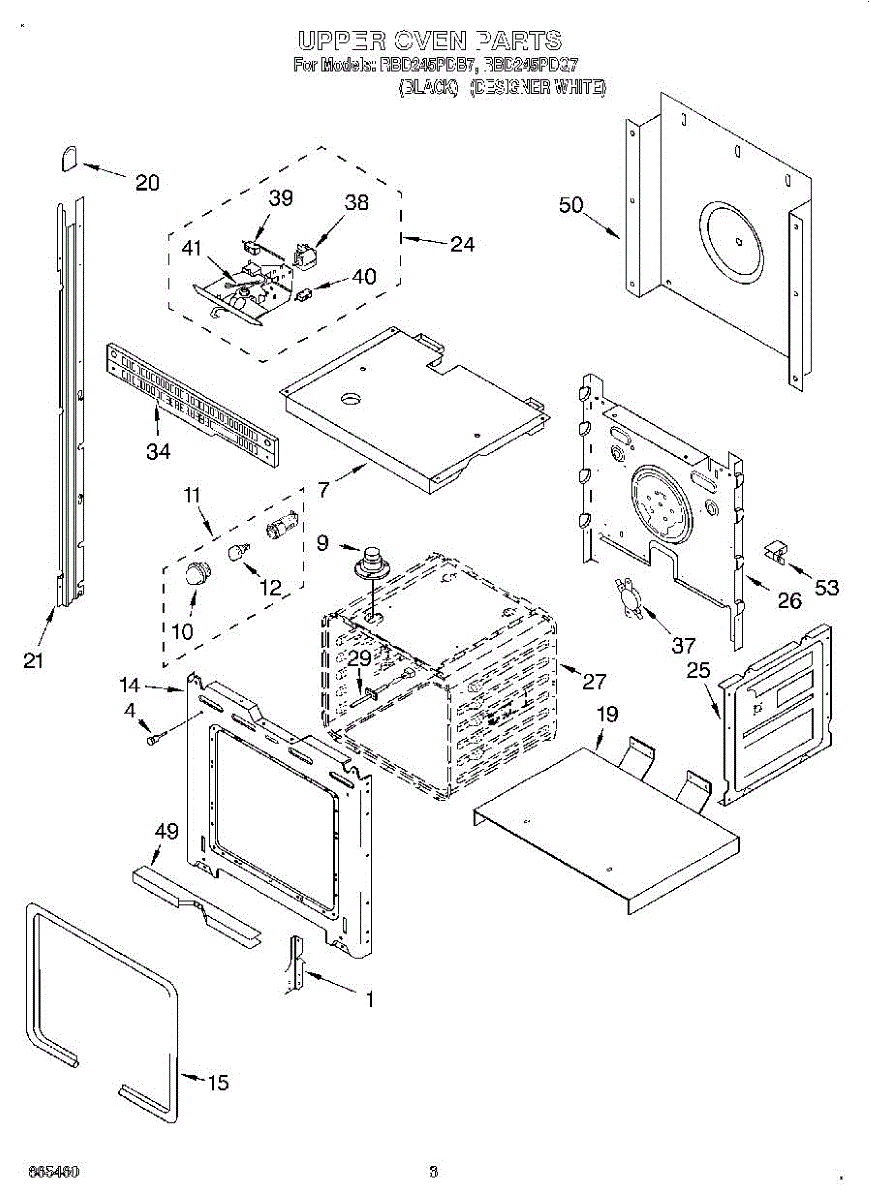

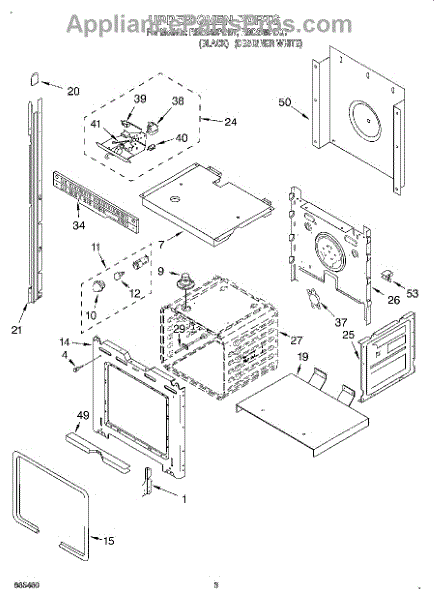

Parts for Whirlpool RBD245PDB7: 02 - Upper Oven Parts

This rubber door bumper cushions and aligns the appliance door to prevent slamming and reduce vibration, helping doors close smoothly and protecting cabinet and door finishes from wear. What it does:

• Acts as a cushion between the door and cabinet, absorbing impact during closing
• Helps keep the door aligned and reduces rattling or vibration during use
• Prevents metal-to-metal contact that can cause chipping, scratching, or noise
• Commonly replaced when worn, flattened, cracked, or missing

• One rubber door bumper

• Remove power to the appliance before accessing the door area or hinges
• Usually presses into a hole or snaps into a mount on the door or cabinet; no special tools required for many models
• Inspect surrounding mounting boss for damage; replace if cracked or deformed

This factory replacement screw secures panels, brackets, and covers in your appliance. Replacing missing or stripped hardware restores a solid fit, reduces vibration and rattles, and keeps components properly aligned during everyday use. What it does:

• Fastens panels, trim, brackets, and internal components to the cabinet or chassis
• Helps maintain alignment and reduce vibration or rattling noises
• Replaces missing, rusted, or stripped screws discovered during service
• Matches the OEM spec for locations where this part is called out on your model's diagram

• Disconnect power (and gas or water, if applicable) before servicing
• Use the appropriate driver; start threads by hand to avoid cross-threading
• Tighten snugly—do not overtighten to prevent stripping metal or plastic
• Replace hardware one screw at a time to keep parts aligned

The Whirlpool element mounting screw is an OEM replacement part responsible for securely fastening the heating element to the designated location inside the oven. This part ensures that the heating element remains firmly attached to the appliance's structure. The element mounting screw is crafted from durable materials to withstand high temperatures to provide a reliable and stable connection between the heating element and the oven.

This part fixes the following symptoms:

• Loose or wobbly heating element
• Uneven heating inside the oven
• Excessive vibrations or rattling noises during operation

The Whirlpool element mounting screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This oven light assembly provides interior illumination so you can check cooking progress without opening the door. It replaces a failed lamp component to restore clear, reliable oven cavity lighting. What it does:

• Replaces the oven interior lamp assembly to restore illumination
• Lets you view food without opening the oven door, reducing heat loss
• Commonly used when the oven light is out, flickering, or the lens is cracked
• Works with compatible ranges and wall ovens that use this factory lamp assembly

• Disconnect power to the appliance before installing to avoid shock hazard
• Allow the oven to cool fully; handle bulbs and glass parts carefully to avoid breakage
• Basic hand tools may be required; follow the appliance service manual for access and removal steps

120-130 volt, 15 watt.

U-type clip

Size: 8-18 x 3/8 inch.

This oven door gasket creates a tight, heat-resistant seal between the door and the oven frame. It keeps hot air inside, helps the oven reach and hold temperature, and protects nearby surfaces from escaping heat. What it does

• Seals the gap around the oven door to reduce heat loss
• Supports accurate temperatures and more even baking performance
• Replaces gaskets that are brittle, flattened, torn, or frayed
• Common symptoms: heat felt escaping around the door, longer preheat/cook times, temperature swings, visible damage to the gasket

• One door gasket

• Disconnect power at the breaker and allow the oven to cool completely
• Open the door and pull the old gasket straight out of its retaining holes/clips
• Start at the top center; press the new gasket's tabs into place without stretching, ensuring corners are fully seated
• Close the door to confirm uniform contact all the way around the seal

This factory replacement screw secures panels, brackets, and covers in your appliance. Replacing missing or stripped hardware restores a solid fit, reduces vibration and rattles, and keeps components properly aligned during everyday use. What it does:

• Fastens panels, trim, brackets, and internal components to the cabinet or chassis
• Helps maintain alignment and reduce vibration or rattling noises
• Replaces missing, rusted, or stripped screws discovered during service
• Matches the OEM spec for locations where this part is called out on your model's diagram

• Disconnect power (and gas or water, if applicable) before servicing
• Use the appropriate driver; start threads by hand to avoid cross-threading
• Tighten snugly—do not overtighten to prevent stripping metal or plastic
• Replace hardware one screw at a time to keep parts aligned

Left hand side. For the right hand side order 814373.

Right hand side. For the left side order 814374.

The Whirlpool element mounting screw is an OEM replacement part responsible for securely fastening the heating element to the designated location inside the oven. This part ensures that the heating element remains firmly attached to the appliance's structure. The element mounting screw is crafted from durable materials to withstand high temperatures to provide a reliable and stable connection between the heating element and the oven.

This part fixes the following symptoms:

• Loose or wobbly heating element
• Uneven heating inside the oven
• Excessive vibrations or rattling noises during operation

The Whirlpool element mounting screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

Includes latch lock body, door latch solenoid kit, two microswitches and the door latch spring.

This factory replacement screw secures panels, brackets, and covers in your appliance. Replacing missing or stripped hardware restores a solid fit, reduces vibration and rattles, and keeps components properly aligned during everyday use. What it does:

• Fastens panels, trim, brackets, and internal components to the cabinet or chassis
• Helps maintain alignment and reduce vibration or rattling noises
• Replaces missing, rusted, or stripped screws discovered during service
• Matches the OEM spec for locations where this part is called out on your model's diagram

• Disconnect power (and gas or water, if applicable) before servicing
• Use the appropriate driver; start threads by hand to avoid cross-threading
• Tighten snugly—do not overtighten to prevent stripping metal or plastic
• Replace hardware one screw at a time to keep parts aligned

Right and left hand side.

This factory replacement screw secures panels, brackets, and covers in your appliance. Replacing missing or stripped hardware restores a solid fit, reduces vibration and rattles, and keeps components properly aligned during everyday use. What it does:

• Fastens panels, trim, brackets, and internal components to the cabinet or chassis
• Helps maintain alignment and reduce vibration or rattling noises
• Replaces missing, rusted, or stripped screws discovered during service
• Matches the OEM spec for locations where this part is called out on your model's diagram

• Disconnect power (and gas or water, if applicable) before servicing
• Use the appropriate driver; start threads by hand to avoid cross-threading
• Tighten snugly—do not overtighten to prevent stripping metal or plastic
• Replace hardware one screw at a time to keep parts aligned

This factory replacement screw secures panels, brackets, and covers in your appliance. Replacing missing or stripped hardware restores a solid fit, reduces vibration and rattles, and keeps components properly aligned during everyday use. What it does:

• Fastens panels, trim, brackets, and internal components to the cabinet or chassis
• Helps maintain alignment and reduce vibration or rattling noises
• Replaces missing, rusted, or stripped screws discovered during service
• Matches the OEM spec for locations where this part is called out on your model's diagram

• Disconnect power (and gas or water, if applicable) before servicing
• Use the appropriate driver; start threads by hand to avoid cross-threading
• Tighten snugly—do not overtighten to prevent stripping metal or plastic
• Replace hardware one screw at a time to keep parts aligned

The Whirlpool element mounting screw is an OEM replacement part responsible for securely fastening the heating element to the designated location inside the oven. This part ensures that the heating element remains firmly attached to the appliance's structure. The element mounting screw is crafted from durable materials to withstand high temperatures to provide a reliable and stable connection between the heating element and the oven.

This part fixes the following symptoms:

• Loose or wobbly heating element
• Uneven heating inside the oven
• Excessive vibrations or rattling noises during operation

The Whirlpool element mounting screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This oven vent directs hot air out of the oven cavity and helps maintain proper internal temperature and airflow. It replaces a damaged or warped vent to restore venting performance and oven appearance. What it does:

• Channels heat and steam out of the oven cavity to support even cooking
• Helps prevent heat buildup behind the oven and adjacent cabinetry
• Replaces cracked, bent or discolored vent trim that can affect airflow or appearance
• Compatible with factory vent locations — installs where the original vent was mounted

• Designed for rear/top vent mounting; verify orientation matches your appliance before installing
• Disconnect power to the appliance before beginning any service to avoid shock or injury
• Handle edges carefully; use appropriate tools to remove mounting screws and clips
• If vent damage is extensive or other components are affected, inspect surrounding parts and wiring

This factory replacement screw secures panels, brackets, and covers in your appliance. Replacing missing or stripped hardware restores a solid fit, reduces vibration and rattles, and keeps components properly aligned during everyday use. What it does:

• Fastens panels, trim, brackets, and internal components to the cabinet or chassis
• Helps maintain alignment and reduce vibration or rattling noises
• Replaces missing, rusted, or stripped screws discovered during service
• Matches the OEM spec for locations where this part is called out on your model's diagram

• Disconnect power (and gas or water, if applicable) before servicing
• Use the appropriate driver; start threads by hand to avoid cross-threading
• Tighten snugly—do not overtighten to prevent stripping metal or plastic
• Replace hardware one screw at a time to keep parts aligned

The Upper Oven Thermal Fuse is an OEM part compatible with Whirlpool double wall ovens. Located near the upper oven heating element, this safety device protects the upper oven cavity from excessive heat rises. If temperatures get too high, the fuse automatically cuts power to prevent overheating.

Symptoms of a blown upper oven thermal fuse include:

• The upper oven failing to heat or losing total heating function
• Burning smells emanating from the upper oven cavity
• Safety shutdown errors related to over-temperature conditions

Common causes are airflow restriction trapping heat or faulty wiring allowing overheating. Natural aging also deteriorates fuses over extended use cycles.

Compatible brands include KitchenAid, Jenn-Air and some Kenmore wall oven models.

Includes the two terminal solenoid, plunger and spring.

This mirco switch has normally closed contacts. This means when you press the button the contacts will be open.

The Gasket Retainer is an OEM part for Whirlpool ovens. It secures the oven door gasket in place, ensuring a tight seal that prevents heat from escaping during cooking. This helps maintain consistent cooking temperatures and improves energy efficiency.

Causes of a bad oven gasket retainer can include wear and tear from repeated use, heat damage, or accidental impact that causes the retainer to break or become misshapen.

Symptoms of a bad oven gasket retainer include:

• The oven door gasket not staying in place
• Heat escaping from the oven, leading to uneven cooking
• Visible damage or deformation of the retainer

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Whirlpool element mounting screw is an OEM replacement part responsible for securely fastening the heating element to the designated location inside the oven. This part ensures that the heating element remains firmly attached to the appliance's structure. The element mounting screw is crafted from durable materials to withstand high temperatures to provide a reliable and stable connection between the heating element and the oven.

This part fixes the following symptoms:

• Loose or wobbly heating element
• Uneven heating inside the oven
• Excessive vibrations or rattling noises during operation

The Whirlpool element mounting screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This replacement back cover restores the appliance's rear housing to protect internal components from debris and accidental contact. It keeps wiring and controls enclosed and helps maintain proper airflow behind the unit. What it does:

• Covers and protects the motor, wiring, and control components at the rear of the appliance
• Replaces cracked, broken, or missing rear panels that expose internal parts
• Stops rattling or vibration caused by loose or damaged covers
• Helps prevent debris and pets from entering the cabinet area

• Disconnect power to the appliance before starting any repair
• Basic hand tools required; mounting screws may need removal and reinstallation
• Handle edges carefully—sheet metal can be sharp

This factory replacement screw secures panels, brackets, and covers in your appliance. Replacing missing or stripped hardware restores a solid fit, reduces vibration and rattles, and keeps components properly aligned during everyday use. What it does:

• Fastens panels, trim, brackets, and internal components to the cabinet or chassis
• Helps maintain alignment and reduce vibration or rattling noises
• Replaces missing, rusted, or stripped screws discovered during service
• Matches the OEM spec for locations where this part is called out on your model's diagram

• Disconnect power (and gas or water, if applicable) before servicing
• Use the appropriate driver; start threads by hand to avoid cross-threading
• Tighten snugly—do not overtighten to prevent stripping metal or plastic
• Replace hardware one screw at a time to keep parts aligned

This support bracket secures and stabilizes appliance panels and internal assemblies where a small mounting brace is required. It restores proper alignment and helps prevent vibration or sagging for a firmer fit and quieter operation. What it does

• Anchors and supports panels, trim, or internal components to the cabinet or frame
• Keeps assemblies aligned to prevent rubbing, gaps, or misalignment
• Reduces rattling and vibration caused by loose or missing bracketry
• Restores proper fit when original bracket is bent, broken, or missing

• Disconnect power to the appliance before beginning any repair
• Inspect mounting location and replace any stripped fasteners or damaged hardware
• Use the correct screws and hand tools to avoid stripping or overtightening

This factory replacement screw secures panels, brackets, and covers in your appliance. Replacing missing or stripped hardware restores a solid fit, reduces vibration and rattles, and keeps components properly aligned during everyday use. What it does:

• Fastens panels, trim, brackets, and internal components to the cabinet or chassis
• Helps maintain alignment and reduce vibration or rattling noises
• Replaces missing, rusted, or stripped screws discovered during service
• Matches the OEM spec for locations where this part is called out on your model's diagram

• Disconnect power (and gas or water, if applicable) before servicing
• Use the appropriate driver; start threads by hand to avoid cross-threading
• Tighten snugly—do not overtighten to prevent stripping metal or plastic
• Replace hardware one screw at a time to keep parts aligned
