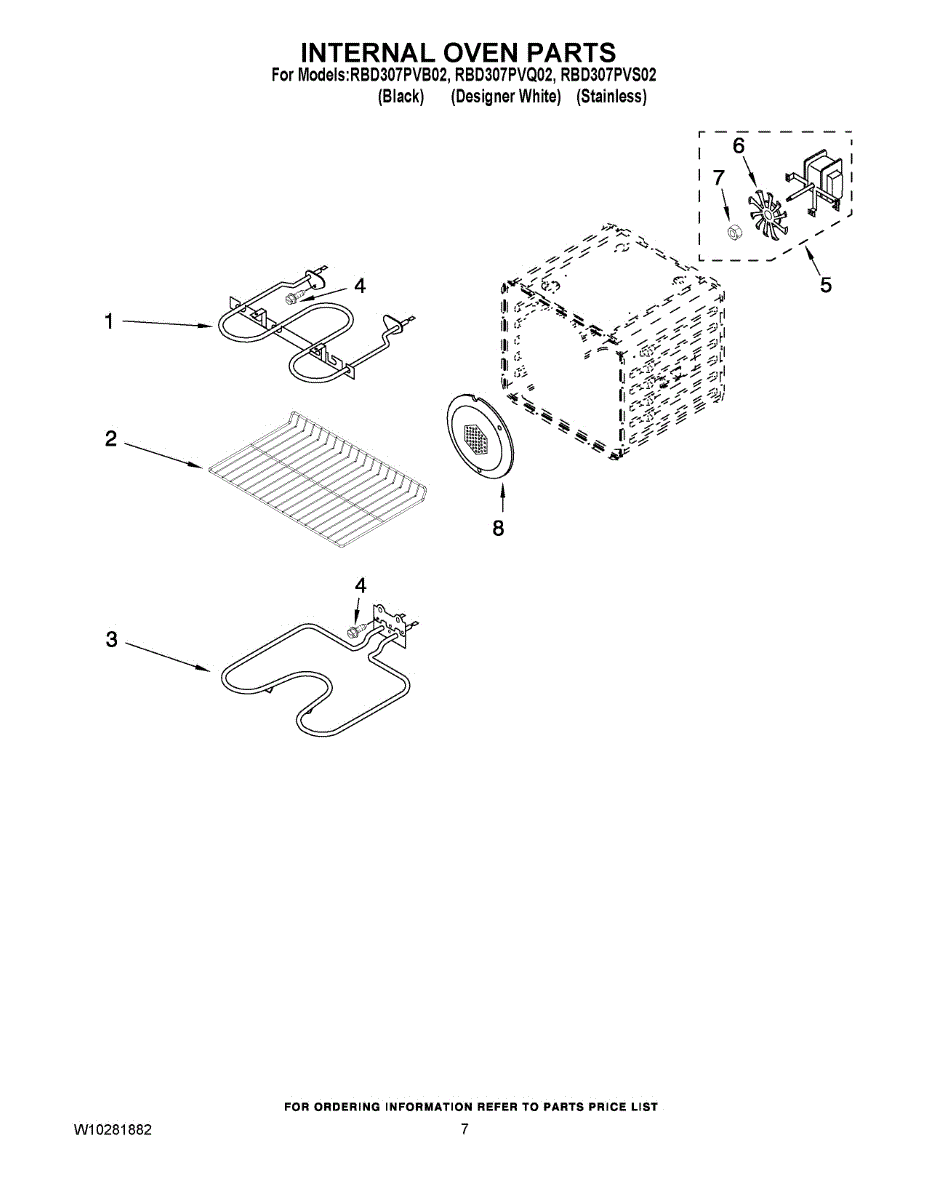

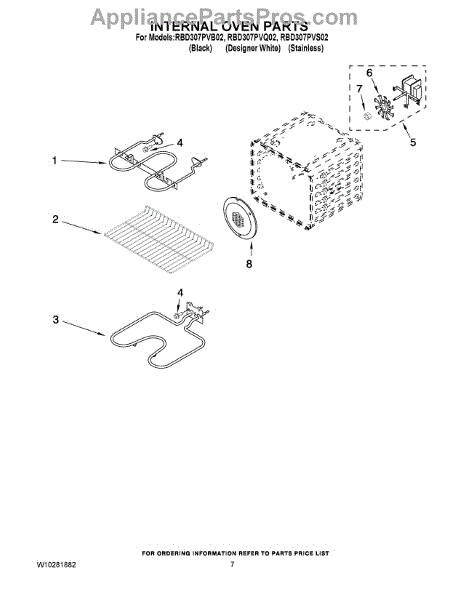

Parts for Whirlpool RBD307PVB02: 05 - Internal Oven Parts

The Broil Element is an OEM part for Whirlpool ovens. This element is located at the top of the oven and provides the high heat necessary for broiling food.

Causes of a faulty Broil Element can vary. One indicator is visible damage like blistering, bulging, or breaks in the element. Another sign could be a lack of heat when the broil function is turned on, which might signal a burned-out element. If the element is constantly tripping the circuit breaker, it could point to an electrical issue.

Symptoms of a malfunctioning Broil Element include:

• Food not broiling or browning properly.
• The oven not reaching the set temperature or taking longer than usual to heat.
• Unusual electrical odors or sparks coming from the element area during use.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Oven Rack is an OEM part for Whirlpool ovens. This durable rack provides a stable surface for your cookware, allowing for optimal air circulation and even heat distribution. The rack measures about 24 inches wide by 16 inches deep.

Causes of a bad Oven Rack can include warping due to excessive heat, accumulation of rust or food debris, and physical damage which can affect its stability and performance.

Symptoms of a bad Oven Rack include:

• Difficulty sliding the rack in and out, indicating warping or damage.
• Uneven cooking or baking results due to poor placement or heat circulation.
• The rack failing to hold weight securely, posing a risk of dropping cookware.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Oven Heating Element is an OEM replacement part for Whirlpool ovens. It is a crucial component responsible for generating the heat necessary for baking, roasting, and broiling in the oven cavity.

Causes of a bad oven heating element can include mechanical failure, electrical malfunctions, or simply reaching the end of its lifespan due to repeated heating and cooling cycles.

Symptoms of a bad oven heating element:

• Oven not heating up properly or failing to reach the set temperature
• Uneven heating or hot spots within the oven cavity
• Visible damage or breaks in the heating element coil
• Unusual smells or burning odors emanating from the oven

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore ovens.

The Whirlpool element mounting screw is an OEM replacement part responsible for securely fastening the heating element to the designated location inside the oven. This part ensures that the heating element remains firmly attached to the appliance's structure. The element mounting screw is crafted from durable materials to withstand high temperatures to provide a reliable and stable connection between the heating element and the oven.

This part fixes the following symptoms:

• Loose or wobbly heating element
• Uneven heating inside the oven
• Excessive vibrations or rattling noises during operation

The Whirlpool element mounting screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This fan motor powers the cooling fan that moves air through your unit. Replacing a worn or noisy motor restores proper airflow to help maintain stable temperatures and reliable performance. What it does:

• Drives the fan blade to circulate air for cooling and temperature control
• Helps prevent component overheating caused by weak or stalled airflow
• Fixes: fan not running or starting intermittently
• Fixes: loud humming, grinding, or rattling from the fan area
• Fixes: longer run times or warm spots due to poor airflow

• Includes: 1 fan motor

• Disconnect power before servicing; allow moving parts to stop
• Note wire positions and motor orientation; take a photo for reference
• Transfer the existing fan blade and mounting hardware as needed
• After install, ensure the fan spins freely and no wiring contacts moving parts before restoring power

This convection fan blade mounts to the fan motor and circulates hot air during convection cycles. Replacing a bent or damaged blade restores proper airflow, promoting more even temperatures and consistent baking and roasting performance.

• Mounts on the convection motor shaft to drive airflow through the oven cavity
• Helps maintain uniform temperatures for consistent convection baking/roasting
• Typical failure signs: rattling or scraping noises, visible wobble or damaged fins, weak airflow, or the fan not spinning freely
• A worn blade can contribute to uneven results in convection mode

• Disconnect power and allow the appliance to cool completely before servicing
• Access the blade behind the interior fan cover or rear panel (varies by model); note blade orientation and any spacers/washers for reassembly
• Handle sharp edges; avoid bending fins and ensure the blade spins freely without rubbing before restoring power
• For microwave/OTR convection units, high-voltage components are present.
