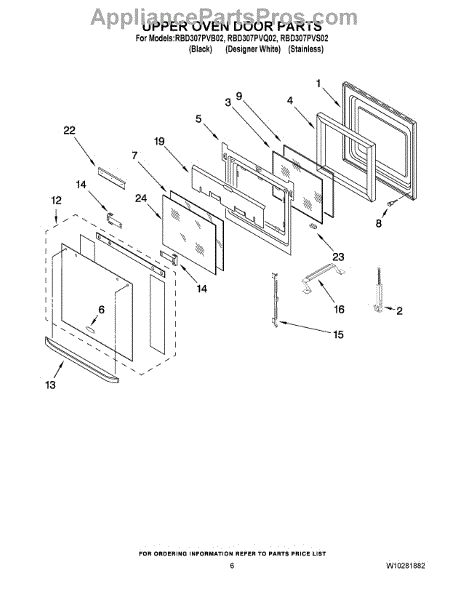

Parts for Whirlpool RBD307PVB02: 04 - Upper Oven Door Parts

Replace your cracked, dented, or worn 30-inch oven door panel. This outer skin restores appearance and supports the handle, glass, and trim assembly.

This ground screw secures the appliance's grounding wire or strap to the chassis or terminal area, creating a reliable bonding point. Replace a missing or damaged screw to restore a proper ground connection during installation or service.

• Provides the designated bonding point for the grounding wire/strap
• Fastens to the frame or terminal area using 8-32 machine threads
• Helps maintain a consistent ground path for safe operation
• Typical reasons to replace: stripped head/threads, corrosion, or a missing screw

• Disconnect power at the breaker or unplug the appliance before servicing
• Route the ground wire/strap to the specified grounding location
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Ensure the ground connection is secure and complies with local electrical codes before restoring power

Replacement hinge for wall oven doors. Installs on left or right side to support door operation. Needed when hinge is broken, cracked, or worn.

Door hinge for electric wall ovens. Mounts to the oven frame to support the door. Replace if hinge is broken, cracked, or door is hard to open and close.

Replacement door hinge for wall ovens. Supports the oven door for smooth opening and closing. Replace if bent, broken, or door won't stay horizontal.

The Rear Oven Door Glass is an OEM part for Whirlpool ovens. This glass panel is installed on the inside of the oven door and is essential for providing a heat-resistant viewing window, allowing users to monitor the cooking process without opening the door. Measuring about 20 inches by 10 inches, this quality glass keeps heat in the oven and provides a clear view for easy baking.

Symptoms of a bad Rear Oven Door Glass include:

• Cracks or chips in the glass,
• Visible streaks or fogging between glass layers that can't be cleaned,
• A loose fit that may cause heat to escape or the glass to rattle during oven use.

Causes of rear oven door glass damage typically include thermal stress from high heat, impact from closing the door too forcefully, or accidental bumps with pots or pans.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Fixes heat loss and hot exterior oven door surfaces. Thermal insulation maintains internal temperature. Advanced repair requiring door removal, 15+ min.

Replacement mounting screw for securing panels, brackets, covers, and trim pieces in appliances. Restores fit when hardware is missing, stripped, or lost.

Replaces the inner heat-resistant glass panel in your oven door. Needed when glass is cracked, shattered, or broken during cleaning or use.

This rubber door bumper cushions and aligns the appliance door to prevent slamming and reduce vibration, helping doors close smoothly and protecting cabinet and door finishes from wear. What it does:

• Acts as a cushion between the door and cabinet, absorbing impact during closing
• Helps keep the door aligned and reduces rattling or vibration during use
• Prevents metal-to-metal contact that can cause chipping, scratching, or noise
• Commonly replaced when worn, flattened, cracked, or missing

• One rubber door bumper

• Remove power to the appliance before accessing the door area or hinges
• Usually presses into a hole or snaps into a mount on the door or cabinet; no special tools required for many models
• Inspect surrounding mounting boss for damage; replace if cracked or deformed

Color: Black

Color: White

Replace your cracked, shattered, or broken oven outer door glass panel. Installs as the front panel of your oven door for viewing while cooking.

Color: White

Black oven door handle that mounts to the exterior of your oven door. Replace this part if your handle is cracked, broken, loose, or discolored.

Color: Stainless

This is the left side handle bracket. For right side use 4455803.

Right side handle bracket for oven doors. Secures the door handle to the frame. Replace if cracked, broken, or missing. Stainless steel construction.

Mounting bracket for wall ovens. Secures the oven to the cabinet cutout. Replace if bent, rusted, or damaged during installation or service work.

Replacement mounting screw for securing panels, brackets, covers, and trim pieces in appliances. Restores fit when hardware is missing, stripped, or lost.

Heat shield for electric wall ovens. Protects internal components from excess heat. Replace if cracked, warped, or missing to maintain proper insulation.

Color: Black

Color: White.

Replacement inner door glass panel for electric wall ovens. Installs between the outer and inner door frames. Order if your glass is cracked or broken.
