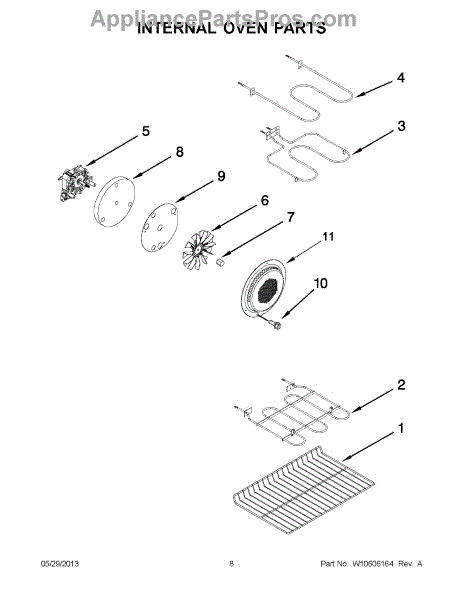

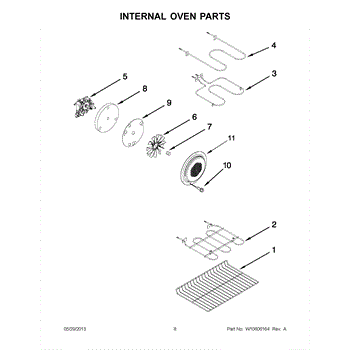

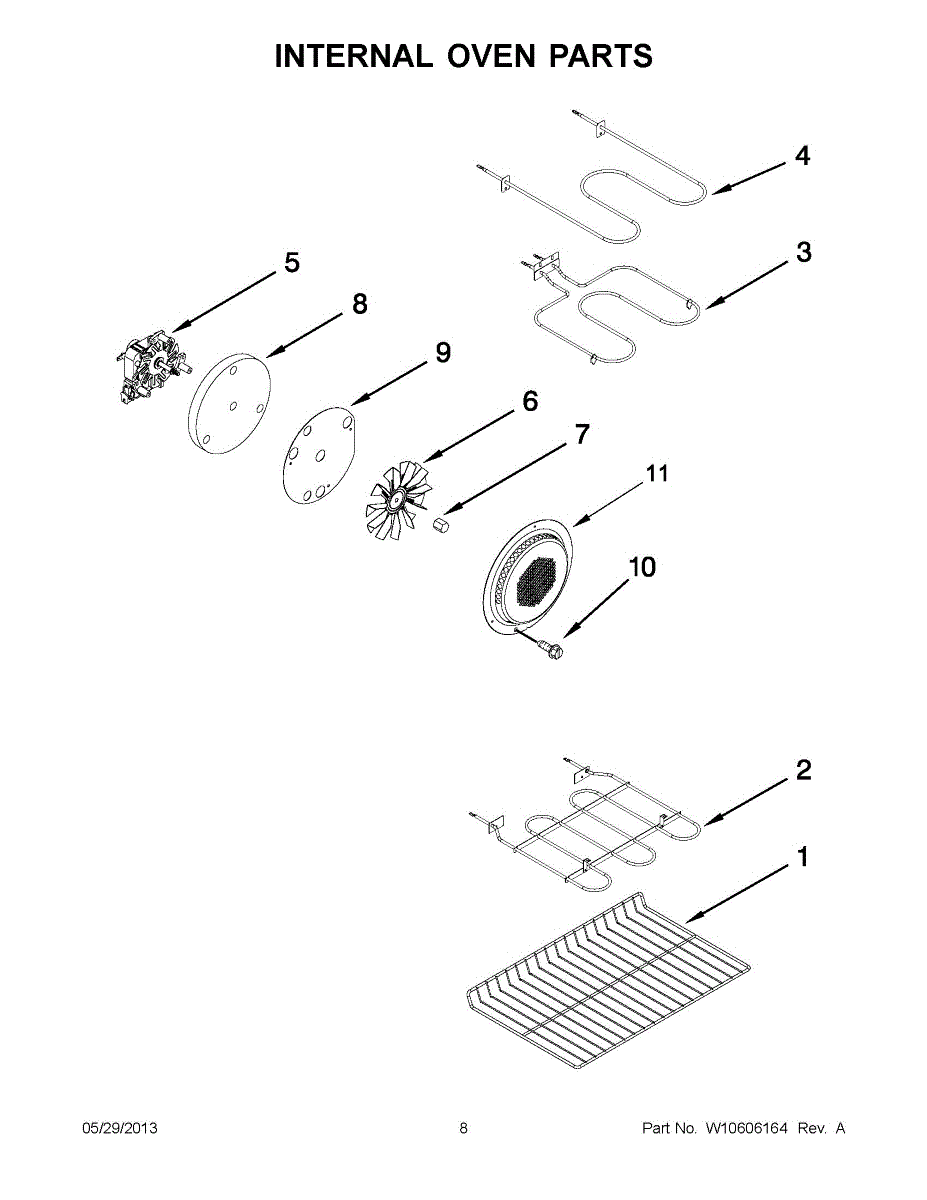

Parts for Whirlpool WGI925C0BS00: 04 - Internal Oven Parts

The Oven Rack is an OEM part for Whirlpool ovens. This durable rack provides a stable surface for your cookware, allowing for optimal air circulation and even heat distribution. The rack measures about 24 inches wide by 16 inches deep.

Causes of a bad Oven Rack can include warping due to excessive heat, accumulation of rust or food debris, and physical damage which can affect its stability and performance.

Symptoms of a bad Oven Rack include:

• Difficulty sliding the rack in and out, indicating warping or damage.
• Uneven cooking or baking results due to poor placement or heat circulation.
• The rack failing to hold weight securely, posing a risk of dropping cookware.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This broil element replaces the upper heating element in electric ovens to restore broiling and top-heat cooking performance. It provides the heating surface used for browning, searing, and finishing dishes under the oven broiler. What it does

• Replaces a damaged or burned-out upper broil element to restore broiling heat
• Heats from the top of the oven for browning, melting, and finishing foods
• Common symptom: broiler cycles but fails to heat, produces no or weak top heat
• Also used when the element shows visible damage, breaks, or sparks

• One upper broil element

• Disconnect power to the appliance before starting—verify power is off at the breaker
• Allow the oven to cool completely and handle the element by insulated areas only
• Remove the oven racks and access the element mounting screws/terminals; support the element when disconnecting wiring
• Test fit and power up briefly to confirm operation after installation

This bake element replaces the oven's lower heating element to restore reliable baking and roasting performance. It provides the heating surface that warms the oven cavity for even cooking. What it does:

• Heats the oven cavity from the bottom for baking and roasting
• Restores proper oven temperature when the original element is burnt out or visibly damaged
• Helps eliminate cold spots and uneven baking caused by a failed element
• Works with the oven's control system to reach and maintain set temperatures

• One bake (lower) oven heating element

• Disconnect power to the appliance at the breaker or unplug before starting work
• Handle the element and terminal connections carefully to avoid bending or breaking
• Verify correct fit and secure electrical connections; restore power and test the element before reassembling panels

This upper broil element sits at the top of the oven cavity to provide intense radiant heat for broiling and finishing. Replacing a burned-out element can restore top-heat performance and consistent, even results.

• Provides direct, high heat from the top during Broil to sear and brown food
• Common symptoms include: no broil heat, uneven top browning, only the bake element heats, visible cracks/blisters, or tripping a breaker from a shorted element
• Works with the oven control to cycle heat and maintain broil temperature
• A failed element typically shows no continuity when tested with a multimeter

• Disconnect power at the circuit breaker and allow the oven to cool completely
• Remove racks; support the element, remove mounting screws, and carefully pull it forward
• Transfer wires one at a time with insulated pliers; prevent leads from slipping back into the insulation
• Avoid bending the element or over-tightening screws; ensure terminals are fully seated, restore power, and test Broil

The Range Fan Motor is an OEM component specifically designed for Whirlpool electric ranges. It powers the convection ventilation system that removes smoke, steam, and odors from the cooktop and oven. The motor circulates air evenly to enhance cooking performance.

Causes of a bad fan motor can include heat damage accumulated over time. General wear from powering the ventilation system daily also contributes to internal degradation. Improper cleaning allowing moisture poses another failure risk.

Symptoms of a bad fan motor include:

• Vibration or grinding noises from within the fan housing
• Reduced or erratic air movement across the range
• Failure to engage or turn on as intended
• Thermal overload or burnt smells from motor overheating

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This convection fan blade mounts to the fan motor and circulates hot air during convection cycles. Replacing a bent or damaged blade restores proper airflow, promoting more even temperatures and consistent baking and roasting performance.

• Mounts on the convection motor shaft to drive airflow through the oven cavity
• Helps maintain uniform temperatures for consistent convection baking/roasting
• Typical failure signs: rattling or scraping noises, visible wobble or damaged fins, weak airflow, or the fan not spinning freely
• A worn blade can contribute to uneven results in convection mode

• Disconnect power and allow the appliance to cool completely before servicing
• Access the blade behind the interior fan cover or rear panel (varies by model); note blade orientation and any spacers/washers for reassembly
• Handle sharp edges; avoid bending fins and ensure the blade spins freely without rubbing before restoring power
• For microwave/OTR convection units, high-voltage components are present.

The Whirlpool element mounting screw is an OEM replacement part responsible for securely fastening the heating element to the designated location inside the oven. This part ensures that the heating element remains firmly attached to the appliance's structure. The element mounting screw is crafted from durable materials to withstand high temperatures to provide a reliable and stable connection between the heating element and the oven.

This part fixes the following symptoms:

• Loose or wobbly heating element
• Uneven heating inside the oven
• Excessive vibrations or rattling noises during operation

The Whirlpool element mounting screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.
