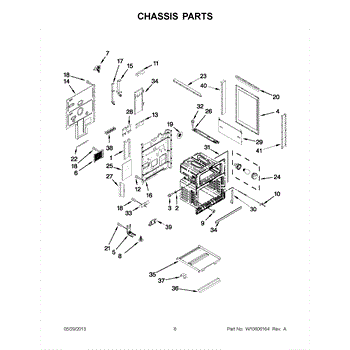

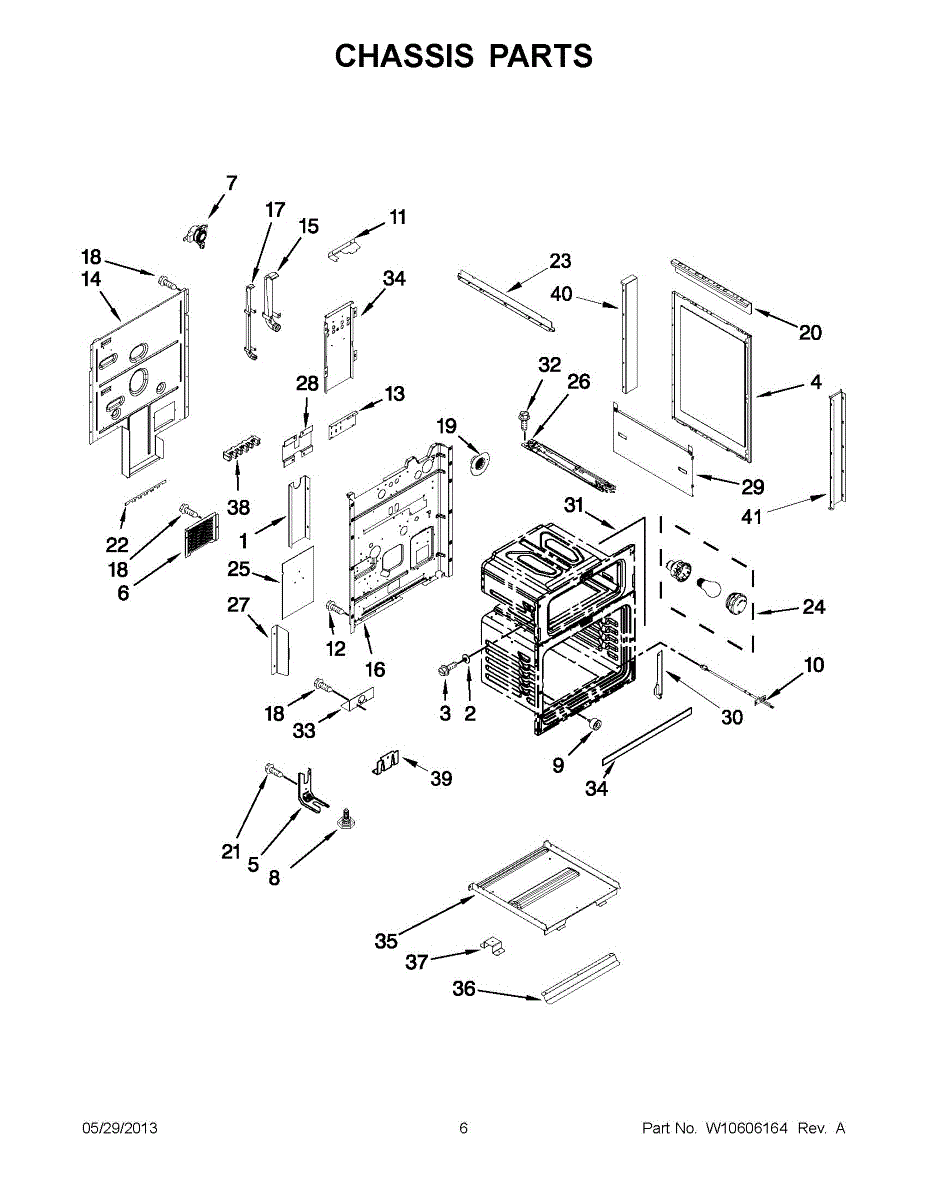

Parts for Whirlpool WGI925C0BS00: 03 - Chassis Parts

A small replacement spacer that positions and supports a side panel, helping maintain proper panel alignment and gap for safe, quiet operation. Restores the correct spacing when the original spacer is damaged or missing. What it does:

• Keeps the side panel aligned and properly spaced from the cabinet
• Prevents rubbing, vibration noise, and panel misalignment
• Helps maintain consistent clearances for adjacent components
• Useful when a broken, cracked or missing spacer causes loose or uneven panels

• One replacement spacer for the side panel

• Disconnect power to the appliance before beginning any repairs
• Access typically requires removing the side panel or adjacent trim; keep track of fasteners
• Handle panels carefully to avoid scratching or denting during reassembly

For screws order: WP7101P485-60.

A hi-limit safety switch that stops heating when temperatures get too high, protecting the appliance from overheating and helping prevent damage. Designed to replace a failed thermal cutoff to restore safe temperature control. What it does:

• Opens the heating circuit when internal temperature exceeds the safe limit to prevent overheating
• Commonly replaces a failed or intermittently opening thermal limit control
• Helps stop burners or heating elements from running unchecked when a thermostat fails
• Addresses symptoms like no heat, intermittent heating, or safety trip shutdowns

• Disconnect power before accessing heating components and wiring
• Verify the part matches the appliance diagram and wiring orientation before installation
• If corrosion or other damage is present on connectors or terminals, replace or repair per OEM guidance

The Leveling Leg is an OEM replacement part for Whirlpool ranges. These adjustable legs help balance and stabilize the range.

Causes of a bad leveling leg commonly involve wear over time, thread or weld failures from supporting heavy loads, as well as damage due to impact or drops during installation.

Symptoms of a faulty leveling leg include:

• Instability such as rocking motions felt while cooking
• Uneven heating
• Doors that do not close properly

This is a genuine Whirlpool OEM replacement this part is also compatible with Maytag, Jenn-Air and some Kenmore models.

This small replacement bumper cushions contact points to reduce noise, prevent wear, and help doors or panels close more quietly and sit flush. Use it to restore proper cushioning where an original bumper is worn or missing. What it does:

• Absorbs shock and prevents metal-to-metal contact that can cause noise or chipping
• Helps doors, panels, or components close more softly and remain properly seated
• Reduces vibration transferred to surrounding parts for quieter operation
• Restores protective spacing to prevent rubbing and premature wear

• Disconnect power to the appliance before servicing and follow the manufacturer's safety instructions
• Typically installs at the contact point; remove the old bumper and press or place the replacement into position
• If the bumper uses adhesive or a fastener, use the same method indicated by the OEM for secure fitment

This oven temperature sensor monitors heat inside the oven and sends that signal to the control to regulate the heating elements. Replacing a faulty sensor restores accurate preheat and steadier baking performance. What it does:

• Continuously measures actual oven-cavity temperature and reports it to the control
• Lets the control board cycle bake and broil elements to maintain the set temperature
• Common symptoms of failure: won't reach set temperature, runs too hot or too cold, extended preheat, or sensor-related error codes on the display
• If the sensor reads open/shorted, many controls will disable heat as a safety

• 1 oven temperature sensor

• Disconnect power at the breaker; allow the oven to cool completely
• Sensor is typically mounted to the rear oven wall; remove mounting screws and gently pull the sensor forward to access the connector (some models require rear-panel access)
• Disconnect the 2-wire plug carefully to avoid losing the connector into the insulation
• Route wiring as original, seat the connector fully, secure the sensor, restore power, and test operation

This lower vent tube routes exhaust/condensate away from the appliance to maintain proper airflow and drainage. Replacing a damaged vent tube restores correct venting and helps reduce leaks, noises, or performance issues tied to poor airflow. What it does:

• Channels air or condensate from the appliance's venting area to the lower exhaust/drain connection
• Prevents leaks and directs moisture away from internal components
• Helps restore proper airflow and reduces unusual sounds caused by damaged or collapsed tubing
• Used when visible cracks, holes, blockages, or detachment are found in the existing lower vent

• One lower vent tube (single piece as shown)

• Disconnect power and water (if applicable) before starting any repair
• Inspect mating seals and clamps; replace if worn to ensure a secure, leak-free fit
• Handle gently to avoid kinking; route the tube the same way as the original for correct airflow/drainage

A shoulder screw that secures appliance components and provides a precise pivot or spacer point. Replaces a missing or worn screw to restore alignment, reduce rattling, and keep panels and assemblies securely in place. What it does:

• Provides a fixed-diameter shoulder for pivots, spacers, or mounting points in assemblies.
• Holds panels and moving components at the correct distance to prevent binding or friction.
• A missing or worn shoulder screw can cause misalignment, rattling, or loose parts during operation.
• Used where a smooth-bearing surface and controlled clearance are required between parts.

• Disconnect power to the appliance (unplug or shut off breaker) before servicing.
• Handle small fasteners carefully to avoid dropping into assemblies; magnetic pickup tools can help.
• Start threads by hand to avoid cross-threading; tighten snugly but avoid overtightening.

This support bracket secures and stabilizes internal appliance components, helping keep panels and assemblies aligned for reliable operation and reduced vibration. Use when a mount or internal bracket is broken, bent, or missing. What it does

• Provides a secure mounting point for internal panels and assemblies
• Keeps components aligned to prevent rubbing, noise, or misfeeds
• Restores proper fit where original bracket is damaged or corroded
• Helps maintain cabinet stability during normal operation

• One support bracket as shown

• Refer to your appliance's service manual or exploded diagram for correct location and fastener type
• Inspect surrounding hardware and replace any stripped screws or damaged anchors
• Disconnect power (or gas and power for gas appliances) before starting repairs

Screws for range anti tip bracket: WP3801F656-51. Includes 2 screws.

The Light Socket Assembly is an OEM part for Whirlpool ranges and wall ovens. This part houses the oven light bulb, providing the necessary electrical connections to illuminate the oven's interior. It ensures that you can monitor the cooking process without opening the oven door, thereby maintaining a consistent temperature and energy efficiency.

Causes of damage to the light socket assembly often include excessive heat, electrical surges, or physical damage during cleaning or maintenance.

A malfunctioning light socket assembly can lead to several issues, including:

• The inability to turn the oven light on
• Flickering or inconsistent lighting caused by loose connections or damage to the socket
• Complete failure of the light feature, due to wear and tear or electrical faults

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This door latch keeps the door securely closed and engages the door switch/interlock so the appliance operates as designed. Replacing a worn or broken latch helps resolve door-related errors and restores reliable, safe operation.

• Secures the door against the strike for proper closure and alignment
• Actuates the door switch/interlock so controls recognize a closed door
• Helps prevent operation when the door is open or not fully latched
• Common symptoms: door won't latch or stay closed; unit won't start or shows a "door/open-close" message; broken or loose latch hook

• Disconnect power before servicing; use proper PPE and beware of sharp edges
• Access the latch through the door panel/trim as applicable; use non-marring tools to avoid damage
• Transfer any reusable clips/springs from the old latch to the new part
• After installation, verify smooth door closure and that the control detects the door as closed

This oven door gasket creates a tight seal around the oven door to help keep heat and moisture inside for more even baking and cooking. It replaces a worn or torn seal to reduce heat loss and improve oven performance. What it does:

• Seals the oven door to prevent heat and smoke from leaking during operation
• Helps maintain consistent oven temperatures for more even cooking and baking
• Reduces energy loss and prevents exterior surfaces from getting excessively hot
• Addresses symptoms like visible gaps, burned or brittle rubber, smoke escaping, or longer cook times

• Disconnect power to electric ovens or shut off gas supply and pilot for gas ovens before installing
• Allow the oven to cool completely before starting work to avoid burns
• Remove the oven door or open it per your model's service instructions to access the gasket channel; replace gasket by seating it evenly around the door frame
• Inspect the gasket channel for debris and clean before installing; do not use adhesives unless specified by the manufacturer

Oven door gasket forms the heat seal around the oven door opening to keep heat inside for even cooking and efficient operation. Replaces worn or torn seals to reduce heat loss and improve bake performance. What it does:

• Seals the oven cavity to maintain proper cooking temperature and improve efficiency.
• Helps prevent heat and smoke from escaping around the door.
• Commonly used to address long bake times, uneven cooking, or visible gaps/damage at the door edge.
• Flexible design fits into the door channel to restore a snug seal.

• Disconnect power (and gas supply, for gas ovens) and allow the appliance to fully cool before starting.
• Inspect the door channel and remove old gasket; some models require partial door removal.
• Press the new gasket into the channel evenly; ensure any retaining clips or tabs are fully seated.
• Wear gloves to protect hands from sharp edges and avoid using sharp tools that could damage the new gasket.

Size: 8abx3/8 - blk)

The Terminal Block is an OEM part for Whirlpool ranges. It serves as a crucial connection point for the range’s electrical wiring, ensuring a safe and reliable transfer of power to the appliance.

Over time, terminal blocks can deteriorate due to factors such as heat exposure, electrical surges, or wear and tear. When the terminal block becomes damaged or corroded, it can lead to poor electrical connections or potential safety hazards.

Symptoms of a bad terminal block include:

• Burnt or scorched connections
• Intermittent power loss to the range
• Difficulty in the range heating up properly
• Visible damage or corrosion on the terminal block

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This side vent duct directs exhaust air from the appliance into the home's ductwork, restoring proper airflow and ventilation. It replaces a damaged or cracked duct piece to help reduce leaks and poor venting. What it does

• Channels exhaust air from the appliance to the house vent to maintain proper airflow.
• Helps prevent exhaust leaks that can cause reduced performance or lingering odors.
• Replaces cracked, warped, or broken duct components that can allow air loss.
• Can reduce rattling or vibration caused by a loose or damaged side duct.

• One side vent duct

• Disconnect power (and gas if applicable) and move the appliance away from the wall before beginning.
• Remove the applicable access panel or rear cover to reach the existing duct; mounting hardware may be reused if undamaged.
• Inspect surrounding seals and vent connections; use proper seals or foil tape where recommended by the manufacturer.
• Wear gloves to avoid sharp edges and follow all safety instructions in the appliance manual.
