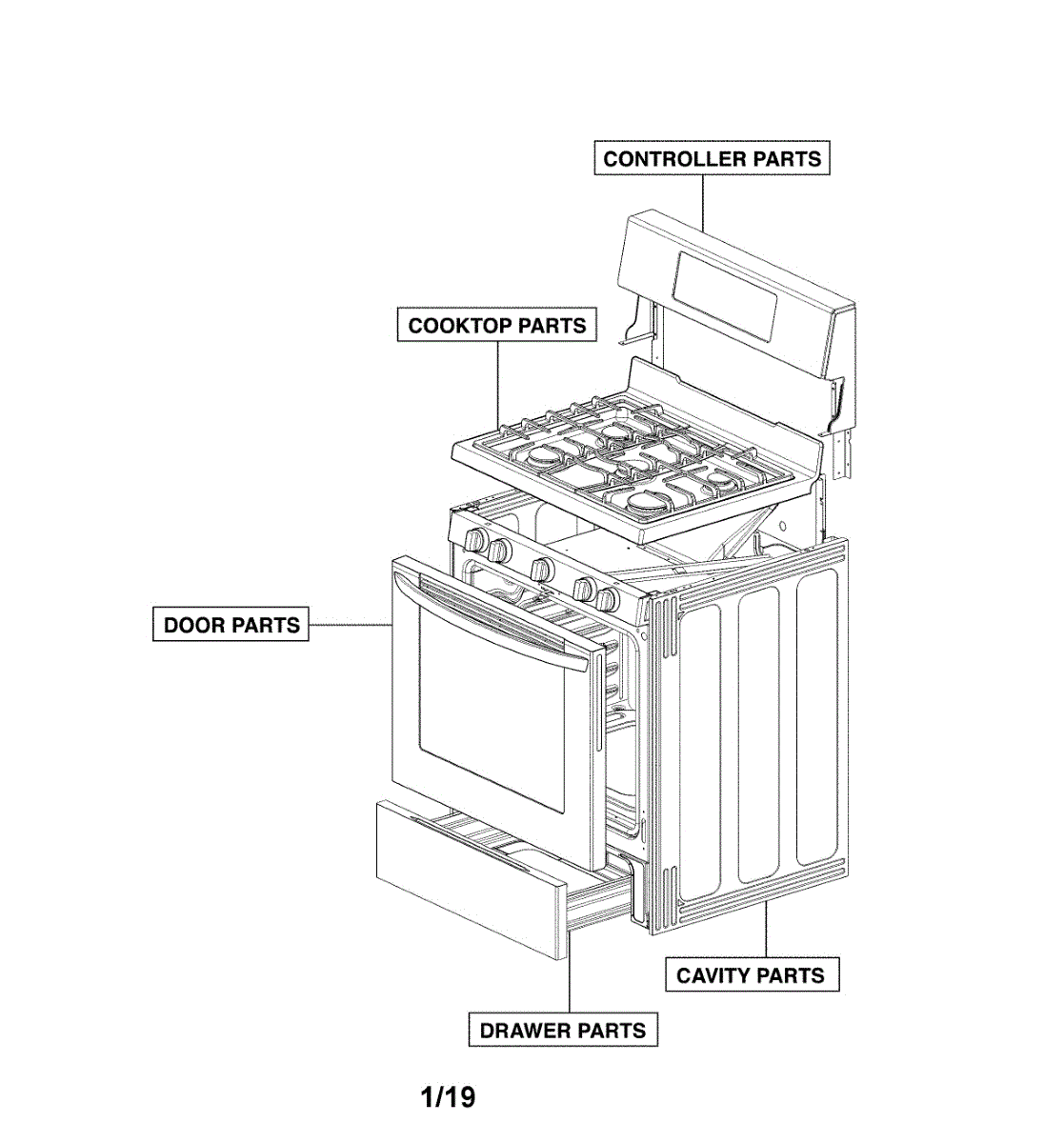

Parts for Lg LRG3193BD/00: Introduction Parts

Replacement screw secures panels and components in your microwave. Install when original hardware is stripped, rusted, or missing to stop rattles.

Wire harness for gas ranges. Connects electrical components inside your range. Replace if wires are damaged, melted, frayed, or connections are loose.

A factory screw for securing specified components in your appliance. Replaces a missing or damaged fastener to restore a tight, reliable hold and help reduce vibration, rattling, and misalignment.

• Secures brackets, covers, or internal assemblies where this exact screw is specified by the manufacturer
• Useful when the original screw is missing, stripped, or corroded
• Helps eliminate looseness, vibration, and rattling noises
• Matches the original fastener for proper fit and thread engagement

• Disconnect power (and shut off water supply if applicable) before servicing
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Replace any damaged clips or inserts to ensure a secure repair

Replacement washer that secures fasteners and distributes load at connection points in ranges and ovens. Needed when original is missing, worn, or damaged.

Replacement screw for electric and gas ranges. Secures internal components and panels. Needed when original is stripped, missing, or damaged during repair.

Secures panels, brackets, and internal components in your range. Replace this screw if the original is missing, stripped, or rusted for proper fit.

This customized screw secures appliance components where a standard fastener won't fit, helping keep panels, brackets and small assemblies stable. It's a direct-fit replacement when the original specialized screw is missing or damaged. What it does:

• Fastens and holds appliance panels, brackets or small parts in place
• Prevents rattling, loose trim or misaligned components caused by a missing or stripped screw
• Matches the OEM fit and thread pattern for proper engagement and alignment
• Used in locations that require a non-standard or customized fastener

• Disconnect power and water before servicing the appliance
• Use the correct screwdriver or driver bit to avoid stripping the head
• Tighten securely but do not overtighten; overtightening can strip threads or crack parts
• Keep removed hardware organized so you can reinstall in the original location

The Screw is an OEM component specifically designed for LG ranges. It plays an important mounting and fastening role by securely attaching internal components together.

The screws utilized within the range cabinet ensure sturdy construction and reliable mechanical cohesion. They allow for simple assembly and proper alignment of inner parts.

Causes of bad screws can include wear and tear over time, or damage from overtightening leading to stripped threads or heads.

Symptoms of bad screws include:

• Loose, detached, or misaligned inner parts
• Hardware that does not fit or interface as designed
• Unintended noises or movement during the operation

This OEM LG replacement part is also compatible with Sears/Kenmore and some GE ranges utilizing similar fasteners. Replacement ensures the range remains mechanically sound.


This hardware washer helps distribute fastener load and maintain proper spacing in your LG appliance. Replacing a missing or worn washer restores secure mounting and alignment, reducing vibration and rattling from loose assemblies.

• Distributes the load of a screw or bolt and protects mating surfaces to maintain alignment
• Helps keep components secure and at the correct spacing
• A damaged or missing washer can lead to loosening, vibration, or rattling during operation
• Ensures correct hardware stack-up during reassembly after service

• Disconnect power and shut off water or gas before servicing
• Note the order and orientation of any washers/spacers; take a reference photo
• Use the correct driver or wrench and tighten snugly—do not overtighten
• Replace companion hardware if corroded, stripped, or damaged

The Common Nut is an OEM part for LG ranges. It secures the fan blade to the motor shaft. This nut maintains the fan's stability and preventing it from becoming dislodged during use.

Causes of a bad common nut can include loosening over time due to vibration, improper installation, or damage from impact or mishandling.

Symptoms of a bad common nut include:

• Excessive noise or vibration from the fan assembly
• The fan blade becoming loose or detached, causing poor air circulation
• Potential risk of the fan blade becoming a projectile if completely detached

This OEM LG part is also compatible with some Kenmore models.a

Replacement mounting screw for electric and gas ranges. Secures components and panels. Needed when original screw is stripped, missing, or damaged.

This is a replacement customized screw designed to secure appliance panels and components. It restores proper fit and fastening where the original screw is lost or worn, helping maintain safe, stable operation. What it does

• Replaces missing or damaged mounting screw used on appliance panels and internal components
• Restores secure fastening to reduce vibration and rattling during operation
• Matches the original OEM fit and thread form for correct engagement when verified for your model
• Helps prevent loose parts that can cause noise or interfere with moving components

• Disconnect power and water before servicing the appliance
• Verify screw size, thread direction, and length match the original before installation
• Use the correct screwdriver or bit to avoid stripping the head
• Tighten securely but avoid overtightening to prevent stripping or damaging mating threads

Fix a range that won't heat, cycle on, or respond to buttons. This control board assembly interprets inputs and restores reliable oven operation.

Secures panels, brackets, and trim on your gas range. Replace this self-tapping fastener if it's missing, stripped, or damaged to restore alignment.

Factory-style screw for securing panels, brackets, and assemblies on gas ranges and cooktops. Replace if missing, stripped, or damaged during repairs.

This is a genuine replacement screw used to secure appliance panels and components. It restores proper fastening so panels and assemblies stay aligned and operate safely. What it does:

• Fastens panels, brackets, and small assemblies to maintain structural integrity
• Replaces missing or stripped screws that cause rattling or loose parts
• Helps stop vibration-related noise when used in its original mounting locations
• Matches the OEM fit to ensure proper alignment and clearance

• Use the correct screwdriver or bit to avoid stripping the head
• Tighten until snug; do not overtighten to prevent thread or component damage
• Disconnect power to the appliance before working on electrical components
• Replace all matching fasteners for even fit

This decorative trim piece is mounted on the oven door and covers the vent opening that allows hot air and steam to escape during cooking. It helps direct airflow while providing a clean, finished look to the door exterior. Replace this part if it is cracked, warped, discolored, or if the vent slots are blocked or damaged.

Replacement window glass for range oven doors. Restores clear viewing area when original glass is cracked, chipped, cloudy, or shattered. Installs inside door.

Inner door cover panel for gas ranges. Protects internal door components. Replace if cracked, damaged, or missing to restore door appearance and function.

This is the outer cover panel assembly for the oven door, sometimes referred to as the poise cover. It forms the exterior surface of the door and helps maintain proper insulation and a finished appearance. Replace this panel if it is dented, discolored, rusted, or if the outer door surface is damaged, which can affect heat retention and the overall look of the range.

Secures and pivots your range oven door for smooth opening and closing. Replace if hinge is bent, broken, or causing door misalignment and gaps.

Bracket that secures the door handle to your range. Replace if cracked, broken, or missing to properly mount and support the handle assembly.

Fix incomplete LED displays, F9 error codes, or cycle failures with this gas range main control board. Coordinates all electronic functions. Moderate DIY.

This is the power control board that distributes and regulates electrical power to the range's heating elements and other components. It works alongside the main control board to manage burner and oven output levels. Replace this board if the range loses power intermittently, burners fail to respond, or the oven does not heat properly despite other components testing fine.

This supporter is a small mounting bracket that holds internal components in place to keep assemblies aligned and reduce vibration. Replacing a damaged supporter restores proper fit and steadies moving parts for quieter operation. What it does:

• Secures internal assemblies or panels to the appliance frame to prevent shifting
• Maintains alignment so doors, drawers or moving parts track correctly
• Dampens vibration and reduces rattling or knocking noises from loose components
• Prevents wear or damage caused by parts moving out of position

• Disconnect power (and water if applicable) before starting any repair.
• Access may require removing exterior panels or covers; keep fasteners organized.
• Install with the correct screws and hand tools; do not over-tighten to avoid cracking the bracket.
• Inspect neighboring clips, screws and supports while replacing this part; replace any additional damaged hardware.

Wire harness for gas ranges. Connects electrical components inside your range. Replace if wires are frayed, damaged, or connections are loose or broken.

Wire harness for electric and gas ranges. Connects electrical components inside your range. Replace if wires are frayed, damaged, or connections are loose.

Fix unresponsive buttons, blank displays, or partially lit clock numbers on your gas range. Control panel houses the electronic interface and mounting.

Control knob assembly for gas range burners. Replaces worn, cracked, or broken knobs that adjust heat levels. Installs on front control panel.

This is a circular wire harness holder that secures and organizes internal wiring within the range. It clips onto the frame or mounting points to keep wires routed properly and away from heat sources. Replace this part if it is broken or missing, which can cause loose wiring or potential contact with hot surfaces.

Replaces a cracked, chipped, or worn cooktop surface on your gas range. Restores appearance and protects burner components. Installs over main frame.

This is a wire holder clip used inside a microwave to secure and route internal wiring. It keeps wires organized and safely positioned away from heat sources and moving components. Replace this holder if it is broken or missing, which can allow wires to hang loose and potentially contact hot surfaces or interfere with other parts.

This heater cover is the protective housing that surrounds and shields the dryer heater assembly, helping direct airflow and preventing contact with the heating element for safer, more reliable operation. What it does:

• Protects the heating element from debris and accidental contact
• Helps channel hot air through the heater assembly for proper drying performance
• Reduces risk of shorting or arcing by keeping wiring and components separated
• Can help eliminate rattling or vibration caused by a damaged or loose heater housing

• Disconnect power to the appliance before starting any repair
• Access typically requires removing the dryer/back panel or cabinet; keep fasteners organized
• Inspect the heater element and surrounding components for damage while replacing the cover
• If you smell burning or see visible damage, replace damaged parts and test on a dedicated circuit

Rubber bumper grommet for electric and gas ranges. Replaces cracked, worn, or missing grommets that cushion and support range components.

This is a metal oven rack that slides into the guide rails inside your oven cavity to support cookware during baking, broiling, or roasting. It provides a flat, heat-resistant surface at adjustable heights within the oven. Replace this rack if it is warped, rusted, or the rails are bent making it difficult to slide in and out smoothly.

Control panel for gas ranges. Replaces cracked, scratched, or faded front panels. Includes cosmetic surface with openings for knobs and display.

Replace a burner tube if flames are uneven, yellow, or won't ignite properly on your gas range. Moderately easy repair restores proper gas flow.

Oven not heating evenly or flame uneven? This burner tube channels gas from the valve to the burner for proper flame distribution and consistent baking.

This is a spark ignition switch assembly with wiring harness that controls the electric igniters on a gas range cooktop. It sends voltage to the spark modules when a burner knob is turned, initiating the clicking ignition sequence. Replace this part if your burners won't spark when turned on, spark continuously even when knobs are in the off position, or if only some burners ignite properly.

This is a surface burner grate assembly for a gas range or cooktop. It sits over the burner and provides a stable, elevated surface to support pots and pans during cooking. Replace this grate if it is cracked, warped, heavily rusted, or if cookware no longer sits level on the burner.

Grille assembly for gas ranges. Covers the cooking surface and supports grates. Replace if warped, bent, cracked, or broken to restore proper pan placement.

The Grille Assembly is an OEM part for LG cooking ranges and range tops. It provides an additional flat-top cooking surface between the standard burner elements. The grille assembly itself is constructed of heavy-duty materials designed to withstand high heat levels while cooking.

Causes can be wear over time under heavy usage, accidental damage from cookware or cleaning, or failure of the heating elements underneath the plate.

Symptoms of a bad griddle plate include:

• Uneven or slow heating of the surface
• Warping or bending of the plate
• Scratches, cracks, or other surface damage
• Loose or missing mounting hardware

This LG part is also compatible with some Kenmore models.

Gas burner orifice nozzle for ranges and cooktops. Installs inside the burner box to meter gas flow. Replace if damaged, missing, or converting fuel type.

Fix weak flames or burners that won't light properly with this gas range burner nozzle. Controls gas flow for optimal flame performance. DIY install.

Fix uneven flames or weak burner heat with this gas range burner nozzle. Restores proper gas flow and prevents leaks. Direct replacement part.

Fix weak flames or burners that won't light properly with this gas burner nozzle. Controls gas flow for proper flame size. Simple install with basic tools.

Weak or uneven flames on your gas range? This burner orifice nozzle meters gas flow for proper flame size and consistent heating. Easy DIY fix.

This is the orifice holder that sits beneath the surface burner on a gas range, securing the gas orifice in position so fuel is directed properly to the burner head. It ensures a consistent and correctly shaped flame for even cooking. Replace this part if you notice irregular flame patterns, difficulty igniting a burner, or if the orifice is loose or misaligned.

Replace a gas range burner when flames are uneven, won't ignite, or produce yellow flames. Direct swap installation takes 10-15 minutes with basic tools.

If your gas range burner won't light or gas flow is uneven, the valve may need replacement. This part controls gas flow to individual burners.

Gas burner won't light or won't turn off? This gas range valve controls gas flow to burners. Moderate DIY repair taking 30-45 minutes with basic tools.

Gas range burner not lighting or flame too low? This valve controls gas flow to your burners. Common repair for ignition and heating issues on ranges.

Fix weak or uneven flames on your gas cooktop with this surface burner assembly. Restores consistent heat and proper flame pattern for cooking.

This is a surface burner cap designed for a high-output 17,000 BTU burner on a gas range cooktop. It sits on top of the burner base and distributes the flame evenly in a circular pattern for consistent heating. Replace this cap if it is cracked, warped, discolored, or if the burner flame appears uneven or yellow.

Fix unresponsive control panel buttons with this tactile switch replacement. Restores reliable button response. Simple DIY repair, typically under 5 minutes.

This genuine replacement power cord assembly restores electrical power to the appliance by replacing a damaged or worn main power cable. It provides a direct, factory-fit connection for safe, reliable operation. What it does

• Delivers mains power from the wall outlet to the appliance's internal wiring and control systems.
• Replaces frayed, cut, melted or otherwise damaged cords that can cause loss of power or intermittent operation.
• Helps eliminate burning smells, visible damage, or exposed wires that indicate a compromised power connection.
• Restores a secure plug and strain-relief connection to reduce stress on terminal connections.

• One power cord assembly.

• Always disconnect power at the breaker or unplug the appliance before starting any work.
• Verify correct cord routing and secure the strain relief/retainer to prevent pinching or chafing.
• Tighten terminal screws to the manufacturer's specification and ensure proper grounding.

Replace your range's wire harness if the existing wiring is damaged, frayed, or showing signs of wear. Connects electrical components inside your range.

If your oven won't reach the right temperature or shows an F9 error, the temperature sensor may be faulty. Simple DIY repair in under 45 minutes.

Fixes uneven baking and noisy oven operation. This convection fan assembly circulates hot air for consistent cooking. Moderate DIY repair restores airflow.

This insulator is the mica sheet that covers the microwave's waveguide opening. It shields the cavity from food splatter and moisture while allowing microwave energy to pass, helping prevent arcing and protecting internal components.

• Covers the waveguide port to keep grease and debris out
• Helps prevent sparking/arcing inside the cavity
• Restores safe, even microwave operation when the original is burned or stained
• Typical symptoms: visible burn marks or charring on the cover, arcing/sparking during use, unusual noises

• Unplug the appliance before service; high-voltage components can retain charge
• Remove the old cover by releasing mounting screw or tabs; clean residue from the area
• Do not bend or crack the new mica; install with the same orientation
• If trimming is required per service literature, follow the outline of the original cover only

Replace your burned-out or dim oven light bulb to restore interior visibility while cooking. Direct-fit incandescent lamp for safe food monitoring. Verify fit with your model number.

Gas range burner gasket seals burner assembly to prevent gas leaks. Replace if worn, cracked, or causing uneven flames. Verify fit with your model number.

The range packing seal creates an airtight barrier around oven doors or other range components to maintain proper cooking temperatures and prevent heat loss. Positioned around door edges or component joints, it needs replacement if heat escapes, cooking becomes uneven, or the seal appears cracked or compressed.

The Oven Ignitor is an OEM replacement part for LG ovens. It is a critical component responsible for igniting the gas burners or heating elements within the oven, allowing it to reach and maintain the desired cooking temperatures.

Symptoms of a bad oven ignitor include:

• Failure of the oven to ignite or heat up properly
• Intermittent or delayed ignition issues
• Clicking or sparking noises from the ignitor area

Causes of an oven ignitor failure can range from general wear and tear over time, to electrical or mechanical malfunctions, to obstructions or buildup preventing proper ignition.

This OEM LG part is also compatible with Sears/Kenmore models.

Secures the gas burner nozzle in your range cooktop. Replace this holder if it's cracked, broken, or no longer holding the nozzle firmly in position.

Fix uneven flames or burners that won't light with this gas range burner nozzle. Meters fuel flow to each burner for balanced, consistent heating.

Fix weak flames or uneven heating with a new gas range burner orifice nozzle. Meters proper gas flow to burners. Common issue: mineral buildup clogs.

This burner assembly replaces a damaged or worn surface burner to restore reliable heating on your cooktop. It provides a direct-fit replacement that helps eliminate ignition issues and uneven cooking performance. What it does:

• Directs the flame or heating element to cookware for consistent heat transfer
• Replaces cracked, clogged, or damaged burner components that cause poor heating
• Helps stop ignition clicking or failed light-offs when the burner hardware is faulty
• Restores correct burner alignment for even flame distribution and safer operation

• Disconnect electrical power and, if applicable, the gas supply before starting work
• Handle electrodes and terminals carefully to avoid damage; ensure proper alignment during reassembly
• Use basic hand tools; keep screws and small parts organized for reinstall

Fix a burner that won't light or heat unevenly with this gas range burner assembly. Common repair for weak or inconsistent flames on cooktop surfaces.

This heater cover mounts over the dishwasher's heating element at the bottom of the tub. It shields the element and helps direct wash water, protecting dishes and the tub floor from direct contact with the heater. What it does:

• Covers and protects the exposed heating element at the tub base
• Helps channel water flow around the element during the cycle
• Replace if the cover is cracked, warped/melted, or missing
• Can help prevent utensils or items from snagging near the heater area

• 1 heater cover

• Disconnect power and shut off the water supply before servicing
• Remove the lower rack and, if needed, the lower spray arm and filters to access the heater area
• Release retaining tabs or screws, remove the old cover, and seat the new cover evenly
• Ensure the cover locks securely and the spray arm spins freely before restoring service

Pressure regulator assembly for gas ranges. Mounts to the gas supply line to control fuel pressure. Replace if cracked, leaking, or damaged.

Replaces the bottom panel inside your range oven cavity. Install this base if your current panel is warped, stained, or damaged from spills and cleaners.

Base plate for electric and gas ranges. Provides structural support at the bottom of the range. Replace if cracked, warped, or damaged from wear.

This is the front panel for the storage drawer located beneath the oven compartment on a freestanding range. It provides the visible exterior face of the drawer in a black stainless finish and attaches to the drawer frame. Replace this panel if it is dented, scratched, discolored, or if the finish is peeling.

Rubber foot pad that supports and stabilizes your range on the floor. Replace if cracked, broken, worn, or missing to keep your appliance level.

This is a metal anti-tip bracket that secures the range to the floor or wall to prevent it from tipping forward. It is a critical safety device, especially when heavy items are placed on an open oven door. Replace or install this bracket if yours is missing, damaged, or if you are repositioning the range after a move or kitchen remodel.

Replacement slider for range drawers and panels. Restores smooth movement when original is worn, cracked, or broken. Mounts to moving components for alignment.

Replace worn range drawer sliders to restore smooth, quiet operation and proper alignment. Prevents damage to surrounding trim. Confirm fit with your model.

Replace your gas range's damaged or broken storage drawer assembly. Essential when the drawer is cracked, warped, or no longer slides properly.

Wire harness for gas ranges. Connects electrical components inside the unit. Replace if wires are frayed, damaged, or connections are loose or broken.

Mounting anchor for range door handles. Replaces worn, broken, or missing anchors to restore secure handle attachment and eliminate wobbling or loose fit.

This conversion kit includes the orifices and components needed to convert a natural gas range to operate on liquid propane (LP) gas. It allows your range burners and oven to function safely and efficiently with LP fuel. Install this kit when switching your gas supply from natural gas to propane - follow all instructions carefully to ensure proper flame size and safe operation.
