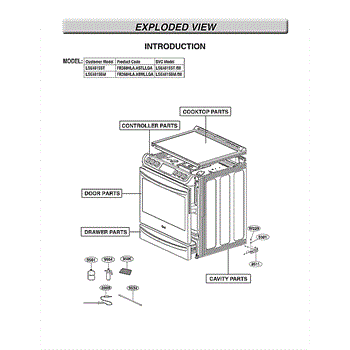

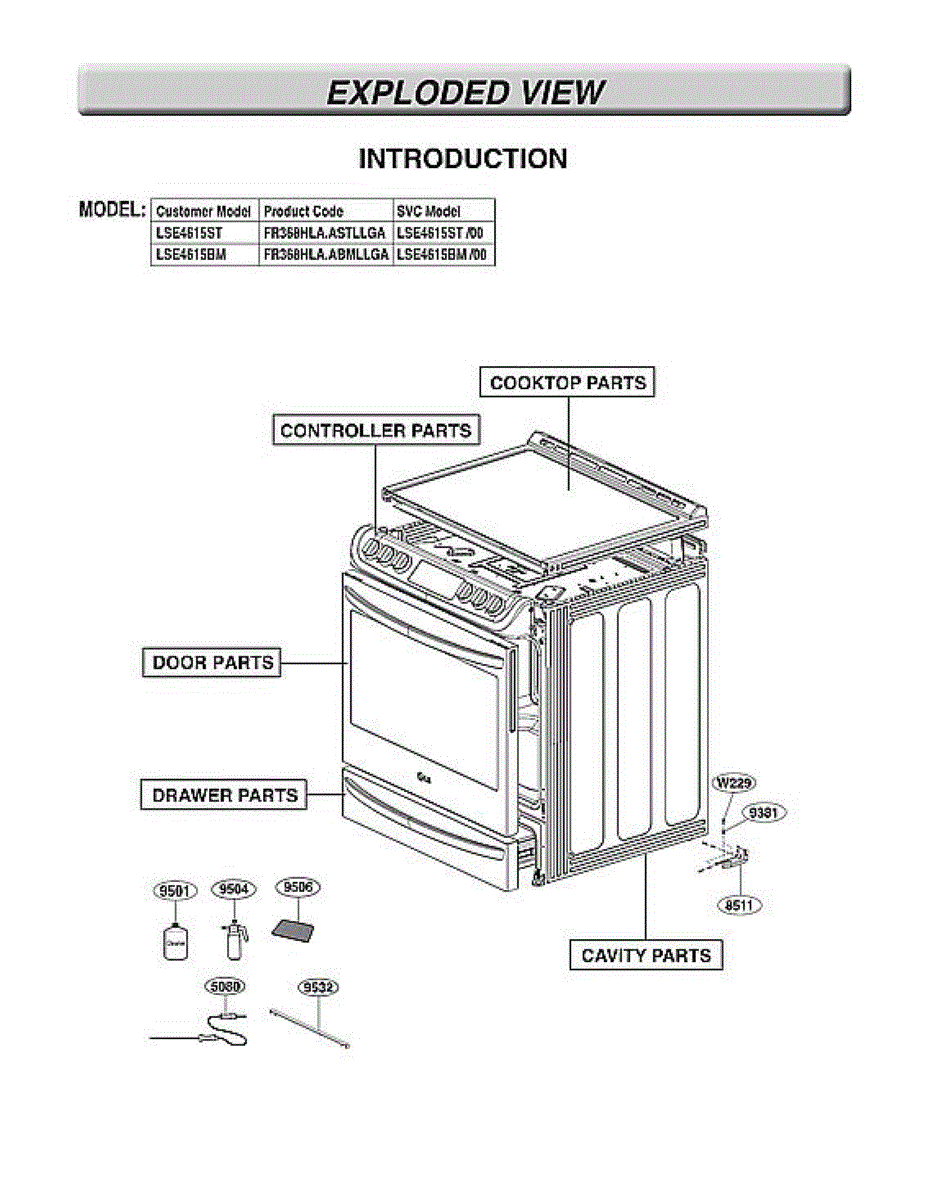

Parts for Lg LSE4615ST/00: Introduction Parts

A Tap-Tite binding-head screw used to fasten appliance panels and components where a self-tapping metal thread is required. Replaces missing or damaged fasteners to restore secure assembly and reduce vibration or rattling. What it does:

• Creates its own mating thread in thin sheet metal for a secure hold without a nut.
• Holds panels, brackets, and trim in place to prevent looseness or movement.
• Commonly used where stripped, missing, or broken screws cause rattling, misalignment, or parts that won't stay attached.
• Compatible with standard screwdrivers or nut drivers sized to the binding-head.

• Disconnect power and unplug the appliance before working on it.
• Use the correct driver bit to avoid cam-out or head damage.
• Start straight and apply steady pressure; avoid overtightening to prevent stripping the formed threads.
• If the original hole is badly damaged, assess for repair or use of a larger fastener as needed.

Insulator for electric and gas ranges. Installs between internal components to provide heat or electrical protection. Replace if cracked or missing.

This is a replacement screw used to secure appliance components and panels. It restores proper fastening where a stripped, missing, or damaged screw causes loose parts or rattling. What it does:

• Fastens panels, trim, or internal components to maintain structural fit
• Helps stop vibration-related noise from loose assemblies
• Replaces missing or corroded screws that prevent proper closures
• Restores secure mounting after repairs or disassembly

• Use the correct screwdriver or bit to avoid stripping the head
• Tighten until snug—do not over-torque to prevent thread damage
• Keep small parts away from children and pets
• Disconnect power or water before accessing internal parts

The Common Nut is an OEM part for LG ranges. It secures the fan blade to the motor shaft. This nut maintains the fan's stability and preventing it from becoming dislodged during use.

Causes of a bad common nut can include loosening over time due to vibration, improper installation, or damage from impact or mishandling.

Symptoms of a bad common nut include:

• Excessive noise or vibration from the fan assembly
• The fan blade becoming loose or detached, causing poor air circulation
• Potential risk of the fan blade becoming a projectile if completely detached

This OEM LG part is also compatible with some Kenmore models.a

Replacement screw for securing panels, brackets, and internal components. Restores tight fit and proper alignment when original hardware is stripped or missing.

A factory screw for securing specified components in your appliance. Replaces a missing or damaged fastener to restore a tight, reliable hold and help reduce vibration, rattling, and misalignment.

• Secures brackets, covers, or internal assemblies where this exact screw is specified by the manufacturer
• Useful when the original screw is missing, stripped, or corroded
• Helps eliminate looseness, vibration, and rattling noises
• Matches the original fastener for proper fit and thread engagement

• Disconnect power (and shut off water supply if applicable) before servicing
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Replace any damaged clips or inserts to ensure a secure repair

Secures panels, brackets, and internal components in your range. Replace this screw if the original is missing, stripped, or rusted for proper fit.

This customized screw secures appliance components where a standard fastener won't fit, helping keep panels, brackets and small assemblies stable. It's a direct-fit replacement when the original specialized screw is missing or damaged. What it does:

• Fastens and holds appliance panels, brackets or small parts in place
• Prevents rattling, loose trim or misaligned components caused by a missing or stripped screw
• Matches the OEM fit and thread pattern for proper engagement and alignment
• Used in locations that require a non-standard or customized fastener

• Disconnect power and water before servicing the appliance
• Use the correct screwdriver or driver bit to avoid stripping the head
• Tighten securely but do not overtighten; overtightening can strip threads or crack parts
• Keep removed hardware organized so you can reinstall in the original location

This hardware washer helps distribute fastener load and maintain proper spacing in your LG appliance. Replacing a missing or worn washer restores secure mounting and alignment, reducing vibration and rattling from loose assemblies.

• Distributes the load of a screw or bolt and protects mating surfaces to maintain alignment
• Helps keep components secure and at the correct spacing
• A damaged or missing washer can lead to loosening, vibration, or rattling during operation
• Ensures correct hardware stack-up during reassembly after service

• Disconnect power and shut off water or gas before servicing
• Note the order and orientation of any washers/spacers; take a reference photo
• Use the correct driver or wrench and tighten snugly—do not overtighten
• Replace companion hardware if corroded, stripped, or damaged

The Common Nut is an OEM part for LG ranges. It secures the fan blade to the motor shaft. This nut maintains the fan's stability and preventing it from becoming dislodged during use.

Causes of a bad common nut can include loosening over time due to vibration, improper installation, or damage from impact or mishandling.

Symptoms of a bad common nut include:

• Excessive noise or vibration from the fan assembly
• The fan blade becoming loose or detached, causing poor air circulation
• Potential risk of the fan blade becoming a projectile if completely detached

This OEM LG part is also compatible with some Kenmore models.a

This is a replacement customized screw designed to secure appliance panels and components. It restores proper fit and fastening where the original screw is lost or worn, helping maintain safe, stable operation. What it does

• Replaces missing or damaged mounting screw used on appliance panels and internal components
• Restores secure fastening to reduce vibration and rattling during operation
• Matches the original OEM fit and thread form for correct engagement when verified for your model
• Helps prevent loose parts that can cause noise or interfere with moving components

• Disconnect power and water before servicing the appliance
• Verify screw size, thread direction, and length match the original before installation
• Use the correct screwdriver or bit to avoid stripping the head
• Tighten securely but avoid overtightening to prevent stripping or damaging mating threads

Replacement control knob assembly for electric ranges. Installs on the control shaft to select settings. Replace when cracked, broken, or worn smooth.

Replacement control knob assembly for electric range front panel. Restores grip and rotation for selecting settings when original is cracked, worn, or missing.

Replace broken or missing range control knobs that prevent precise temperature adjustments. This knob assembly restores secure grip and smooth turning.

Control knob assembly for electric range burners. Mounts on the control panel to adjust heat settings. Replace if knobs are cracked, broken, or missing.

The PCB Assembly, Sidekey is an OEM replacement part for LG  ranges. This printed circuit board assembly is responsible for controlling the functions of the control panel on the side of the range. It communicates with all electronic components to operate the cooktop burners, oven lights and fans, and programming features.

Causes of a bad PCB assembly can include corrosion of printed circuits over time due to heat exposure, moisture damage, or component failure.

Symptoms of a bad PCB assembly include:

• Cooktop burners not working properly or unresponsive to control panel commands
• Inability to turn on oven lights or fans
• Programming features like timers or temperatures not functioning correctly
• Blank or unresponsive control panel displays

This OEM LG part is also compatible with Sears/Kenmore ranges. Replace yours today with this genuine electronic control board and upgrade the functionality of your electric range oven.

Range not heating or control panel unresponsive? This control board assembly restores oven functions. Moderate difficulty repair requiring basic tools.

Fix a range that won't heat, cycle on, or respond to buttons. This control board assembly interprets inputs and restores reliable oven operation.

Fix an unresponsive oven control knob or broken control dial. This encoder board detects knob position and sends signals to adjust temperature settings.

Replacement screw for electric and gas ranges. Secures panels, brackets, and internal assemblies. Restores tight fit when original is missing or stripped.

Burner not heating? This radiant surface element restores heat to your electric range's smooth-top cooking surface. DIY-friendly replacement part.

This is a radiant surface heating element measuring 5-1/2 inches in diameter and rated at 1200 watts. It sits beneath the glass cooktop surface and provides heat to the burner area when activated. Replace this element if the burner fails to heat, heats unevenly, or does not reach full temperature.

This Radiant Surface Element is an OEM replacement part for LG electric ranges and cooktops. It is a high-power coil heating unit located below the cooktop surface that provides efficient, customizable heat for various cooking needs.

Causes of failure can be wear and damage to coiled filaments from prolonged heating cycles, cracking of ceramic insulators, or loose wiring connections suffering arcing or resistance over time.

Symptoms of a faulty element include:

• Slow or inadequate heating of cookware even on high settings
• Temperature fluctuations within the heating zone
• Burning or charring of spills and foods on the element itself
• Tripped circuit breakers obstructing range operation

This replacement is also compatible with some Kenmore models

Fix range display not working, oven not heating, or control panel errors with this power control board assembly. Moderate DIY repair for ranges.

Fix a range that won't heat, displays error codes, or has unresponsive controls. This main control board manages power distribution and system logic.

Adjustable metal leveling foot that elevates and stabilizes your range. Mounts to the bottom of the unit. Replace if broken, worn, or missing.

Replace your range's outer door frame to restore door structure, improve seal integrity, and fix cracked or bent trim. Confirm fit with your model number.

Replacement window glass for range oven doors. Restores clear viewing area when original glass is cracked, chipped, cloudy, or shattered. Installs inside door.

This is an exterior door handle that mounts to the front of the oven door, allowing you to open and close it during cooking. It attaches with mounting screws or brackets on the door panel. Replace this handle if it is cracked, loose, broken off, or if the mounting points have become damaged, making the door difficult to operate safely.

Replacement window glass for range oven doors. Restores clear viewing area when original glass is cracked, chipped, cloudy, or shattered. Installs inside door.

Inner door cover panel for electric and gas ranges. Replaces damaged, cracked, or missing inner door cosmetic panels. Installs on the interior door assembly.

Bracket that anchors the handle to your range oven door. Replace if cracked, stripped, or broken to restore secure handle attachment and alignment.

Color: Stainless w/black glass

Supports your range door and provides smooth opening and closing. Replace if the door sags, misaligns, or won't stay open. Confirm fit with your model.

Protects and shields the indicator light on your range console. Replace if cracked, broken, or missing to restore clear visibility of settings. Verify fit with your model number.

This is a lever supporter that sits behind the control knob on a range, providing structural support for the knob shaft and ensuring the knob engages properly with the selector switch or valve stem. It helps maintain correct knob alignment and rotational feel. Replace this part if the control knob feels loose, spins freely without engaging, or if the original support is cracked or broken.

Fixes intermittent power or control issues caused by damaged wiring. This harness restores electrical connections between range components for reliable operation.

Range controls not responding or features intermittent? This wiring harness restores power and signal connections between components for reliable operation.

If your range control panel is loose or cooking functions are erratic, the PCB supporter may be cracked. This mounting bracket secures the circuit board.

This ring guide supports and centers the microwave oven's glass turntable so it rotates smoothly for even cooking. It replaces a cracked or worn guide to reduce wobble and noisy operation. What it does:

• Centers and supports the glass tray so it turns evenly on the roller/drive assembly
• Helps keep the tray from slipping or wobbling during rotation
• Restores smooth, quiet turntable movement when the original guide is damaged
• Addresses symptoms such as a tray that wobbles, binds, or does not rotate properly

• One ring guide

• Disconnect power before servicing the appliance
• Remove the glass tray and roller assembly to access the guide
• Set the new guide into place on the turntable support/roller path and reinstall the roller and glass tray
• Handle the glass tray carefully; replace rollers or the drive coupling if worn

Support bracket that secures the control board assembly inside your range. Replace if the bracket is cracked, bent, or missing to properly mount the PCB.

This neon indicator lamp lights up when its circuit is energized, providing at-a-glance status confirmation. Replace when dim or burned out. Verify fit.

Burner won't turn off or runs too hot? This rotary switch controls heating elements and temperature settings. Straightforward DIY replacement.

Burner stuck on high or won't adjust temperature? This rotary switch behind the control knob regulates heat settings. DIY-friendly, 20-minute fix.

Fix an oven door that won't stay open or slams shut with this range door spring. Simple DIY repair requiring only a Phillips screwdriver, 30 minutes.

This window glass is the replacement inner glass for a microwave door, letting you safely view cooking without opening the door while restoring a secure, heat-resistant barrier. It replaces cracked, chipped or fogged door glass to improve visibility and safety. What it does:

• Restores a clear viewing window so you can monitor food while the microwave is running
• Replaces cracked, chipped or fogged glass that can compromise visibility or safety
• Helps maintain the microwave's sealed cooking cavity and proper operation
• Fits into the door assembly to provide a heat-resistant barrier between the cavity and exterior

• Disconnect power and allow the microwave to cool fully before attempting service
• Door disassembly is typically required; follow the OEM service manual or instructions
• Use gloves and eye protection when handling glass and sharp metal edges
• If door hardware or trims are damaged, replace them separately; verify proper door seal after reassembly

This is a circular wire harness holder that secures and organizes internal wiring within the range. It clips onto the frame or mounting points to keep wires routed properly and away from heat sources. Replace this part if it is broken or missing, which can cause loose wiring or potential contact with hot surfaces.

Rear cover panel for electric ranges. Protects internal components at the back of the unit. Replace if cracked, damaged, or missing for proper appearance.

Replace your range's vent grille if cracked, broken, or missing. This cover piece installs over the ventilation opening on your electric range. Restores appearance.

Protective cover that installs over the power cord connection on your electric range. Replace if cracked, broken, or missing to restore appearance.

This is the main glass cooktop surface that sits on top of the range and houses the burner elements beneath it. It provides the cooking surface and integrates with the control panel area. Replace this assembly if the glass is cracked, chipped, scratched deeply, or if burn marks and discoloration cannot be cleaned.

Idle packing bushing for electric and gas ranges. Replaces worn, cracked, or missing bushings. Ensures proper fit and cushioning for range components.

Replaces the rear cabinet panel on your electric range. Shields internal wiring and components from dust and damage. Order a new panel if cracked or missing.

This is a defrost heater assembly designed for use in a range or oven. It generates heat to prevent frost buildup on internal components, ensuring proper airflow and temperature regulation. Replace this part if the appliance is not heating evenly, frost is accumulating inside, or you notice temperature inconsistencies during operation.

Fix loose or rattling heating elements with this range heater bracket. Secures the heater assembly in proper alignment to prevent movement and damage.

Seals your electric range door to maintain temperature and prevent heat loss. Replace when cracked, loose, or no longer sealing properly. Verify fit.

Oven rack for electric and gas ranges. Provides stable surface for cookware during cooking. Replace if bent, warped, cracked, or missing.

Replace cracked, warped, or missing oven rack shelves in your electric or gas range. Slides into oven cavity to provide sturdy, level surfaces for cooking.

Fix unresponsive control panel buttons with this tactile switch replacement. Restores reliable button response. Simple DIY repair, typically under 5 minutes.

Replace your range's wire harness if the existing wiring is damaged, frayed, or showing signs of wear. Connects electrical components inside your range.

The Magnetron Thermostat is an OEM part for LG microwaves and built-in ranges. Its primary function is to monitor the temperature and ensure that it remains within a safe operating range. If the temperature exceeds the preset limit, the thermostat will interrupt the power supply to the magnetron, preventing overheating and potential damage.

Causes of a faulty magnetron thermostat can include electrical malfunctions, component failures, or physical damage. These factors can result in issues such as erratic heating, microwave not heating properly, or the appliance shutting off unexpectedly.

Symptoms of a bad magnetron thermostat may include:

• Microwave not heating food evenly or at all
• Inconsistent or weak heating performance
• Microwave shutting off or displaying error codes related to temperature issues

This OEM LG part can also be used on Kenmore/Sears appliances.

If your oven won't reach the right temperature or shows an F9 error, the temperature sensor may be faulty. Simple DIY repair in under 45 minutes.

Replace a damaged or corroded wire harness in your range. This single-connection harness restores proper electrical connections when original wiring is frayed, melted, or broken.

Fix uneven cooking or baking in your range. This convection fan motor circulates hot air for consistent heat distribution. Moderate DIY repair.

Secures the control panel to your range cabinet. Replace if the bracket is cracked, bent, stripped, or hardware no longer holds the console firmly in place.

Wire harness for electric and gas ranges. Connects electrical components inside your range. Replace if wires are frayed, damaged, or connections are loose.

Fix inaccurate oven temperatures with this range temperature sensor. Restores proper heating cycles when your oven runs too hot or cold.

Fix range control panel display issues or power failures with this DC power jack. Restores electrical connection to control board. Moderate DIY repair.

Motor loose or vibrating excessively? This motor bracket secures the motor to the chassis, reducing vibration and maintaining alignment for quieter operation.

Fix loose or misaligned range components with this retaining ring. Secures parts in place to prevent excess movement and wear. Simple installation.

Fixes uneven baking and longer cooking times in your range. This convection fan blade restores proper air circulation for consistent oven temperatures.

This Fan Blade is an OEM part for LG microwaves. It is a critical component designed to circulate air within the microwave, aiding in heat dissipation and ensuring even cooking.

Fan blades in microwaves can suffer from wear, imbalance, or damage due to regular use or accumulation of debris. A malfunctioning fan blade can lead to inadequate ventilation, affecting the microwave's cooking efficiency and potentially causing overheating.

Symptoms of a bad fan blade include:

• Unusual noises during operation, such as rattling or buzzing, indicate a loose or damaged blade.
• The microwave overheating or shutting off prematurely.
• Inconsistent cooking or hot spots in food suggest poor air circulation.
• The fan not starting, or stopping unexpectedly during use.
• Visible signs of damage or wear on the blade.

This OEM LG part is also compatible with some Sears/Kenmore models.


Replace your damaged or broken range handle bar. This bar installs on the oven door, providing a secure grip for opening and closing. Order now.

Fix a humming or stalled range component with this AC synchronous motor assembly. Restores proper rotation when the motor fails to turn or makes noise.

Range heating element loose or misaligned? This heater mounting bracket secures your heating assembly to the cabinet for stable, reliable operation.

This is the exterior side panel that attaches to the body of the range. It provides structural support and a finished appearance to the side of the appliance. Replace this panel if it is dented, scratched, rusted, or damaged during installation or use.

Replace your burned-out or dim oven light bulb to restore interior visibility while cooking. Direct-fit incandescent lamp for safe food monitoring. Verify fit with your model number.

This hinge bracket secures the oven door hinge mechanism on your range. Replace if the bracket is cracked, broken, bent, or missing to restore door support.

This is a sheath-style heating element that serves as the broil element in the top of the oven cavity. It produces high, direct heat from above for broiling foods. Replace this element if the broiler no longer heats, heats unevenly, or if you can see visible damage such as blistering, cracks, or burn-through spots on the element.

The range packing seal creates an airtight barrier around oven doors or other range components to maintain proper cooking temperatures and prevent heat loss. Positioned around door edges or component joints, it needs replacement if heat escapes, cooking becomes uneven, or the seal appears cracked or compressed.

Oven not heating or baking unevenly? This electric range heating element restores proper cooking temperature. Moderate DIY repair in 30-45 minutes.

Secures and supports your range oven door hinge for proper alignment and smooth operation. Replace if bracket is cracked, bent, or damaged to restore door fit.

Replacement support bracket for range control panels. Installs behind the control panel to provide structural support. Needed when original is broken or missing.

This duct assembly routes exhausted air from the dryer to the external vent, restoring proper airflow and reducing lint buildup for safer, more efficient drying. Designed to replace a damaged or disconnected dryer vent duct. What it does:

• Channels hot, moist air from the dryer drum to the outside vent.
• Helps prevent restricted airflow that can cause long dry times and overheating.
• Reduces lint accumulation in the cabinet and exhaust path.
• Restores proper vent routing after dents, holes, or separation.

• One duct assembly.

• Disconnect power and gas before inspecting or replacing vent parts.
• Remove the dryer from its location carefully to access rear duct connections.
• Check and replace any damaged clamps, gaskets, or foil tape for a secure, airtight fit.

Range oven door gasket seals the oven cavity to retain heat and improve efficiency. Replace if torn, cracked, or no longer sealing properly. Confirm fit.

Secures and finishes your range door opening with proper structural support. Replace if cracked, warped, or damaged to restore door alignment and seal.

Outer front plate panel for ranges. Restores exterior appearance and provides finished surface for controls. Replaces damaged, dented, or scratched panels.

Replaces the outer control panel on your range. Restores appearance when the original is cracked, scratched, or worn. Covers and protects controls.

Rubber foot pad that supports and stabilizes your range on the floor. Replace if cracked, broken, worn, or missing to keep your appliance level.

Idle bracket for electric and gas ranges. Secures internal components in place. Replace if bracket is bent, cracked, broken, or missing during repair.

Replacement slider for range drawers and panels. Restores smooth movement when original is worn, cracked, or broken. Mounts to moving components for alignment.

Replace worn range drawer sliders to restore smooth, quiet operation and proper alignment. Prevents damage to surrounding trim. Confirm fit with your model.

This insulator is a small mounting cushion that reduces vibration and prevents metal-to-metal contact in the appliance. It helps lower operational noise and protects nearby parts from wear caused by movement. What it does:

• Cushions and isolates components to reduce vibration and rattling
• Prevents metal edges from rubbing together and causing wear or noise
• Protects wiring and hoses from chafing where parts meet
• Keeps panels and brackets securely spaced for proper alignment

• Disconnect power before accessing internal panels or mounting points
• Remove only the panels required to reach the original insulator; retain fasteners for reassembly
• Press or slide the insulator into place on the mounting stud or bracket; gentle hand pressure is usually sufficient

Replacement oven rack support bracket for your range. Installs inside the oven cavity to hold racks in place. Replace if cracked, broken, or missing.

Mounting anchor for range door handles. Replaces worn, broken, or missing anchors to restore secure handle attachment and eliminate wobbling or loose fit.

Accessory assembly for electric and gas ranges and wall ovens. Replaces damaged, broken, or missing accessory components. Restores proper fit and function.

Decorative trim piece that surrounds the rear of your range for a finished look. Replace if cracked, chipped, damaged, or missing. Enamel finish.
