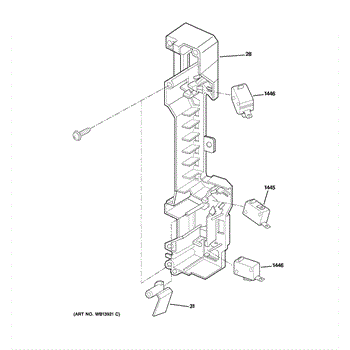

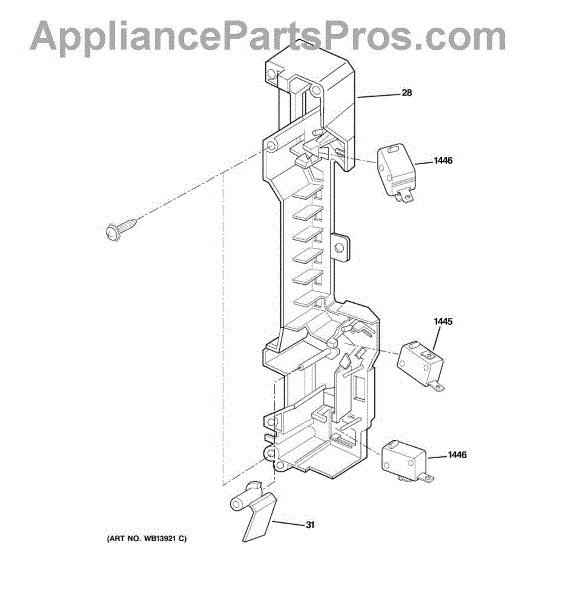

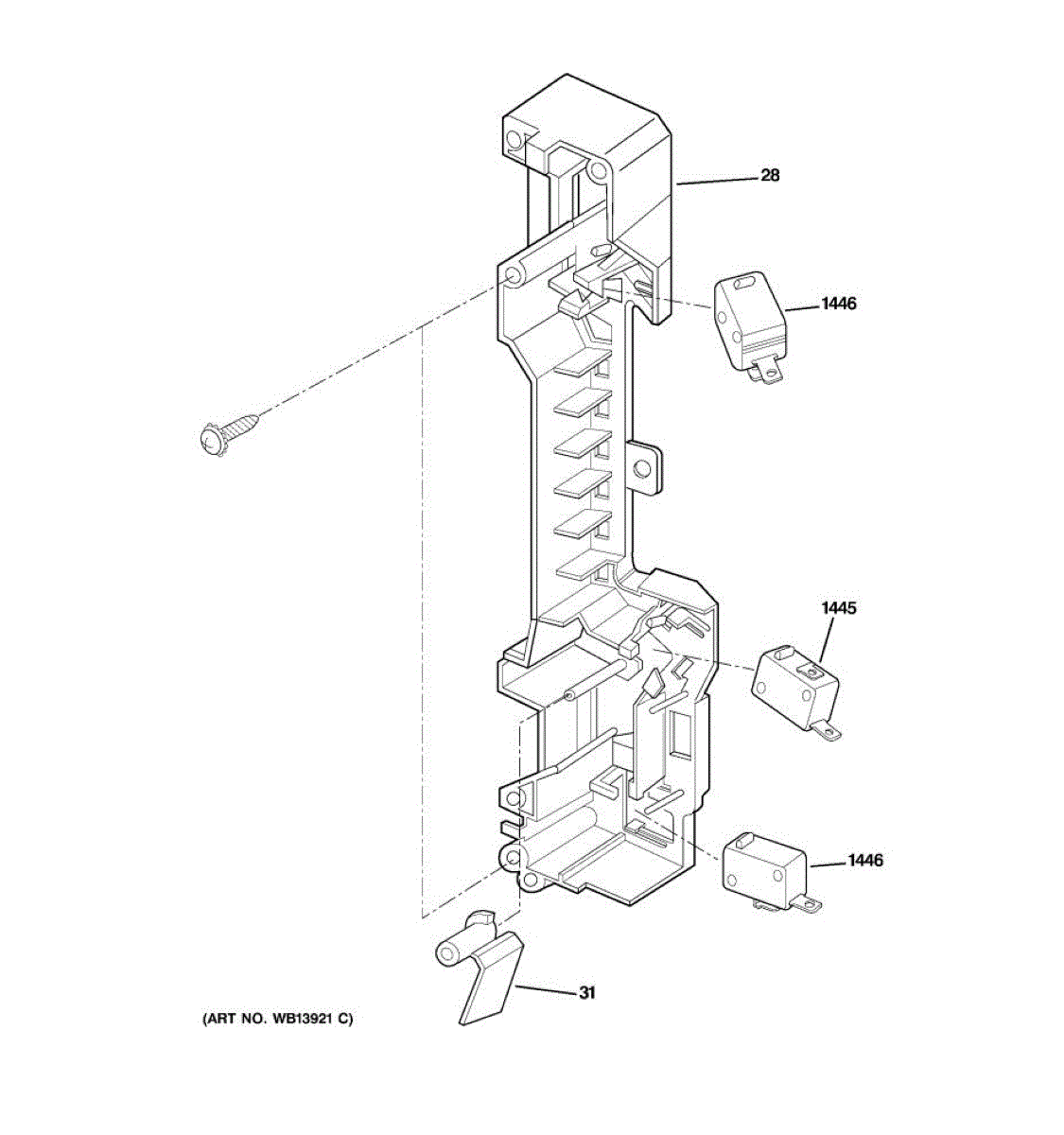

Parts for Ge JVM1540LM5CS: 04 - Latch Board Parts

This monitor interlock switch is the safety door switch used in many microwaves. It detects the door latch position and helps cut power if the interlock circuit faults, restoring reliable, consistent start/stop operation. What it does:

• Senses the door latch position within the interlock assembly
• Opens the monitor safety circuit if the primary door switch sticks or fails
• Common fixes for: microwave won't start; no heat with lights/fan working; intermittent operation when moving/closing the door; blown fuse when the door is opened or closed
• Helps ensure heating only occurs with the door fully closed

• One monitor interlock microswitch

• Disconnect power and discharge the microwave's high-voltage capacitor before servicing
• Access via the control panel/interlock area; note actuator orientation and terminal positions; transfer wires one at a time
• Install in the correct interlock location (monitor) and check switch continuity with a multimeter before reassembly and testing

The Switch Monitor Interlock is an OEM replacement part for GE microwaves. This safety component ensures that the microwave operates only when the door is securely closed. It prevents the microwave from running if the door is open, providing a critical safety feature to protect users from exposure to microwave radiation.

Causes of a bad switch monitor interlock can include wear and tear over time, mechanical damage from frequent door opening and closing, or electrical malfunctions that impact its performance.

Symptoms of a bad Switch Monitor Interlock include:

• The microwave not starting or operating intermittently
• The microwave running with the door open
• Error messages or safety warnings displayed on the control panel
• Unusual clicking or buzzing noises when the microwave door is opened or closed

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Primary Interlock and Door Switch is an OEM replacement part for GE microwaves. It plays a significant role in the safety and operational efficiency of the appliance. This component ensures that the microwave does not operate when the door is open, preventing exposure to microwaves.

Causes of a bad Primary Interlock and Door Switch can include mechanical wear, damage due to forceful closing or opening of the microwave door, or electrical issues that affect the switch's functionality. A malfunctioning switch can lead to the microwave operating with the door open or not starting at all.

Symptoms of a malfunctioning Primary Interlock and Door Switch include:

• The microwave operating when the door is open
• The appliance not starting or heating
• Unusual sounds during the door operation
• Error codes indicating door or switch issues

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Door Interlock Switch is an OEM part for GE microwaves. It ensures the safety of the microwave by preventing the appliance from operating while the door is open. This switch is part of a microwave's safety mechanism, which includes multiple interlock systems designed to stop the generation of microwaves immediately once the door is opened, thereby protecting users from exposure to microwave radiation.

Signs that it's time to replace your door interlock switch include the microwave not starting or stopping unexpectedly, the microwave continuing to operate with the door open, or a failure to heat food even though the appliance seems to be running.

Symptoms of a bad Door Interlock Switch include:

• Microwave does not start
• Microwave stops unexpectedly
• The microwave operates with the door open
• Microwave turns on but does not heat food

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.
