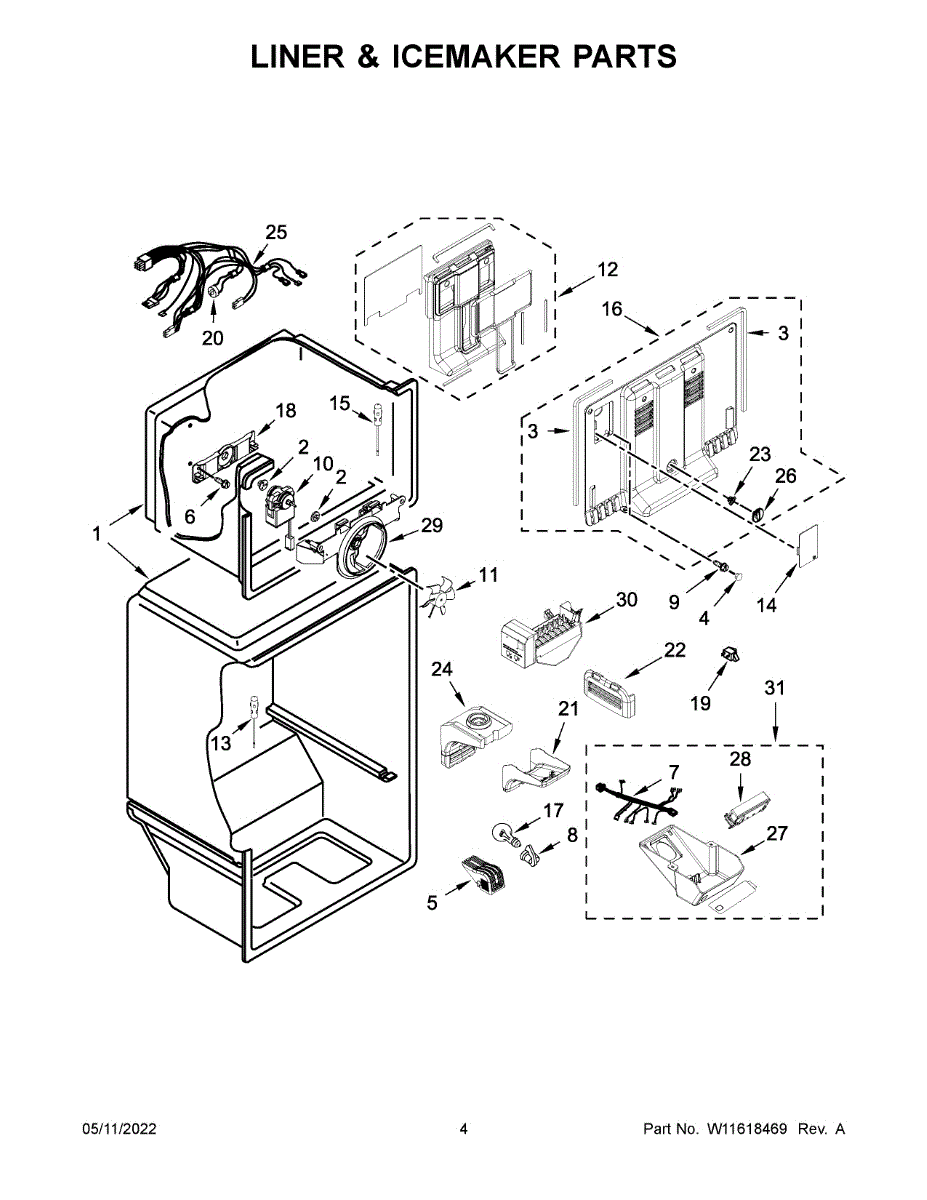

Parts for Whirlpool WRT348FMES03: Liner & Icemaker Parts

This rubber grommet cushions and secures a refrigerator fan motor, isolating vibration to help reduce noise and keep the fan properly aligned in its mount.

• Provides a snug, vibration-dampening seat for the fan motor shaft or mounting stud
• Helps prevent rattling, buzzing, or humming sounds from a loose fan mount
• Maintains proper fan alignment to avoid blade contact with shrouds or brackets
• Replaces aged, cracked, or compressed rubber that can lead to increased vibration

• Disconnect power before service; wear cut-resistant gloves
• Access the fan assembly (rear or evaporator section), support the motor, and remove the old grommet
• Press the new grommet fully into the bracket or housing; transfer any spacers as originally configured
• Reinstall the motor and verify the fan blade spins freely with no contact before restoring power

This replacement gasket creates a tight seal between mating components in your appliance. Restoring a proper seal helps contain air or water where designed, improving performance and helping prevent leaks, moisture intrusion, and energy loss.

• Seals the interface between parts to prevent air or water escaping
• Helps maintain correct temperatures and fluid paths as designed
• Replaces a torn, cracked, flattened, or warped original gasket
• Common symptoms include leaks, visible gaps, or moisture around the sealed area

• Disconnect power and shut off water supply before service
• Note the original gasket's orientation; take photos for reference
• Clean and dry both sealing surfaces; remove old gasket material/residue
• Seat the new gasket fully and evenly; avoid over-tightening fasteners and test for a proper seal

The Wire Harness is an OEM part for Whirlpool refrigerators. It is responsible for for transmitting electrical signals and power between various parts of the refrigerator, such as the control board, temperature sensors, and other electrical components.

A bad wire harness can occur due to wear and tear, damage caused by rodents or pests, or loose connections. If you notice issues such as intermittent power loss, malfunctioning controls, or erratic temperature readings, it may indicate a problem with the wire harness.

Symptoms of a bad wire harness include:

• Intermittent power loss or electrical malfunctions
• Unreliable or incorrect temperature readings
• Inconsistent operation of the refrigerator

Replace your faulty wire harness with this genuine OEM part to restore your refrigerator.

This Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.


The Evaporator Motor is an OEM part for Whirlpool refrigerators. It plays a critical role in circulating air over the refrigerator's evaporator coils to cool the air inside the fridge and freezer compartments. This circulation helps maintain the desired temperature settings, ensuring that food is kept at optimal freshness.

Includes wire harness. If your fan motor does not have an incorporated wire harness, you will need part number- WPW10188389

Causes of a bad Evaporator Motor can include motor burnout due to continuous operation, electrical failures, or mechanical wear from prolonged use.

Symptoms of a bad Evaporator Motor include:

• The refrigerator or freezer not cooling adequately
• Unusual noises coming from the refrigerator indicating motor distress
• The motor running hot or not running at all

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Evaporator Fan Blade is an OEM part for Whirlpool refrigerators. It is designed to circulate air over the evaporator coils, ensuring efficient cooling throughout the refrigerator and freezer compartments. The fan blade helps maintain an even temperature, contributing to the appliance's overall performance.

Causes of a bad fan blade can include wear and tear over time, ice buildup interfering with the blade, or physical damage from accidental impact or obstruction by debris.

Symptoms of a bad evaporator fan blade include:

• Unusual noises such as rattling or scraping
• Inconsistent or insufficient cooling in the refrigerator or freezer
• The refrigerator running longer than usual
• Visible damage or warping of the fan blade

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Air Duct is an OEM part for Whirlpool refrigerators. It is a component that directs cool air throughout the appliance. The air duct is designed to channel air from the freezer section to the fresh food section.

Causes of a bad air duct can include cracks or fractures in the ducting material, damage to air vents or directional fins, or blockages that disrupt proper air flow.

Symptoms of a bad air duct include:

• Inconsistent or uneven interior temperatures
• Longer cool down times after door openings
• Frost or condensation issues in problem areas
• Portions of refrigerator not maintaining proper temperatures

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Thermistor is an OEM part for Whirlpool refrigerators. This part monitors the temperature within the refrigerator and transmitting this information to the control board, ensuring proper cooling performance.

Causes of a bad thermistor can include wear and tear over time, exposure to extreme temperatures, or electrical issues that affect its functionality.

Symptoms of a bad thermistor include:

• Inconsistent temperatures within the refrigerator
• The refrigerator not cooling properly
• Frequent cycling on and off of the compressor
• Error codes displayed on the control panel

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This evaporator cover is the plastic shroud that protects the refrigerator evaporator coil and helps direct cold airflow through the freezer compartment for more consistent cooling. It replaces a cracked, warped, or damaged cover to restore proper airflow and reduce frost buildup. What it does:

• Shields the evaporator coil from ice, debris, and accidental contact
• Channels cold air evenly from the evaporator into the freezer and fresh-food sections
• Helps reduce uneven cooling, excess frost, and airflow noise caused by a damaged cover
• Works with the evaporator fan and defrost components to maintain normal operation

• One evaporator cover / airflow shroud

• Disconnect power before beginning work to avoid electrical shock or compressor startup
• Remove interior panels, shelves, and the evaporator fan as needed for access
• Handle carefully—plastic edges and nearby metal parts may be sharp
• Follow OEM service instructions for proper fit and to verify any related parts

The Bulb-Light is an OEM part for Whirlpool refrigerators. It provides lighting within the refrigerator compartments, allowing for easy viewing of contents. The bulb-light joins with compatible sockets or bases designed precisely for its installation within the refrigerator.

Causes of a bad bulb light can include burnout over extended use, accidental damage during cleaning, or faulty wiring that prevents the bulb from receiving power.

Symptoms of a bad Bulb-Light include:

• Dark or no light in refrigerator compartments
• Bulb producing a flickering or intermittent light instead of consistent illumination
• Signs of overheating, melting, or charring around the bulb

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This mounting bracket secures internal components in place to keep your appliance stable and operating quietly. It replaces a worn, bent, or broken bracket to restore proper alignment and prevent loose or rattling parts. What it does:

• Provides a stable mounting point for panels, assemblies, or hardware
• Keeps connected components aligned to prevent rubbing or vibration
• Stops noises caused by loose or shifting internal parts
• Restores proper fit when an old bracket is bent, cracked, or missing

• Install with appliance unplugged or power disconnected to avoid shock
• Verify bracket orientation using the appliance's service diagram before fastening
• Use appropriate screws/fasteners and torque to avoid stripping or distortion

The Refrigerator Door Switch is an OEM part for Whirlpool refrigerators. This switch monitors the opening and closing of the refrigerator door, activating lights and functions as needed while also keeping track of door activity for diagnostics purposes.

Causes of failure may be from normal wear and tear over time, moisture damage, or impact if the door is accidentally slammed.

Symptoms of a bad door switch include:

• Lights not turning on/off with door movement
• Dispensers or ice/water not working properly
• Cooling and freezing performance affected
• Error codes related to door operation

This OEM replacement part is compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models as well.

This genuine replacement cover protects internal components and gives the appliance a finished appearance. Designed to fit the original mounting points, it helps keep dust and debris away from sensitive parts for reliable operation. What it does

• Shields electronic and mechanical components from dirt and lint buildup
• Restores the appliance's exterior finish where the original cover was damaged or missing
• Helps reduce exposure to moving parts and potential debris
• Maintains proper airflow paths and component spacing when correctly installed

• Disconnect power to the appliance before beginning any repair
• Use basic hand tools; keep track of screws and fasteners for reassembly
• Handle edges carefully to avoid cuts and protect adjacent surfaces from scratches
• Follow the OEM service manual for disassembly/reassembly steps and torque values

The Control is an OEM part for Whirlpool refrigerators. It allows you to adjust temperature settings, control various functions, and monitor the overall performance of your appliance.

A bad refrigerator control can occur due to wear and tear, electrical malfunctions, or accidental damage. If you notice symptoms such as being unresponsive, erratic temperature, or failure to maintain the desired cooling level, it may be time to replace the control.

Symptoms of a bad refrigerator control include:

• Unresponsive control
• Erratic temperature
• Inability to maintain desired cooling level

Repair your refrigerator's control system by replacing the faulty or worn-out refrigerator control with this genuine OEM part.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.


The air diffuser is an OEM part for Whirlpool refrigerators. This air diffuser is responsible for evenly distributing cool air throughout the refrigerator compartment.

Causes of a bad air diffuser can include cracks or breaks in the plastic that disrupt proper airflow. Over many years of use, the continuous circulation of air can weaken and damage the diffuser.

Symptoms of a bad air diffuser include:

• Warm or hot spots in the refrigerator compartment
• Increased energy usage from the cooling system overworking to maintain temperatures
• Collecting of dust or debris inside the refrigerator

This refrigerator component is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and select Kenmore models.

This wire harness connects the appliance's control components to power and sensors, restoring reliable electrical communication and operation. It replaces a damaged or worn harness to help stop intermittent power, no-start, or control errors. What it does

• Routes power and signal between the control board and console, switches, or sensors.
• Replaces frayed, melted, or broken wiring that can cause intermittent operation or failure to start.
• Restores proper connector fit where loose or corroded terminals cause poor electrical contact.
• Helps eliminate control errors and erratic behavior caused by broken or shorted wires.

• One complete wire harness assembly as shown.

• Always disconnect power (unplug or shut off breaker) before accessing internal wiring.
• Compare the new harness to the old one and transfer any mounting clips or tie straps as needed.
• Route wires away from heat sources and sharp edges; secure with original clips or cable ties.
• If terminals or connectors are damaged, replace the entire harness—do not splice or tape high-current wires.

This replacement air damper regulates and directs airflow inside the appliance or through its vent path. Replacing a broken or stuck damper helps restore proper air movement and reduces performance issues caused by a jammed or missing flap. What it does:

• Opens and closes to control airflow in the duct or air channel
• Helps maintain proper ventilation or temperature, depending on the appliance design
• Reduces backflow/drafts or uneven airflow
• Common symptoms: poor air movement, rattling/whistling near the vent, drafts, or performance imbalance due to a stuck or broken flap

• 1 air damper

• Disconnect power before servicing; isolate ducting if applicable
• Access the damper location; note orientation of the flap and any seals/gaskets
• Remove the old damper; install the new one with the flap moving freely in the correct direction
• Reassemble and test airflow; seal any duct joints per manufacturer guidance

This control box is the oven's main electronic control module that manages bake, broil and user interface functions to restore proper cycle selection and display responsiveness. It replaces a failed control assembly to return full oven control. What it does:

• Receives user commands and runs selected cooking cycles
• Controls bake, broil and timing elements based on programmed inputs
• Manages front-panel display and button responsiveness
• Can resolve intermittent operation, unresponsive controls, or incorrect cycle behavior

• Disconnect power (unplug or shut off circuit breaker) before attempting replacement
• Handle the control box carefully to avoid static or moisture damage
• Some installations require removing the console or control panel; keep fasteners and connectors organized

This burner orifice meters the gas delivered to a burner so you get a stable, properly sized flame. Replacing a clogged or damaged orifice helps restore quick ignition, consistent flame quality, and even heating on gas appliances.

• Meters gas flow from the valve to the burner for correct flame size and shape
• Helps maintain efficient, even heating and clean combustion
• Wear or blockage may show as delayed or no ignition, weak/uneven flame, or yellow tipping
• Can reduce popping or flare-ups caused by improper gas metering

• Shut off gas supply and disconnect power before servicing
• Remove the old orifice with the proper wrench/nut driver; install the new one snugly—do not overtighten
• After reassembly, leak-check connections and verify flame; adjust air shutter only if specified by the service manual

This Whirlpool Fridge Control Box is an OEM part for a range of Whirlpool refrigerator models. It helps to manage the refrigerator's temperature and defrost settings. The control box is engineered to meet Whirlpool's precise standards, ensuring seamless integration and reliable performance in your refrigerator.

A malfunctioning control box may lead to irregular temperature regulation, resulting in either insufficient cooling or overcooling. These temperature inconsistencies can affect food quality and increase energy consumption.

Symptoms of a defective fridge control box include:

• Inconsistent or fluctuating refrigerator temperatures.
• The fridge fails to start the defrost cycle, leading to ice buildup.
• Unusual noises emanating from the fridge, indicating relay or electrical issues.
• The fridge runs continuously without cycling off.
• Digital displays or internal lights malfunctioning or not working.

This is a genuine Whirlpool OEM replacement part and is also compatible with Maytag, Jenn-Air, and some Kenmore models.
