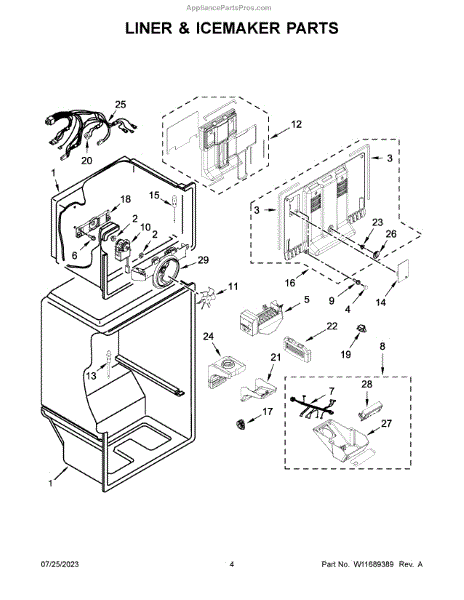

Parts for Whirlpool WRT348FMES05: Liner & Icemaker Parts

This rubber grommet cushions and secures a refrigerator fan motor, isolating vibration to help reduce noise and keep the fan properly aligned in its mount.

• Provides a snug, vibration-dampening seat for the fan motor shaft or mounting stud
• Helps prevent rattling, buzzing, or humming sounds from a loose fan mount
• Maintains proper fan alignment to avoid blade contact with shrouds or brackets
• Replaces aged, cracked, or compressed rubber that can lead to increased vibration

• Disconnect power before service; wear cut-resistant gloves
• Access the fan assembly (rear or evaporator section), support the motor, and remove the old grommet
• Press the new grommet fully into the bracket or housing; transfer any spacers as originally configured
• Reinstall the motor and verify the fan blade spins freely with no contact before restoring power

This replacement gasket creates a tight seal between mating components in your appliance. Restoring a proper seal helps contain air or water where designed, improving performance and helping prevent leaks, moisture intrusion, and energy loss.

• Seals the interface between parts to prevent air or water escaping
• Helps maintain correct temperatures and fluid paths as designed
• Replaces a torn, cracked, flattened, or warped original gasket
• Common symptoms include leaks, visible gaps, or moisture around the sealed area

• Disconnect power and shut off water supply before service
• Note the original gasket's orientation; take photos for reference
• Clean and dry both sealing surfaces; remove old gasket material/residue
• Seat the new gasket fully and evenly; avoid over-tightening fasteners and test for a proper seal

The Wire Harness is an OEM part for Whirlpool refrigerators. It is responsible for for transmitting electrical signals and power between various parts of the refrigerator, such as the control board, temperature sensors, and other electrical components.

A bad wire harness can occur due to wear and tear, damage caused by rodents or pests, or loose connections. If you notice issues such as intermittent power loss, malfunctioning controls, or erratic temperature readings, it may indicate a problem with the wire harness.

Symptoms of a bad wire harness include:

• Intermittent power loss or electrical malfunctions
• Unreliable or incorrect temperature readings
• Inconsistent operation of the refrigerator

Replace your faulty wire harness with this genuine OEM part to restore your refrigerator.

This Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.


The Evaporator Motor is an OEM part for Whirlpool refrigerators. It plays a critical role in circulating air over the refrigerator's evaporator coils to cool the air inside the fridge and freezer compartments. This circulation helps maintain the desired temperature settings, ensuring that food is kept at optimal freshness.

Includes wire harness. If your fan motor does not have an incorporated wire harness, you will need part number- WPW10188389

Causes of a bad Evaporator Motor can include motor burnout due to continuous operation, electrical failures, or mechanical wear from prolonged use.

Symptoms of a bad Evaporator Motor include:

• The refrigerator or freezer not cooling adequately
• Unusual noises coming from the refrigerator indicating motor distress
• The motor running hot or not running at all

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Evaporator Fan Blade is an OEM part for Whirlpool refrigerators. It is designed to circulate air over the evaporator coils, ensuring efficient cooling throughout the refrigerator and freezer compartments. The fan blade helps maintain an even temperature, contributing to the appliance's overall performance.

Causes of a bad fan blade can include wear and tear over time, ice buildup interfering with the blade, or physical damage from accidental impact or obstruction by debris.

Symptoms of a bad evaporator fan blade include:

• Unusual noises such as rattling or scraping
• Inconsistent or insufficient cooling in the refrigerator or freezer
• The refrigerator running longer than usual
• Visible damage or warping of the fan blade

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Air Duct is an OEM part for Whirlpool refrigerators. It is a component that directs cool air throughout the appliance. The air duct is designed to channel air from the freezer section to the fresh food section.

Causes of a bad air duct can include cracks or fractures in the ducting material, damage to air vents or directional fins, or blockages that disrupt proper air flow.

Symptoms of a bad air duct include:

• Inconsistent or uneven interior temperatures
• Longer cool down times after door openings
• Frost or condensation issues in problem areas
• Portions of refrigerator not maintaining proper temperatures

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Thermistor is an OEM part for Whirlpool refrigerators. This part monitors the temperature within the refrigerator and transmitting this information to the control board, ensuring proper cooling performance.

Causes of a bad thermistor can include wear and tear over time, exposure to extreme temperatures, or electrical issues that affect its functionality.

Symptoms of a bad thermistor include:

• Inconsistent temperatures within the refrigerator
• The refrigerator not cooling properly
• Frequent cycling on and off of the compressor
• Error codes displayed on the control panel

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This mounting bracket secures internal components in place to keep your appliance stable and operating quietly. It replaces a worn, bent, or broken bracket to restore proper alignment and prevent loose or rattling parts. What it does:

• Provides a stable mounting point for panels, assemblies, or hardware
• Keeps connected components aligned to prevent rubbing or vibration
• Stops noises caused by loose or shifting internal parts
• Restores proper fit when an old bracket is bent, cracked, or missing

• Install with appliance unplugged or power disconnected to avoid shock
• Verify bracket orientation using the appliance's service diagram before fastening
• Use appropriate screws/fasteners and torque to avoid stripping or distortion

This replacement control switch completes the appliance's electrical circuit so controls and functions respond correctly. It restores user input and on/off signaling for reliable operation of the affected control or latch assembly. What it does:

• Acts as the electrical contact that opens or closes a control circuit when pressed or actuated
• Restores control-panel or door/lid signaling so cycles can start and stop as intended
• Common symptom fixes: appliance won't start, intermittent or no response from a button or control, or a stuck/non-responsive switch
• Fits into the original switch housing and mates with factory wiring harnesses when the correct part is used

• One replacement control switch

• Disconnect power (unplug or switch off breaker) before attempting replacement
• Handle electrical connectors gently and avoid forcing terminals; replace any damaged wiring or connectors

This genuine replacement cover protects internal components and gives the appliance a finished appearance. Designed to fit the original mounting points, it helps keep dust and debris away from sensitive parts for reliable operation. What it does

• Shields electronic and mechanical components from dirt and lint buildup
• Restores the appliance's exterior finish where the original cover was damaged or missing
• Helps reduce exposure to moving parts and potential debris
• Maintains proper airflow paths and component spacing when correctly installed

• Disconnect power to the appliance before beginning any repair
• Use basic hand tools; keep track of screws and fasteners for reassembly
• Handle edges carefully to avoid cuts and protect adjacent surfaces from scratches
• Follow the OEM service manual for disassembly/reassembly steps and torque values

The Control is an OEM part for Whirlpool refrigerators. It allows you to adjust temperature settings, control various functions, and monitor the overall performance of your appliance.

A bad refrigerator control can occur due to wear and tear, electrical malfunctions, or accidental damage. If you notice symptoms such as being unresponsive, erratic temperature, or failure to maintain the desired cooling level, it may be time to replace the control.

Symptoms of a bad refrigerator control include:

• Unresponsive control
• Erratic temperature
• Inability to maintain desired cooling level

Repair your refrigerator's control system by replacing the faulty or worn-out refrigerator control with this genuine OEM part.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.


The air diffuser is an OEM part for Whirlpool refrigerators. This air diffuser is responsible for evenly distributing cool air throughout the refrigerator compartment.

Causes of a bad air diffuser can include cracks or breaks in the plastic that disrupt proper airflow. Over many years of use, the continuous circulation of air can weaken and damage the diffuser.

Symptoms of a bad air diffuser include:

• Warm or hot spots in the refrigerator compartment
• Increased energy usage from the cooling system overworking to maintain temperatures
• Collecting of dust or debris inside the refrigerator

This refrigerator component is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and select Kenmore models.

This replacement air damper regulates and directs airflow inside the appliance or through its vent path. Replacing a broken or stuck damper helps restore proper air movement and reduces performance issues caused by a jammed or missing flap. What it does:

• Opens and closes to control airflow in the duct or air channel
• Helps maintain proper ventilation or temperature, depending on the appliance design
• Reduces backflow/drafts or uneven airflow
• Common symptoms: poor air movement, rattling/whistling near the vent, drafts, or performance imbalance due to a stuck or broken flap

• 1 air damper

• Disconnect power before servicing; isolate ducting if applicable
• Access the damper location; note orientation of the flap and any seals/gaskets
• Remove the old damper; install the new one with the flap moving freely in the correct direction
• Reassemble and test airflow; seal any duct joints per manufacturer guidance

This burner orifice meters the gas delivered to a burner so you get a stable, properly sized flame. Replacing a clogged or damaged orifice helps restore quick ignition, consistent flame quality, and even heating on gas appliances.

• Meters gas flow from the valve to the burner for correct flame size and shape
• Helps maintain efficient, even heating and clean combustion
• Wear or blockage may show as delayed or no ignition, weak/uneven flame, or yellow tipping
• Can reduce popping or flare-ups caused by improper gas metering

• Shut off gas supply and disconnect power before servicing
• Remove the old orifice with the proper wrench/nut driver; install the new one snugly—do not overtighten
• After reassembly, leak-check connections and verify flame; adjust air shutter only if specified by the service manual
