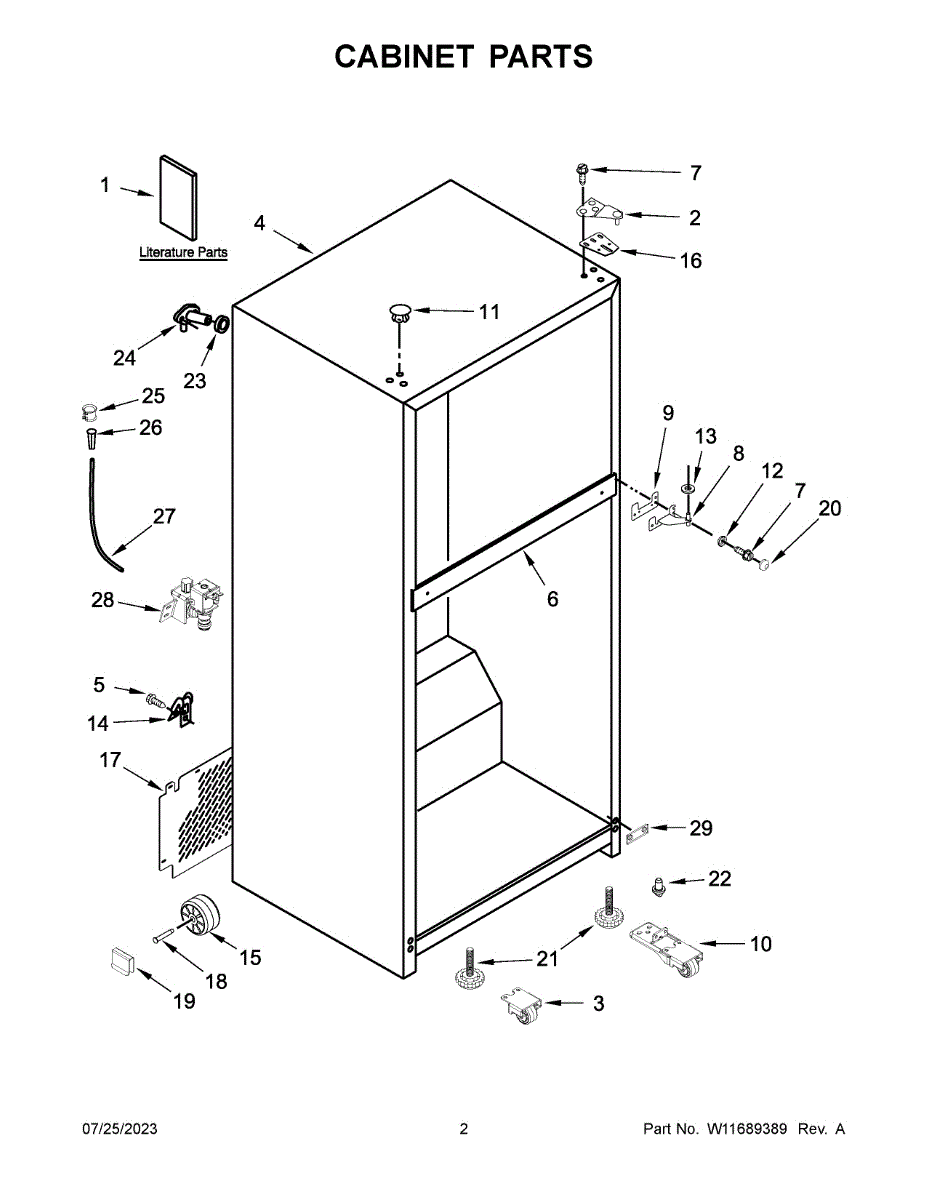

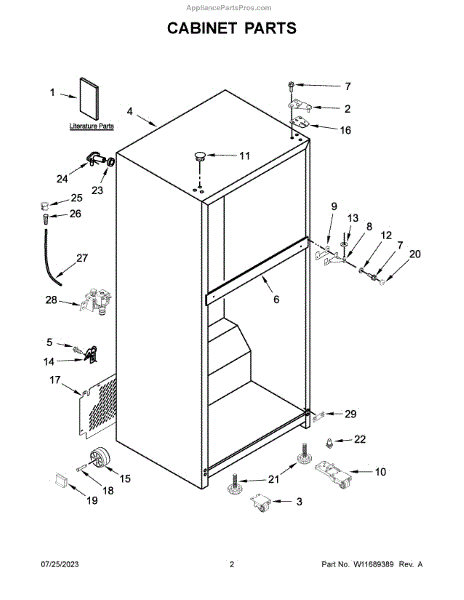

Parts for Whirlpool WRT348FMES05: Cabinet Parts

This roller-cab replacement roller helps support and guide a cabinet or slide assembly so doors or drawers move smoothly. It restores proper alignment and reduces sticking or uneven movement for affected cabinetry components. What it does:

• Supports cabinet/drawer movement by providing a low-friction rolling surface
• Keeps doors/drawers tracking straight and prevents sagging or binding
• Helps eliminate noisy or rough operation caused by worn rollers
• Works as a direct-fit replacement when the original roller is damaged or missing

• One replacement roller as pictured

• Inspect mounting clip/pin and surrounding track; replace any damaged hardware before installing the roller
• Remove power to any connected appliance before accessing internal cabinetry components when applicable
• Typical install requires removing the drawer or door to access the roller; keep fasteners handy and note orientation
• If movement problems persist after install, check adjacent rollers and track alignment

Size: 8-18 x 1/2 inch.

The Center Door Hinge is an OEM replacement part for Whirlpool refrigerators. As one of several hinges supporting each refrigerator door panel, it works to guide opening and closing movements.

Causes of a faulty center hinge tend to be wear from years of continuous operation with near-daily door cycles. Complete failure could also occur in the event of physical damage sustained during a repair or installation issue.

Symptoms include:

• Looseness, wobbling, or misalignment of the associated door
• Increased effort required to open or close doors
• Potential for doors to fall off alignment, cease opening fully
• Risk of door detachment altogether without hinge support

This is a genuine Whirlpool OEM replacement this part is also compatible with Maytag, Jenn-Air and some Kenmore models.

This small shim installs on the refrigerator's center hinge pin to set door height and reduce excess play. Replacing a worn spacer can help restore smooth door movement and a reliable gasket seal. What it does:

• Maintains proper spacing at the center hinge to support door alignment
• Reduces door wobble, sagging, or rubbing against the cabinet
• Helps doors open and close smoothly with consistent gasket contact
• Can lessen clicking or squeaking from a worn hinge interface

• Includes the center hinge spacer only

• Unplug the refrigerator or switch off power at the breaker
• Remove items from the door; support the door before loosening center hinge screws
• Lift the door off; place the new spacer on the center hinge pin in the same orientation as the original
• Reinstall the hinge and door; tighten fasteners and verify door alignment and gasket seal

This cabinet roller replaces a worn or damaged roller to restore smooth, stable movement for drawers or cabinet doors. It reduces sticking, squeaking, and uneven travel so the cabinet operates quietly and reliably. What it does:

• Supports and guides a cabinet drawer or door along its track
• Restores smooth rolling action when rollers are cracked, missing, or worn
• Stops rubbing, scraping, or loud squeaks caused by damaged rollers
• Helps prevent uneven or stuck drawer/door movement

• Disconnect power (or remove items) and access the roller area before starting
• Inspect the mounting bracket and track for damage; replace any broken clips or guides
• Remove the old roller and press or screw the new roller into the same mounting location

Color: Black

This small fastener washer fits under a bolt or nut inside your washing machine, distributing clamping force and protecting surfaces. Replacing a worn or missing washer restores a secure fit and helps reduce vibration, rattling, and premature wear.

• Distributes load evenly under a bolt or nut to prevent damage and loosening
• Helps maintain correct spacing and alignment within the assembly
• Reduces metal-on-metal wear at the mounting point
• Can help address looseness, rattling/metallic noises, and excessive vibration

• Disconnect power and shut off water before servicing
• Note the original washer's position and orientation before removal
• Inspect the bolt/nut and mating surfaces; replace any damaged hardware
• Tighten to manufacturer guidance; avoid overtightening

The Hinge Washer is an OEM replacement part for Whirlpool refrigerators. This small washer plays a supports the refrigerator door hinge assembly. Center hinge plastic washer.

Causes of a bad hinge washer are generally normal wear and tear from extensive use. As the washer absorbs pressure each time the door is opened or closed, it can gradually deteriorate or crack. Physical damage is also possible if the door is accidentally struck or slammed.

Symptoms of a worn or damaged hinge washer include:

• sagging doors
• uneven gaps around the door seal
• doors that do not stay securely closed on their own
• Over time and repeated opening/closing stress, the hinge washer compresss which affects door alignment.

This is a genuine Whirlpool OEM replacement this part is also compatible with Maytag, Jenn-Air and some Kenmore models.

This shim is a thin flat spacer used to align or space appliance components for proper fit and stable operation. It restores correct spacing to reduce rubbing, vibration, or misalignment during repairs and maintenance. What it does:

• Provides a precise gap or alignment between panels, housings, or assemblies
• Helps stop rubbing or scraping noises caused by misaligned parts
• Reduces vibration by stabilizing mating surfaces
• Used when replacing worn or missing shims during panel, bracket, or trim repairs

• Disconnect power (and gas, if applicable) before starting any repair
• Position shim between mating surfaces, then secure fasteners snugly—do not over-tighten
• Inspect surrounding parts and fasteners; replace any that are damaged

The Axle is an OEM part for Whirlpool refrigerators. This axle allows it to be easily repositioned or moved for cleaning and maintenance. It supports the rollers that enable the refrigerator to glide across the floor.

Common causes of a bad axle include prolonged use, excessive weight, or impact damage, which can lead to the axle bending or breaking.

Symptoms of a bad refrigerator roller axle include:

• Difficulty moving the refrigerator
• Uneven or wobbling movement
• Scratches or damage to the floor
• The refrigerator not staying level

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This small pin clip secures the roller pin in a refrigerator drawer/track assembly, keeping the roller and pin from sliding apart. Replacing a missing or bent clip restores smooth drawer movement and helps prevent bins from tilting, binding, or dropping.

• Retains the roller on its pin to keep the drawer track assembly together
• Helps resolve drawers that tilt, bind, or fall when a clip is missing or damaged
• Prevents the pin from backing out, reducing scraping or popping noises
• Replaces clips that are missing, bent, or no longer hold securely

• Disconnect power and remove the drawer/bin to access the track and roller
• Support the roller; remove the old clip with small pliers while securing the pin
• Align roller and pin; press the new clip fully into the groove until seated
• Reassemble and verify the drawer glides smoothly without binding

Color: Black

This leveler is the adjustable foot that threads into the base to stabilize and level the appliance. Proper leveling reduces rocking and vibration and helps doors, drawers, or tubs align and operate smoothly.

• Supports the appliance and allows height adjustment to compensate for uneven floors
• Helps prevent rocking, rattling, or excessive vibration during use
• Aids in proper door/lid alignment and smooth closing
• Replace if the foot is cracked, stripped, or missing

• Disconnect power; turn off gas or water supply if applicable
• With a helper, carefully tilt or raise the appliance and protect the floor
• Unthread the old leveler; hand-thread the new leveler to avoid cross-threading, then tighten as designed
• Adjust to level side-to-side and front-to-back; the unit sits stable on all corners

A replacement hinge pin that secures and guides the appliance door hinge so the door opens, closes and stays aligned. Installs quickly to restore correct door pivot and reduce sag or binding. What it does

• Acts as the pivot point for the door hinge so the door swings smoothly.
• Restores proper door alignment to prevent gaps or doors that won't latch fully.
• Stops noisy or rough door movement caused by a worn or bent pin.
• Helps maintain seal performance by keeping the door flush with the cabinet.

• Disconnect power to the appliance and remove any items from the door area before starting.
• Support the door while removing/installing the pin to avoid damage or injury.
• Use appropriate hand tools and keep track of any retainers or fasteners removed.

This gasket/seal creates a tight barrier between two mating parts in your appliance to prevent leaks and performance loss. Replacing a worn gasket restores proper sealing and helps stop seepage at the joint. What it does

• Forms a reliable seal between components to prevent fluid or air leaks
• Maintains proper operation by keeping the sealed area contained
• Replaces gaskets that are brittle, cracked, flattened, or swollen
• Common signs include residue or moisture around the joint, visible wear on the old gasket, or a loose/poor seal

• 1 gasket/seal

• Disconnect power and any water or gas supply before servicing
• Note the gasket's orientation; compare old and new parts before installation
• Clean and dry mating surfaces; remove old adhesive and debris
• Seat the gasket evenly; do not overtighten fasteners; test for leaks after reassembly

The Fill Tube is an OEM part for Whirlpool-brand refrigerator ice makers and water dispensers. It facilitates filling of the ice mold tray with water during the freezing process.

Symptoms of a bad fill tube include:

• Ice maker not filling molds properly or producing ice inconsistently
• Water dispenser failing to function or dispensing slowly
• Leaks noticed around the fill tube area
• Buildup of mineral deposits blocking water flow

Over many years of repeated use, mineral deposits inside can clog the tiny fill tube openings. Bends or cracks may also form from the continuous impact of ice during the ejection cycle.

Causes of a bad fill tube are usually just standard wear issues like mineral buildup reducing water flow or plastic material fatigue rendering it brittle.

Compatible also with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore refrigerators.

A small metal clamp that secures flexible hoses or tubing in laundry and kitchen appliances to prevent leaks and keep connections tight. Simple, durable replacement for a worn or loose hose fastening point. What it does

• Holds a hose or tube firmly to a barb, fitting or nipple to stop leaks and movement
• Restores a secure connection where a cracked or corroded clamp allows fluid or air escape
• Common service item for loose drain, fill, or vent hoses showing seepage or slipping
• Helps maintain proper appliance function by ensuring sealed hose connections

• One clamp

• Disconnect power and water before servicing; follow your appliance safety procedures
• Inspect mating hose and fitting for damage; replace hose if cut or brittle
• Use the correct pliers or clamp tool for safe installation and to avoid over-tightening

These inserts are for 1/4 inch plastic tubing. Package of 4.

The Ice Maker Water Line is an OEM part for Whirlpool refrigerators. It supplies water from the household plumbing to the ice maker, ensuring a consistent and reliable production of ice cubes. This kit includes a 1/4-inch plastic water line that is approximately 72 inches long. The tubing will need to be cut to match the desired length.

Causes of a bad water line can include wear and tear from prolonged use, kinks or bends restricting water flow, or leaks due to punctures or cracks. A compromised water line can result in inadequate ice production or water leaks.

Symptoms of a bad ice maker water line include:

• Reduced or no ice production
• Leaking water from the refrigerator
• Visible cracks or damage to the water line
• Ice cubes that are smaller than usual

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The inlet valve is an OEM replacement part for Whirlpool refrigerators. Located where the water line attaches inside the fridge, it controls input flow into the ice maker and water dispenser components. A reliable inlet is necessary for these features.

Causes of a faulty inlet valve can range from water conditions like excess minerals collecting inside to wear from repeated valve openings.

Symptoms include:

• Ice maker or water dispenser not working properly
• Water leaks inside the fridge compartment
• Restricted flow not allowing full ice baskets or glass fills

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.
