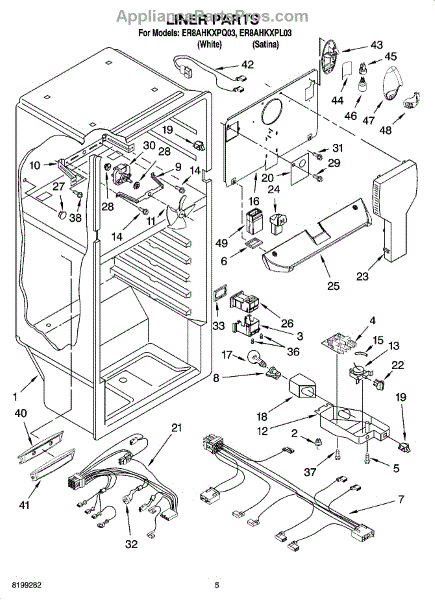

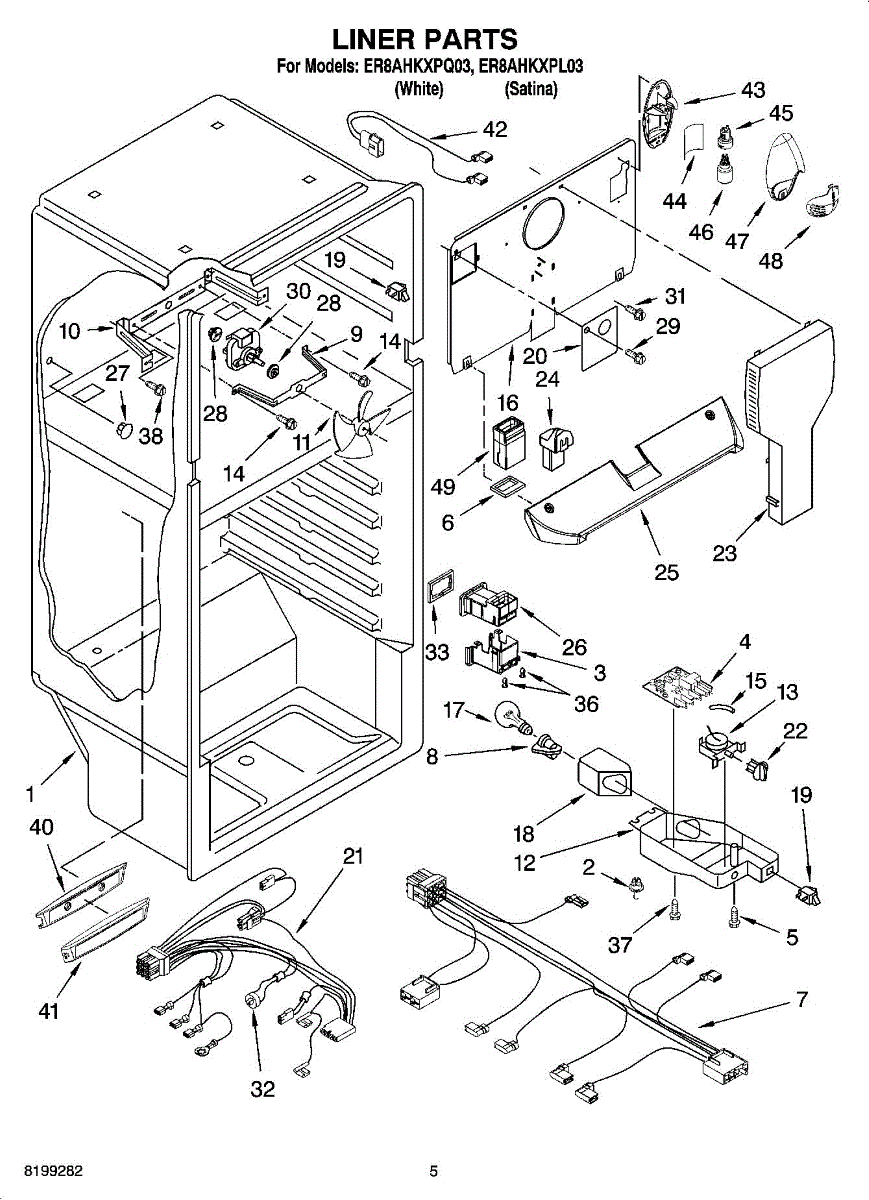

Parts for Whirlpool ER8AHKXPL03: 03 - Liner Parts

The Defrost Control Board is an OEM part for Whirlpool refrigerators. This board manages the defrost cycle by controlling the defrost heater and monitoring the freezer's temperature.

Causes of a bad defrost control board can include electrical issues, wear from continuous use, or damage from power surges.

Symptoms of a bad defrost control board include:

• Excessive frost buildup in the freezer compartment
• The refrigerator not cooling properly
• The defrost heater not activating
• The refrigerator running continuously without cycling off

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This is a 8-15 x 2.00 in. hex washer head, self-locking screw used to secure appliance panels and components. It provides a durable, vibration-resistant fastener that helps keep parts aligned and stable. What it does:

• Fastens and secures panels, brackets, or assemblies to the appliance frame
• Self-locking design helps resist loosening from vibration or thermal cycling
• Hex washer head gives a larger bearing surface to prevent pull-through on thin materials
• Commonly replaced when screws are missing, stripped, or causing loose/rattling parts

• Use the correct driver/socket to avoid rounding the hex head
• Tighten until snug; avoid over-torquing which can strip threads or damage components
• Disconnect power and follow appliance safety procedures before working inside the unit
• Replace any stripped or damaged mating hardware for secure fastening

The Light Socket Kit is an OEM part for Whirlpool refrigerators. This kit includes the light socket and necessary components to ensure proper installation and functionality. It is designed to hold the refrigerator light bulb securely and provide reliable electrical connections to illuminate the interior of the refrigerator.

Common causes of failure include wear and tear, corrosion from moisture, or damage from handling or bulb replacement.

Symptoms of a bad Light Socket Kit include:

• Refrigerator light not turning on
• Flickering or intermittent lighting
• Visible damage or corrosion on the socket
• Burned or melted areas around the socket

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This fan support bracket is a direct replacement mounting bracket that secures the fan/blower motor assembly and helps keep the blower aligned for proper airflow and quieter operation. It restores stable motor mounting and reduces vibration. What it does

• Secures the fan/blower motor and helps maintain correct fan alignment.
• Keeps the blower assembly stable to reduce vibration and noise.
• Helps prevent the blower wheel from rubbing or contacting surrounding panels.
• Supports consistent airflow for efficient operation and drying/cooling performance.

• 1 fan support bracket

• Disconnect power to the appliance before beginning any repair.
• Remove the appropriate access panel(s) to reach the fan/motor assembly.
• Compare the new bracket to the old part before installing.
• Use basic hand tools; avoid overtightening fasteners to prevent damage.

The Evaporator Fan Motor Blade is an OEM part for Whirlpool refrigerators. It is a crucial component of the refrigerator's cooling system, attached to the evaporator fan motor to circulate air over the evaporator coils. This circulation helps distribute cold air throughout the refrigerator and freezer compartments, ensuring consistent temperatures and efficient operation.

Symptoms of a bad Evaporator Fan Motor Blade include:

• Unusual noise coming from the fan area, indicating the blade may be hitting another component or is unbalanced,
• Insufficient cooling in the refrigerator or freezer compartments,
• The refrigerator running longer than usual to maintain the desired temperature.

Causes of evaporator fan motor blade failure typically include physical damage from interference with other components, wear from continuous use, or buildup of ice or debris that unbalances the blade.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Refrigerator Thermostat is an OEM replacement part for Whirlpool refrigerators. This part monitors and maintains the temperature inside the appliance.

Causes typically relate to normal component degradation over extended use.

Symptoms of a faulty thermostat can include:

• ineffective or fluctuating interior conditions
• higher than normal energy usage
• intermittent compressor cycling
• potentially complete cooling loss in extreme cases

This is a genuine Whirlpool OEM replacement this part is also compatible with Maytag, Jenn-Air and some Kenmore models.

Size: 8-32 x .312 inch.

The Thermostat Tube Shield is an OEM part for Whirlpool refrigerators. It functions as a barrier that covers and insulates the temperature control thermostat capillary tube. This shield ensures accurate temperature sensing and regulation by protecting the capillary tube from physical damage and external temperature influences.

Over time, the thermostat tube shield can become worn out or damaged due to factors like regular wear and tear, accidental impact, or environmental conditions such as humidity and temperature fluctuations.

Symptoms of a bad thermostat tube shield include:

• Inconsistent or inaccurate refrigerator temperatures
• The refrigerator running continuously or cycling on and off frequently
• Visible damage or wear to the shield
• Difficulty in maintaining the desired temperature settings

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

Original Whirlpool light bulb, 40 watt.

Symptoms of needing to replace the light bulb include:

• Dimming or flickering light
• Complete lack of illumination inside the appliance
• Visible signs of damage or burnout on the bulb itself

Causes of a faulty light bulb can include normal burnout over time, electrical issues, or physical damage due to impact or vibrations.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Kenmore, Frigidaire, GE, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore appliances.

This light lens is the replacement dome cover that protects and diffuses the refrigerator interior light, restoring even illumination and preventing direct bulb contact. It replaces cracked, yellowed or missing lenses. What it does

• Protects the interior light bulb from spills and contact
• Diffuses and softens the light for even illumination inside the compartment
• Stops rattling or loose cover noise when the original lens is broken or warped
• Helps prevent food or debris from hitting the bulb and causing premature failure

• One light lens (dome cover)

• Disconnect power to the appliance before beginning any work
• Typically installs by snapping into the light housing or fastening with one or two screws—retain mounting hardware if present
• Handle carefully to avoid cracking; replace if warped, chipped, or yellowed

The Door Switch is an OEM part for Whirlpool refrigerators. This switch plays a crucial role in monitoring the status of the refrigerator door. It detects when the door is open and closed and signals the refrigerator to suspend or resume cooling operations accordingly.

Causes of a bad door switch can include general wear and tear over time, exposure to moisture, or impact damage. Please check for proper connection and that the wires are intact before replacing the switch.

Symptoms of a bad door switch include:

• The refrigerator fails to resume cooling after closing the door
• The inside light fails to turn on when the door is opened
• Abnormal energy usage due to improper door monitoring

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.


This hole cover seals an access/opening in the refrigerator evaporator housing to help maintain proper airflow and prevent moisture or frost from entering the cabinet. A simple replacement that restores the evaporator enclosure's intended seal. What it does:

• Seals an opening in the evaporator housing to reduce air leaks and unwanted moisture entry
• Helps prevent excessive frost or ice buildup near the evaporator area
• Supports consistent cooling by keeping the evaporator cover intact
• Can stop interior water or debris from entering the evaporator cavity

• Disconnect power to the appliance before starting any repair
• Remove the evaporator cover or access panel as required to reach the opening
• Press or snap the cover into place until it seats securely; no special tools typically required
• If the cover is brittle or damaged, inspect surrounding mounting surfaces and replace as needed

Color: white. It measures about 1 inch in diameter.

HOOD & FOIL

This replacement cover restores the appliance's finished appearance while protecting internal components from dust and debris. It provides a clean, secure barrier so panels stay in place and the appliance looks and functions as intended. What it does:

• Protects internal parts and wiring from exposure to dust, moisture, and accidental contact
• Helps keep panels securely in place to prevent rattling or loose trim
• Restores the appliance's exterior appearance after damage or loss
• Commonly replaced when the original cover is cracked, broken, bent, or missing

• One replacement cover

• Disconnect power (and water, if applicable) before starting any repair
• Use basic hand tools; support panels to avoid dropping or scratching surfaces
• Handle edges carefully; some covers or mounting points may be sharp
• Refer to your appliance's service manual or parts diagram for exact placement and fastener locations

This hole plug covers an unused opening in the appliance cabinet. It restores a clean, finished look and helps keep spills, dust, and moisture out of internal components.

• Seals an unused hole in the cabinet for a tidy, finished appearance
• Helps protect internal parts from liquids, dust, and humidity
• Covers sharp or unfinished edges around open holes
• Common signs it's needed: missing/broken cap, exposed hole, or a plug that won't stay seated

• Disconnect power and, if applicable, shut off gas/water before starting.
• Remove the old plug; access from the front or from behind the panel as needed.
• Align and press the new plug firmly into the opening until fully seated and flush.
• If panel removal is required for access, handle sheet metal carefully and reinstall all fasteners.

This rubber grommet cushions and secures a refrigerator fan motor, isolating vibration to help reduce noise and keep the fan properly aligned in its mount.

• Provides a snug, vibration-dampening seat for the fan motor shaft or mounting stud
• Helps prevent rattling, buzzing, or humming sounds from a loose fan mount
• Maintains proper fan alignment to avoid blade contact with shrouds or brackets
• Replaces aged, cracked, or compressed rubber that can lead to increased vibration

• Disconnect power before service; wear cut-resistant gloves
• Access the fan assembly (rear or evaporator section), support the motor, and remove the old grommet
• Press the new grommet fully into the bracket or housing; transfer any spacers as originally configured
• Reinstall the motor and verify the fan blade spins freely with no contact before restoring power

Size: 8 x 1/2 ab.

The Evaporator Fan Motor is an OEM replacement part for Whirlpool refrigerators. It is responsible for circulating cold air inside the refrigerator compartment to maintain even temperatures. The evaporator fan motor works continuously to circulate air across the evaporator coil, where it is cooled and distributed throughout the fridge.

Causes of a bad fan motor can include debris accumulation hindering blade spin, failed motor windings from constant operation, or loose wiring connections interrupting power flow.

Symptoms include:

• Warm spots appearing in the fridge or freezer
• Inability to reach temperature set points
• Loud grinding or clicking noises from inside

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Size: 8 x 1-1/4 inch.

This bimetal defrost thermostat controls the defrost cycle by sensing evaporator temperature to protect the fridge from overcooling during defrost. Replaces a failed thermostat to restore proper defrost operation and temperature control. What it does:

• Opens and closes the defrost circuit based on evaporator temperature to allow timed heater operation
• Prevents the defrost heater from running when the evaporator is already warm
• Commonly used when the freezer is frosting up or the compressor runs excessively during defrost
• Helps maintain consistent cooling by ensuring proper defrost cycles

• Disconnect power to the appliance before attempting any service
• Mount and wire in the original thermostat location; follow OEM wiring and routing for the capillary/sensor
• Inspect the defrost heater and wiring while replacing the thermostat; replace any damaged components

This is a replacement screw used to secure appliance panels and components. It restores proper fit and prevents loose parts that cause vibration, rattling, or misalignment for a tighter, safer assembly. What it does:

• Secures covers, trim, brackets, or control panels to the appliance frame
• Keeps components aligned to prevent rattling and movement during operation
• Replaces stripped, missing, or damaged fasteners that compromise fit
• Helps restore structural stability for normal operation

• Disconnect power and turn off water supply before beginning any repair
• Use the correct screwdriver or driver bit to avoid stripping the head
• Hand-start the screw and tighten until snug; avoid over-tightening which can crack plastic or strip threads
• If threads are damaged, replace with correct OEM fastener.

Size: 8-18 x 1/2 inch.

This interior light bulb restores clear, dependable illumination inside your appliance compartment. Replace a burned-out or flickering bulb to see contents at a glance and operate safely whenever the door opens or the light switch is engaged.

• Provides interior lighting when the door opens or the light switch is turned on
• Restores visibility if the original bulb is burned out, dim, cracked, or flickering
• Helps you view items, shelves, and controls for safer, more convenient use
• Typical signs it's needed: no light, darkened glass, broken filament, or loose/broken base

• Disconnect power at the outlet or breaker before servicing
• Allow the old bulb and surrounding area to cool completely
• Handle the glass with a clean cloth or gloves; avoid touching the bulb directly
• Use the exact bulb type and wattage specified for your model; do not overtighten
