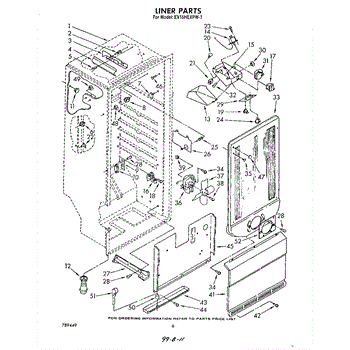

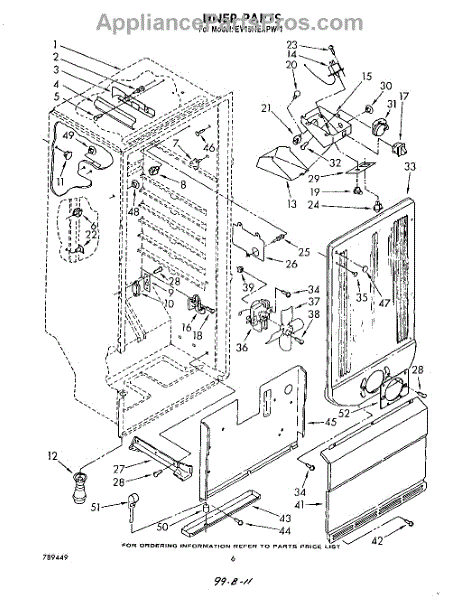

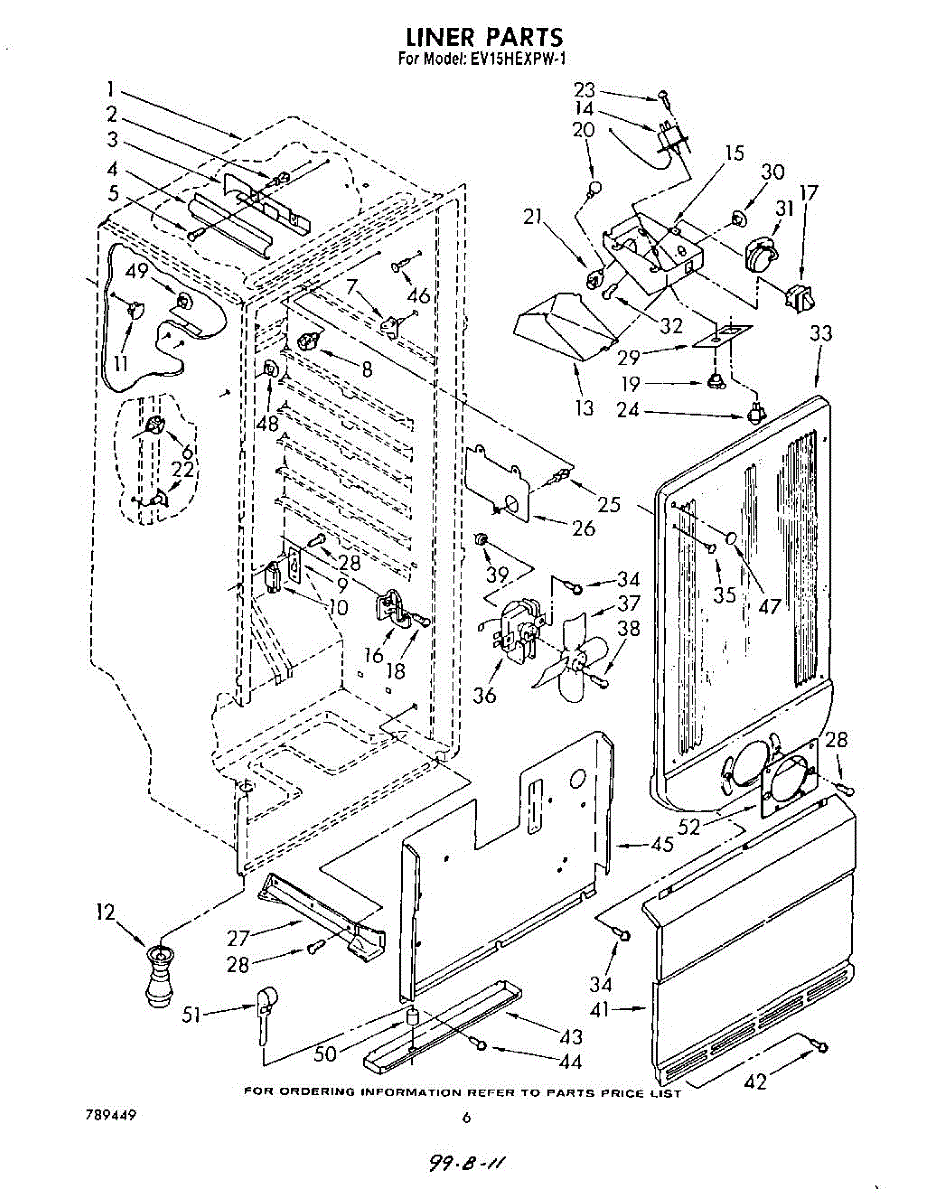

Parts for Whirlpool EV15HEXPW1: 04 - Liner Parts

This part has been discontinued and is no longer available.

This kit includes four rack studs for select dishwashers. The studs fasten compatible rack components and accessories to the wire dishrack, helping keep rows and attachments secure during loading and wash cycles. What it does:

• Secures rack components and accessories to the dishwasher's wire rack
• Replaces broken, worn, or missing studs that no longer hold firmly
• Helps prevent rack items from detaching, shifting, or rattling during operation
• Common symptoms: loose/missing studs, falling rack attachments, unstable tine rows or holders

• Four rack studs

• Disconnect power; pull the rack out (remove it if needed) to access the work area
• Match the orientation of the new studs to the originals
• Insert and fully seat each stud through the rack wire and mating component
• Check that the rack components are secure and the rack slides smoothly before running a cycle

The Shelf Stud Kit is an OEM part for Whirlpool refrigerators. This kit includes the necessary studs to secure the shelves within the refrigerator, ensuring they remain stable and properly aligned for optimal storage.

Common causes of a bad shelf stud include repeated loading and unloading of shelves, which can lead to wear and tear, or accidental damage from impacts.

Symptoms of a bad shelf stud include:

• Shelves tilting or falling out of place
• Difficulty in securing shelves
• Visible cracks or damage to the studs

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This kit includes four rack studs for select dishwashers. The studs fasten compatible rack components and accessories to the wire dishrack, helping keep rows and attachments secure during loading and wash cycles. What it does:

• Secures rack components and accessories to the dishwasher's wire rack
• Replaces broken, worn, or missing studs that no longer hold firmly
• Helps prevent rack items from detaching, shifting, or rattling during operation
• Common symptoms: loose/missing studs, falling rack attachments, unstable tine rows or holders

• Four rack studs

• Disconnect power; pull the rack out (remove it if needed) to access the work area
• Match the orientation of the new studs to the originals
• Insert and fully seat each stud through the rack wire and mating component
• Check that the rack components are secure and the rack slides smoothly before running a cycle

This thermostat is a temperature-sensitive switch that controls power to cooling components as temperatures change. Replacing a worn thermostat restores consistent cycling and more accurate temperature regulation, helping the appliance maintain stable performance. What it does:

• Senses temperature and opens/closes electrical contacts at set points
• Regulates operation of key cooling components to maintain target temperature
• Helps prevent overcooling, overheating, and erratic cycling
• Failure signs include: no cooling, overcooling, temperature swings, unit runs continuously, or short-cycling

• 1 thermostat

• Disconnect power before servicing; verify no voltage is present
• Access the thermostat location; label/photograph wire positions and transfer one at a time
• Install in the same position and orientation as the original to ensure proper thermal response
• Restore power and confirm proper cycling and temperature control

The Door Switch is an OEM part for Whirlpool refrigerators. This switch plays a crucial role in monitoring the status of the refrigerator door. It detects when the door is open and closed and signals the refrigerator to suspend or resume cooling operations accordingly.

Causes of a bad door switch can include general wear and tear over time, exposure to moisture, or impact damage. Please check for proper connection and that the wires are intact before replacing the switch.

Symptoms of a bad door switch include:

• The refrigerator fails to resume cooling after closing the door
• The inside light fails to turn on when the door is opened
• Abnormal energy usage due to improper door monitoring

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.


This screw is used to secure the handle end cap to the center of the door. The screw size measures 8-18 x 1/2 inches.

Original Whirlpool light bulb, 40 watt.

Symptoms of needing to replace the light bulb include:

• Dimming or flickering light
• Complete lack of illumination inside the appliance
• Visible signs of damage or burnout on the bulb itself

Causes of a faulty light bulb can include normal burnout over time, electrical issues, or physical damage due to impact or vibrations.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Kenmore, Frigidaire, GE, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore appliances.

The Light Socket Kit is an OEM part for Whirlpool refrigerators. This kit includes the light socket and necessary components to ensure proper installation and functionality. It is designed to hold the refrigerator light bulb securely and provide reliable electrical connections to illuminate the interior of the refrigerator.

Common causes of failure include wear and tear, corrosion from moisture, or damage from handling or bulb replacement.

Symptoms of a bad Light Socket Kit include:

• Refrigerator light not turning on
• Flickering or intermittent lighting
• Visible damage or corrosion on the socket
• Burned or melted areas around the socket

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This factory fastener is a #8-18 x 5/8-inch Type AB screw designed for appliance assembly. It secures panels and components to restore a tight, rattle-free fit and dependable alignment. What it does:

• Thread-forming Type AB design engages thin metal or plastic components
• Secures panels, brackets, trim, or covers to reduce looseness and vibration
• Replaces missing, stripped, or corroded fasteners
• Helps maintain alignment for proper operation and reduced noise

• One screw

• Disconnect power before servicing; shut off water supply if working near water lines
• Use the correct driver for the screw head; start by hand to avoid cross-threading
• Tighten until snug—do not overtighten to prevent stripping or cracking plastic
• Repair damaged holes or replace worn clips/inserts before installing the new screw

• Size: #8-18 x 5/8 in (length 0.625 in)
• Thread type: Type AB, thread-forming

The Whirlpool Defrost Timer is an OEM replacement part for Whirlpool refrigerators. The defrost timer regulates the automatic defrost cycle, which prevents ice buildup on the evaporator coils in the freezer compartment by sending a signal to the defrost heater to turn on and melt any ice buildup on the coils.

Causes of a bad defrost timer can include mechanical wear over time, electrical failures, or internal component damage. Prolonged usage and voltage spikes can also affect the timer's functionality.

Symptoms of a bad Defrost Timer include:

• Excessive frost buildup in the freezer compartment
• The refrigerator or freezer not maintaining the set temperatures
• Unusual noises coming from the appliance
• The appliance running continuously without cycling off

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This is a replacement screw used to secure appliance panels and components. It restores proper fit and prevents loose parts that cause vibration, rattling, or misalignment for a tighter, safer assembly. What it does:

• Secures covers, trim, brackets, or control panels to the appliance frame
• Keeps components aligned to prevent rattling and movement during operation
• Replaces stripped, missing, or damaged fasteners that compromise fit
• Helps restore structural stability for normal operation

• Disconnect power and turn off water supply before beginning any repair
• Use the correct screwdriver or driver bit to avoid stripping the head
• Hand-start the screw and tighten until snug; avoid over-tightening which can crack plastic or strip threads
• If threads are damaged, replace with correct OEM fastener.

A small snap-in fastener designed to secure interior trim, panels, and lightweight components. It holds parts firmly in place to reduce movement and rattling for a cleaner, more stable fit. What it does:

• Secures plastic trim, access panels, and other non-structural components
• Keeps panels aligned and prevents vibration or rattling noises
• Replaces worn or broken retainers that allow trim to sag or fall away
• Used where a push-in, snap retention is required for a finished appearance

• Disconnect power to the appliance before working near electrical components
• Remove surrounding trim or panel to access the fastener; a trim tool or flat screwdriver may help
• Push the fastener into the mating hole until it snaps; ensure it seats fully
• Handle plastic retainers gently; replace any additional brittle or damaged clips for best results

This evaporator fan blade mounts on the freezer's fan motor and circulates cold air through the cabinet. Replacing a cracked, loose, or warped blade restores proper airflow for even cooling and reliable refrigerator performance.

• Circulates air across the evaporator coils to push chilled air throughout the compartments
• Helps maintain consistent temperatures and overall cooling efficiency
• Supports frost control by keeping air moving over the coils
• Typical failure signs: rattling/scraping noises, weak airflow, uneven cooling, or frost buildup

• Unplug the appliance before servicing; wear cut-resistant gloves
• Access the evaporator fan (commonly behind the rear freezer panel)
• Pull the old blade straight off the motor shaft; align and press the new blade on, matching the original orientation/position
• Hand-spin to confirm clearance; reassemble and restore power to test airflow

This machine screw secures appliance panels and components for reliable operation and alignment. A simple replacement that restores proper fit and prevents rattles or loose parts. What it does

• Fastens panels, brackets, or components to restore secure attachment
• Stops squeaks, rattles, or vibration caused by loose fasteners
• Replaces worn, stripped, or missing screws to maintain safety and function
• Matches OEM threading and head style for correct fit when specified

• One machine screw

• Use the correct driver size to avoid stripping the head
• Do not overtighten; stop when snug to prevent damage to threads or parts
• Disconnect power and move the appliance to a safe, stable position before working near electrical components
• Ensure proper torque and consider thread engagement length

This screw is used to secure the handle end cap to the center of the door. The screw size measures 8-18 x 1/2 inches.

The Shelf Stud Kit is an OEM part for Whirlpool refrigerators. This kit includes the necessary studs to secure the shelves within the refrigerator, ensuring they remain stable and properly aligned for optimal storage.

Common causes of a bad shelf stud include repeated loading and unloading of shelves, which can lead to wear and tear, or accidental damage from impacts.

Symptoms of a bad shelf stud include:

• Shelves tilting or falling out of place
• Difficulty in securing shelves
• Visible cracks or damage to the studs

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This hole plug covers an unused opening in the appliance cabinet. It restores a clean, finished look and helps keep spills, dust, and moisture out of internal components.

• Seals an unused hole in the cabinet for a tidy, finished appearance
• Helps protect internal parts from liquids, dust, and humidity
• Covers sharp or unfinished edges around open holes
• Common signs it's needed: missing/broken cap, exposed hole, or a plug that won't stay seated

• Disconnect power and, if applicable, shut off gas/water before starting.
• Remove the old plug; access from the front or from behind the panel as needed.
• Align and press the new plug firmly into the opening until fully seated and flush.
• If panel removal is required for access, handle sheet metal carefully and reinstall all fasteners.
