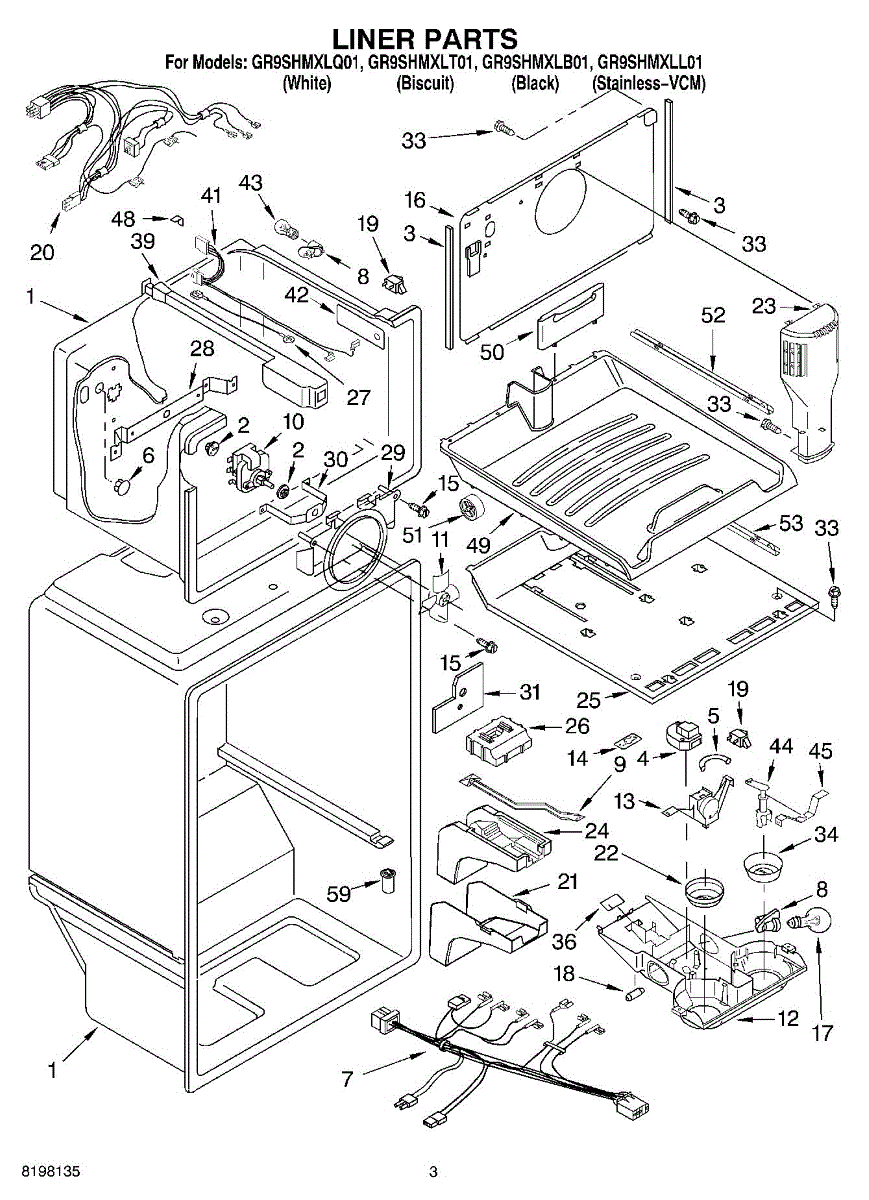

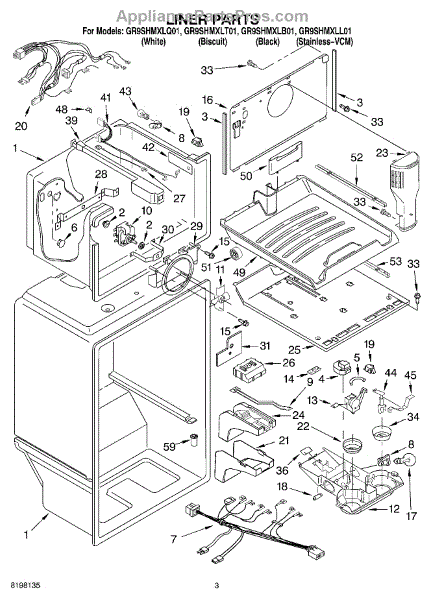

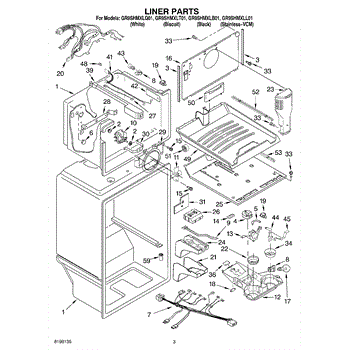

Parts for Whirlpool GR9SHMXLL01: 02 - Liner Parts

This rubber grommet cushions and secures a refrigerator fan motor, isolating vibration to help reduce noise and keep the fan properly aligned in its mount.

• Provides a snug, vibration-dampening seat for the fan motor shaft or mounting stud
• Helps prevent rattling, buzzing, or humming sounds from a loose fan mount
• Maintains proper fan alignment to avoid blade contact with shrouds or brackets
• Replaces aged, cracked, or compressed rubber that can lead to increased vibration

• Disconnect power before service; wear cut-resistant gloves
• Access the fan assembly (rear or evaporator section), support the motor, and remove the old grommet
• Press the new grommet fully into the bracket or housing; transfer any spacers as originally configured
• Reinstall the motor and verify the fan blade spins freely with no contact before restoring power

This evaporator cover gasket seals the evaporator housing to help maintain proper airflow and reduce moisture at the evaporator. Replacing a worn gasket helps restore consistent cooling and prevents frost buildup around the evaporator. What it does:

• Seals the evaporator cover to the cabinet to minimize air leaks and moisture intrusion
• Helps maintain proper airflow across the evaporator for efficient cooling
• Reduces frost and ice buildup on or around the evaporator cover
• Can alleviate symptoms such as uneven cooling, excessive frost near the evaporator, or longer compressor run times

• One evaporator cover gasket

• Disconnect power before starting any repair to avoid electrical shock
• Remove the evaporator cover per your model's service instructions to access the gasket
• Inspect mating surfaces and clean away ice or debris before installing the new gasket for a proper seal
• Reassemble components in reverse order, verifying the gasket seats evenly around the cover

The Whirlpool Defrost Timer is an OEM replacement part for Whirlpool refrigerators. The defrost timer regulates the automatic defrost cycle, which prevents ice buildup on the evaporator coils in the freezer compartment by sending a signal to the defrost heater to turn on and melt any ice buildup on the coils.

Causes of a bad defrost timer can include mechanical wear over time, electrical failures, or internal component damage. Prolonged usage and voltage spikes can also affect the timer's functionality.

Symptoms of a bad Defrost Timer include:

• Excessive frost buildup in the freezer compartment
• The refrigerator or freezer not maintaining the set temperatures
• Unusual noises coming from the appliance
• The appliance running continuously without cycling off

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

The Light Socket Kit is an OEM part for Whirlpool refrigerators. This kit includes the light socket and necessary components to ensure proper installation and functionality. It is designed to hold the refrigerator light bulb securely and provide reliable electrical connections to illuminate the interior of the refrigerator.

Common causes of failure include wear and tear, corrosion from moisture, or damage from handling or bulb replacement.

Symptoms of a bad Light Socket Kit include:

• Refrigerator light not turning on
• Flickering or intermittent lighting
• Visible damage or corrosion on the socket
• Burned or melted areas around the socket

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Evaporator Fan Motor is an OEM part for Whirlpool refrigerators. It plays a crucial role in circulating air over the evaporator coils and throughout the refrigerator and freezer compartments, ensuring even cooling and temperature regulation.

Causes of a bad evaporator fan motor can include electrical malfunctions, accumulation of debris, or normal wear and tear over time. If the fan motor fails, it can lead to inadequate cooling and uneven temperatures within the refrigerator.

Symptoms of a bad evaporator fan motor include:

• The refrigerator or freezer not cooling properly
• Unusual noises coming from the freezer
• Frost buildup on the evaporator coils
• The refrigerator running continuously or cycling on and off frequently

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Evaporator Fan Blade is an OEM part for Whirlpool refrigerators. It is designed to circulate air over the evaporator coils, ensuring efficient cooling throughout the refrigerator and freezer compartments. The fan blade helps maintain an even temperature, contributing to the appliance's overall performance.

Causes of a bad fan blade can include wear and tear over time, ice buildup interfering with the blade, or physical damage from accidental impact or obstruction by debris.

Symptoms of a bad evaporator fan blade include:

• Unusual noises such as rattling or scraping
• Inconsistent or insufficient cooling in the refrigerator or freezer
• The refrigerator running longer than usual
• Visible damage or warping of the fan blade

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This is a replacement screw designed to work with a wide range of household appliances. It is used for many purposes in these appliances, from holding body panels together to securing electronics into control boards. However, screws are subject to damage through corrosion, impact, and improper installation/removal. In most cases, the primary damage to this screw is through corrosion – it may become rusted or corroded in place, depending on the appliance and the maintenance provided during its lifespan. The screw may also be stripped or rounded due to improper removal or installation. If the screw is damaged, lost, or corroded in place, it will need to be replaced. In most cases, removal will require nothing more than a Phillips head screwdriver or the appropriately sized socket with a ratchet. However, if the screw is damaged, it may require a tap set to remove it from its mounting location. Note that this is a genuine OEM replacement screw made from durable, high-quality metal, and is sold individually. It fits Whirlpool, Maytag, Roper, Estate, Amana, Crosley, and Thermador appliances. It is used in over 150 machines, ranging from washers and dryers to air conditioners.

Original Whirlpool light bulb, 40 watt.

Symptoms of needing to replace the light bulb include:

• Dimming or flickering light
• Complete lack of illumination inside the appliance
• Visible signs of damage or burnout on the bulb itself

Causes of a faulty light bulb can include normal burnout over time, electrical issues, or physical damage due to impact or vibrations.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Kenmore, Frigidaire, GE, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore appliances.

The Door Switch is an OEM part for Whirlpool refrigerators. This switch plays a crucial role in monitoring the status of the refrigerator door. It detects when the door is open and closed and signals the refrigerator to suspend or resume cooling operations accordingly.

Causes of a bad door switch can include general wear and tear over time, exposure to moisture, or impact damage. Please check for proper connection and that the wires are intact before replacing the switch.

Symptoms of a bad door switch include:

• The refrigerator fails to resume cooling after closing the door
• The inside light fails to turn on when the door is opened
• Abnormal energy usage due to improper door monitoring

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.


This replacement thermostat knob lets you set and adjust oven or range temperatures with a secure grip and clear pointer for accurate selection. It restores control when the original knob is cracked, stripped, or missing. What it does:

• Fits onto the thermostat shaft to select and hold the desired temperature setting
• Provides a clear pointer for accurate temperature selection
• Replaces cracked, worn, loose, or missing knobs that prevent temperature changes
• Helps restore safe, predictable appliance operation when the original control is damaged

• Disconnect power to the appliance before servicing to avoid electrical hazard
• Remove the old knob by pulling straight off the control shaft; align and press the new knob onto the shaft until fully seated
• If the knob feels loose or doesn't engage, inspect the control shaft and replace any damaged retainers or adapters as needed
• Use care to avoid forcing the knob

This bottom air diffuser directs airflow from the blower to the oven cavity for even temperature distribution and consistent cooking results. It replaces a damaged or cracked diffuser to restore proper air flow and oven performance. What it does:

• Channels heated air from the blower into the oven cavity for more uniform cooking
• Helps maintain consistent oven temperatures and even browning
• Can reduce hot spots caused by cracked, warped, or missing diffusers
• Fits into the oven base and works with the existing blower assembly

• One bottom air diffuser

• Remove power to the appliance before servicing to avoid shock or injury
• Access usually requires removing the oven bottom or lower panel
• Handle carefully to avoid damaging mounting tabs; replace any broken fasteners

Size: 8 x 1/2 ab.

This rear thermostat seal is a small rubber gasket that protects the thermostat opening and helps keep appliance compartments sealed for proper temperature control. Replacing a damaged seal helps maintain safe, consistent operation. What it does:

• Seals the thermostat mounting area to prevent air leaks that can affect temperature regulation
• Helps protect the thermostat from dust, lint, and moisture
• Can reduce intermittent heating or cooling caused by air loss around the thermostat
• Fits at the rear thermostat location to ensure the sensor reads accurate cabinet temperatures

• One rear thermostat seal

• Disconnect power to the appliance before replacing the seal to avoid shock or injury
• Replacement typically requires access to the thermostat at the rear panel—follow appliance-specific disassembly steps
• Inspect the thermostat and surrounding area for damage or contamination while replacing the seal
• Use proper hand tools and avoid over-stretching the gasket during installation

Restore clear visibility inside your appliance with this replacement light bulb. Replace a burned-out or flickering lamp so you can easily see contents and monitor operation when the door or light switch is activated. What it does:

• Provides illumination inside the appliance or work area
• Activates with the door switch or control panel/light switch
• Typical failure signs: no light, intermittent flicker, dim/blackened bulb, broken filament
• Helps with loading, unloading, and checking food or cycle status

• 1 replacement light bulb

• Disconnect power (unplug or switch off circuit breaker) before servicing
• Allow the bulb and surrounding area to cool completely
• Install only the bulb type and wattage specified by your model; do not exceed the rating
• Do not overtighten; reinstall any lens or cover securely

This replacement valve tube-body helps route water within the appliance's valve assembly so the dispenser and ice maker get water when called. Restores proper water flow paths and replaces a worn or damaged tube-body. What it does:

• Directs water from the main valve to the dispenser and/or ice maker in the valve assembly
• Replaces cracked, corroded, or blocked tube passages that can cause reduced flow
• Commonly used when water leaks or irregular dispensing occur near the valve area
• Works as part of the valve manifold to maintain correct internal water routing

• One valve tube-body component

• Disconnect power and shut off the water supply before servicing
• Handle small fittings and seals carefully; inspect and replace O-rings or gaskets if damaged
• Some disassembly of panels or the valve assembly is required; wiring/piping diagrams
• After installation, restore water and power and check thoroughly for leaks and proper function
