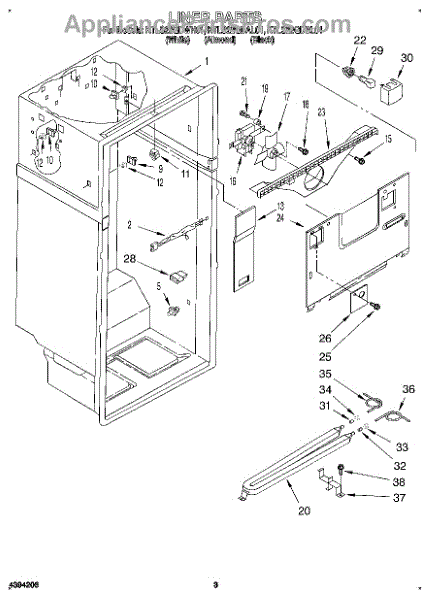

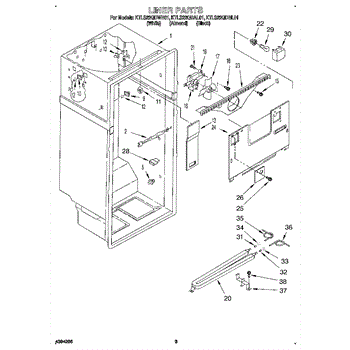

Parts for Kitchenaid KTLS22QDBL01: 02 - Liner Parts

This shelf stud secures a refrigerator shelf or shelf trim to the cabinet, restoring stable shelf positioning and preventing slipping or tilting. A simple hardware replacement that helps keep shelves level and items secure. What it does:

• Provides the mounting point that holds a shelf or shelf trim in place.
• Common replacement when the stud is cracked, broken, stripped, or missing.
• Stops shelves from tilting, sliding, or dropping when loaded.
• Works with the shelf edge/support to maintain proper alignment.

• Disconnect power to the appliance before starting any work, and remove all items from the shelf area.
• Remove the shelf or trim and handle any glass carefully; wear gloves and eye protection.
• The stud typically snaps or presses into the shelf support—refer to the model's diagram for exact orientation and fasteners.
• Support the glass while installing to avoid chipping or dropping.

The Shelf Stud Kit is an OEM part for Whirlpool refrigerators. This kit includes the necessary studs to secure the shelves within the refrigerator, ensuring they remain stable and properly aligned for optimal storage.

Common causes of a bad shelf stud include repeated loading and unloading of shelves, which can lead to wear and tear, or accidental damage from impacts.

Symptoms of a bad shelf stud include:

• Shelves tilting or falling out of place
• Difficulty in securing shelves
• Visible cracks or damage to the studs

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This kit includes shelf support studs used to hold shelves securely in place inside the refrigerator or freezer compartment. The supports mount into the interior liner and provide a stable resting point for wire or glass shelves. Replace these if the shelf supports are cracked, broken, or missing, causing shelves to sit unevenly or fall.

Interior lights staying on or not working? This door switch controls refrigerator lighting and functions. Moderate DIY repair with video guide available.

The Shelf Stud Kit is an OEM part for Whirlpool refrigerators. This kit includes the necessary studs to secure the shelves within the refrigerator, ensuring they remain stable and properly aligned for optimal storage.

Common causes of a bad shelf stud include repeated loading and unloading of shelves, which can lead to wear and tear, or accidental damage from impacts.

Symptoms of a bad shelf stud include:

• Shelves tilting or falling out of place
• Difficulty in securing shelves
• Visible cracks or damage to the studs

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Replacement fastener screw for appliances. Secures panels, trim, clips, and components. Needed when original screws are stripped, missing, or damaged.

Freezer not cooling or making loud noise? This evaporator fan motor kit circulates air over coils. Simple DIY repair—remove back panel and swap.

Fix a freezer that's not freezing or making loud noise with this evaporator fan blade. Restores proper airflow and even cooling in 15-30 minutes.

Replaces a worn or heat-damaged refrigerator light socket to restore interior lighting. Install when bulbs won't light despite replacement. Confirm fit by model number.

This screw is used to secure the handle end cap to the center of the door. The screw size measures 8-18 x 1/2 inches.

Seals an access opening in the evaporator housing to maintain proper airflow. Replace if cracked, broken, or missing to restore the enclosure seal.

Replace your burned-out refrigerator light bulb to restore clear visibility inside your appliance. Easy installation when bulb flickers or fails.

Replace cracked or missing compression fitting inserts for 1/4-inch water tubing in refrigerators and ice makers. Prevents leaks at connections.

Comes with 4 nuts and 2 inserts. Instruction sheet included.

Comes with 4 nuts and 2 inserts. Instruction sheet included.

The Ice Maker Water Line is an OEM part for Whirlpool refrigerators. It supplies water from the household plumbing to the ice maker, ensuring a consistent and reliable production of ice cubes. This kit includes a 1/4-inch plastic water line that is approximately 72 inches long. The tubing will need to be cut to match the desired length.

Causes of a bad water line can include wear and tear from prolonged use, kinks or bends restricting water flow, or leaks due to punctures or cracks. A compromised water line can result in inadequate ice production or water leaks.

Symptoms of a bad ice maker water line include:

• Reduced or no ice production
• Leaking water from the refrigerator
• Visible cracks or damage to the water line
• Ice cubes that are smaller than usual

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.
