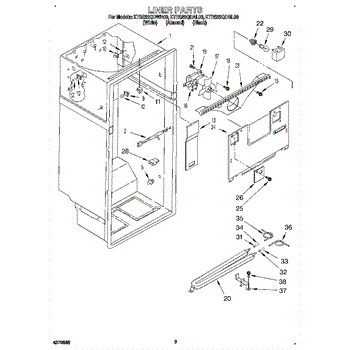

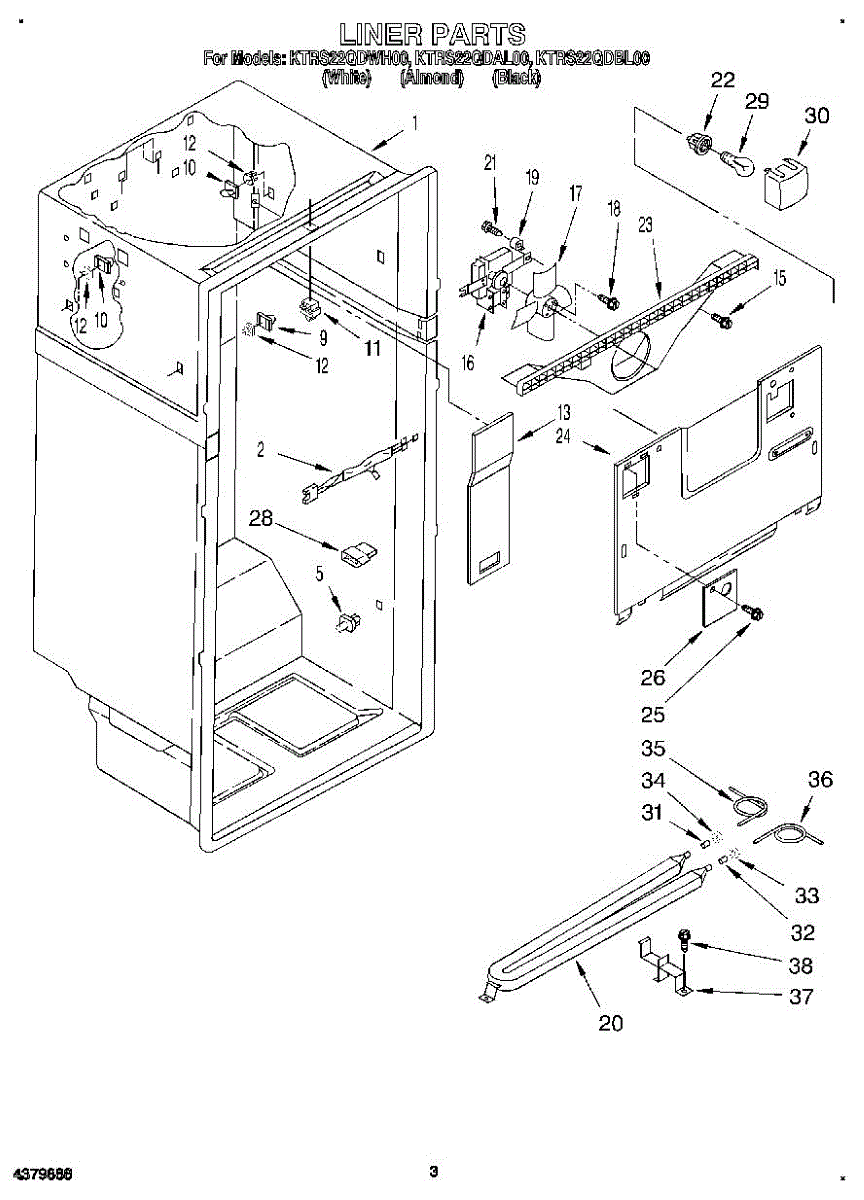

Parts for Kitchenaid KTRS22QDAL00: 02 - Liner Parts

This shelf stud secures a refrigerator shelf or shelf trim to the cabinet, restoring stable shelf positioning and preventing slipping or tilting. A simple hardware replacement that helps keep shelves level and items secure. What it does:

• Provides the mounting point that holds a shelf or shelf trim in place.
• Common replacement when the stud is cracked, broken, stripped, or missing.
• Stops shelves from tilting, sliding, or dropping when loaded.
• Works with the shelf edge/support to maintain proper alignment.

• Disconnect power to the appliance before starting any work, and remove all items from the shelf area.
• Remove the shelf or trim and handle any glass carefully; wear gloves and eye protection.
• The stud typically snaps or presses into the shelf support—refer to the model's diagram for exact orientation and fasteners.
• Support the glass while installing to avoid chipping or dropping.

The Shelf Stud Kit is an OEM part for Whirlpool refrigerators. This kit includes the necessary studs to secure the shelves within the refrigerator, ensuring they remain stable and properly aligned for optimal storage.

Common causes of a bad shelf stud include repeated loading and unloading of shelves, which can lead to wear and tear, or accidental damage from impacts.

Symptoms of a bad shelf stud include:

• Shelves tilting or falling out of place
• Difficulty in securing shelves
• Visible cracks or damage to the studs

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This kit includes shelf support studs used to hold shelves securely in place inside the refrigerator or freezer compartment. The supports mount into the interior liner and provide a stable resting point for wire or glass shelves. Replace these if the shelf supports are cracked, broken, or missing, causing shelves to sit unevenly or fall.

Interior lights staying on or not working? This door switch controls refrigerator lighting and functions. Moderate DIY repair with video guide available.

The Shelf Stud Kit is an OEM part for Whirlpool refrigerators. This kit includes the necessary studs to secure the shelves within the refrigerator, ensuring they remain stable and properly aligned for optimal storage.

Common causes of a bad shelf stud include repeated loading and unloading of shelves, which can lead to wear and tear, or accidental damage from impacts.

Symptoms of a bad shelf stud include:

• Shelves tilting or falling out of place
• Difficulty in securing shelves
• Visible cracks or damage to the studs

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Replacement fastener screw for appliances. Secures panels, trim, clips, and components. Needed when original screws are stripped, missing, or damaged.

Freezer not cooling or making loud noise? This evaporator fan motor kit circulates air over coils. Simple DIY repair—remove back panel and swap.

Fix a freezer that's not freezing or making loud noise with this evaporator fan blade. Restores proper airflow and even cooling in 15-30 minutes.

This machine screw secures appliance panels and components for reliable operation and alignment. A simple replacement that restores proper fit and prevents rattles or loose parts. What it does

• Fastens panels, brackets, or components to restore secure attachment
• Stops squeaks, rattles, or vibration caused by loose fasteners
• Replaces worn, stripped, or missing screws to maintain safety and function
• Matches OEM threading and head style for correct fit when specified

• One machine screw

• Use the correct driver size to avoid stripping the head
• Do not overtighten; stop when snug to prevent damage to threads or parts
• Disconnect power and move the appliance to a safe, stable position before working near electrical components
• Ensure proper torque and consider thread engagement length

Replaces a worn or heat-damaged refrigerator light socket to restore interior lighting. Install when bulbs won't light despite replacement. Confirm fit by model number.

This screw is used to secure the handle end cap to the center of the door. The screw size measures 8-18 x 1/2 inches.

Seals an access opening in the evaporator housing to maintain proper airflow. Replace if cracked, broken, or missing to restore the enclosure seal.

Replace your burned-out refrigerator light bulb to restore clear visibility inside your appliance. Easy installation when bulb flickers or fails.

Replace cracked or missing compression fitting inserts for 1/4-inch water tubing in refrigerators and ice makers. Prevents leaks at connections.

Comes with 4 nuts and 2 inserts. Instruction sheet included.

Comes with 4 nuts and 2 inserts. Instruction sheet included.

The Ice Maker Water Line is an OEM part for Whirlpool refrigerators. It supplies water from the household plumbing to the ice maker, ensuring a consistent and reliable production of ice cubes. This kit includes a 1/4-inch plastic water line that is approximately 72 inches long. The tubing will need to be cut to match the desired length.

Causes of a bad water line can include wear and tear from prolonged use, kinks or bends restricting water flow, or leaks due to punctures or cracks. A compromised water line can result in inadequate ice production or water leaks.

Symptoms of a bad ice maker water line include:

• Reduced or no ice production
• Leaking water from the refrigerator
• Visible cracks or damage to the water line
• Ice cubes that are smaller than usual

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Touch-up paint. Color: Almond. Size: 1 qt. can. (Uncut)

Epoxy repair kit - aluminum tubing.

Size: 1/2 inch.

Size: 5/8 inch.

Size: 3/4 inch.

Size: 1/4 inch.

Size: 5/16 inch.

Size: 3/8 inch.

Sealer for refrigerant line insulation.

Size: 1/4 lb.

Foam insulation panel that fits inside refrigerator doors to maintain temperature efficiency. Replace if cracked, compressed, or missing.

Putty sealer adhesive for refrigerators and freezers. Seals joints, gaps, and connections. Replace when old sealant is cracked, dried out, or missing.

Size: 3/16 inch.

This insulation bag fits inside the refrigerator or freezer door panel to help maintain consistent internal temperatures. It acts as a thermal barrier that prevents warm outside air from affecting the sealed compartment. Replace it if you notice condensation forming on the door interior, inconsistent temperatures, or if the existing insulation is torn, compressed, or missing.

Color: White. Size: 1 qt. can. Acrylic appliance paint.

This specialized Torx wrench is designed to remove and install screws with star-shaped heads commonly found in refrigerator components. It provides the proper grip and torque needed for secure fastening of internal parts. Use this tool when replacing refrigerator components that require Torx screws for assembly.

Fix squeaking or grinding ice makers with appliance-grade grease. Lubricates moving parts in refrigerators and freezers. Simple DIY application.

Fix loose wiring or rattling sounds in your refrigerator with this terminal block clip kit. Secures harnesses and panels to restore proper fit.

Refrigerator not cooling or making unusual noises? This compressor tubing kit repairs sealed system issues. Advanced repair requiring proper tools.

Color: White. Size: 13 oz. Spray paint primer. can.

White porcelain touch-up paint for repairing chipped, scratched, or worn surfaces on ranges, ovens, and refrigerators. Restores appearance on exterior panels and trim. 2 oz. can.

Touch-up paint for appliances in almond color. Repairs chips, scratches, and worn spots on ovens, refrigerators, microwaves, and dryers.

Almond. Size: 13 oz. can. Acrylic appliance paint.

Color: Black. Size: 12 oz. Acrylic appliance aerosol can spray paint.

Bottle with brush. Color: Black. Size: 0.6 fl.oz.

The Alumilastic Cement is an OEM part for Whirlpool appliances, typically used in refrigerators and freezers. It serves as a thermal mastic compound, designed to provide a secure and heat-conductive bond between various components, such as evaporator coils and the interior walls of the appliance.

Causes of a bad alumilastic cement can include drying out, cracking, or losing its adhesive properties over time. This can occur due to age, exposure to temperature fluctuations, or improper application. When the cement fails, it can lead to poor thermal conductivity and decreased cooling efficiency.

Symptoms of a bad alumilastic cement include:

• Reduced cooling performance
• Unusual noises from the cooling system
• Components becoming loose or detaching
• Increased energy consumption

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Color: White. Size: 13 oz can. Acrylic appliance aerosol can spray paint.

The Appliance Spray Paint is an OEM part for Whirlpool appliances, designed to provide a quick and effective way to touch up or completely refinish the exterior of various appliances. This specialty spray paint is formulated to adhere to metal surfaces, offering a durable and resistant finish that can withstand the routine wear and tear of kitchen environments, including heat, moisture, and everyday use.

The primary reason for using such a specialized paint is to maintain or restore the aesthetic appeal of your appliances while protecting them from further damage.

Symptoms needing for Appliance Spray Paint include:

• Scratches, chips, or rust spots on the appliance's exterior that can lead to further damage or corrosion if left untreated
• A desire to refresh or update the appearance of the appliance without the need for complete replacement
• Discoloration or fading of the original finish due to age, exposure to sunlight, or cleaning agents

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

Touch-up paint for covering scratches, chips, and minor blemishes on appliance exteriors. Restores appearance and protects surfaces when finish is damaged.
