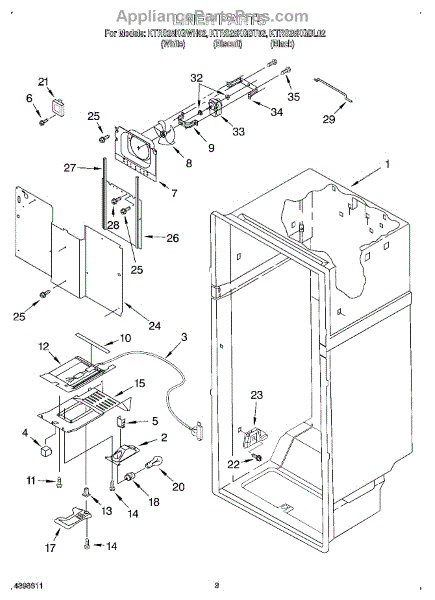

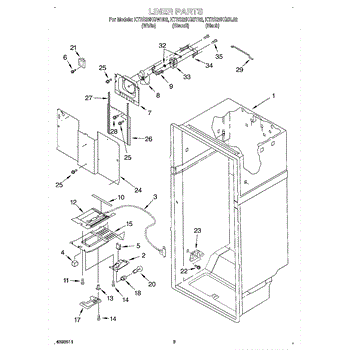

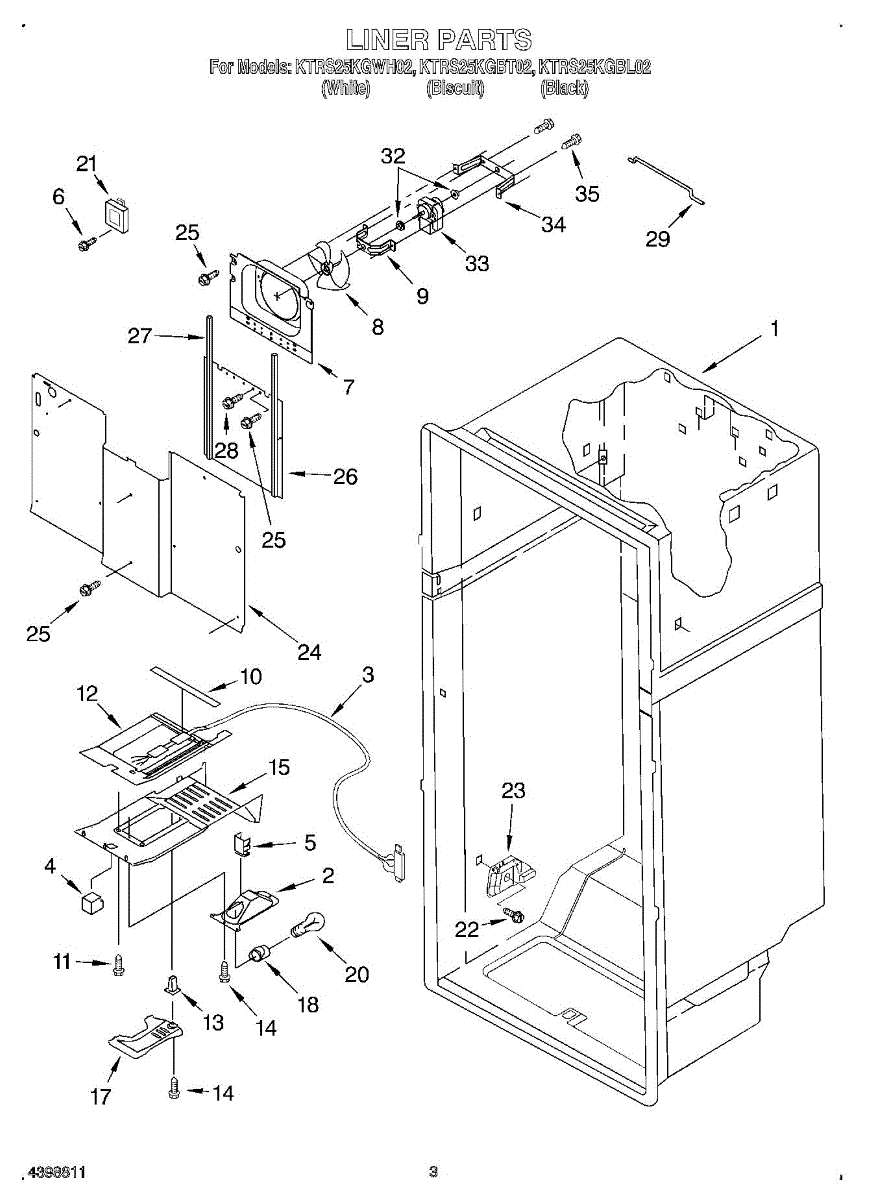

Parts for Kitchenaid KTRS25KGBL02: 02 - Liner Parts

The Door Switch is an OEM part for Whirlpool refrigerators. This switch plays a crucial role in monitoring the status of the refrigerator door. It detects when the door is open and closed and signals the refrigerator to suspend or resume cooling operations accordingly.

Causes of a bad door switch can include general wear and tear over time, exposure to moisture, or impact damage. Please check for proper connection and that the wires are intact before replacing the switch.

Symptoms of a bad door switch include:

• The refrigerator fails to resume cooling after closing the door
• The inside light fails to turn on when the door is opened
• Abnormal energy usage due to improper door monitoring

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.


This replacement fan blade mounts to the fan motor to move air through the system, restoring proper airflow and helping maintain stable temperatures while reducing unwanted noise and vibration. What it does:

• Attaches to the fan motor shaft to circulate air through the appliance
• Drives airflow across coils and compartments to support proper cooling
• Helps maintain even temperatures and stable performance
• Common symptoms include rattling/whirring noises, weak airflow, warm spots, or wobbling due to a cracked or warped blade

• Disconnect power before servicing
• Access the fan housing; remove any guards/shrouds as needed
• Transfer and reuse the existing retainer/clip or fastener and fully seat the blade on the motor shaft with correct orientation
• Spin by hand to ensure free clearance; reassemble and test for smooth, quiet operation

This replacement screw secures panels, brackets, and components inside appliances. Replacing a missing or stripped fastener restores a snug, rattle-free fit using the correct #8-18 thread and 5/8-inch length.

• Fastens covers, trims, brackets, and internal parts to the cabinet/frame
• Used wherever a #8-18 x 5/8 screw is specified
• Replace if the original is missing, corroded, stripped, or will not tighten
• Symptoms: loose or rattling panels, gaps, or hardware that backs out

• Disconnect power; shut off gas/water before servicing
• Match thread and length; start by hand to avoid cross-threading
• Use the correct driver bit and tighten snugly—do not overtighten
• Inspect and replace damaged clips or tabs before securing

Size: 8-18 x 3/8 inch.

Original Whirlpool light bulb, 40 watt.

Symptoms of needing to replace the light bulb include:

• Dimming or flickering light
• Complete lack of illumination inside the appliance
• Visible signs of damage or burnout on the bulb itself

Causes of a faulty light bulb can include normal burnout over time, electrical issues, or physical damage due to impact or vibrations.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Kenmore, Frigidaire, GE, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore appliances.

This replacement screw secures specified refrigerator components—such as covers, brackets, and internal panels—so they stay properly mounted. Replace a missing, stripped, or corroded fastener to restore a tight, rattle-free fit and reliable operation.

• Provides the correct fastener for locations identified in your model's parts diagram
• Helps prevent looseness, vibration, and rattling of panels or brackets
• Replace if the head is stripped, threads are worn, or the screw is missing
• Symptoms can include loose parts, gaps, or noises from movement

• Unplug the refrigerator and shut off water if working near the ice maker or dispenser
• Match length and type to the original; follow your model's parts diagram for placement
• Start threads by hand to avoid cross-threading; tighten snugly without over-torquing, especially into plastic
• Keep track of screw positions; do not mix different screw lengths or styles

This rubber grommet cushions and secures a refrigerator fan motor, isolating vibration to help reduce noise and keep the fan properly aligned in its mount.

• Provides a snug, vibration-dampening seat for the fan motor shaft or mounting stud
• Helps prevent rattling, buzzing, or humming sounds from a loose fan mount
• Maintains proper fan alignment to avoid blade contact with shrouds or brackets
• Replaces aged, cracked, or compressed rubber that can lead to increased vibration

• Disconnect power before service; wear cut-resistant gloves
• Access the fan assembly (rear or evaporator section), support the motor, and remove the old grommet
• Press the new grommet fully into the bracket or housing; transfer any spacers as originally configured
• Reinstall the motor and verify the fan blade spins freely with no contact before restoring power

Size: 8-18 x 3/8 inch.
