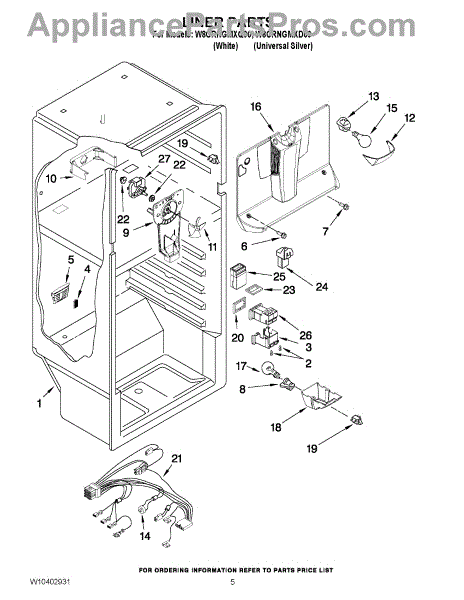

Parts for Whirlpool W8CRNGMXD00: 03 - Liner Parts

The FreshFlow Refrigerator Air Filter is an OEM component for Whirlpool and Maytag refrigerators. Located inside the ventilation system, this filter purifies circulated air. This air filter is 3" wide by 2" high and white in color. It should be replaced every 6 months to ensure the best performance.

Causes of failure relate to clogging from trapped dust, dander and other allergens despite regular replacement intervals. Performance decreases as filter media becomes saturated over months of use.

Symptoms of a dirty or blocked refrigerator air filter include:

• Reduced airflow causes higher compressor runtime hours
• Odors being pulled into the fridge from unfiltered vents
• Shortening of food storage life due to unpurified air exposure
• Reduced fan speeds or strange noises originating from the vents

This genuine Whirlpool filter is also compatible with Maytag, Jenn-Air, and Amana models as well.

The FreshFlow Refrigerator Air Filter is an OEM component for Whirlpool and Maytag refrigerators. Located inside the ventilation system, this filter purifies circulated air. This air filter is 3" wide by 2" high and white in color. It should be replaced every 6 months to ensure the best performance.

Causes of failure relate to clogging from trapped dust, dander and other allergens despite regular replacement intervals. Performance decreases as filter media becomes saturated over months of use.

Symptoms of a dirty or blocked refrigerator air filter include:

• Reduced airflow causes higher compressor runtime hours
• Odors being pulled into the fridge from unfiltered vents
• Shortening of food storage life due to unpurified air exposure
• Reduced fan speeds or strange noises originating from the vents

This genuine Whirlpool filter is also compatible with Maytag, Jenn-Air, and Amana models as well.

Size: 8 x 1-1/4 inch.

The Light Socket Kit is an OEM part for Whirlpool refrigerators. This kit includes the light socket and necessary components to ensure proper installation and functionality. It is designed to hold the refrigerator light bulb securely and provide reliable electrical connections to illuminate the interior of the refrigerator.

Common causes of failure include wear and tear, corrosion from moisture, or damage from handling or bulb replacement.

Symptoms of a bad Light Socket Kit include:

• Refrigerator light not turning on
• Flickering or intermittent lighting
• Visible damage or corrosion on the socket
• Burned or melted areas around the socket

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Evaporator Fan Motor Blade is an OEM part for Whirlpool refrigerators. It is a crucial component of the refrigerator's cooling system, attached to the evaporator fan motor to circulate air over the evaporator coils. This circulation helps distribute cold air throughout the refrigerator and freezer compartments, ensuring consistent temperatures and efficient operation.

Symptoms of a bad Evaporator Fan Motor Blade include:

• Unusual noise coming from the fan area, indicating the blade may be hitting another component or is unbalanced,
• Insufficient cooling in the refrigerator or freezer compartments,
• The refrigerator running longer than usual to maintain the desired temperature.

Causes of evaporator fan motor blade failure typically include physical damage from interference with other components, wear from continuous use, or buildup of ice or debris that unbalances the blade.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This bimetal defrost thermostat controls the defrost cycle by sensing evaporator temperature to protect the fridge from overcooling during defrost. Replaces a failed thermostat to restore proper defrost operation and temperature control. What it does:

• Opens and closes the defrost circuit based on evaporator temperature to allow timed heater operation
• Prevents the defrost heater from running when the evaporator is already warm
• Commonly used when the freezer is frosting up or the compressor runs excessively during defrost
• Helps maintain consistent cooling by ensuring proper defrost cycles

• Disconnect power to the appliance before attempting any service
• Mount and wire in the original thermostat location; follow OEM wiring and routing for the capillary/sensor
• Inspect the defrost heater and wiring while replacing the thermostat; replace any damaged components

This interior light bulb restores clear, dependable illumination inside your appliance compartment. Replace a burned-out or flickering bulb to see contents at a glance and operate safely whenever the door opens or the light switch is engaged.

• Provides interior lighting when the door opens or the light switch is turned on
• Restores visibility if the original bulb is burned out, dim, cracked, or flickering
• Helps you view items, shelves, and controls for safer, more convenient use
• Typical signs it's needed: no light, darkened glass, broken filament, or loose/broken base

• Disconnect power at the outlet or breaker before servicing
• Allow the old bulb and surrounding area to cool completely
• Handle the glass with a clean cloth or gloves; avoid touching the bulb directly
• Use the exact bulb type and wattage specified for your model; do not overtighten

The Door Switch is an OEM part for Whirlpool refrigerators. This switch plays a crucial role in monitoring the status of the refrigerator door. It detects when the door is open and closed and signals the refrigerator to suspend or resume cooling operations accordingly.

Causes of a bad door switch can include general wear and tear over time, exposure to moisture, or impact damage. Please check for proper connection and that the wires are intact before replacing the switch.

Symptoms of a bad door switch include:

• The refrigerator fails to resume cooling after closing the door
• The inside light fails to turn on when the door is opened
• Abnormal energy usage due to improper door monitoring

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.


This rubber grommet cushions and secures a refrigerator fan motor, isolating vibration to help reduce noise and keep the fan properly aligned in its mount.

• Provides a snug, vibration-dampening seat for the fan motor shaft or mounting stud
• Helps prevent rattling, buzzing, or humming sounds from a loose fan mount
• Maintains proper fan alignment to avoid blade contact with shrouds or brackets
• Replaces aged, cracked, or compressed rubber that can lead to increased vibration

• Disconnect power before service; wear cut-resistant gloves
• Access the fan assembly (rear or evaporator section), support the motor, and remove the old grommet
• Press the new grommet fully into the bracket or housing; transfer any spacers as originally configured
• Reinstall the motor and verify the fan blade spins freely with no contact before restoring power

HOOD & FOIL

The Evaporator Fan Motor is an OEM replacement part for Whirlpool refrigerators. It is responsible for circulating cold air inside the refrigerator compartment to maintain even temperatures. The evaporator fan motor works continuously to circulate air across the evaporator coil, where it is cooled and distributed throughout the fridge.

Causes of a bad fan motor can include debris accumulation hindering blade spin, failed motor windings from constant operation, or loose wiring connections interrupting power flow.

Symptoms include:

• Warm spots appearing in the fridge or freezer
• Inability to reach temperature set points
• Loud grinding or clicking noises from inside

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.
