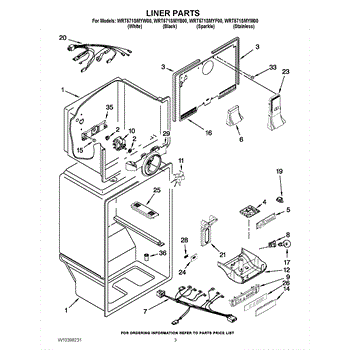

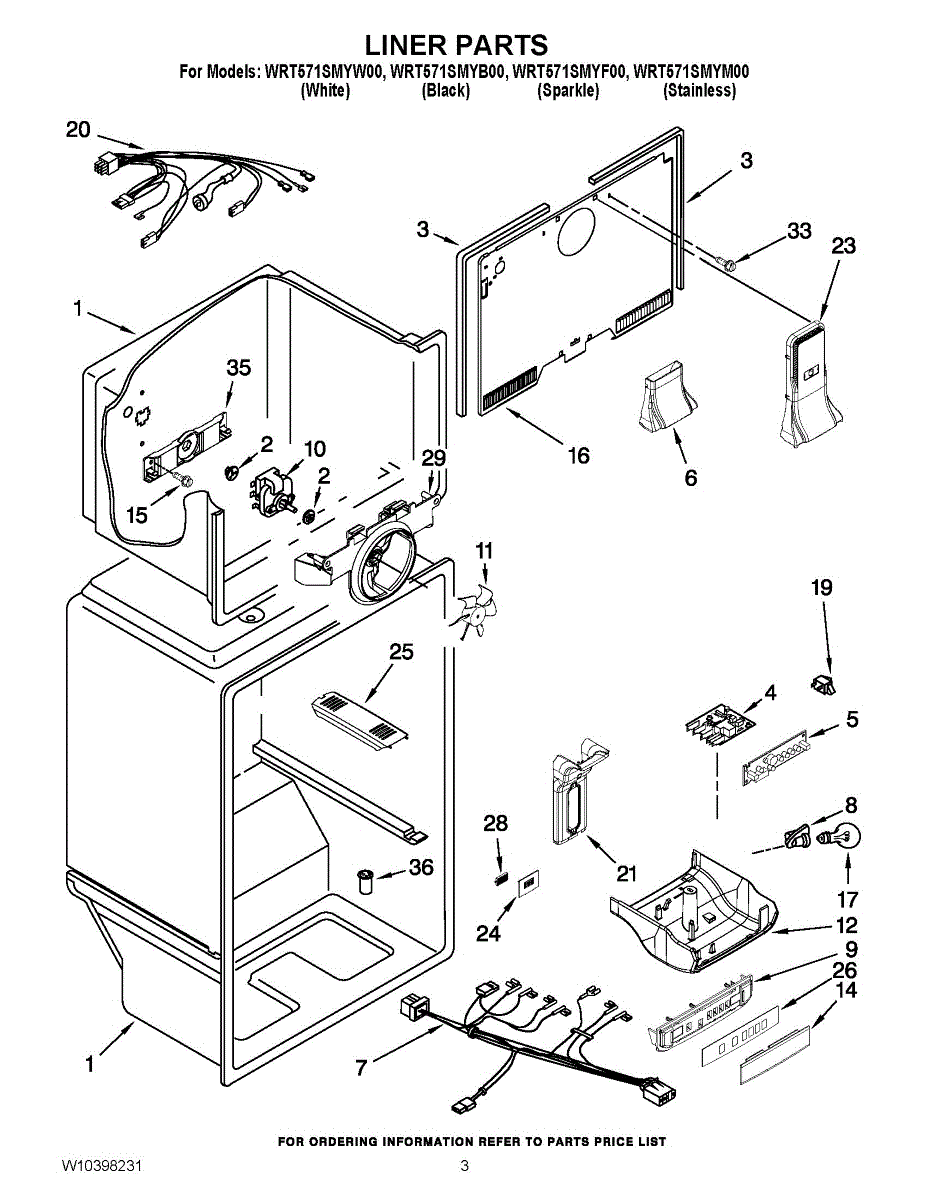

Parts for Whirlpool WRT571SMYB00: 02 - Liner Parts

This rubber grommet cushions and secures a refrigerator fan motor, isolating vibration to help reduce noise and keep the fan properly aligned in its mount.

• Provides a snug, vibration-dampening seat for the fan motor shaft or mounting stud
• Helps prevent rattling, buzzing, or humming sounds from a loose fan mount
• Maintains proper fan alignment to avoid blade contact with shrouds or brackets
• Replaces aged, cracked, or compressed rubber that can lead to increased vibration

• Disconnect power before service; wear cut-resistant gloves
• Access the fan assembly (rear or evaporator section), support the motor, and remove the old grommet
• Press the new grommet fully into the bracket or housing; transfer any spacers as originally configured
• Reinstall the motor and verify the fan blade spins freely with no contact before restoring power

This evaporator cover gasket seals the evaporator housing to help maintain proper airflow and reduce moisture at the evaporator. Replacing a worn gasket helps restore consistent cooling and prevents frost buildup around the evaporator. What it does:

• Seals the evaporator cover to the cabinet to minimize air leaks and moisture intrusion
• Helps maintain proper airflow across the evaporator for efficient cooling
• Reduces frost and ice buildup on or around the evaporator cover
• Can alleviate symptoms such as uneven cooling, excessive frost near the evaporator, or longer compressor run times

• One evaporator cover gasket

• Disconnect power before starting any repair to avoid electrical shock
• Remove the evaporator cover per your model's service instructions to access the gasket
• Inspect mating surfaces and clean away ice or debris before installing the new gasket for a proper seal
• Reassemble components in reverse order, verifying the gasket seats evenly around the cover

This electronic control board replaces the main user/control module to restore appliance control functions and cycle selection. It provides the board assembly needed to repair unresponsive or erratic control behavior on compatible units. What it does

• Manages user inputs, cycle selection and timed operations for the appliance's control system
• Regulates signals to components (motors, valves, heaters) based on selected cycles
• Common symptom fixes: unresponsive control panel, failure to start cycles, or intermittent operation
• Resolve error codes or lockouts that indicate a failed or faulty control board

• One electronic control board assembly

• Disconnect all power to the appliance before starting any repair to avoid shock or damage
• Handle the board carefully and avoid contact with circuit traces; use anti-static precautions if available
• Verify connector alignment and secure all wiring harnesses before reapplying power

The Light Socket Kit is an OEM part for Whirlpool refrigerators. This kit includes the light socket and necessary components to ensure proper installation and functionality. It is designed to hold the refrigerator light bulb securely and provide reliable electrical connections to illuminate the interior of the refrigerator.

Common causes of failure include wear and tear, corrosion from moisture, or damage from handling or bulb replacement.

Symptoms of a bad Light Socket Kit include:

• Refrigerator light not turning on
• Flickering or intermittent lighting
• Visible damage or corrosion on the socket
• Burned or melted areas around the socket

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Evaporator Motor is an OEM part for Whirlpool refrigerators. It plays a critical role in circulating air over the refrigerator's evaporator coils to cool the air inside the fridge and freezer compartments. This circulation helps maintain the desired temperature settings, ensuring that food is kept at optimal freshness.

Includes wire harness. If your fan motor does not have an incorporated wire harness, you will need part number- WPW10188389

Causes of a bad Evaporator Motor can include motor burnout due to continuous operation, electrical failures, or mechanical wear from prolonged use.

Symptoms of a bad Evaporator Motor include:

• The refrigerator or freezer not cooling adequately
• Unusual noises coming from the refrigerator indicating motor distress
• The motor running hot or not running at all

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Evaporator Fan Blade is an OEM part for Whirlpool refrigerators. It is designed to circulate air over the evaporator coils, ensuring efficient cooling throughout the refrigerator and freezer compartments. The fan blade helps maintain an even temperature, contributing to the appliance's overall performance.

Causes of a bad fan blade can include wear and tear over time, ice buildup interfering with the blade, or physical damage from accidental impact or obstruction by debris.

Symptoms of a bad evaporator fan blade include:

• Unusual noises such as rattling or scraping
• Inconsistent or insufficient cooling in the refrigerator or freezer
• The refrigerator running longer than usual
• Visible damage or warping of the fan blade

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This replacement screw secures appliance panels, brackets, and components to the cabinet or chassis. The #8-15 x 1/2 in. size restores a snug, reliable hold when original hardware is missing, stripped, or corroded.

• Fastens panels, brackets, and trim to the appliance cabinet or chassis
• Helps reduce rattling, vibration, or looseness caused by missing/stripped hardware
• Restores proper alignment of parts that have shifted due to loose fasteners
• Size/spec: #8-15 thread, 1/2-inch length; use where this size is specified

• Disconnect power and shut off gas/water supplies before servicing
• Replace one screw at a time to maintain alignment of parts
• Start threads by hand to prevent cross-threading; do not overtighten
• Use a matching driver/bit type for the screw head used in your appliance

The Door Switch is an OEM part for Whirlpool refrigerators. This switch plays a crucial role in monitoring the status of the refrigerator door. It detects when the door is open and closed and signals the refrigerator to suspend or resume cooling operations accordingly.

Causes of a bad door switch can include general wear and tear over time, exposure to moisture, or impact damage. Please check for proper connection and that the wires are intact before replacing the switch.

Symptoms of a bad door switch include:

• The refrigerator fails to resume cooling after closing the door
• The inside light fails to turn on when the door is opened
• Abnormal energy usage due to improper door monitoring

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.


This wire harness assembly routes power and signals to the evaporator-area components so the refrigerator can defrost and circulate air reliably. Replaces a worn or damaged harness to restore proper electrical connections and operation. What it does:

• Provides factory routing and terminals for evaporator heater, fan, and sensors
• Restores lost power or signal paths that can cause defrost failure or fan stoppage
• Helps eliminate intermittent operation, frost buildup, or related error codes
• Maintains secure connector fit to prevent arcing or shorts

• Disconnect power at the breaker or unplug the appliance before starting.
• Match connectors and routing to the original harness; secure with existing clips.
• Avoid pinching or stretching wires; inspect connectors for corrosion before installation.
• Test defrost and fan operation after installation to ensure proper function.

This air diffuser light cover protects and finishes the refrigerator interior light and diffuser assembly, keeping the bulb shielded and helping direct light for even illumination. It restores the factory appearance and protective function. What it does:

• Covers and protects the interior light/diffuser assembly from debris and contact
• Helps direct and diffuse the light for more even interior illumination
• Replaces cracked, broken, or discolored covers that let the bulb show or look unsightly
• Restores the proper fit and appearance of the light assembly

• Disconnect power before servicing the appliance to avoid shock
• Handle the cover carefully to avoid scratching or cracking during installation
• Usually installs by snapping or securing into the light/diffuser housing—no modifications required
• If fasteners are present, retain and reuse the original screws or clips

This grille holds the refrigerator air filter in place behind the toe kick, allowing proper airflow through the filter and helping control odors. It replaces a damaged or missing grille to restore correct filter fit and operation. What it does:

• Secures the air filter housing so the filter seals and functions as intended
• Permits airflow through the filter media for odor control and fresher interior air
• Covers and protects the filter opening from debris and accidental contact
• Restores proper fit and appearance to the fridge front toe-kick area

• Disconnect power to the appliance before beginning any work
• Remove the old grille by gently pulling or releasing retaining clips as required by your model
• Align the grille with the filter opening and press until clips engage; do not force
• If an air filter is separate, verify the filter is seated correctly inside the grille before restoring power

This clear outer control cover protects and finishes the appliance's user control area while keeping buttons and displays visible. It restores a clean, finished look and shields controls from spills, dust, and everyday wear. What it does:

• Protects the appliance control panel from spills, dust, and light impact
• Keeps buttons and display readable while preventing direct contact and grime buildup
• Replaces cracked, fogged, or missing covers that can trap debris or expose internal components
• Helps maintain a finished appearance and smooth button operation

• One clear outer control cover

• Disconnect power before starting any repair to avoid shock or injury
• Typically removed/replaced from the front/control panel—may require removing a trim or screws
• Handle carefully to avoid scratching or cracking the clear plastic during installation

This burner orifice meters the gas delivered to a burner so you get a stable, properly sized flame. Replacing a clogged or damaged orifice helps restore quick ignition, consistent flame quality, and even heating on gas appliances.

• Meters gas flow from the valve to the burner for correct flame size and shape
• Helps maintain efficient, even heating and clean combustion
• Wear or blockage may show as delayed or no ignition, weak/uneven flame, or yellow tipping
• Can reduce popping or flare-ups caused by improper gas metering

• Shut off gas supply and disconnect power before servicing
• Remove the old orifice with the proper wrench/nut driver; install the new one snugly—do not overtighten
• After reassembly, leak-check connections and verify flame; adjust air shutter only if specified by the service manual

Size: 8 x 1/2 ab.

This mounting bracket secures internal components in place to keep your appliance stable and operating quietly. It replaces a worn, bent, or broken bracket to restore proper alignment and prevent loose or rattling parts. What it does:

• Provides a stable mounting point for panels, assemblies, or hardware
• Keeps connected components aligned to prevent rubbing or vibration
• Stops noises caused by loose or shifting internal parts
• Restores proper fit when an old bracket is bent, cracked, or missing

• Install with appliance unplugged or power disconnected to avoid shock
• Verify bracket orientation using the appliance's service diagram before fastening
• Use appropriate screws/fasteners and torque to avoid stripping or distortion

This replacement valve tube-body helps route water within the appliance's valve assembly so the dispenser and ice maker get water when called. Restores proper water flow paths and replaces a worn or damaged tube-body. What it does:

• Directs water from the main valve to the dispenser and/or ice maker in the valve assembly
• Replaces cracked, corroded, or blocked tube passages that can cause reduced flow
• Commonly used when water leaks or irregular dispensing occur near the valve area
• Works as part of the valve manifold to maintain correct internal water routing

• One valve tube-body component

• Disconnect power and shut off the water supply before servicing
• Handle small fittings and seals carefully; inspect and replace O-rings or gaskets if damaged
• Some disassembly of panels or the valve assembly is required; wiring/piping diagrams
• After installation, restore water and power and check thoroughly for leaks and proper function
