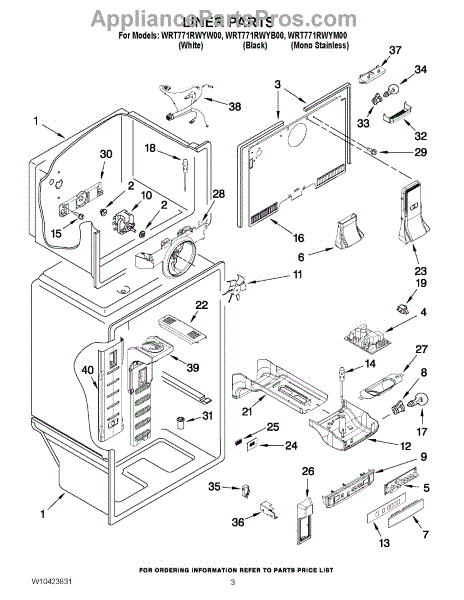

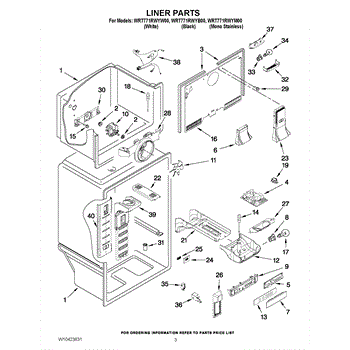

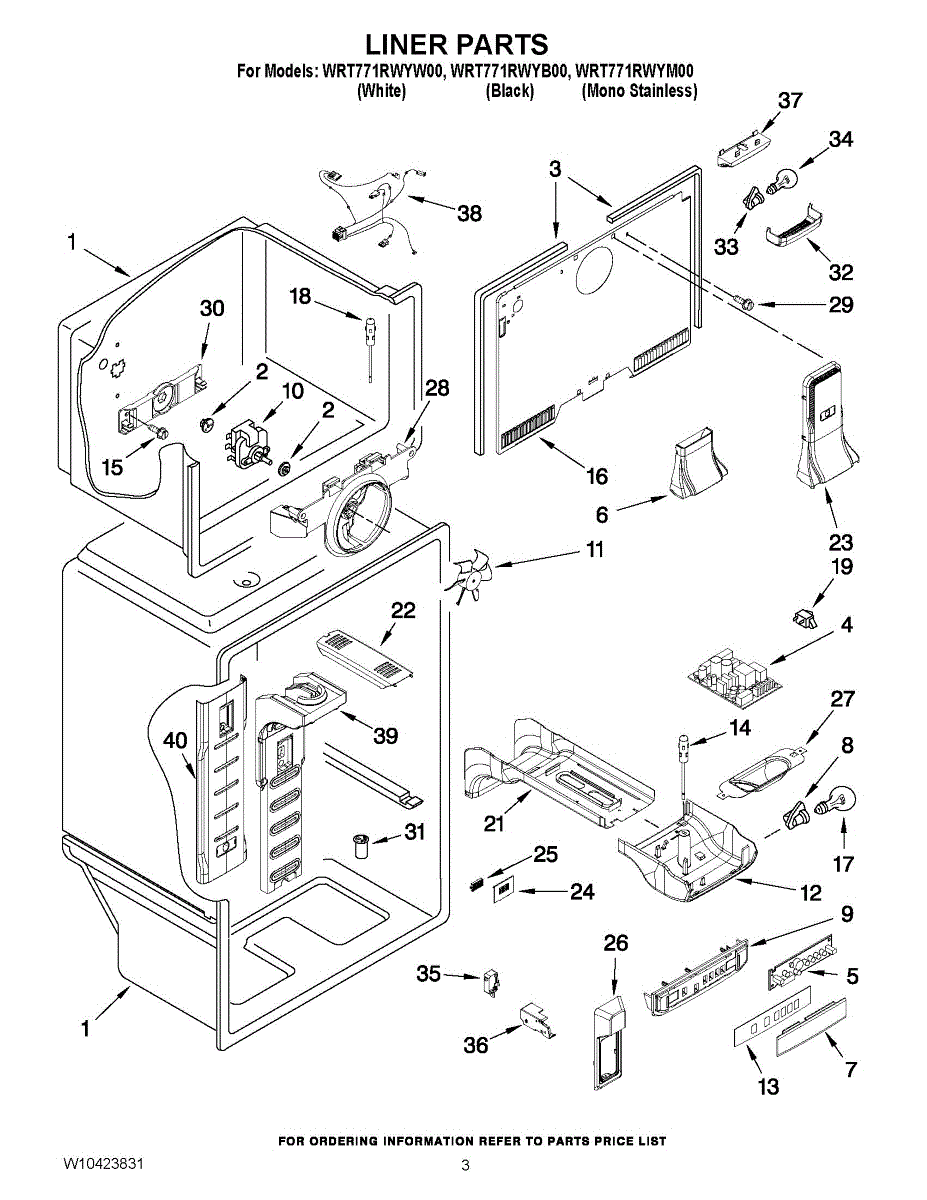

Parts for Whirlpool WRT771RWYM00: 02 - Liner Parts

Purifies circulating air in your refrigerator to reduce odors. Replace every 6 months for optimal freshness. Verify fit with your model number.

Stops refrigerator fan rattling and buzzing noise. This rubber grommet cushions the fan motor to reduce vibration. Simple DIY fix, takes under 30 minutes.

Fix frost buildup and inconsistent cooling with a new evaporator cover gasket. This seal prevents moisture accumulation at the evaporator compartment.

This electronic control board replaces the main user/control module to restore appliance control functions and cycle selection. It provides the board assembly needed to repair unresponsive or erratic control behavior on compatible units. What it does

• Manages user inputs, cycle selection and timed operations for the appliance's control system
• Regulates signals to components (motors, valves, heaters) based on selected cycles
• Common symptom fixes: unresponsive control panel, failure to start cycles, or intermittent operation
• Resolve error codes or lockouts that indicate a failed or faulty control board

• One electronic control board assembly

• Disconnect all power to the appliance before starting any repair to avoid shock or damage
• Handle the board carefully and avoid contact with circuit traces; use anti-static precautions if available
• Verify connector alignment and secure all wiring harnesses before reapplying power

Fix a refrigerator that won't cool properly or has temperature control issues. This electronic control board regulates cooling cycles and temperatures.

Light bulb socket holds and powers the bulb inside your refrigerator. Replace if lights don't work despite new bulbs or if socket is cracked or damaged.

Refrigerator not cooling but freezer works? A failed evaporator fan motor stops cold air circulation. DIY repair in 30-45 minutes with basic tools.

Fridge not cooling but freezer works? A worn evaporator fan blade prevents cold air circulation. Easy 15-minute DIY fix with our video guide.

Refrigerator too warm or freezer icing up? A faulty thermistor prevents proper temperature regulation. This 5-minute fix restores accurate cooling.

Replacement screw that secures panels, brackets, and trim to appliance cabinets. Restores reliable hold when original hardware is stripped or missing.

Illuminates appliance interior. Replace when burned out or dimming. Verify wattage and base type match your model before ordering. Easy DIY fix.

Evaporator coils freezing up or freezer not defrosting? A faulty thermistor may be the cause. This temperature sensor regulates defrost cycles. DIY repair.

Refrigerator light won't turn off or on? The door switch detects when the door opens and closes. Easy 5-minute DIY repair with a pick tool or scraper.

Fix dim or uneven refrigerator lighting with a new air diffuser light cover. Shields the bulb and directs light evenly. Simple 5-minute replacement.

This grille holds the refrigerator air filter in place behind the toe kick, allowing proper airflow through the filter and helping control odors. It replaces a damaged or missing grille to restore correct filter fit and operation. What it does:

• Secures the air filter housing so the filter seals and functions as intended
• Permits airflow through the filter media for odor control and fresher interior air
• Covers and protects the filter opening from debris and accidental contact
• Restores proper fit and appearance to the fridge front toe-kick area

• Disconnect power to the appliance before beginning any work
• Remove the old grille by gently pulling or releasing retaining clips as required by your model
• Align the grille with the filter opening and press until clips engage; do not force
• If an air filter is separate, verify the filter is seated correctly inside the grille before restoring power

Purifies circulating air in your refrigerator to reduce odors. Replace every 6 months for optimal freshness. Verify fit with your model number.

This replacement cover shields and finishes a designated area of your appliance, protecting internal components from dust, moisture, and accidental contact. Replace a cracked or missing cover to maintain proper operation and a clean, finished look.

• Protects internal parts from debris and moisture intrusion
• Restores intended airflow/containment and component protection
• Helps reduce rattles or vibration from loose or broken trim
• Common signs it's needed: cracks, broken tabs, loose fit, or exposed components

• Disconnect power; also shut off water supply
• Retain and reuse original screws/clips unless your model specifies otherwise
• Align tabs and mounting holes carefully to avoid stress on plastic
• Do not overtighten fasteners; snug by hand to prevent cracking

Protective shield guard for side-by-side refrigerators. Installs to protect internal components. Replace if cracked, broken, or missing.

This burner orifice meters the gas delivered to a burner so you get a stable, properly sized flame. Replacing a clogged or damaged orifice helps restore quick ignition, consistent flame quality, and even heating on gas appliances.

• Meters gas flow from the valve to the burner for correct flame size and shape
• Helps maintain efficient, even heating and clean combustion
• Wear or blockage may show as delayed or no ignition, weak/uneven flame, or yellow tipping
• Can reduce popping or flare-ups caused by improper gas metering

• Shut off gas supply and disconnect power before servicing
• Remove the old orifice with the proper wrench/nut driver; install the new one snugly—do not overtighten
• After reassembly, leak-check connections and verify flame; adjust air shutter only if specified by the service manual

Replacement fastener screw for appliances. Secures panels, trim, clips, and components. Needed when original screws are stripped, missing, or damaged.

Secures internal components in your refrigerator to keep parts stable and prevent rattling. Replace if bent, broken, or missing to restore alignment.

Fix ice maker or water dispenser issues with this valve tube body. Routes water from the main valve to dispenser and ice maker. Stops leaks from damaged tubes.

Fix dim or unprotected interior lighting with a new light lens. Covers and protects the bulb while diffusing light evenly. Simple DIY swap.

Replace a worn or damaged light socket to restore reliable interior lighting. Fixes flickering bulbs and intermittent power issues. Confirm fit by model.

The LED Lamp 120V E14 is an OEM part for Whirlpool refrigerators. This lamp provides interior lighting, illuminating the refrigerator compartments to help you easily see and access your food items. The LED technology ensures energy efficiency and long-lasting performance compared to traditional bulbs.

Causes of a bad LED lamp can include electrical issues, power surges, or simply reaching the end of its lifespan. Without proper lighting, the refrigerator can become inconvenient to use, especially in low-light conditions.

Symptoms of a bad LED lamp include:

• Dim or flickering light inside the refrigerator
• Complete failure of the interior light
• Intermittent lighting issues

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This limit switch monitors a set condition and opens or closes its contacts when that limit is reached. Replacing a failed switch restores proper safety cutoff and consistent operation of the appliance's heating or movement system. What it does:

• Senses a limit condition at its mounting point (such as temperature or travel/position, depending on model)
• Changes state at a defined threshold to protect components and wiring
• Interrupts power to heat or motor circuits, or signals a control to respond
• Common failure signs: no heat or shuts down early, runs continuously, won't start, or intermittent operation

• 1 limit switch

• Disconnect power to the appliance before servicing
• Note wire positions; transfer connectors one at a time or take a photo for reference
• Reinstall in the original orientation so the actuator or sensing surface contacts the correct area
• Address root causes (blocked airflow, binding mechanisms, shorted components) to prevent repeat failures

Replace a cracked or missing control panel switch cover on your refrigerator. Covers switches, protects from spills, and restores a clean appearance.

Secures and shields the freezer light assembly. Replace if cracked, broken, or missing to restore proper light protection and a clean appearance.

If your refrigerator isn't defrosting properly or has inconsistent cooling, the evaporator wire harness may be damaged. Restores electrical connections.
