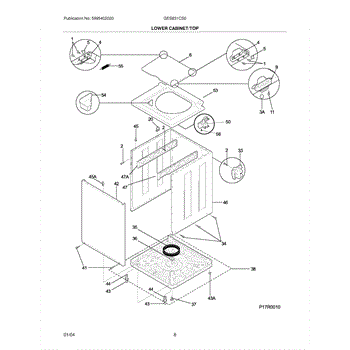

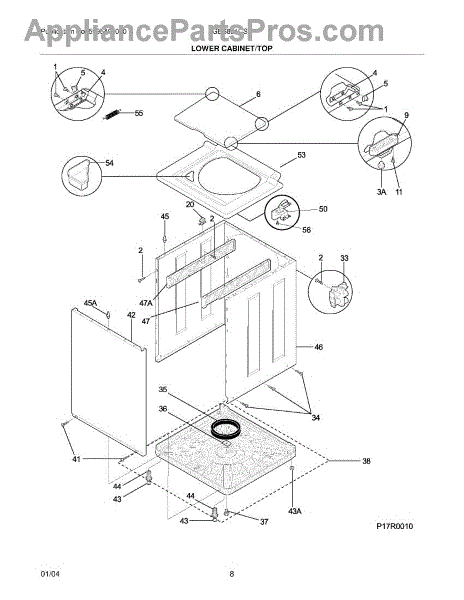

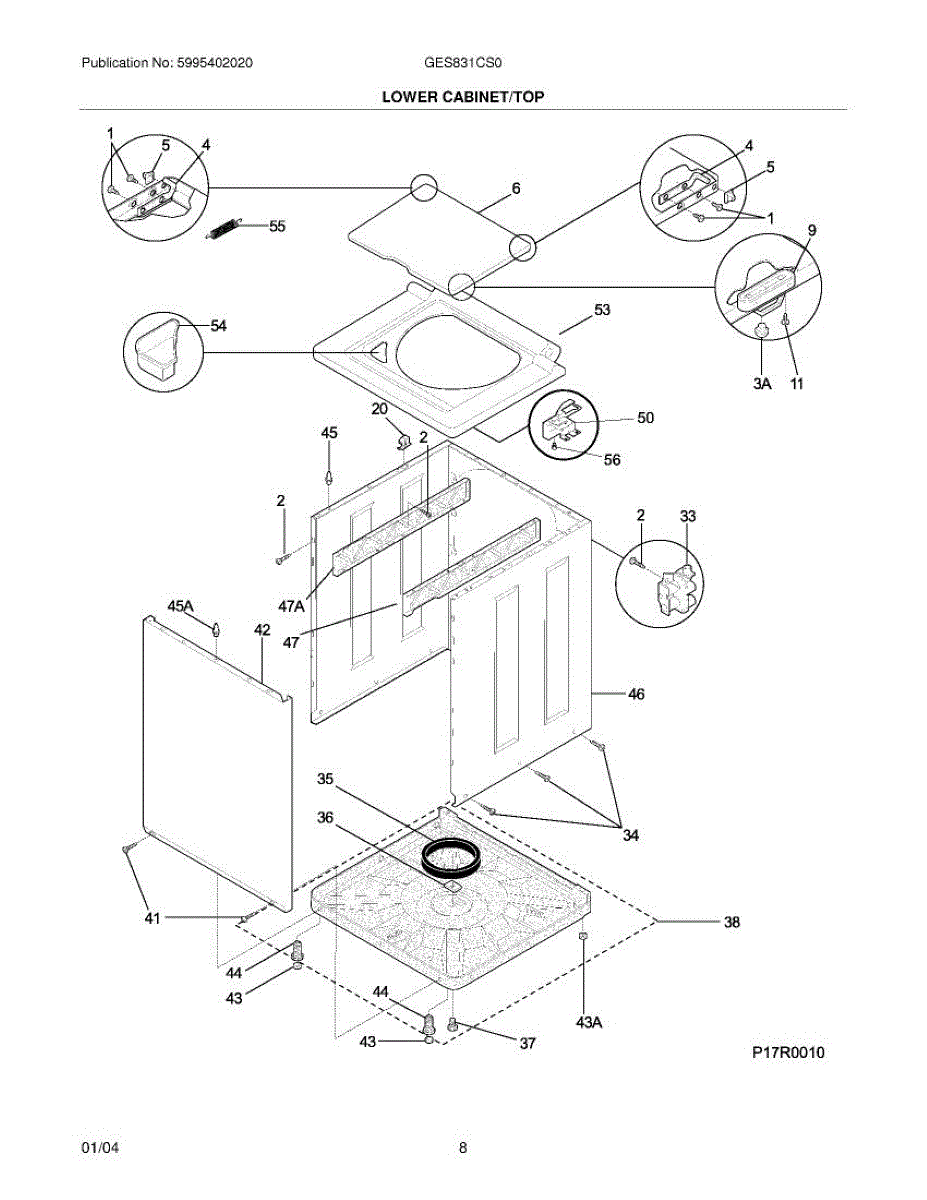

Parts for Gibson GES831CS0: 09 - Lower Cabinet / Top Parts

Pan hd phillips ,6-32 x 0.337 ,dog point

This factory 8-18 screw secures appliance panels, brackets, and components. Replace missing or stripped hardware to restore a tight, rattle-free assembly and dependable operation.

• Fastens components to frames, brackets, and covers
• Replaces missing, damaged, or rusted screws
• Helps reduce looseness, vibration, and rattling noises
• Restores proper alignment of panels and assemblies

• Disconnect power before servicing; shut off gas/water if applicable
• Start the screw by hand to avoid cross-threading; use the proper driver
• Tighten snugly—do not overtighten to prevent stripping metal or plastic

This rubber lid bumper cushions the washer lid to prevent hard contact and reduce noise and wear. It replaces a worn or missing bumper to help the lid close more softly and sit level. What it does:

• Acts as a soft contact point between the lid and cabinet to absorb impact
• Reduces lid slamming, rattling, and vibration during operation
• Helps keep the lid aligned and prevents cosmetic damage to the rim
• Commonly replaced when the bumper is cracked, flattened, or missing

• One rubber lid bumper

• Install by removing the old bumper and pushing the new bumper into the mounting hole or recess; hand tools may be helpful
• Ensure the appliance is powered off and disconnected before servicing
• Inspect surrounding mounting area for damage and replace any broken retainers as needed
• If the bumper is hard to seat, warm it briefly with a hair dryer to improve flexibility

This rubber lid grommet cushions and seals the lid edge to prevent metal-on-metal contact and reduce vibration and noise. It restores proper lid alignment and helps keep the top surface from chipping or scratching. What it does:

• Acts as a bumper between the lid and cabinet to reduce noise and impact
• Maintains correct lid spacing and alignment for smooth opening/closing
• Protects finish by preventing wear where the lid contacts the cabinet
• Reduces vibrations or rattling caused by a loose or worn grommet

• Accessible with basic tools; remove the lid or open to access mounting location as needed
• Clean mating surfaces before installing to ensure a secure fit
• Inspect adjacent hinges and fasteners while replacing the grommet
• Disconnect power if working near electrical components or moving parts

This genuine OEM part is a washer lid. The washer lid is the main piece that covers the washer. Over time, a washer lid can become damaged to the point where it no longer closes securely. If the washer lid is no longer closing all the way or is severely cracked or damaged, it will need to be replaced.To replace this part, start by making sure the washer is unplugged. After it has been powered off, proceed to take a putty knife to lift to release the two retaining clips that secure the washer's main top. Once released, proceed to remove the lid lock assembly wire connector. Fully remove the main top and set it upside down. Release the tension on the lid springs and detach the springs from the main top and hinge bars. Using a Phillips head screwdriver, remove the screws that secure the hinge bars to the lid. Push the hinge bars through the bearings then twist the bars to remove them. This will separate the lid from the main top. Take the new lid and align it with the main top. Insert the hinge bar between the main top and bearing while threading the screws to secure the new top. Reinstall the top panel and connect the wire harness. This replacement part is sourced directly from the manufacturer and is compatible with Frigidaire, Electrolux, Gibson, Kelvinator, and Westinghouse brand washers.

This lid strike mounts to the washer lid and engages the lid lock/switch when the lid is closed. It signals the control that the lid is shut so the cycle can start and spin safely without interruption.

• Engages the lid lock/switch to confirm the lid-closed status
• Allows cycles to start and spin once the lid is shut
• Typical failure symptoms: washer won't start or spin; lid won't lock; strike is broken or missing
• Restores reliable lid engagement and safety interlock operation

• Unplug the washer before servicing
• Open the lid and remove the damaged strike from the lid (retain any screws if present)
• Align and secure the new strike; ensure it lines up with the lid lock opening
• Close the lid to verify smooth engagement before restoring power

This strike screw secures the door strike/catch to the appliance, keeping the latch aligned so the door closes firmly and any safety interlock engages. Replacing a missing, stripped, or corroded screw helps restore reliable, consistent door latching. What it does:

• Fastens the strike/catch to the door or cabinet
• Maintains proper alignment for positive latch engagement
• Helps address issues like door not latching, loose/rattling door, or intermittent door switch activation
• Replace if threads are stripped, the head is damaged, or the screw is missing

• 1 strike screw

• Disconnect power before servicing; allow hot surfaces to cool. For gas appliances, also shut off the gas supply.
• Support the door or strike and remove the damaged/missing fastener.
• Start the new screw by hand to avoid cross-threading; tighten snugly without overtightening.
• Verify door alignment and latch/lock operation after installation.

The Water Valve is an OEM part for Frigidaire laundry centers. It's a part that controls the flow of hot and cold water into the washing machine. By opening and closing at the appropriate times during the wash cycle, this valve ensures that clothes are washed in the correct temperature settings, optimizing cleaning performance and fabric care.

Causes of a faulty Water Valve include mineral build-up from hard water blocking the openings, wear and tear causing leaks or malfunctions, and electrical problems such as faulty solenoids disrupting operation signals.

Symptoms of a malfunctioning Water Valve include:

• Water not entering the washing machine, leading to dry wash cycles.
• Water entering the machine too slowly, indicating a partial blockage.
• Water leaking from the valve when the machine is off, suggesting a failure to close completely.

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

This vane screw secures the internal drum baffle (vane) to the drum, keeping loads turning properly and preventing rattles or snags. Replace a missing or stripped screw to restore a tight, stable baffle during cycles.

• Fastens the drum baffle/lifter (vane) to the rotating drum
• Helps maintain proper tumble and load turnover
• Common symptoms: loose or wobbly baffle, rattling or clunking noises, items catching on a raised baffle edge, or a baffle that detaches
• Visual cues: missing screw or stripped/damaged threads at the baffle mounting holes

• Disconnect power before servicing; shut off gas
• Access the baffle from inside the drum; align holes and start the screw by hand to avoid cross-threading
• Tighten firmly but do not overtighten to prevent stripping the drum or cracking the baffle
• Start all screws before final tightening to seat the baffle evenly

White

Self leveling leg pad

The Leveling Leg is an OEM part for Frigidaire washers. It is designed to provide stability and level the appliance properly on the floor during installation and operation.

Common causes for needing to replace the leveling leg include damage or wear over time, which can lead to unevenness and excessive vibration during wash cycles.

Symptoms that may indicate the need for a replacement leveling leg:

• Uneven or unstable washing machine
• Excessive shaking or vibration during spin cycles
• Difficulty in leveling the washer during installation

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

A small locating pin used to align and secure parts during assembly, helping panels and components sit correctly for reliable operation. Ideal when a worn or missing pin causes fit or alignment issues. What it does:

• Positions and holds panels, trim, or assemblies in the correct location during reassembly
• Prevents shifting or misalignment of covers and access panels
• Restores proper fit where a bent, broken or missing pin causes loose trim or gaps
• Small, simple replacement that addresses common fit/fitment symptoms

• Disconnect power and unplug the appliance before beginning any work
• Use basic hand tools; avoid forcing parts into place to prevent damage
• Inspect surrounding components for damage and replace if worn

White

Right hand

Left hand

This washer switch is both the lid lock and lid switch. New mounting bracket replaces older design. Which means in some applications you may need to drill off old design mounting bracket prior to mounting the new lock. If your replacing the 4 wire switch you will need to tape off light switch leads. The light will no longer be used. Instructions included.

This is a suspension spring for select washers. It supports and stabilizes the wash tub during spin and agitation to reduce vibration and noise, helping the machine run smoothly.

• Supports the tub within the cabinet to control movement
• Helps reduce excessive vibration, banging, or walking during spin
• Addresses symptoms like out-of-balance loads, noise, or shaking
• Loss of tension, stretching, or breakage can require replacement

• Unplug the washer and shut off water supply before repair
• Access typically requires removing the top or front panel; support the tub to relieve spring tension
• Wear gloves and eye protection; springs are under tension
• Replace any damaged or missing suspension components in pairs or as required.
