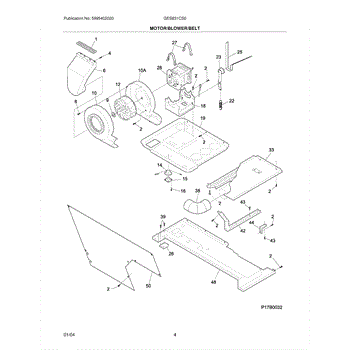

Parts for Gibson GES831CS0: 05 - Motor / Blower / Belt Parts

This air duct seal creates a tight barrier between the dryer's lint housing and cabinet. Replacing a worn seal helps prevent air leaks, maintain proper airflow through the lint filter, and restore consistent drying performance.

• Seals the air duct/lint housing to the front panel to direct airflow through the lint screen and drum
• Helps maintain dryer efficiency and temperature control by preventing bypass air leaks
• Common symptoms of a failed seal include longer dry times, weak exhaust airflow, excess lint inside the cabinet, or lint around the door opening
• Replaces a deteriorated or missing seal to restore the intended air path

• Disconnect power; shut off gas supply for gas models
• Access the air duct by removing the lint screen and top/front panels as needed
• Remove the old seal and any residue; clean mating surfaces before installing the new seal
• Seat the duct evenly against the panel when reassembling to ensure a uniform seal

This factory 8-18 screw secures appliance panels, brackets, and components. Replace missing or stripped hardware to restore a tight, rattle-free assembly and dependable operation.

• Fastens components to frames, brackets, and covers
• Replaces missing, damaged, or rusted screws
• Helps reduce looseness, vibration, and rattling noises
• Restores proper alignment of panels and assemblies

• Disconnect power before servicing; shut off gas/water if applicable
• Start the screw by hand to avoid cross-threading; use the proper driver
• Tighten snugly—do not overtighten to prevent stripping metal or plastic

A replacement mounting screw used to fasten panels and components in compatible Frigidaire appliances. Replacing a missing or damaged screw restores secure fastening, reduces vibration/rattling, and helps keep parts aligned for reliable operation. What it does:

• Secures panels, trim, brackets or small components to prevent movement and rattling
• Replaces missing, stripped, or damaged fasteners that can cause loose or misaligned parts
• Helps maintain proper fit and finish of appliance panels and access covers
• Useful when a loose screw causes vibration noise or minor part movement

• Unplug the appliance or shut off power at the breaker before servicing electrical appliances
• Use the correct screwdriver or bit to match the screw head to avoid stripping
• Start threads by hand, then tighten until snug; avoid overtightening which can strip threads or crack plastic
• Keep small parts away from children and retain any removed hardware for reuse

PPH ab st/z/ch `6 - 18x.60

This factory clamp secures a hose or tubing connection so it stays tight during normal operation. Replace a worn or rusted clamp to restore a firm hold and help prevent leaks, drips, or accidental disconnections.

• Holds a hose, tube, or duct firmly to its fitting
• Helps maintain a sealed connection under vibration
• Helps resolve loose connections, drips/moisture at a joint, or rattling noises
• Common wear includes loss of tension, corrosion, or visible damage

• Disconnect power; if servicing a water line, shut off the water supply
• Note the original clamp position and orientation before removal
• Use appropriate hand tools (pliers, screwdriver, or nut driver as applicable)
• After installation, test for leaks or movement

The blower housing assembly encloses the blower wheel and channels air through the unit's coils. Replacing a cracked or warped housing helps restore smooth airflow and reduce blower noise caused by rubbing or misalignment.

• Directs and focuses airflow through the heat-exchange coils for proper operation
• Supports and aligns the blower wheel so it spins with correct clearance
• Helps minimize vibration and noise when the housing is intact
• Symptoms of a failed housing may include scraping or rattling noises, weak airflow, vibration, or visible cracks/broken mounts around the blower area

• Disconnect power before servicing; wear cut-resistant gloves and eye protection.
• Remove the front panel/cabinet to access the blower section; note screw and clip locations.
• Transfer the blower wheel, seals, and any reusable hardware from the old housing.
• Before reassembly, spin the blower wheel by hand to ensure free, rub-free rotation.

The blower housing assembly encloses the blower wheel and channels air through the unit's coils. Replacing a cracked or warped housing helps restore smooth airflow and reduce blower noise caused by rubbing or misalignment.

• Directs and focuses airflow through the heat-exchange coils for proper operation
• Supports and aligns the blower wheel so it spins with correct clearance
• Helps minimize vibration and noise when the housing is intact
• Symptoms of a failed housing may include scraping or rattling noises, weak airflow, vibration, or visible cracks/broken mounts around the blower area

• Disconnect power before servicing; wear cut-resistant gloves and eye protection.
• Remove the front panel/cabinet to access the blower section; note screw and clip locations.
• Transfer the blower wheel, seals, and any reusable hardware from the old housing.
• Before reassembly, spin the blower wheel by hand to ensure free, rub-free rotation.

The Blower Wheel is an OEM part for Frigidaire clothes dryers. This component works to propel hot air through clothes during drying cycles.

Causes of a bad blower wheel involve wear from years of operation, such as bearing deterioration or plastic fan blade cracking/warping. Foreign object damage or improper cleaning techniques pose other risk factors.

Symptoms of a bad blower wheel include:

• Slow or weak drying even on high heat settings
• Loud clanking or grinding noises from inside the duct
• The dryer not activating or functioning when turned on
• Reduced air discharge observable at the vent

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

This temperature control thermostat regulates your appliance's internal temperature by opening and closing the electrical circuit as conditions change, helping it reach and maintain the setting you select for consistent performance. What it does:

• Senses temperature and opens/closes contacts to control the system
• Helps maintain the set temperature by cycling the unit on and off
• Can lead to inconsistent temperature or a control knob that has no effect

• 1 temperature control thermostat

• Disconnect power before servicing; use proper PPE around sharp sheet metal
• Photograph wiring and transfer conductors one at a time to the new control
• Route it exactly as original and avoid kinks or sharp bends
• Set the control to mid-range after installation and allow the unit to stabilize before fine-tuning

A small metal mounting screw used to secure appliance panels and internal components. Simple replacement that restores proper fit and reduces rattling or loose parts when the original fastener is missing or damaged. What it does

• Secures panels, brackets, or trim pieces to the appliance chassis
• Holds internal components in place to maintain alignment and function
• Helps prevent vibration noise and movement from loose parts
• Suitable where the OEM listed screw size and thread match the original

• Disconnect power and water before servicing
• Use the correct screwdriver or driver bit to avoid stripping the head
• Start threads by hand to prevent cross-threading; tighten until snug—do not overtighten
• Keep any removed screws organized to ensure correct reassembly

Keep your dryer tumbling smoothly by restoring proper belt tension. This idler spring attaches to the idler arm and maintains tension on the drive belt so the drum turns reliably without slipping or squealing. What it does:

• Applies constant tension to the idler pulley to keep the drive belt tight around the drum and motor
• Helps resolve a drum that won't turn or tumbles intermittently
• Addresses belt issues such as slipping off, appearing loose, or premature breakage from low tension
• Can reduce squealing/chirping from the idler area caused by belt slip

• 1 idler spring

• Disconnect power; for gas dryers, also shut off the gas supply
• Access the idler assembly by removing the front or lower access panel per your model
• Relieve belt tension, unhook the old spring from the idler arm/frame, and install the new spring in the same orientation and holes
• Rotate the drum by hand to check smooth operation before reassembly

The Idler Arm Assembly is an OEM part for Frigidaire dryers. It is an essential component of the dryer's drum support system, responsible for maintaining the proper alignment and smooth rotation of the drum during operation. The idler arm assembly typically consists of an idler arm, pulley, and bearings, working together to support the weight of the drum and facilitate its rotational movement.

Symptoms of a bad idler arm assembly in a dryer include:

• Loud squeaking or grinding noises during operation
• Excessive vibration or shaking of the dryer
• Difficulty in starting or maintaining the drum's rotation
• Potential damage to other components due to misalignment

Causes of a bad idler arm assembly can include wear and tear over time, damage from foreign objects entering the drum, or issues with the bearings or pulley components. A faulty idler arm assembly can lead to improper drum alignment, increased friction, and potential damage to other parts of the dryer.

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

The Drum Belt is an OEM part for Frigidaire dryers. It plays a pivotal role in the mechanism of the dryer, connecting the motor to the drum to enable its rotation. Without a functioning belt, the dryer's drum will not turn, preventing clothes from drying properly.

Symptoms of a failing Drum Belt include:

• A dryer that turns on but does not spin
• Unusual noises, such as thumping or squealing, coming from the dryer
• Clothes taking longer than usual to dry
• The dryer stopping unexpectedly during a cycle

Common causes for Drum Belt issues are general wear and tear from regular use, the belt becoming stretched or misaligned, and excessive load sizes that strain the belt beyond its capacity.

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

The Motor Mounting Clamp is an OEM part for Frigidaire dryers. This clamp secures the motor in place within the dryer, ensuring it operates smoothly and remains stable during the drying cycles. The motor mounting clamp is essential for maintaining the proper alignment and function of the dryer motor.

Over time, the motor mounting clamp can become worn out or damaged due to constant vibration and movement. Accidental impacts or mishandling during maintenance can also cause the clamp to fail, leading to motor misalignment or instability.

Symptoms of a bad motor mounting clamp include:

• Excessive noise or vibration during the drying cycle
• Motor shifting or moving within the dryer
• Reduced drying efficiency
• The dryer not starting or stopping abruptly

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

No.8 pan head `10 - 10b x 0.50 `cr/sq drive

No.12 - 24 x .63 hex head
