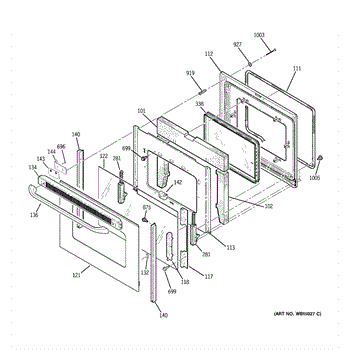

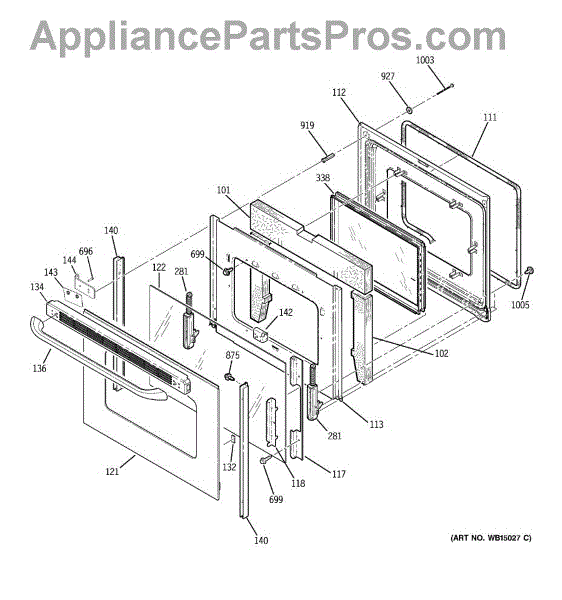

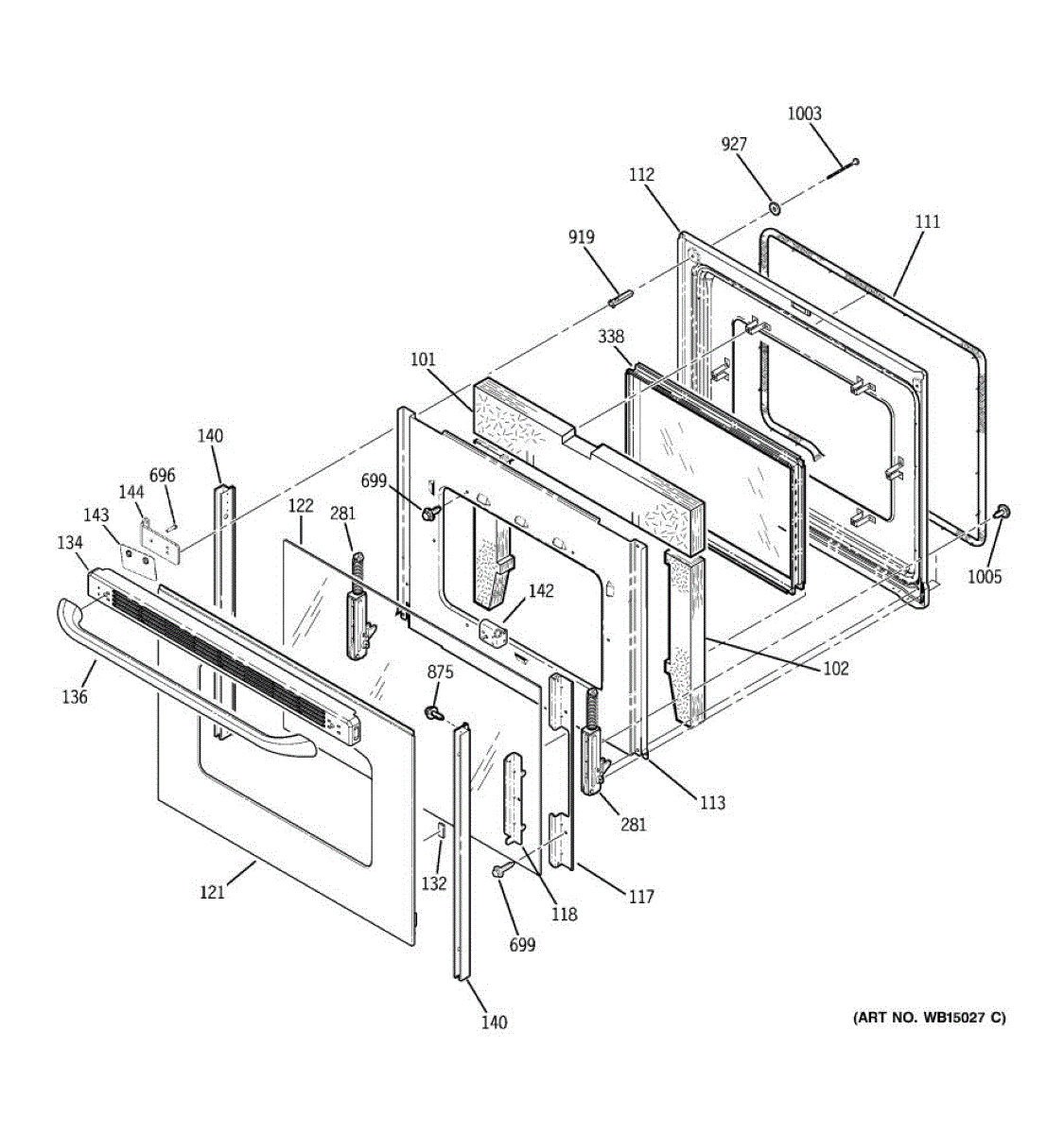

Parts for Ge JCB850SR1SS: 06 - Lower Door Parts

Insulation pad that installs behind the oven inner door liner to retain heat. Replace if worn, damaged, water-logged, or missing to restore proper insulation.

Thermal insulation that fits between inner and outer oven door panels along the side edge. Replace when burnt, brittle, cracked, or missing from wear.

Seals your oven door to retain heat and maintain consistent cooking temperatures. Replace if torn, cracked, or heat escapes. Verify fit with your model.

Oven door liner panel that fits between the inner and outer door. Replace this cosmetic panel if it's cracked, discolored, or damaged to restore appearance.

Secures insulation inside the oven door to prevent shifting and maintain heat containment. Replace if clip is cracked, broken, or missing.

Secures and holds the glass panel in place on your oven door. Replace this retainer if it's cracked, broken, or missing to properly support the glass.

Retainer holds the glass panel securely in your oven door. Replace if cracked, broken, or missing to restore proper glass mounting and door appearance.

Replacement inner glass pane for oven doors. Installs inside door assembly to restore visibility and heat containment. Replaces cracked, broken, or fogged glass.

Door pad gasket creates a seal between your oven door and front panel. Replace if worn, cracked, or causing heat loss. Confirm fit with your model number.

Stainless steel oven door handle that mounts to the front of your range door. Replace if your current handle is cracked, broken, or missing for a complete look.

Secures exterior trim to your range door on the right side. Replace this bracket if cracked, broken, or missing to restore a flush, finished look.

This lower door hinge secures and pivots the refrigerator door at the cabinet base, restoring proper door alignment and smooth opening. Replace a worn or broken lower hinge to stop sagging, noisy operation, or uneven door sealing. What it does:

• Supports the weight of the refrigerator door and provides the pivot point for opening and closing
• Keeps the door aligned so the gasket seals evenly and the door closes fully
• Replaces damaged, bent, or worn lower hinge hardware that can cause door sag or binding
• Helps eliminate squeaks or rough movement caused by a failing hinge

• Disconnect power to the appliance before starting any repair
• Support or remove the door per the manufacturer's instructions to avoid injury or damage
• Use appropriate tools and retain any original fasteners; replace damaged screws as needed
• Verify door alignment after installation and make small adjustments as required

Inner glass assembly for oven doors. Replace when cracked, shattered, or broken to restore door visibility and insulation. Verify fit with your model number.

Mounting screw secures panels, trim, and brackets inside your oven. Replace if lost, stripped, or damaged during service to keep components aligned.

ST10-16 X 7/16"

Mounting screw secures range components and panels. Replace if screw is stripped, missing, or damaged during appliance repair or maintenance work.

Replacement mounting spacer for electric ranges. Positions and supports panels to maintain alignment and proper fit. Replaces worn, missing, or damaged spacers.

Includes 12 washers.

Attaches oven door panels together on your range. Replace this threaded screw if the original is stripped, missing, or no longer holding panels secure.

10-32 machine screw secures panels, brackets, door hinges, and handles in ovens and ranges. Replace missing, stripped, or broken screws for tight fit.
