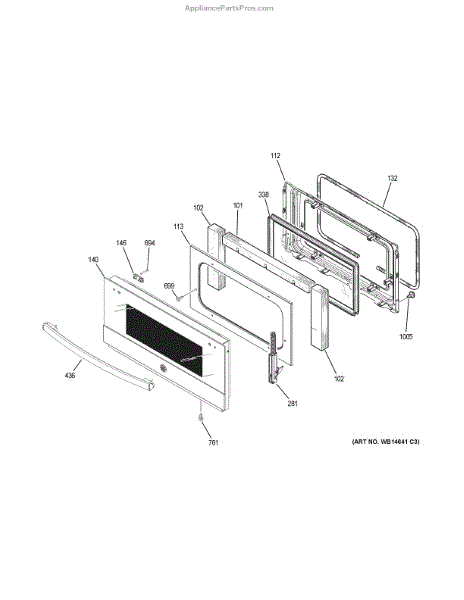

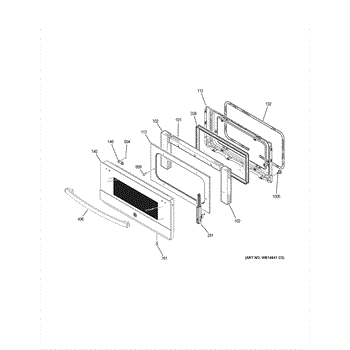

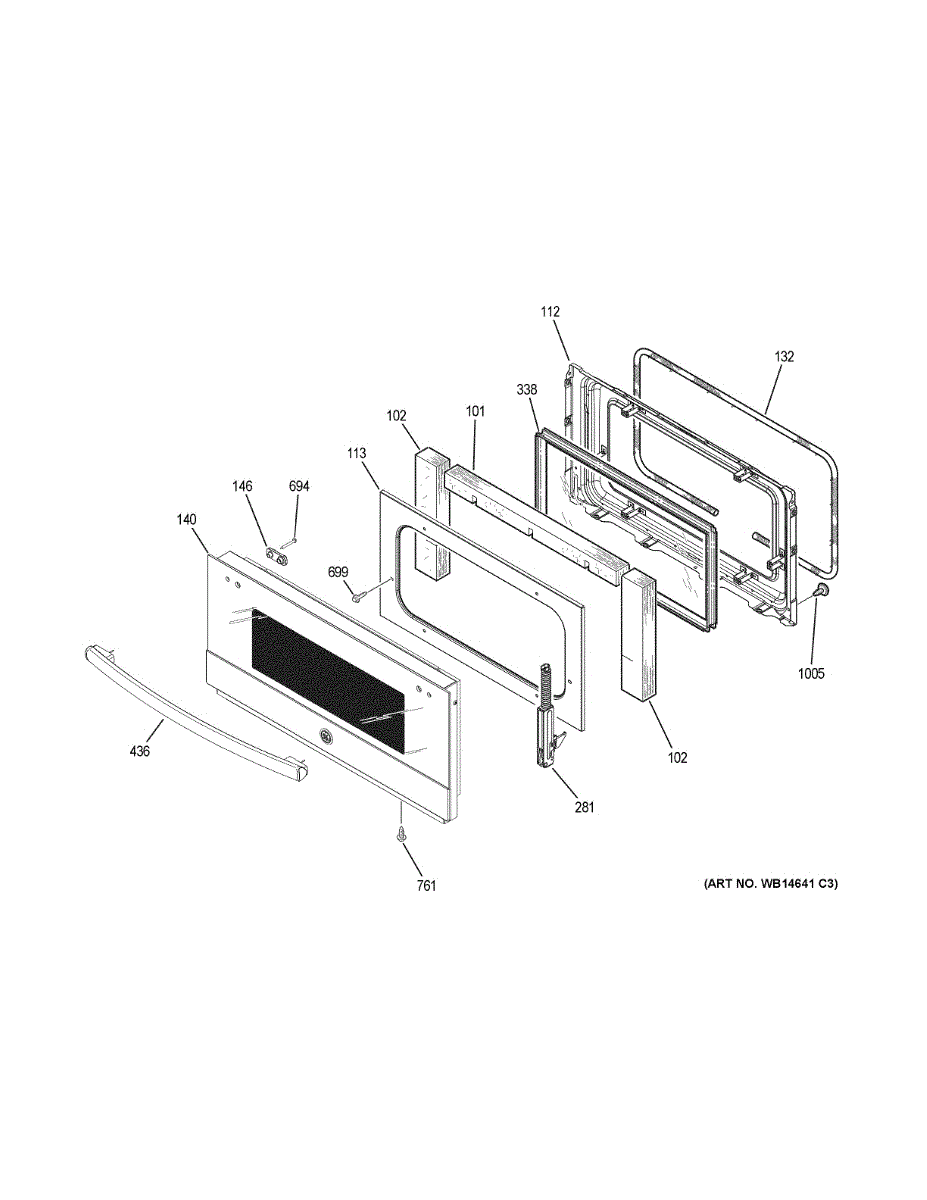

Parts for Ge PT9200SL2SS: Lower Door Parts

This oven door insulation panel fits inside the oven door to help contain heat for more even cooking and protect the outer door surface. It replaces worn or missing insulation to reduce heat loss and improve oven performance. What it does:

• Helps retain oven cavity heat for more consistent baking and roasting
• Reduces heat transfer to the outer door, improving user safety
• Limits heat loss from the oven cavity that can cause longer cook times
• Restores proper door sealing alignment when insulation is compressed or missing

• Disconnect power (and gas if applicable) before starting any repair
• Remove the oven door or inner door panel to access insulation
• Wear gloves to protect against sharp edges and insulation fibers
• Reinstall panels and check door fit and seal before returning the oven to service

This oven door gasket forms the heat-sealing seal around the oven door to help keep heat and cooking odors in the oven cavity for more even cooking. It replaces worn, torn, or deformed seals to improve oven performance. What it does:

• Seals the oven door to reduce heat loss and help maintain consistent cooking temperatures.
• Helps prevent smoke or odors from escaping the oven cavity during use.
• Reduces energy waste caused by oven heat leaking around the door.
• Commonly replaced when the gasket is cracked, compressed, burnt, or shows visible gaps.

• One oven door gasket as shown.

• Remove power to the appliance and allow the oven to fully cool before servicing.
• Inspect the gasket channel and clean debris before installing the new gasket for a proper seat.
• Press the gasket into the door channel, working around the perimeter to ensure an even fit; some gaskets may be secured with clips or adhesive—follow the oven's service instructions.

This handle and end cap assembly replaces a damaged or worn door handle to restore a secure grip and clean appearance. It's a direct-fit exterior part used on compatible GE refrigerator/freezer doors. What it does:

• Provides a finished grip surface for opening and closing the door
• Replaces cracked, broken, or loose handles and end caps
• Restores proper alignment and attachment where the original handle is damaged
• Improves door appearance by replacing worn or discolored components

• High-level installation; verify correct orientation and attachment hardware before starting
• Turn off and empty the door area as needed for safe access
• Use appropriate hand tools; avoid overtightening fasteners to prevent cracking

This hex-head machine screw has a 10-32 thread and measures 1-3/4 inches long. Use it to replace a missing, stripped, or rusted fastener and restore a secure fit where this exact size is specified.

• Secures brackets, panels, and internal components requiring a 10-32 x 1-3/4 in hex-head screw
• Restores proper alignment and mounting integrity
• Replaces damaged, corroded, or lost hardware
• Can help resolve symptoms like loose/rattling parts or shifting components

• Disconnect power (and shut off gas, if applicable) before servicing; allow appliance to cool
• Remove the old screw, align parts, and start the new screw by hand to avoid cross-threading
• Tighten snugly but do not overtighten
• Reuse any original washers or spacers if present

ST10-16 X 7/16"

This silicon controlled rectifier (SCR) is an electronic switching component that controls current flow in appliance control circuits, helping regulate power to heaters, motors, or other loads for stable operation. What it does:

• Switches and regulates current in control boards and power circuits
• Can prevent power from reaching a heater, motor, or element when failed
• Helps protect downstream components by controlling surge/current flow

• Disconnect power to the appliance before servicing to avoid shock.
• Handle the SCR carefully to avoid electrostatic discharge (ESD) damage.
• May require board-level replacement or soldering skills.

This 10-32 machine screw secures brackets, panels, and other hardware in cooking appliances. Replacing a missing or stripped screw restores a snug, rattle-free fit and keeps components aligned and safely fastened. What it does:

• Fastens panels, brackets, and components using a 10-32 machine thread
• Replaces hardware that is missing, rusted, or stripped
• Helps address loose or rattling parts and minor panel misalignment
• Maintains secure mounting after service or part replacement

• One 10-32 machine screw

• Disconnect power; for gas appliances, also shut off gas before service
• Support the panel or bracket while removing/installing hardware
• Start threads by hand to avoid cross-threading; do not overtighten
• Replace them one at a time to keep alignment
