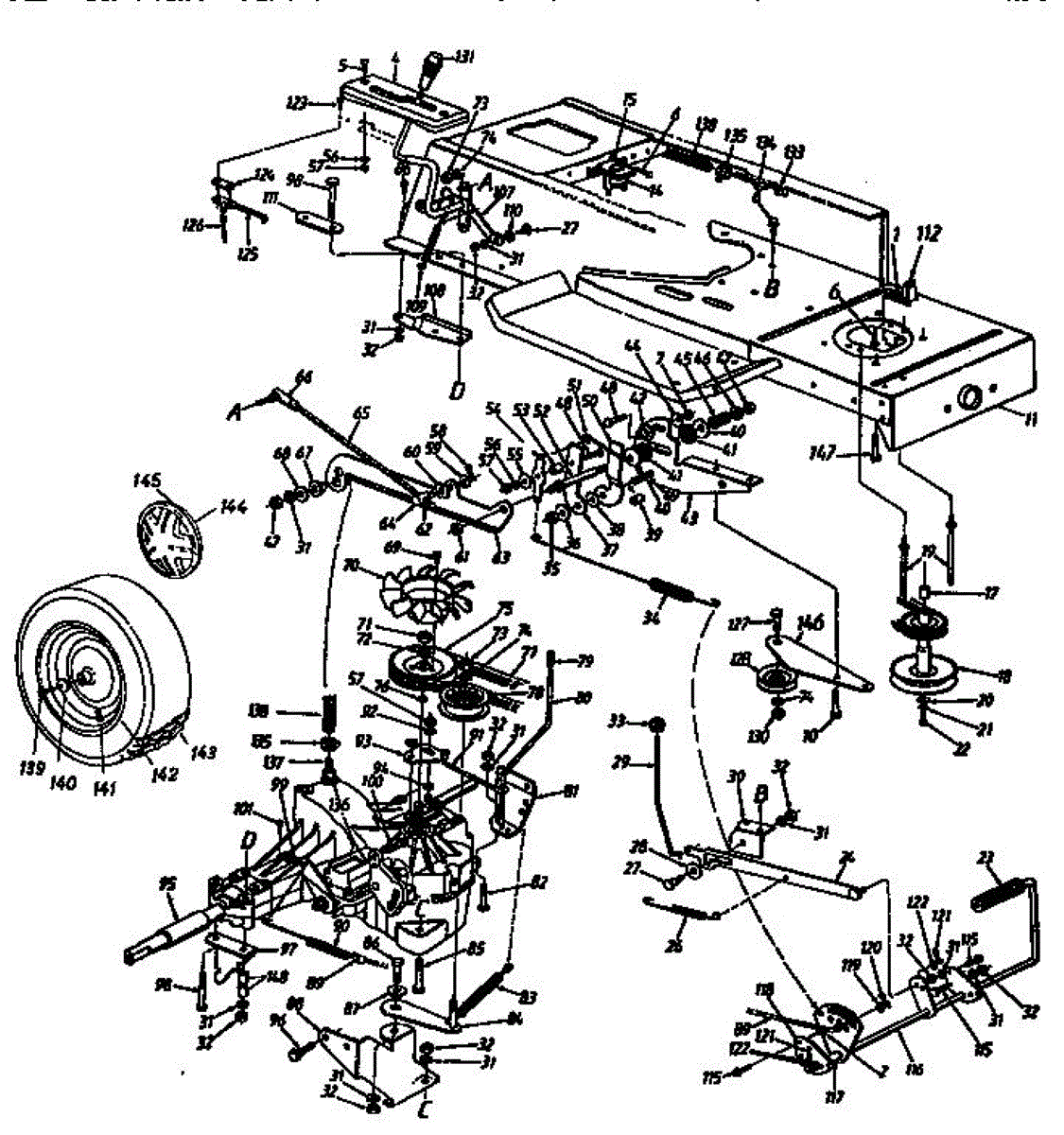

Parts for Mtd 13AX694G401: Lower Frame Assembly Parts

This part is a replacement screw. This is a genuine OEM part made by MTD and has been sourced directly from the manufacturer. This part can be used to replace a broken, stripped, or misplaced screw in a variety of small engine outdoor power equipment models. This screw is a standard piece of hardware that has multiple different uses depending on the equipment in question. In general, screws are used to hold together parts the equipment securely. A genuine OEM screw should be used in order to ensure good quality and a proper fit. It's important when working on or near any engine to make sure the equipment is powered off and completely cooled down before starting any repairs. For more accurate information on how and where to install this screw, the appropriate owner's manual and equipment diagrams should be referenced. As an authentic replacement part, this screw is suitable for use on several different models of small engine outdoor power equipment manufactured by MTD, Troy-Bilt, Craftsman, and other brands. Please note that this is a genuine part made of high-quality, durable metal and is sold individually.

A hex screw fastens and holds two components together. It has a hexagonal head and features threading starting underneath the shoulder down to the tip. Its all-metal construction offers rigidity and longer lifespan. It is also threaded, so you can conveniently loosen or tighten in position. It measures 1/4-20 x 0.5 inch and comes in brass or gold color. Take note that this replacement hex screw may beused in different locations of a machine. Double check the device’s model number for compatibility. To install this hex screw, you will need a hex wrench or a hex socket. This hex screw is a replacement made by MTD. This screw/bolt may be used on lawn mowers, snowblowers, tillers, string trimmers, leaf blowers, edgers, chainsaws, pole pruners, log splitters, or wood chippers made by Craftsman, Toro, Cub Cadet, Ryobi, Troy-Bilt, Husky, Murray, Yard Machines, MTD, Huskee, Montgomery Wards, Bolens, Yard-Man, Turf King, or MasterCut. This OEM hex screw is sold individually.

This lock washer is used frequently for a number of applications on power yard equipment. The size, 5/16, is the default for many small engine housing and manifold applications. Lock washers are used with machined bolts to fasten engine blocks to the housing of the equipment being used. The compressed washer is able to handle the constant vibration of the small gasoline engine without losing the seal between the screw or bolt and the housing. Typically these lock washers only need to be replaced when they are misplaced during repairs or when the screws that attach them have to be chiseled or cut away, meaning the washers are destroyed as well. These OEM certified replacement washers have been manufactured to the same specifications as the originals they are replacing. In addition to lawn mowers, lock washers of this type and size are frequently used on blowers, lawn tractors, cultivators, snowblowers, and trimmers. Brands compatible with this type of washer are Murray, Husky, Poulan, Bolens, Yard-Man, Cub Cadet, Troy-Bilt, Yard Machines, MTD, and Ryobi.

A flat washer is used with many types of lawn and garden equipment, such as lawnmowers and log splitters. In many cases, the washer is used to hold a bolt in place on a blade. It will often be found between the blade surface and the bolt. The washer is flat with a center hole and ensures the main components of the equipment stay stable and held together when the machine is being used.Over time, the washers on lawn equipment can start to become damaged or break which can result in subpar performance. If a visual inspection shows that the flat washer has warped or is broken, it will need to be replaced. The process is fairly easy and will require nothing more than a screwdriver or socket wrench. The screw or bolt near the washer will need to be removed so the washer can be replaced.This washer is a genuine OEM replacement part that comes as an individual component sourced directly from the manufacturer. It fits lawnmowers, wood chippers, snowblowers, and log splitters by MasterCut, Craftsman, Yard-Man, Toro, Bolens, Cub Cadet, Bolens, Ryobi, Montgomery Wards, Troy-Bilt, Huskee, Murray, MTD, and Yard Machines.

This spring washer has a conical shape with an open center. It has a shape like a traditional washer but is smaller than a typical coiled spring. These washers can handle a larger load than a coiled spring and are used in lawn and garden equipment to cushion heavy loads. Over time, these washers can experience wear and tear which will lead to damage or breakage. When this occurs, the spring washer will need to be replaced.Visually inspect the spring washer for damage like scratches, breaks, and dents. If these occur or the washer is warped, it needs to be replaced. The process involves removing the nut or screw above the washer with a screwdriver or other tool. After accessing the spring washer, it can be removed and a replacement part can be added to the equipment. Reassemble the parts and the equipment should work again.This is a genuine OEM spring washer replacement part that is sold individually. It's sourced directly from the manufacturer. It is compatible with lawnmowers, wood chippers, snowblowers, log splitters, tillers, chainsaws, string trimmers, and edgers by Craftsman, MasterCut, Toro, Turf King, Cub Cadet, Yard-Man, Ryobi, Bolens, Husky, Montgomery Wards, Murray, Huskee, Yard Machines, and MTD.

This replacement part is a washer. This is a genuine replacement part made by MTD. Washers are a very important part of many different types of machinery. These small pieces work together with other small parts to help the pieces of the machine stay in place and secure so that everything operates smoothly.A new washer might be needed if the current one is missing or damaged in any way. Washers can become stripped over time and might not stay in place after a while. If this is the case it is recommended that it be replaced as soon as possible. This repair should be fairly easy and only require a screwdriver and possibly pliers. Be sure to wear work gloves during this repair. This part is a genuine OEM replacement part. This part is sold individually and is sourced directly from the manufacturer to ensure proper fit.

This flat washer is used to attach the idler pulley in a number of small and medium sized gasoline powered engines. These engines include snow blowers, log splitters, riding mowers, lawn tractors, and chippers. Because the idler pulley is subject to a great deal of resistance when the pulley is engaged, eventually the pulley will wear out. Should there be a squealing sound when engaging the drive, the problem is likely the idler pulley. In these cases, the pulley must be replaced. It is a good idea to replace the surrounding hardware when replacing the idler pulley; tNhis includes the flat washer, which is subject to corrosion during heavy use. To replace the idler pulley, first detach the spark plug cap. If on a mower or tractor, drop the mower deck. Remove the original pulley and install in order: replacement pulley, hex bolt, flat washer, flange nut. Apart from dropping the mower deck, the only tools required to complete this installation may be a 9/16 ratchet and combination wrench. This washer is a genuine OEM replacement part, designed to perfectly replicate the original piece. This washer is compatible with Troy-Bilt, Yard Man, Yard Machines, MTD, and Craftsman devices.

The Hex Jam Nut is a genuine 4 oz. jam nut. This part is half the height of most standardized hex nuts. Typically used as a locknut, hex jam nuts are used for two general purposes. The first application is that a jam nut can be used in conjunction with a bolt to be tightened against a standard nut. By using the hex nut and the bolt together, the standard nut will lock in place and will not back off. The second application is that jam nuts are used in tight uneven places as a means to level. Further, jam nuts can be used in situations where sufficient space is lacking for a standard nut.The Hex Jam Nut is sold individually. If a hex jam nut is lost through general use, it can be replaced simply with the same OEM part sourced directly from the manufacturer. The part can be replaced and installed with a wrench and should only take a few minutes to replace. This product is suitable for use with chippers, lawnmowers, lawn tractors, log splitters, snowblowers, and vacuums. Sturdy and durable, the product is made from galvanized steel.

This part is a replacement transaxle fan. This is a genuine OEM part made by MTD and has been sourced directly from the manufacturer. If the current transaxle fan is broken or malfunctioning, this part can be used as a replacement. It is intended for use with a variety of lawn tractor models. The transaxle fan attaches to the transaxle and spins to keep the equipment cool. If this part is broken, jammed, or unable to spin, the engine can overheat, which can cause serious damage. Thus, the transaxle fan will need to be replaced. When working on or near an engine, always ensure that the equipment is powered off and completely cooled down before attempting to undergo any repairs. For more accurate information on how and where to install this transaxle fan, the appropriate owner's manual and equipment diagrams should be referred to. This transaxle fan is suitable for use on a variety of lawn tractor models manufactured by MTD, Craftsman, Cub Cadet, Troy-Bilt, and other brands. It is a genuine OEM part and thus is made of high-quality, durable materials. Part sold individually.

This lock washer is a genuine MTD part, sold individually. This lock washer can be used as a replacement part in lawn mowers, snowblowers, tillers, string trimmers, leaf blowers, edgers, log splitters, and wood chippers.The lock washer in a small engine outdoor appliance is a small component that can easily be lost or misplaced during the typical lifespan of the appliance. If this occurs, it should be replaced once the operator of the appliance notices its absence. The washer can also be stripped away as a result of general wear and tear, in which case it should be removed and replaced by this genuine OEM replacement part.This is a genuine OEM replacement part sourced directly from the manufacturer. It is sold individually. This lock washer is compatible with the following outdoor appliance brands: MTD, Craftsman, Cub Cadet, Troy-Bilt, Husky, Broan, Yard Machines, Huskee, Montgomery Wards, Yard Man, Turf King, and MasterCut.

This hex nut is designed for use with select trimmers and mowers. It is a standard hardware part that may have multiple applications depending on the type of unit and model. The nut is typically used to secure engine components or housing elements to provide safe use of the machine. These nuts are durable, but they are small and can become lost during other repairs. The constant exposure to vibrations and use can also cause them to strip or become damaged over time. Either way, a replacement with this genuine hex nut will resolve the issue and get equipment back in working order. This genuine OEM hex nut is manufactured to exact standards and sourced from the manufacturer. It can be used with trimmers and mowers from RYOBI, MTD, Bolens, Troy-Bilt, Yard Machines, Huskee, Yard Man, and Cub Cadet. Check the parts diagram for exact application and location of this nut and note that it may have multiple uses on select models. This hex nut is sold individually, and additional nuts will require the purchase of multiple pieces. In order to replace this nut, a hex socket wrench and driver will be required. Always wear gloves for safety.

This part is an idler pulley. The idler pulley applies tension to and guides the engine drive belt. A wrench set is needed to perform any repair involving the idler pulley part.The idler pulley can become worn over time with normal use. Wear to the pulley can cause the belt to slip. Signs that the idler pulley needs to be replaced include squealing noises coming from the equipment, the engine stalling, or overheating. The idler pulley is an essential component and it is important to replace this part if it becomes worn, broken, or damaged in any way.This part is a genuine MTD part and is an OEM part sourced directly from the manufacturer and it is sold individually. This idler pulley is compatible with lawn tractors and snowblowers manufactured by MTD, Yard Machines, Bolens, Yard-Man, Troy-Bilt, Cub Cadet, and Husky.

There are multiple uses for the 5/16-18 Hex Screw. It is often used with small gasoline-powered yard equipment such as lawn and garden machines. While hex screws such as these may be used in edgers and snowblowers, the most frequent use this screw is in yard tractors. This variety of screw is commonly used in attaching the various appendages of gas-powered equipment to a central operating platform. In particular, these hex screws are used to secure the engine block of power tools to the frame or housing of the equipment. Once in place, these fasteners have an almost unbreakable strength to them. This is so much so the case that often, in order to detach the engine manifold and repair the inner workings of an engine, the bolts must be chiseled or cut loose. In such cases, it is necessary for the bolts to be replaced during reassembly. Manufacturers insist that genuine OEM replacement parts be used in the rebuilding process. These replacement parts were manufactured to the same exacting specifications used to make the original screws. These OEM screws are compatible with equipment made and sold by Yard-Man, Cub Cadet, Troy-Bilt, Husky, MTD, Bolens, and Yard Machines.

This extension spring attaches to the axle support bracket and the drive belt idler pulley on many types of lawn and garden equipment. It creates additional tension to the drive belt idler pulley. Sometimes the extension spring can be stretched out or may break, often caused through excess use. If this is the case, the spring will need to be replaced.If the spring is broken or no longer creates the appropriate amount of tension, replacement is required. It is an easy process that only requires a set of pliers. The pliers can be used to take the old spring off of the yard equipment before attaching the new extension spring. Make sure the equipment is on a stable surface and powered off when working with it. Remove the spark plug wire to prevent accidents.This extension spring is an authentic OEM replacement part sourced directly from the manufacturer. It is sold as an individual component. The spring is made to be used with lawnmowers, lawn tractors, and tillers created by MasterCut, Yard-Man, Bolens, Huskee, MTD, Yard Machines, Murray, Troy-Bilt, Cub Cadet, and Craftsman.

This is a hex screw used on a variety of types of lawn and garden equipment. On large machinery, it is often used to mount the gas tank. On smaller items, it tends to be used to clamp the housing together. It can secure items like plastic, metal, brick, and wood together. It measures 5/16-18 x .75 inches and is made of durable metal. In some cases, the screw can become damaged, broken, or stripped, which means it needs to be replaced.A visual inspection will indicate whether the screw is damaged. If it needs to be replaced, a hex wrench can be used to remove it from the equipment. Afterward, the replacement hex screw can be installed with the wrench before being tightened to ensure materials hold together well.This hex screw is a genuine OEM part that is sold individually. It is sourced directly from the manufacturer. The hex screw is compatible with lawnmowers, wood chippers, log splitters, snowblowers, chainsaws, edgers, tillers, leaf blowers, and string trimmers by Craftsman, Cub Cadet, Ryobi, Troy-Bilt, Husky, Broan, Yard Machines, MTD, Huskee, Montgomery Wards, Bolens, Turf King, Yard-Man, and MasterCut.

This replacement part is a hex screw, and it is intended for use in different types of lawn equipment. This is a genuine replacement part made by MTD. This screw can be used in a variety of ways depending on the repair needed. Hex screws are similar to normal screws except they have a six-sided head, like a hexagon. A new hex screw might be needed if the current one is damaged or missing. It is common that screws may become stripped or loose overtime, causing them to fall out. If any parts of the lawn mower are becoming loose or falling off, the hex screw might be missing. This replacement should be fairly easy and should only require a screwdriver and possibly pliers. This part is a genuine OEM replacement part and is sold individually. Be sure to purchase the correct amount as some appliances require more than one hex screw.

This part is a replacement hex bolt. This is a genuine OEM part made by MTD and has been sourced directly from the manufacturer. This part can be used to replace a lost or defective hex bolt in outdoor power equipment. The hex bolt is named for its hexagonal shaped head and is important for properly securing together different equipment components. It should be replaced if lost, worn, stripped, corroded, or ineffective in any way. When working on or near an enginee, it is important to ensure the equipment is powered down and completely cool before beginning repairs. For more accurate information on how and where to place this hex bolt, the appropriate owner's manual and equipment diagrams should be referred to. As an authentic replacement part, this hex bolt is suitable for use on outdoor power equipment manufactured by MTD, Craftsman, Troy-Bilt and other brands. Please note that this is a genuine part made of high-quality, durable metal and is sold individually.

The hex head self-tapping screws are designed for a number of applications in lawn and garden equipment, primarily holding machinery and engine parts together. Over time, screws can become stripped, fall out, or otherwise get damaged, resulting in a need for replacement. When replacing screws and other hardware, always be sure to disengage or disable any power supply to reduce the risk of shock or other injuries. The self-tapping screw makes it easy to replace, and the fact that they are manufacturer-guaranteed ensures a perfect fit for compatible machines. This OEM self-tapping screw is compatible with several machines from RYOBI, MTD, Husky, Cub Cadet, Yard-Man, Troy-Bilt, Bolens, and Yard Machines. It can be found in lawnmowers and tractors and can be in multiple locations, depending on the exact model. This screw is sold as a single piece; order multiple quantities if needed.

This replacement part is a cotter pin. It is a genuine replacement part made by MTD. Cotter pins are also sometimes known as clevis pins and are responsible for fastening two metals together. This allows the machine to work properly and operate smoothly. A new cotter pin might be needed if the current ones are damaged in any way or even missing. This part is small so it can be misplaced after years of normal wear and tear. It is possible that this part become stripped or lodged in place over time. The repair should be fairly easy and only require common tools. Be sure the engine is completely powered down before beginning this repair. This pin is sold individually. This is a genuine OEM replacement part sourced directly from the manufacturer to ensure a proper fit.

This switch spring is part of the safety system used in riding lawnmowers. This spring is located underneath the seat of all riding lawn mowers and lawn tractors. The spring is attached to two electrical contacts and is compressed when the rider is sitting on the seat. If the machine is in motion and the driver stands up or gets off the machine, the switch interrupts the power and stops the mower from moving. If the spring fails to work, it should be replaced in order to operate the mower safely. Over time and due to normal wear and tear, the spring may become warped and need to be replaced. Park the mower on a flat surface and remove the spark plug so that the lawnmower is not powered on. Look underneath the seat and locate the kill switch with a two-wire plug on one end and a round plunger button on top. Grip the wire plugs and pull them away from the switch spring. Install the new switch spring. Reattach the wires and reinstall the spark plugs. This switch spring is an authentic OEM replacement part sourced directly from the manufacturer. It is a silver metal part that is designed for use in lawnmowers manufactured by MTD, Ryobi, Bolens, Yard-Man, Troy-Bilt, Husky, and Cub Cadet.

This genuine OEM replacement part idler pulley plays an important part on many lawn tractors, mowers, and snowblowers. It drives the engine's belt system, particularly the belts connected to the crankshaft. It helps to create motion throughout the engine, including in the steering pump, air compressor, and the alternator. Therefore, without this pulley, the engine will not function properly. As with any part of an engine, an idler pulley will begin to wear down over time. When this happens, an idler pulley will begin slipping, causing the belts to no long run smoothly. If an idler pulley breaks completely, the engine will not start. Before replacing an idler pulley, be sure to let the engine cool completely, as you will have to remove several parts with a screwdriver and socket wrench set. This idler pulley will work with Troy-Bilt, Yard Machines, MTD, Cub Cadet, and Yard Man appliances. It is a high-quality replacement part sourced directly from the original manufacturer. This part ships individually.

This tubeless air valve attaches to wheels, allowing air into and out of the tires on various lawn equipment. Regularly replacing this part is considered a part of routine maintenance. Make sure that you use appropriate pliers and other tools for easy installation. Be sure to use gloves when replacing these valves and work with caution so as not to damage the sensitive parts. This OEM tubeless air valve can be the perfect fit for compatible wheels on equipment such as lawn mowers, snowblowers, tillers, edgers, log splitters, and wood chippers. It is designed for use with select models from MTD, including Craftsman, Troy-Bilt, Bolens, Remington, Yardman, RYOBI, Husky, Power Pro, and many others. There is a limited parts warranty on this valve, which is made of durable rubber and metal and designed to offer a high-quality replacement. Sold individually.

This is a genuine replacement self-tapping hex screw with a blunt nose designed for lawn mowers and lawn tractors. It is used in a variety of locations for the engine assembly of lawn mowers. The self-tapping feature allows the metal screw threads to tightly secure to other metal. The blunt nose requires the use of a pre-drilled pilot hole smaller than the diameter of the screw. These screws do not interchange well. Be sure to check the owner's manual to ensure the correct part number. The hex head needs a socket wrench for the easiest removal and replacement. When removing this type of screw, stripped threads can occur. If this happens, use a screw of the same type in a slightly larger size to accommodate for the damage. Typically, this type of screw would need to be replaced when removed to access another part of the lawn mower for replacement, such as the carburetor. This an OEM part sourced directly from the manufacturer and is sold individually. This screw fits products by Bolens, Brute, Columbia, County Line, Craftsman, Cub Cadet, Huskee, Huskee Supreme, MTD Black, MTD Gold, Mastercut, Murray, Troy Bilt, Yard Man, & Yard Machines.

This replacement part is a headlight harness. This is a genuine replacement part made by MTD. This particular harness is made up of different wires and is responsible for connecting certain parts together so that the headlights are able to turn on and off according to the user's preferences. A new headlight harness might be needed if the current harness is unable to stay attached or is damaged in any way. After years of normal wear and tear the wires in the harness might have become stripped and should be replaced if this is the case. If the headlight is not turning on when the switch is working, it might be a faulty harness. Be sure the engine is completely powered down before attempting to repair this specific part.This headlight harness is sold individually and is sourced directly from the manufacturer to ensure proper fit. This part is a genuine OEM replacement part.
