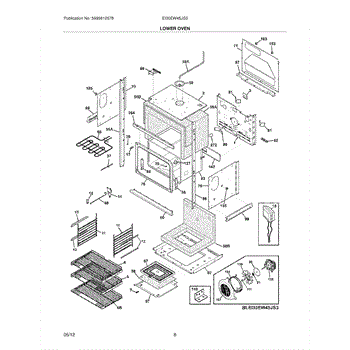

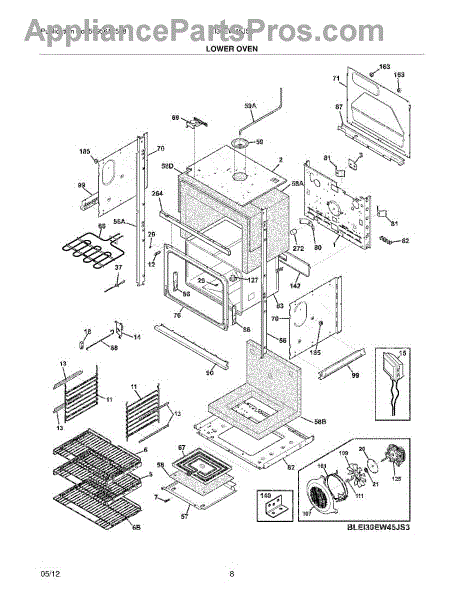

Parts for Electrolux EI30EW45JS3: 07 - Lower Oven Parts

This replacement switch restores reliable control of a selected function by opening or closing an electrical circuit inside your appliance. When the original switch wears out, buttons may stop responding or features may not activate consistently.

• Opens/closes an electrical circuit when the button/actuator is engaged
• Routes power or sends a signal to the control or component
• Common symptoms: no response when pressed, intermittent operation, or function won't start
• May show signs of heat damage, loose terminals, or inconsistent "click" feel

• Disconnect power at the breaker before servicing
• Photograph or label wire positions to ensure correct transfer to the new switch
• Move wires one at a time; fully seat connectors on the correct terminals
• Reassemble, restore power, and test the function activated by the switch

This small replacement spacer positions and secures appliance components to maintain correct alignment and fit. Installing the spacer restores proper panel spacing and reduces vibration where a worn or missing spacer causes looseness or rubbing. What it does:

• Maintains the correct gap between panels, trim, or assemblies to ensure parts fit flush
• Keeps components aligned to prevent rubbing, binding, or uneven wear
• Helps reduce vibration and rattling caused by a missing or damaged spacer
• Preserves original part spacing for reliable operation of the surrounding components

• Disconnect power to the appliance before any service to avoid shock or injury
• Remove any trim or fasteners that block access; keep track of screws and small parts
• Match the new spacer's orientation to the original; do not force parts into place

The Temperature Sensor is an OEM part for Frigidaire ovens. It monitors and helps regulate the oven's internal temperature, ensuring consistent cooking results by accurately detecting temperature changes. This sensor is crucial for the oven's control system to maintain the desired cooking temperature.

Symptoms of a bad Temperature Sensor include:

• Inaccurate oven temperature readings,
• Oven not heating to the set temperature,
• Oven overheating,
• Frequent temperature fluctuations during use.

Causes of a sensor failure can include prolonged exposure to high temperatures, electrical surges, or a breakdown of the sensor's components due to normal wear and tear.

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

The Terminal Block Kit is an OEM part for Frigidaire appliances, typically used for connecting house power to various electrical appliances like ranges and dryers. This kit includes includes screws, nuts, and a unique terminal block. It plays a critical role in the power supply system by providing a reliable connection point for the appliance's main power cord, preventing loose connections and potential electrical hazards.

Symptoms of a bad Terminal Block Kit include:

• Signs of burning or melting at the connection points,
• Flickering power or intermittent operation of the appliance,
• A burning smell from the appliance area.

Causes of terminal block failure often involve loose connections that can lead to arcing and overheating, improper installation, or general wear and tear that degrades the integrity of the electrical contacts.

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

The Bake Element is an OEM component for Frigidaire wall ovens. It is an integrated heating coil that generates heat through electric resistance when powered. Located near the bottom of the oven cavity, the bake element facilitates heating for various cooking functions like baking, roasting, or warming. This element measures approximately 13 x 11 inches.

Symptoms of a bad bake element include:

• Oven failing to reach or maintain desired cooking temperatures
• Bake cycles taking excessively long periods of time
• Hot or cold spots developing inside oven cavities
• Error codes appearing related to upper heating issues

Causes can be cracks in ceramic sheathing allowing arcing, or mineral deposits coating coils over extended use impeding heat transfer.

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

This access panel cover secures and protects internal components behind an appliance opening, keeping parts safe from dust and preventing accidental contact. It restores the appliance's finished appearance and helps maintain proper airflow around covered areas. What it does:

• Shields wiring and components from dirt, dust and accidental contact
• Helps prevent small items from entering service areas
• Restores a clean, finished look to the appliance exterior or interior
• Supports safe airflow patterns when installed as intended

• One replacement cover

• Disconnect power before servicing; follow all safety guidelines for your appliance
• Typically secures with screws or clips—retain original fasteners or use OEM replacements
• Align cover to mounting points and fasten evenly to avoid gaps or stress

This replacement fan blade mounts to the appliance's fan motor to move air as designed. Installing a new blade restores proper airflow and helps reduce vibration or noise caused by bent, cracked, or worn fins. What it does

• Attaches to the fan motor shaft to move air through the cavity or across internal components
• Supports even air circulation or cooling performance, depending on model
• Helps resolve issues such as loud scraping/whirring, vibration/wobble, weak airflow, or visible blade damage

• One fan blade

• Disconnect power at the breaker and allow the appliance to cool completely before servicing
• Access the fan assembly from the rear panel or inside the oven behind the fan cover (varies by model); wear gloves—edges can be sharp
• Note blade orientation/rotation and securely reinstall using the original fastener(s)
• Hand-spin the blade to ensure clearance and free movement before reassembly and testing

This is a nut that is used in many microwave ovens. It is typically used to hold interior fan in place. A nut is a fastener that is used to hold two items together or keep one component secure against a surface. Use and time can cause the nut to become stripped, damaged, or broken. If the nut is broken, it will no longer hold the fan in the right location. The nut will need to be replaced.Before replacing this part, the microwave should be unplugged. Open the refrigerator door and remove the cover that goes over the fan. The nut can then be removed using a nut driver. Replace the other parts before using the appliance.This nut is used in microwave ovens manufactured by Crosley, Electrolux, Frigidaire, and Kenmore. It is sold as a single part. This is an authentic OEM replacement part is sourced directly from the manufacturer.

NOTE: The factory has removed the catalyst (honeycomb) from this tube adapter. The catalyst is no longer available.

This oven heating element replaces a failed bake element to restore even, reliable oven heat for baking and roasting. It's a direct-replacement style part that heats the oven cavity when the bake function is used. What it does

• Heats the oven cavity during bake cycles so food cooks evenly
• Commonly used when the oven won't reach or hold baking temperatures
• Can fail visibly (broken or burned) or electrically (open circuit)
• Works with the oven's temperature control to maintain set temperature

• Disconnect power at the breaker before starting any repair to avoid shock.
• Handle the element carefully; connectors and terminals can be fragile.
• Confirm wire terminal fit and secure mounting; replace only with the correct OEM-style element.

This spacer positions and supports components to maintain proper alignment and clearance in the appliance. It prevents rubbing and ensures panels or parts sit correctly for reliable operation. What it does:

• Keeps panels, brackets or assemblies spaced correctly to prevent contact and wear
• Restores proper alignment to reduce vibration, noise or rubbing symptoms
• Maintains clearance for airflow or moving parts where specified
• Provides a stable mounting point for adjacent components

• One spacer

• Install in the location shown in the service diagram and secure with the original fasteners
• Disconnect power to the appliance before beginning service to avoid shock or injury
• If the original spacer shows damage or distortion, replace it to restore correct fit

Specs: 8 x 0.750

This hex flange nut secures components where a broader bearing surface is needed to resist loosening and distribute load. It fits 10-32 threaded studs and is used on fastened assemblies in appliances. What it does:

• Provides a secure threaded connection for 10-32 screws and studs
• Flange spreads clamping force to reduce panel or bracket damage
• Hex shape allows tightening with a wrench for a reliable hold
• Commonly replaces worn or missing nuts that cause loose panels or rattling

• One hex flange nut

• Use the correct 10-32 screw or stud and hand-start threads to avoid cross-threading
• Tighten with an appropriately sized wrench; do not overtighten to prevent thread or part damage
• Disconnect power and follow appliance safety instructions before servicing
• Replace only like-for-like; confirm size and thread match your application

This oven rack lubricant helps reduce binding and friction so oven racks slide smoothly for easier loading and repositioning. It's formulated for use on oven rack glides and rollers to restore consistent movement and reduce noise. What it does:

• Lubricates rack slides and rollers to improve rack movement and prevent sticking
• Helps quiet squeaks or grinding when moving oven racks
• Protects metal contact points from wear caused by friction
• Restores smooth operation after heavy use or buildup interferes with sliding

• Allow the oven to cool completely before applying lubricant
• Use a small amount on the glide surfaces or rollers only; avoid contact with oven racks' cooking surfaces or cookware
• Follow OEM instructions if available and test movement before heating the oven
• Wear disposable gloves and clean any excess from visible surfaces

This is a #8 screw, 0.500 inch long, used to secure panels and components in appliances. It provides a correct-fit fastener for repairs where the original #8 x 1/2" screw was required, restoring proper assembly and stability. What it does:

• Fastens trim, panels, brackets and small components where a #8 x 1/2" screw is specified
• Holds parts securely to prevent rattling, gaps or loose panels
• Replaces worn, stripped or missing screws to restore proper fit
• Appropriate for common interior and exterior appliance mounting points

• Use the correct screwdriver (typically Phillips) and avoid over-tightening to prevent strip or damage
• Disconnect power and follow appliance manufacturer safety instructions when accessing internal parts

This is a replacement screw used to secure appliance panels and components. It restores proper fastening so panels, trim, or assemblies stay tight and reduce vibration or rattling. What it does

• Fastens panels, brackets, or trim to the appliance chassis
• Helps stop loose or vibrating panels and trim pieces
• Restores proper alignment where a missing or stripped screw causes gaps or movement
• Use when the original screw is missing, damaged, or corroded

• One replacement screw as shown

• Disconnect power to the appliance before starting any repair
• Use the correct screwdriver or bit to avoid stripping the screw head
• Tighten until snug; avoid over-torquing which can strip threads or crack plastic
• Keep removed screws in a safe place; this screw matches the original before installation

This is a replacement screw used to secure appliance panels and components. It restores proper fastening so panels, trim, or assemblies stay tight and reduce vibration or rattling. What it does

• Fastens panels, brackets, or trim to the appliance chassis
• Helps stop loose or vibrating panels and trim pieces
• Restores proper alignment where a missing or stripped screw causes gaps or movement
• Use when the original screw is missing, damaged, or corroded

• One replacement screw as shown

• Disconnect power to the appliance before starting any repair
• Use the correct screwdriver or bit to avoid stripping the screw head
• Tighten until snug; avoid over-torquing which can strip threads or crack plastic
• Keep removed screws in a safe place; this screw matches the original before installation

This harness assembly is the appliance wiring connector bundle that carries power and signals between controls and components, restoring proper electrical connections for normal operation. What it does:

• Routes power and control signals between the control board and key components
• Replaces damaged, burned, or loose wiring that can cause intermittent operation
• Helps resolve symptoms like unresponsive controls, failure to start, or component loss of power
• Restores factory wiring layout and connector fit for reliable connections

• Disconnect power before starting; confirm power is off at the breaker
• Compare connectors and wire colors to the old harness before removal
• Route and secure harness to avoid heat or pinch points; use existing clips/mounts

This appliance screw fastens panels, brackets, and other components inside the unit. Replace a missing, rusty, or stripped fastener to restore a secure fit and help prevent rattles, misalignment, or premature wear.

• Secures appliance components such as panels, brackets, and covers
• Restores proper fit when an original screw is missing or stripped
• Helps reduce vibration and noise from loose parts
• Common signs: loose or misaligned parts, rattling, or a missing screw

• Disconnect power before servicing
• Match the new screw to the original for size and thread before installing
• Hand-start threads to avoid cross-threading; do not overtighten
• Reuse any original washers or clips if they were used with the old screw

This oven light bulb illuminates the interior of your range or wall oven. Replace a burned-out bulb to restore clear visibility while cooking, checking doneness through the window, and cleaning.

• Provides interior illumination when the oven light is activated
• Common fix for no oven light, dim or flickering light, or a failed bulb
• Helps you monitor food without opening the door

• Disconnect power at the breaker or unplug the appliance before servicing
• Allow the oven to cool completely to avoid burns
• Remove the lens/cover if present; replace the bulb per your model's socket; do not overtighten
• Restore power and test; if the light still doesn't work, inspect the socket and switch

This truss-head machine screw secures a switch to its mounting bracket or panel. Replacing a worn or missing screw restores a solid, aligned switch fit for reliable operation.

• Fastens the switch body to a bracket or chassis panel
• Helps keep the switch aligned for consistent actuation
• Replaces stripped, corroded, or missing mounting hardware
• Common symptoms: loose or wobbly switch, misalignment, rattling or vibration around the switch area

• Disconnect power to the appliance before servicing
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Verify thread size and length match the original hardware
• If multiple screws secure the switch, replace them in a consistent pattern to maintain alignment
