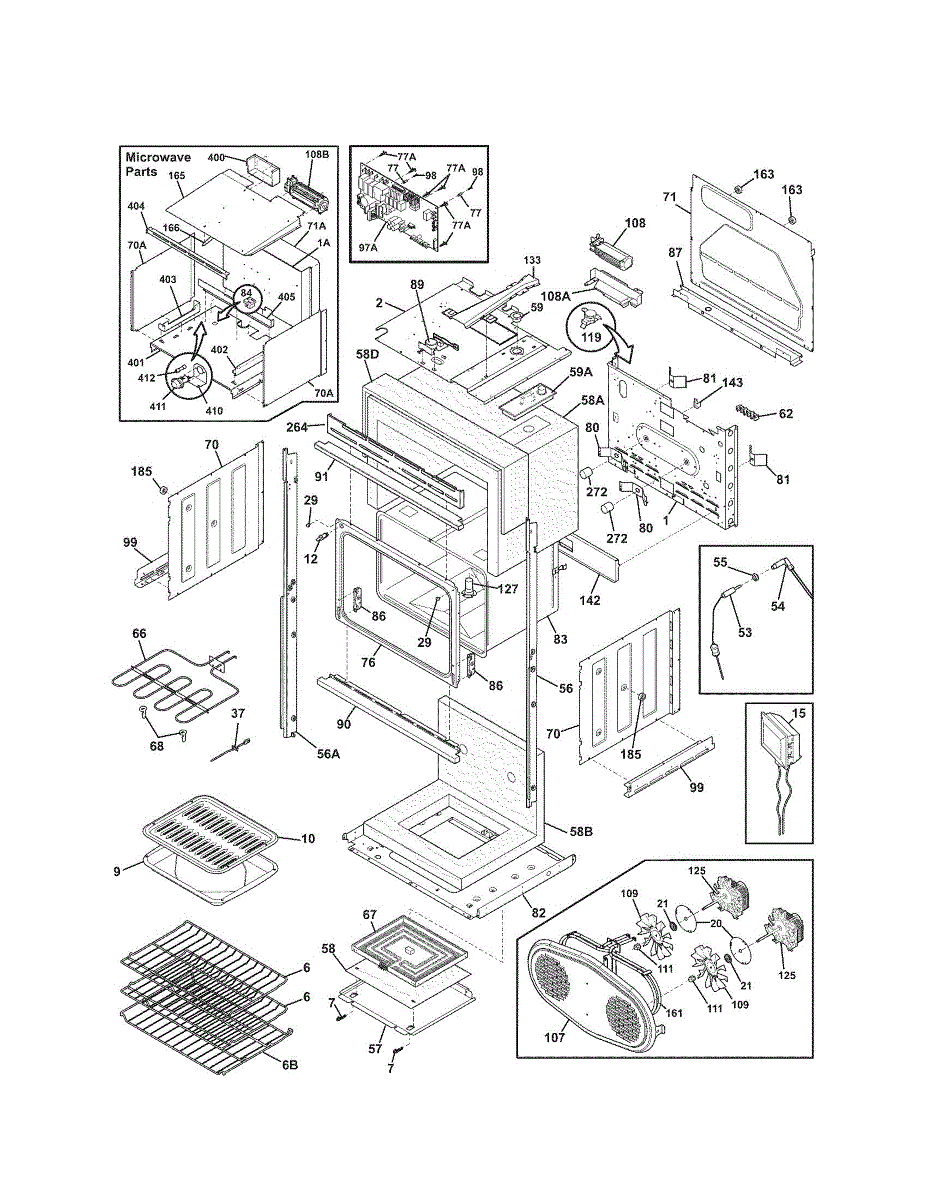

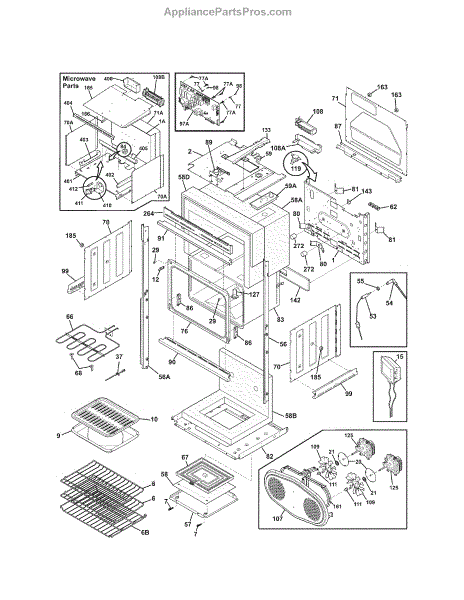

Parts for Kenmore 790.48902001 (79048902001, 790 48902001): Lower Oven Parts

Replace your oven's heat shield if it's cracked, warped, or missing. This metal guard installs inside the cavity to protect internal components from heat damage.

The Rack is an OEM part for Frigidaire ovens. This rack provides a sturdy and reliable surface for baking and broiling. It's engineered to withstand high temperatures and support heavy dishes, ensuring your culinary creations are cooked evenly and efficiently.

Over time, oven racks can become warped or damaged due to the high heat they're exposed to or from supporting heavy cookware. This can lead to uneven cooking or difficulty sliding the rack in and out of the oven.

Symptoms of a bad rack include:

• Difficulty sliding the rack in and out of the oven
• Uneven cooking or baking results
• Visible warping or damage
• Difficulty fitting the rack properly inside the oven

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

The Broiler Pan Assembly is an OEM part for Frigidaire ranges and ovens. This part includes both the broiler pan and the grill rack, designed to catch drippings and promote even cooking when broiling foods.  This assembly includes pan and insert.

Causes of a bad broiler pan assembly can include wear and tear from regular use, warping or rusting due to high temperatures, or damage from improper cleaning methods.

Symptoms of a bad Broiler Pan Assembly include:

• Visible warping or rust on the pan or rack
• Difficulty in cleaning due to persistent stains or damage
• Uneven cooking results when broiling
• The pan or rack no longer fitting securely in the oven

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

The Broiler Pan Assembly is an OEM part for Frigidaire ranges and ovens. This part includes both the broiler pan and the grill rack, designed to catch drippings and promote even cooking when broiling foods.  This assembly includes pan and insert.

Causes of a bad broiler pan assembly can include wear and tear from regular use, warping or rusting due to high temperatures, or damage from improper cleaning methods.

Symptoms of a bad Broiler Pan Assembly include:

• Visible warping or rust on the pan or rack
• Difficulty in cleaning due to persistent stains or damage
• Uneven cooking results when broiling
• The pan or rack no longer fitting securely in the oven

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

This is a door-activated switch that detects whether the oven door is open or closed. It controls functions such as the oven light or signals the control board about door position. Replace this switch if the oven light stays on or off regardless of door position, or if the oven does not operate correctly due to a faulty door signal.

This is a door-activated switch that detects whether the oven door is open or closed. It controls functions such as the oven light or signals the control board about door position. Replace this switch if the oven light stays on or off regardless of door position, or if the oven does not operate correctly due to a faulty door signal.

This is a halogen light assembly that illuminates the interior of the oven cavity so you can monitor food while cooking. It includes the bulb, socket, and lens cover that mount inside the oven compartment. Replace this assembly if the oven interior light does not turn on, the lens is cracked or discolored from heat damage, or the socket no longer holds the bulb securely.

This is a halogen light assembly that illuminates the interior of the oven cavity so you can monitor food while cooking. It includes the bulb, socket, and lens cover that mount inside the oven compartment. Replace this assembly if the oven interior light does not turn on, the lens is cracked or discolored from heat damage, or the socket no longer holds the bulb securely.

Replace your range oven door seal to maintain heat efficiency and prevent energy loss. Essential when you notice gaps, cracks, or heat escaping. Verify fit.

Replace a cracked, broken, or missing oven door spacer that maintains proper alignment and gap between door components. Installs in door assembly.

Oven won't reach or hold set temperature? A faulty temperature sensor causes inaccurate heating. This monitor probe ensures consistent cooking results.

Oven displaying probe error or reading temperature when unplugged? This meat probe monitors internal food temperature. Easy DIY replacement part.

Secures burner or oven control to the control panel behind the knob. Replace if stripped, missing, or loose to keep control shaft stable and aligned.

The Terminal Block Kit is an OEM part for Frigidaire appliances, typically used for connecting house power to various electrical appliances like ranges and dryers. This kit includes includes screws, nuts, and a unique terminal block. It plays a critical role in the power supply system by providing a reliable connection point for the appliance's main power cord, preventing loose connections and potential electrical hazards.

Symptoms of a bad Terminal Block Kit include:

• Signs of burning or melting at the connection points,
• Flickering power or intermittent operation of the appliance,
• A burning smell from the appliance area.

Causes of terminal block failure often involve loose connections that can lead to arcing and overheating, improper installation, or general wear and tear that degrades the integrity of the electrical contacts.

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

This is a broil element designed for use in an electric range or oven. It mounts in the upper portion of the oven cavity and provides high, direct heat for broiling foods. Replace this element if your oven no longer broils properly, heats unevenly from the top, or if the element shows visible damage such as cracks, blistering, or burn-through spots.

The Bake Element is an OEM component for Frigidaire wall ovens. It is an integrated heating coil that generates heat through electric resistance when powered. Located near the bottom of the oven cavity, the bake element facilitates heating for various cooking functions like baking, roasting, or warming. This element measures approximately 13 x 11 inches.

Symptoms of a bad bake element include:

• Oven failing to reach or maintain desired cooking temperatures
• Bake cycles taking excessively long periods of time
• Hot or cold spots developing inside oven cavities
• Error codes appearing related to upper heating issues

Causes can be cracks in ceramic sheathing allowing arcing, or mineral deposits coating coils over extended use impeding heat transfer.

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

Secures cooktop surface elements to your range for stable contact and even heating. Replace if bent or worn to restore proper element positioning.

Replace your oven's front panel frame if cracked, dented, or damaged. This structural component installs at the exterior of your range to restore appearance.

Spacer for ranges and ovens. Maintains proper spacing between components. Replace if worn, cracked, or missing to ensure correct alignment and fit.

Mounting plate that secures the oven to the cabinet or wall. Replace this metal support plate if it's bent, rusted, or missing to ensure proper installation.

Fixes no power or intermittent operation caused by loose electrical connections. This internal power receptacle restores secure contact in your oven or microwave.

Receptacle for electric and gas ranges and wall ovens. Installs as a connector component. Replace if cracked, damaged, or missing to restore proper fit.

Wall oven not responding to controls or displaying errors? This control board manages all cooking programs and electronic functions. Direct fit part.

Replacement mounting bracket that secures internal oven components. Install when original is cracked, bent, or missing to restore proper alignment and support.

Fix a range cooling fan that won't shut off or makes howling noises with this motor. Requires removing oven from cabinet and back panel access.

Loud grinding or rattling from your oven? A damaged convection fan blade disrupts airflow. This replacement restores quiet operation in 20-30 minutes.

This is a nut that is used in many microwave ovens. It is typically used to hold interior fan in place. A nut is a fastener that is used to hold two items together or keep one component secure against a surface. Use and time can cause the nut to become stripped, damaged, or broken. If the nut is broken, it will no longer hold the fan in the right location. The nut will need to be replaced.Before replacing this part, the microwave should be unplugged. Open the refrigerator door and remove the cover that goes over the fan. The nut can then be removed using a nut driver. Replace the other parts before using the appliance.This nut is used in microwave ovens manufactured by Crosley, Electrolux, Frigidaire, and Kenmore. It is sold as a single part. This is an authentic OEM replacement part is sourced directly from the manufacturer.

Oven won't heat or shuts off during use? A blown thermal fuse cuts power to prevent overheating. Simple diagnosis with a multimeter, quick replacement.

Fix noisy convection fan operation with this motor replacement. Restores quiet, even heating in your oven. Moderate DIY repair in 30-60 minutes.

Adapter assembly for oven vent system. Installs in back wall to align vent components. Replace if cracked, broken, or missing to restore proper fit.

Reinforces and supports oven door glass panels. Replace if original stiffener is bent, cracked, or missing to properly secure glass in the door frame.

This deflector directs cold air inside the refrigerator to help maintain even temperature and proper airflow in affected compartments. It replaces a damaged or missing airflow guide to restore consistent cooling performance. What it does

• Guides and directs internal airflow to reduce hot or cold spots
• Helps prevent localized frost or moisture buildup by ensuring proper circulation
• Restores designed cooling patterns after the original deflector is cracked, warped, or missing
• Works with existing vents and ducting to maintain appliance efficiency

• Disconnect power to the appliance before starting any repair
• Replaceable with basic hand tools; some models may require removing shelves or interior panels
• Handle carefully to avoid cracking plastic; align tabs/slots before snapping into place

Positions and supports range components to maintain proper alignment. Replace if cracked, broken, or missing to prevent rubbing and ensure panels fit correctly.

Trim piece for wall ovens that provides a finished appearance around the unit edges. Replace if cracked, chipped, discolored, or missing for a clean look.

Microwave won't turn on or has no power? This fuse and holder assembly restores overcurrent protection when a blown fuse interrupts operation.

Microwave won't turn on or has no power? This fuse and holder assembly restores overcurrent protection when a blown fuse interrupts operation.

Replacement mounting screw for ovens and ranges. Secures panels, brackets, and components. Order a new screw if yours is stripped, missing, or damaged.

This wiring harness connects the range/oven control board to key components, restoring reliable power and signal paths for safe operation. It's a direct-fit replacement that helps resolve intermittent power or control failures. What it does:

• Provides the factory routing and connector interface between the control board and oven components
• Restores secure electrical connections to prevent intermittent faults or loss of function
• Commonly used when wiring is damaged, burnt, or connectors are loose or corroded
• Helps stop control panel errors or sporadic operation caused by poor wiring connections

• High-level replacement only; disconnect power at the breaker before servicing
• Verify connectors match the original harness and attach firmly to avoid loose connections
• Inspect nearby wiring and mounting clips for damage while replacing the harness

Replace a damaged or frayed wire harness in your wall oven. This internal wiring component connects electrical systems and may need replacement if worn or broken.

Mounting screw for electric range, oven, or wall oven assembly. Secures internal components and panels. Replace if stripped, missing, or damaged.

Hex flange nut with 10-32 thread secures components in appliances. Replace if stripped, missing, or damaged. Flange provides broader bearing surface.

Wiring harness for wall ovens. Connects electrical components inside the oven cavity. Replace if wires are frayed, burned, or connections are loose.

This is a small lock washer used in range and oven assemblies to secure fasteners and prevent them from loosening due to heat and vibration. It is commonly used in mounting hardware for controls or other internal components. Replace this washer if it is deformed, cracked, or no longer holds the associated bolt or screw tightly in place.

Replacement #8 x 0.500 inch screw for securing panels, trim, and brackets in appliances. Needed when original fasteners are stripped, lost, or missing.

Specs: 8 - 18 x 0.500

This is a replacement screw used to secure appliance panels and components. It restores proper fastening so panels, trim, or assemblies stay tight and reduce vibration or rattling. What it does

• Fastens panels, brackets, or trim to the appliance chassis
• Helps stop loose or vibrating panels and trim pieces
• Restores proper alignment where a missing or stripped screw causes gaps or movement
• Use when the original screw is missing, damaged, or corroded

• One replacement screw as shown

• Disconnect power to the appliance before starting any repair
• Use the correct screwdriver or bit to avoid stripping the screw head
• Tighten until snug; avoid over-torquing which can strip threads or crack plastic
• Keep removed screws in a safe place; this screw matches the original before installation

This is a replacement screw used to secure appliance panels and components. It restores proper fastening so panels, trim, or assemblies stay tight and reduce vibration or rattling. What it does

• Fastens panels, brackets, or trim to the appliance chassis
• Helps stop loose or vibrating panels and trim pieces
• Restores proper alignment where a missing or stripped screw causes gaps or movement
• Use when the original screw is missing, damaged, or corroded

• One replacement screw as shown

• Disconnect power to the appliance before starting any repair
• Use the correct screwdriver or bit to avoid stripping the screw head
• Tighten until snug; avoid over-torquing which can strip threads or crack plastic
• Keep removed screws in a safe place; this screw matches the original before installation

This harness assembly is the appliance wiring connector bundle that carries power and signals between controls and components, restoring proper electrical connections for normal operation. What it does:

• Routes power and control signals between the control board and key components
• Replaces damaged, burned, or loose wiring that can cause intermittent operation
• Helps resolve symptoms like unresponsive controls, failure to start, or component loss of power
• Restores factory wiring layout and connector fit for reliable connections

• Disconnect power before starting; confirm power is off at the breaker
• Compare connectors and wire colors to the old harness before removal
• Route and secure harness to avoid heat or pinch points; use existing clips/mounts

Fastens panels, brackets, and covers inside your range or oven. Replace this screw if missing, stripped, or rusted to secure components properly.

Spacer that maintains proper gap between components in your range or oven assembly. Replace if missing, worn, or damaged to restore correct fit and alignment.

Replacement screw that secures brackets, shelves, trim, panels, and covers inside your appliance. Install when the original is missing, stripped, or corroded.

Illuminates your oven interior for visibility while cooking and cleaning. Replace when burned out to restore lighting. Verify fit with your model number.

This replacement screw secures appliance panels, brackets, and internal components. It restores a tight, rattle-free fit and proper alignment when an original fastener is missing, stripped, or corroded.

• Fastens metal or plastic parts to the cabinet/frame
• Helps maintain alignment and reduce vibration or rattling
• Direct replacement for lost, damaged, or rusted hardware
• Keeps covers and brackets safely in place

• Disconnect power before servicing; for gas appliances, also shut off gas supply
• Match one-for-one with the original screw; verify length/type before installation
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Use the correct driver bit to prevent stripping the screw head
