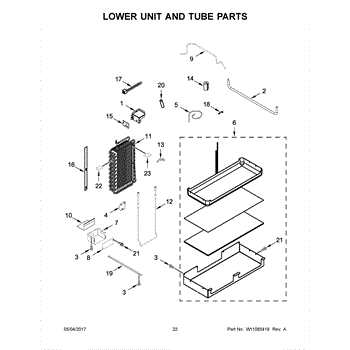

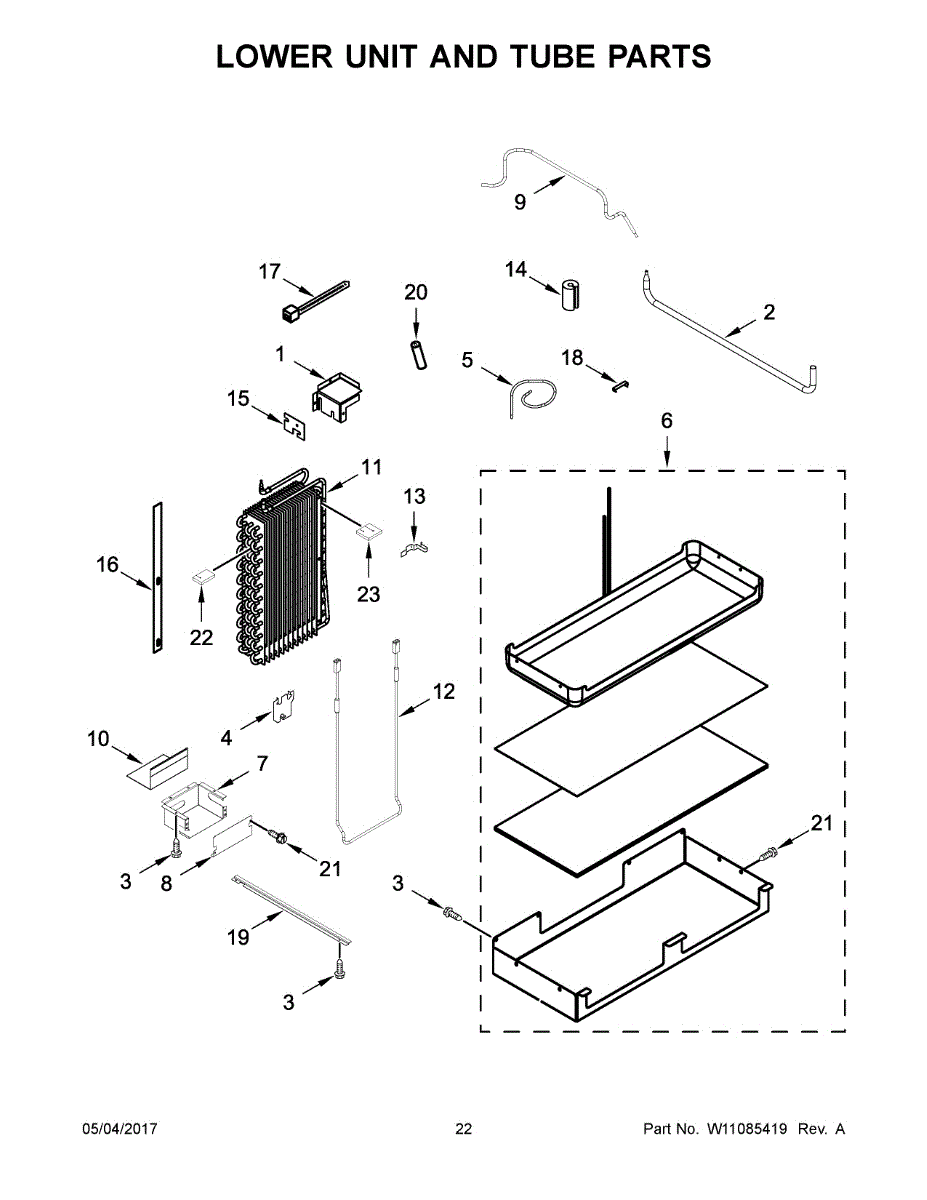

Parts for Kitchenaid KBSN602EBS01: 12 - Lower Unit And Tube Parts

The Refrigerator Water Filter is an OEM part for Whirlpool refrigerators. It delivers clean, filtered drinking water and ice by effectively reducing contaminants, including chlorine taste and odor, particulates, and various other harmful substances that may be present in the water supply.

Causes of a bad Refrigerator Water Filter can include regular wear and tear over time leading to reduced efficacy in filtering out contaminants, as well as accumulation of contaminants and sediment.

Symptoms of a bad Refrigerator Water Filter include:

• Noticeable decrease in water flow rate.
• Unpleasant taste or odor in the water or ice.
• Discoloration of water or ice.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This screw is used to secure the handle end cap to the center of the door. The screw size measures 8-18 x 1/2 inches.

This heater pan is the stamped metal mounting tray that supports the dryer's heating element and helps route airflow for proper drying. It replaces a damaged or corroded pan to restore correct heater placement and airflow. What it does:

• Provides a stable mounting surface for the dryer heating element assembly
• Helps direct heated air through the dryer cabinet for efficient drying
• Prevents the heating element from contacting other components
• Can reduce rubbing or vibration noises caused by a warped or broken pan
• Common symptom link: dryer not heating properly, unusual noises, or visible damage/corrosion to the pan

• One heater pan

• Disconnect power to the appliance before servicing to avoid shock or injury
• Some panels or components must be removed to access the heater pan; keep track of fasteners
• Handle sheet metal carefully—edges may be sharp

This heater clamp secures a heating element in the correct position within the appliance. Proper support keeps the element stable so it operates quietly and melts frost as designed for consistent, reliable performance.

• Holds the heater firmly in place to maintain correct alignment
• Reduces movement and vibration that can cause noise or wear
• Helps promote even frost melt during defrost for steady cooling
• Symptoms of a damaged or missing clamp can include recurring frost/ice buildup, a heater out of position, or rattling from the freezer area

• Disconnect power before servicing; wear cut-resistant gloves
• Access the heater/evaporator by removing the freezer panel as applicable
• Note the original clamp orientation and routing before removal
• Use needle-nose pliers to install; avoid damaging evaporator fins and do not deform the heater—position it exactly as originally placed

This is a replacement door seal that forms a secure, flexible barrier around the appliance door to help prevent leaks and maintain proper temperature and operation. It restores the seal between the door and cabinet for reliable performance. What it does:

• Creates a watertight/airtight barrier at the door to prevent leaks and spills
• Helps maintain correct internal temperature or pressure during operation
• Reduces vibration and rattling by cushioning the door edge
• Worn or damaged seals can cause visible leaks, poor cycle performance, or unusual noises

• One replacement door seal

• For safety, disconnect power and water before starting
• Inspect mounting channel and door edge for debris or damage; clean before installing
• Seat the seal evenly around the full door per OEM alignment and trim instructions if required

This bracket provides a secure mounting point for internal appliance components, restoring proper alignment and reducing vibration for smooth operation. Use it to replace a worn, bent or missing support bracket. What it does:

• Secures panels, assemblies or components to the appliance frame to prevent movement
• Restores proper alignment and fit where a bracket has failed or been removed
• Helps eliminate rattling, vibration or misaligned parts caused by a damaged bracket
• Simple, passive component—no electrical function

• Bracket

• Disconnect power (and water, if applicable) before starting any repair
• Inspect mounting holes and mating surfaces for damage before installing
• Reuse or replace original fasteners as appropriate; tighten securely but avoid over-torquing

This damper heater is the heater element used with the refrigerator air-damper assembly to help prevent frost and condensation buildup around the damper. Replaces a failed heater to restore proper damper operation and airflow. What it does:

• Warms the damper area to reduce ice and condensation that can block the damper
• Helps ensure the fresh-food and freezer compartments share airflow as intended
• Commonly replaced when frost or ice accumulates near the damper or when the damper fails to open/close smoothly
• Works as part of the damper/air control system; does not include the full damper housing or actuators unless specified

• Disconnect power to the appliance before replacing this part to avoid shock or injury
• Access may require removing interior panels or the damper housing; follow OEM instructions for your model
• Inspect the damper housing and actuator for damage or ice buildup when replacing the heater

Size: 1/4 inch hex head, 10-12 x 1/2 inch.
