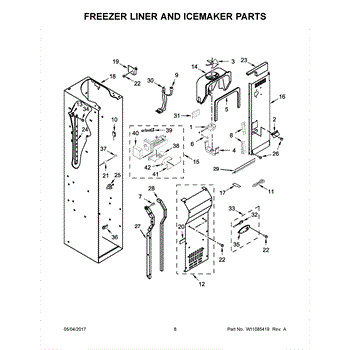

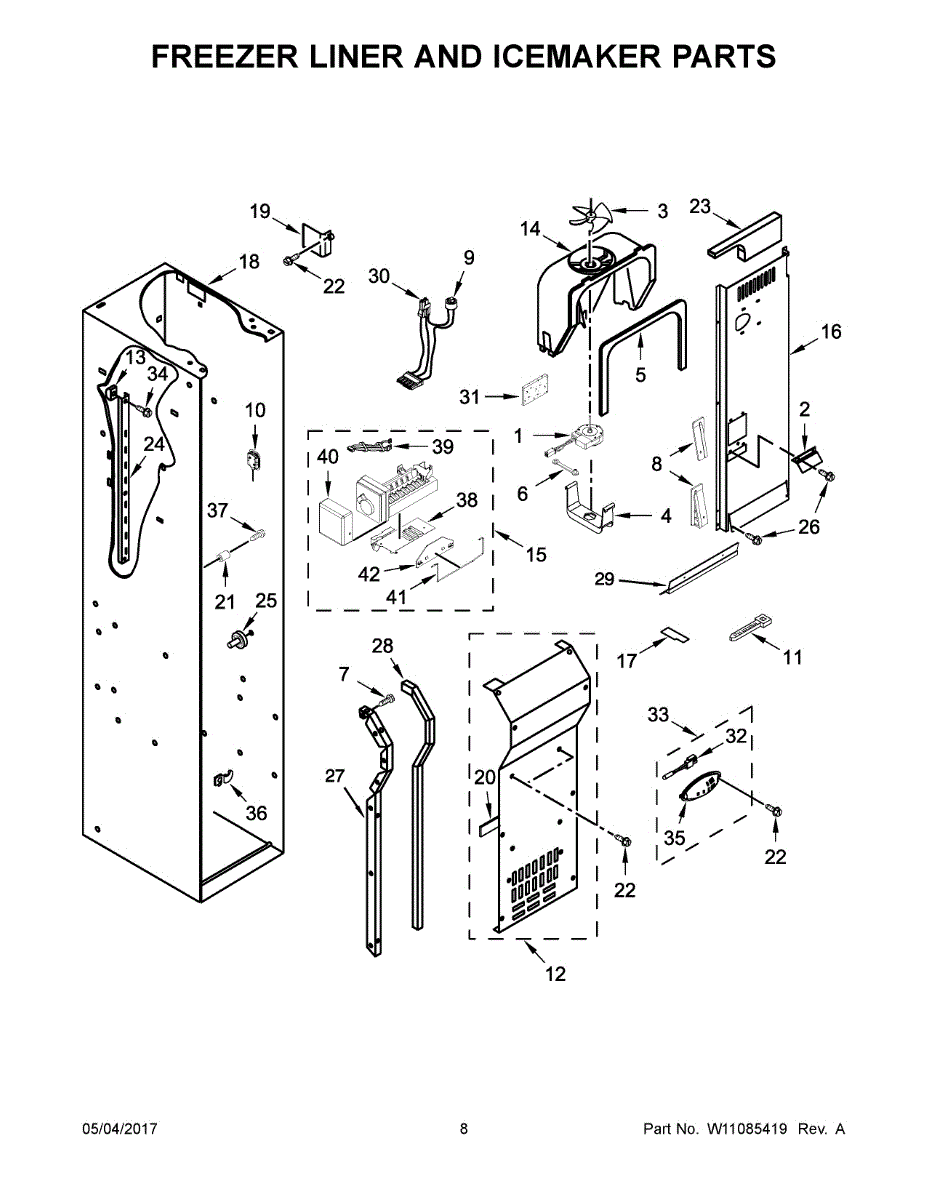

Parts for Kitchenaid KBSN602EBS01: 05 - Freezer Liner And Icemaker Parts

Reduces chlorine, contaminants, and odors from your refrigerator's water and ice. Replace every 6 months for optimal performance. Confirm fit by model.

Loud noise or freezer warming up? This evaporator fan blade circulates cold air over coils. Simple DIY fix—most repairs done in under an hour.

Secures the fan motor to its housing in your refrigerator. Replace this mounting clip if it's cracked, broken, or missing to restore proper alignment.

Replace your refrigerator door gasket to restore proper sealing and energy efficiency. Prevents warm air leaks and frost buildup. Verify fit with model.

This screw is used to secure the handle end cap to the center of the door. The screw size measures 8-18 x 1/2 inches.

Air duct wedge for side-by-side refrigerators. Secures and positions air duct assembly in place. Replace if cracked, broken, or missing.

Fix frost buildup and warm fridge temps. This defrost thermostat monitors evaporator temperature to prevent overheating during defrost cycles.

This is a metal mounting bracket that secures the evaporator fan motor in place inside the freezer compartment. It ensures the fan motor is properly positioned to circulate cold air throughout the refrigerator and freezer sections. Replace this bracket if the fan motor is loose, vibrating excessively, or if the original bracket is cracked or bent.

Left hand side

Foam air baffle block that installs between the evaporator fan housing and side wall. Replace if cracked, broken, or missing to restore airflow.

Air outlet cover for side-by-side refrigerators. Installs over internal air vent to direct cold air. Replace if cracked, broken, or missing.

Replacement ice door spacer for side-by-side refrigerators. This plastic spacer maintains proper alignment of the ice dispenser door assembly.

This screw is used to secure the handle end cap to the center of the door. The screw size measures 8-18 x 1/2 inches.

Replacement support stud that holds refrigerator shelves securely in place. Needed when original peg is broken, cracked, or missing from shelf wall.

Replacement screw that fastens panels, brackets, and internal components. Install when original is stripped, rusted, missing, or lost during repairs.

Right hand side

Left hand side

Seals the evaporator cover to the cabinet, preventing air leaks and frost buildup. Replace if you notice excessive frost or cooling issues. Verify fit.

Wire harness for side-by-side refrigerators. Connects electrical components inside the unit. Replace if damaged, frayed, or connectors are broken.

This insul-sound deadening pad reduces vibration and noise by dampening panels and components in laundry and kitchen appliances. It's a small adhesive-backed sound/isolation pad used where noise or rattles transfer through metal surfaces. What it does

• Dampens rattles and reduces structure-borne noise from panels, cabinets and housings.
• Helps isolate vibrating components from appliance chassis to lower perceived sound.
• Commonly applied behind control panels, cabinet walls or on motor mounts to cut vibration transmission.
• Useful when worn, detached or hardened factory pads allow increased noise.

• One insul-sound deadening pad

• Disconnect power before servicing an appliance to avoid shock or injury.
• Clean and dry mounting surface; press pad firmly to ensure adhesive contact.
• Replace only in the original location; do not cover vents or moving parts.
• If adhesive is weak, use OEM-approved adhesive; avoid solvents that may damage finishes.

Fix incorrect temperature readings or freezing in your fridge. This temperature sensor helps regulate cooling. Easy 15-minute DIY repair with one screw.

This is a protective cover used inside the refrigerator compartment. It shields internal components from moisture, frost, or accidental contact. Replace this cover if it is cracked, warped, or missing, which can expose internal parts and potentially affect the refrigerator's performance.

This is a protective cover used inside the refrigerator compartment. It shields internal components from moisture, frost, or accidental contact. Replace this cover if it is cracked, warped, or missing, which can expose internal parts and potentially affect the refrigerator's performance.

Size: 8-18 x 1 1/4 inch.

Fix refrigerator power or control issues with this wire harness. Replaces damaged wiring that causes electrical faults or component failures. Direct fit.

Cracked or missing ice maker cover exposing internal components? This protective cover shields the ice maker assembly. Simple DIY install in minutes.

This is an extension piece for the ice maker shut-off arm inside the freezer compartment. It lengthens the sensing arm so it can properly detect when the ice bin is full and signal the ice maker to stop producing ice. Replace this extension if the ice maker continuously produces ice and overfills the bin, or if the original extension is broken or missing.
