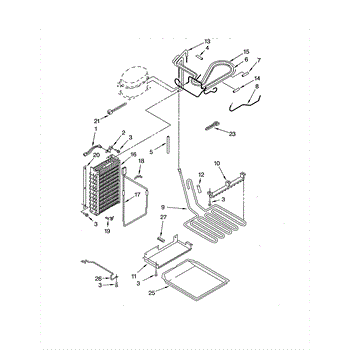

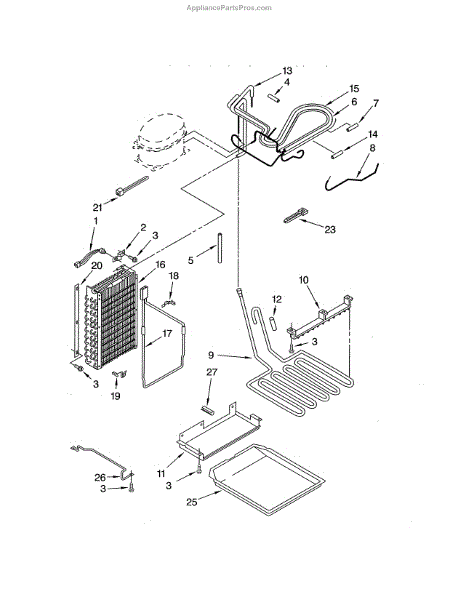

Parts for Kitchenaid KCCS36FJT00: Lower Unit & Tube Parts

The Whirlpool EveryDrop Refrigerator Water Filter 5 is an OEM replacement filter for Whirlpool refrigerators. This filter is used in Whirlpool bottom freezer and side-by-side refrigerators which accept Filter 5.

• Single Port Filter
• Simple turn installation requires no special tools
• For best performance, replace every six months
• Micron Rating: 0.5
• Filter Media: Coconut Carbon Block
• Flow Rate: 0.5 GPM
• Capacity: 300 gallons
• Temp Range: 33 - 100 °F
• Pressure Range: 30 - 120 psi
• Approximate dimensions: 2.30 x 3.00 x 11.60 Inches
• Meets NSF Standard: 42
• Approved for WQA Gold Seal
• Reduces 16 contaminants, including lead, mercury, asbestos, etc

This screw is used to secure the handle end cap to the center of the door. The screw size measures 8-18 x 1/2 inches.

This drain pan heater keeps the refrigerator's drain area warm to prevent ice buildup and help melt frost so condensate can flow to the drain pan. It helps reduce standing water and drainage blockages caused by frozen drains. What it does:

• Warms the drain pan/drain path to help melt ice and allow condensate to flow
• Helps prevent water from pooling under or inside the cabinet due to frozen drains
• Can reduce recurring thaw/freeze cycles that lead to clogs and overflow
• Common part to check when water leaks or persistent ice formation occur near the evaporator or drain

• One drain pan heater assembly

• Disconnect power to the appliance before starting work
• Typically accessed from the back or bottom; may require removing a service panel
• Handle wiring and mounting hardware carefully; match connector orientation when reattaching

This heat exchanger assembly directs and isolates the dryer's heating airflow, helping the dryer heat and operate safely. It replaces a damaged or corroded exchanger to restore proper airflow routing and reduce heat loss. What it does:

• Channels heated air through the dryer's heating system for efficient drying performance
• Protects surrounding components by containing and directing heat away from sensitive parts
• Can help address symptoms like reduced or uneven heating, persistent burning or scorched odors, or visible damage/corrosion to the exchanger
• Works as the OEM-design replacement to restore correct airflow routing in the heater area

• One heat exchanger assembly

• Follow manufacturer service manual instructions; disconnect power (and gas if applicable) before starting service
• Inspect surrounding seals, gaskets, and mounting hardware; replace any damaged components for best results
• Handle with care—sharp edges may be present; use gloves and eye protection

This heater clamp secures a heating element in the correct position within the appliance. Proper support keeps the element stable so it operates quietly and melts frost as designed for consistent, reliable performance.

• Holds the heater firmly in place to maintain correct alignment
• Reduces movement and vibration that can cause noise or wear
• Helps promote even frost melt during defrost for steady cooling
• Symptoms of a damaged or missing clamp can include recurring frost/ice buildup, a heater out of position, or rattling from the freezer area

• Disconnect power before servicing; wear cut-resistant gloves
• Access the heater/evaporator by removing the freezer panel as applicable
• Note the original clamp orientation and routing before removal
• Use needle-nose pliers to install; avoid damaging evaporator fins and do not deform the heater—position it exactly as originally placed

A replacement drain pan that captures defrost and condensation water to keep it contained and away from the cabinet and floor. Restores the appliance's normal water-collection path and helps reduce leaks. What it does:

• Collects melting ice and condensation from the evaporator to prevent water from pooling under the appliance.
• Channels collected water toward the drain system so it evaporates or exits as designed.
• Stops common symptoms like puddles or moisture under the unit and musty odors caused by standing water.
• Fits under the evaporator/coil area to restore proper water management.

• Disconnect power to the appliance before service to avoid electrical hazards.
• Remove the required access panels or move the appliance per the manufacturer's guidance to reach the pan.
• Lift out the old pan carefully—it may contain standing water—and position the replacement so the drain outlet and routing match the OEM layout.
• After installation, restore power and check for proper water flow during a defrost cycle; inspect surrounding seals and tubing for proper seating.

This dampener cushions and stabilizes the washer tub during spin cycles to reduce vibration and noise for smoother operation. It replaces worn or damaged suspension dampeners to help restore proper tub balance and quieter performance. What it does:

• Absorbs and dampens tub movement during agitation and spin to reduce vibration and noise.
• Helps maintain proper tub alignment for more even spinning and less wobble.
• Commonly replaced when the washer rocks, thumps, or makes excessive noise during spin.
• Works with the washer's suspension system to protect other components from shock and wear.

• 1 dampener

• Disconnect power and shut off water supply before beginning any repair.
• Access typically requires removing the washer cabinet or front panel; follow OEM service instructions.
• Inspect mounting studs and clips for wear; replace as needed to ensure a secure fit.
