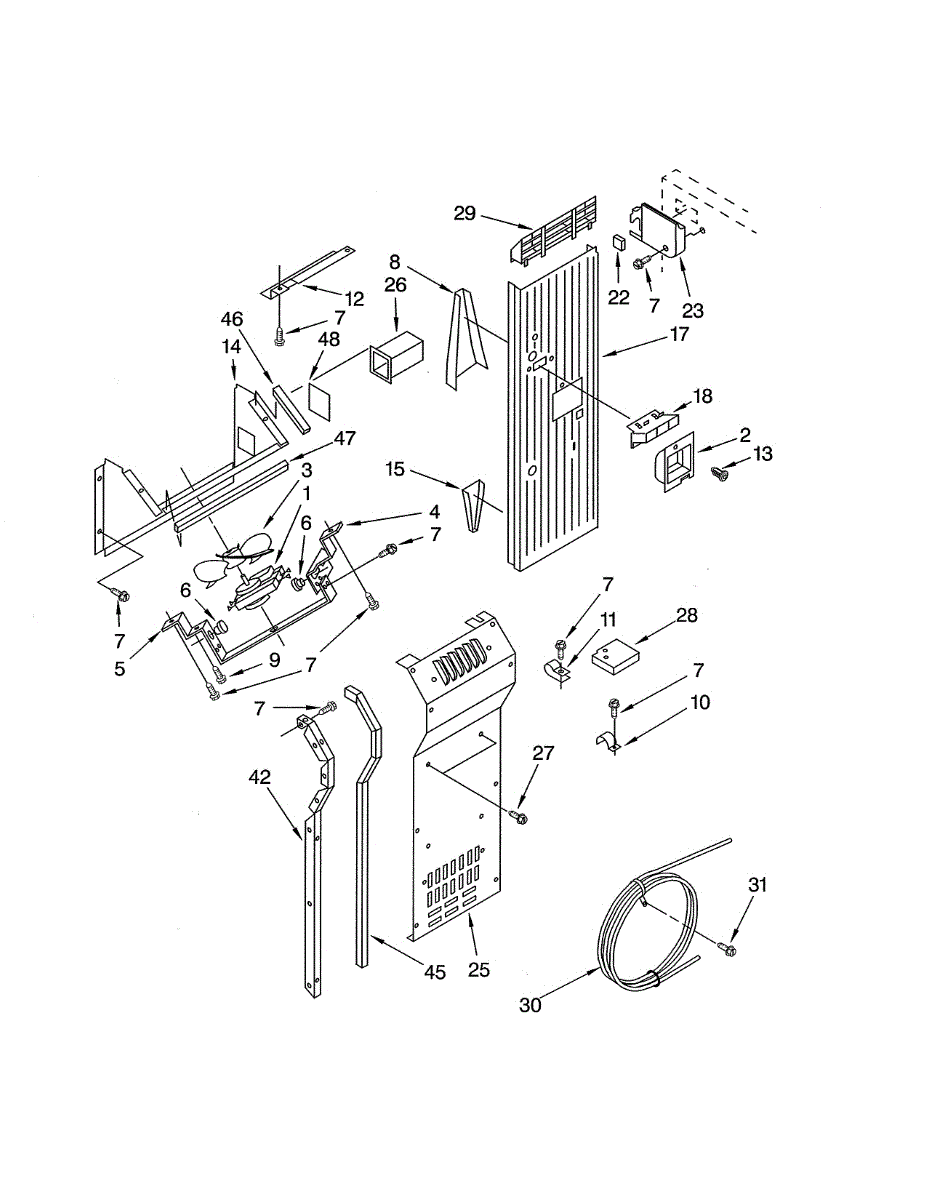

Parts for Kitchenaid KCCS36FJT00: Air Flow & Reservoir Parts

The Whirlpool EveryDrop Refrigerator Water Filter 5 is an OEM replacement filter for Whirlpool refrigerators. This filter is used in Whirlpool bottom freezer and side-by-side refrigerators which accept Filter 5.

• Single Port Filter
• Simple turn installation requires no special tools
• For best performance, replace every six months
• Micron Rating: 0.5
• Filter Media: Coconut Carbon Block
• Flow Rate: 0.5 GPM
• Capacity: 300 gallons
• Temp Range: 33 - 100 °F
• Pressure Range: 30 - 120 psi
• Approximate dimensions: 2.30 x 3.00 x 11.60 Inches
• Meets NSF Standard: 42
• Approved for WQA Gold Seal
• Reduces 16 contaminants, including lead, mercury, asbestos, etc

The Evaporator Fan Motor is an OEM part for Whirlpool refrigerators. This motor circulates air over the evaporator coils and throughout the refrigerator and freezer compartments, ensuring consistent cooling and maintaining optimal temperatures. By moving air efficiently, the evaporator fan motor helps prevent frost buildup and keeps food fresh.

Causes of a bad evaporator fan motor can include electrical malfunctions, worn-out bearings, or damage from ice accumulation. Continuous operation over time can lead to wear and tear, resulting in decreased performance or complete motor failure.

Symptoms of a bad Evaporator Fan Motor include:

• The refrigerator or freezer not cooling properly
• Unusual or loud noises emanating from the fan area
• The fan not spinning when the refrigerator is running
• Frost buildup inside the freezer compartment

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Evaporator Fan Motor Blade is an OEM part for Whirlpool refrigerators. It is a crucial component of the refrigerator's cooling system, attached to the evaporator fan motor to circulate air over the evaporator coils. This circulation helps distribute cold air throughout the refrigerator and freezer compartments, ensuring consistent temperatures and efficient operation.

Symptoms of a bad Evaporator Fan Motor Blade include:

• Unusual noise coming from the fan area, indicating the blade may be hitting another component or is unbalanced,
• Insufficient cooling in the refrigerator or freezer compartments,
• The refrigerator running longer than usual to maintain the desired temperature.

Causes of evaporator fan motor blade failure typically include physical damage from interference with other components, wear from continuous use, or buildup of ice or debris that unbalances the blade.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This screw is used to secure the handle end cap to the center of the door. The screw size measures 8-18 x 1/2 inches.

Screw: 8-16 x 3/8 inch.

This spring-style tube clamp secures flexible tubing to fittings, helping prevent leaks and maintain proper flow. It's a simple replacement that restores a firm seal on water or drain lines. What it does:

• Keeps flexible tubing firmly clamped to barbed or nipple fittings
• Helps stop or reduce leaks from loose or corroded connections
• Prevents tubing from slipping off under pressure or vibration
• Useful where a compact, spring-action clamp is required

• Disconnect power and shut off water to the appliance before replacing parts
• Use pliers to expand the clamp, position it over the tube/fitting, then release to secure
• Inspect connected tubing and fittings for damage; replace if cracked or severely corroded

This molded air deflector directs cold freezer airflow around the icemaker assembly to help maintain consistent ice production and reduce partial fills. It's a simple replacement that restores proper air routing inside the freezer compartment. What it does:

• Guides cold air to and around the icemaker so the unit can cool evenly
• Helps prevent warm-air pockets that can cause small or misshapen ice
• Restores intended airflow after a cracked or missing deflector
• Passive part with no electrical components or adjustments

• One icemaker air deflector

• Basic snap- or screw-in replacement; inspect mounting tabs for damage before installing
• Turn off power to the refrigerator before accessing the icemaker area
• Handle plastic parts carefully to avoid cracking mounting clips

This screw is used to secure the handle end cap to the center of the door. The screw size measures 8-18 x 1/2 inches.

The Water Reservoir is an OEM part for Whirlpool refrigerators. It stores and chills water before it is dispensed through the refrigerator's water dispenser. This component ensures that you have a steady supply of cold water available directly from your fridge.

Common causes of a bad water reservoir include cracks or leaks from regular use, exposure to extreme temperatures, or blockages from mineral deposits.

Symptoms of a bad water reservoir include:

• Water leaks inside the refrigerator
• The water dispenser not dispensing properly
• Unusual tastes or odors in the water
• Visible cracks or damage to the reservoir

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.
