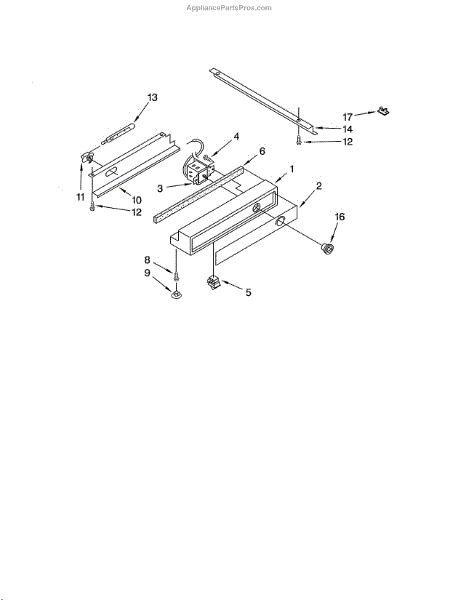

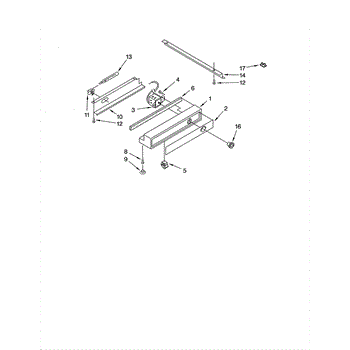

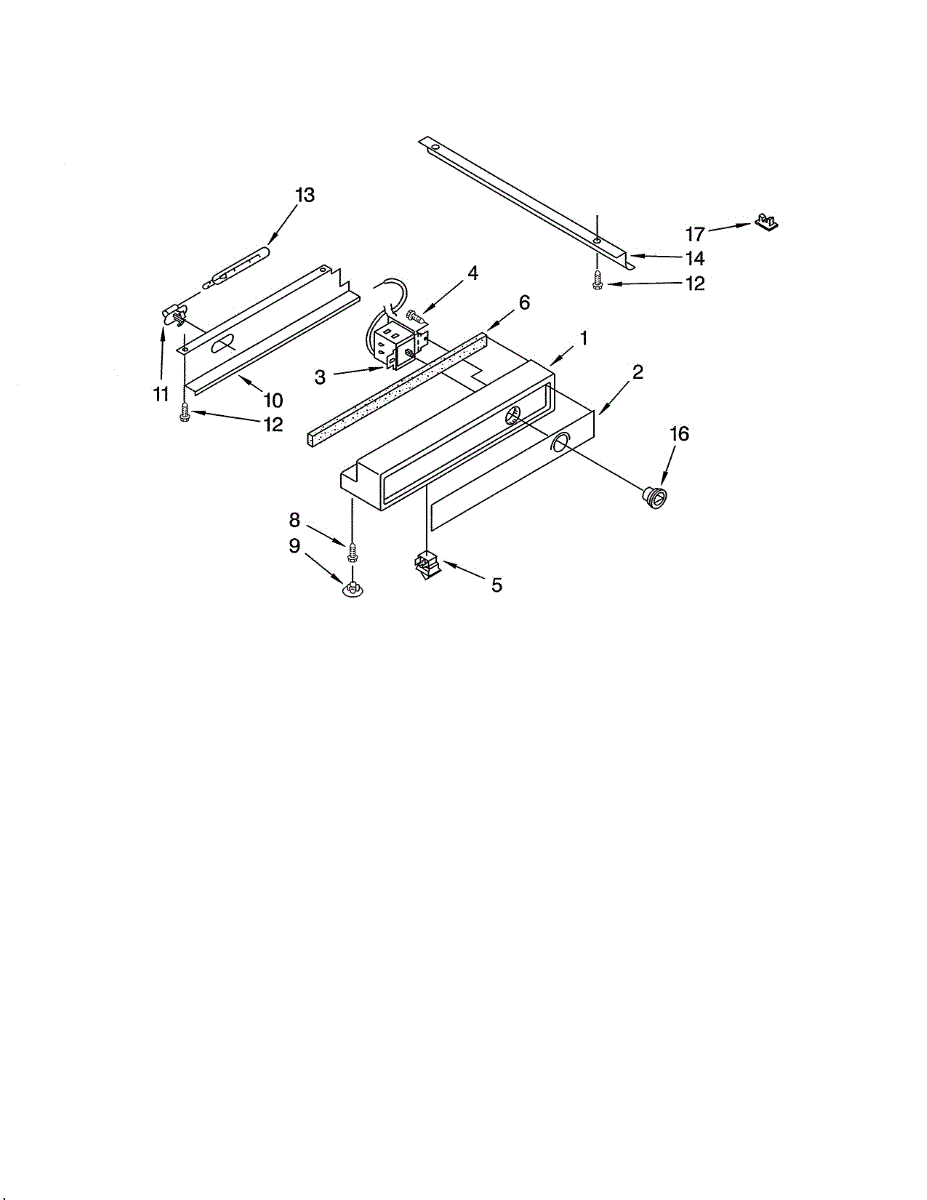

Parts for Kitchenaid KCCS36FJT00: Freezer Control Panel Parts

The Whirlpool EveryDrop Refrigerator Water Filter 5 is an OEM replacement filter for Whirlpool refrigerators. This filter is used in Whirlpool bottom freezer and side-by-side refrigerators which accept Filter 5.

• Single Port Filter
• Simple turn installation requires no special tools
• For best performance, replace every six months
• Micron Rating: 0.5
• Filter Media: Coconut Carbon Block
• Flow Rate: 0.5 GPM
• Capacity: 300 gallons
• Temp Range: 33 - 100 °F
• Pressure Range: 30 - 120 psi
• Approximate dimensions: 2.30 x 3.00 x 11.60 Inches
• Meets NSF Standard: 42
• Approved for WQA Gold Seal
• Reduces 16 contaminants, including lead, mercury, asbestos, etc

This part shields and positions the temperature control's sensing bulb inside the control housing, helping the control respond accurately and keep cabinet temperatures stable. Replace a cracked, deformed, or missing barrier to restore consistent, predictable cooling. What it does:

• Shields the cold-control thermostat/capillary bulb from direct airflow
• Helps the temperature control sense average compartment temperature and cycle correctly
• Supports steady temperatures and normal run times
• A damaged or missing barrier may contribute to temperature swings or frequent control adjustments

• 1 thermostat barrier

• Disconnect power before servicing
• Access the control housing; remove the dial/cover and any retaining screws or clips
• Note the factory routing of the thermostat capillary; install the barrier without kinking or sharply bending the sensor tube
• Reassemble, set controls to mid-range, and allow up to 24 hours for temperatures to stabilize

The Door Switch is an OEM part for Whirlpool refrigerators. It is designed to detect when the refrigerator or freezer door is open or closed. This switch controls the interior light and ensures that the cooling system operates efficiently.

Causes of a bad Door Switch can include mechanical wear from frequent use, electrical faults such as short circuits or burnt contacts, and physical damage from impact or mishandling of the refrigerator door.

Symptoms of a bad Door Switch include:

• The interior light not turning on when the door is opened or not turning off when the door is closed
• The refrigerator or freezer not cooling properly
• The light staying on continuously
• The cooling system running continuously or not running at all due to incorrect signals from the switch

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This screw is used to secure the handle end cap to the center of the door. The screw size measures 8-18 x 1/2 inches.

Color: Clear. This bulb is 40 watts and 120 volts.
