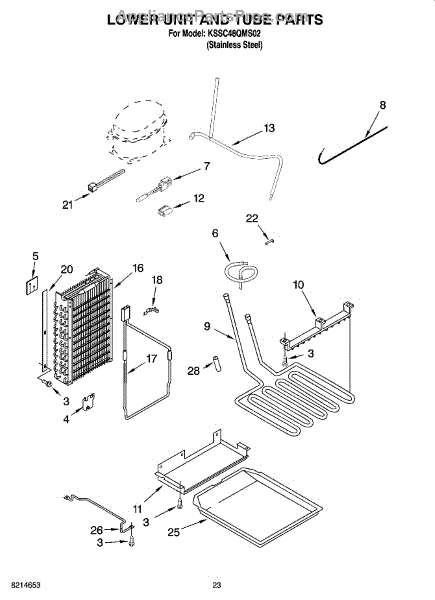

Parts for Kitchenaid KSSC48QMS02: 14 - Lower Unit And Tube Parts

The Whirlpool EveryDrop Refrigerator Water Filter 5 is an OEM replacement filter for Whirlpool refrigerators. This filter is used in Whirlpool bottom freezer and side-by-side refrigerators which accept Filter 5.

• Single Port Filter
• Simple turn installation requires no special tools
• For best performance, replace every six months
• Micron Rating: 0.5
• Filter Media: Coconut Carbon Block
• Flow Rate: 0.5 GPM
• Capacity: 300 gallons
• Temp Range: 33 - 100 °F
• Pressure Range: 30 - 120 psi
• Approximate dimensions: 2.30 x 3.00 x 11.60 Inches
• Meets NSF Standard: 42
• Approved for WQA Gold Seal
• Reduces 16 contaminants, including lead, mercury, asbestos, etc

This screw is used to secure the handle end cap to the center of the door. The screw size measures 8-18 x 1/2 inches.

The Thermistor is an OEM replacement part for Whirlpool refrigerators. This temperature-sensitive sensor monitors conditions inside refrigerator and freezer compartments. It provides critical feedback to the electronic control module, regulating cool air temperature in both sections.

Symptoms of a faulty thermistor include:

• Fluctuating temperatures where sections become too warm or cold
• Frequent cycling of evaporator fans and cooling components
• Defrost issues or Er/Ed error codes shown on displays

Causes can involve regular exposure to changing interior environments over many years. Mineral deposits accumulating may lead to sensor surfaces becoming insulated. Physical stress from overloading could potentially crack the thermistor over time as well.

This OEM replacement part is compatible with some Kenmore Elite models too.

A small metal retaining clip that secures a bi-metal thermostat or temperature sensor in place, helping maintain proper contact and accurate temperature sensing for reliable appliance operation. Simple, durable replacement part. What it does

• Holds a bi-metal thermostat or temperature sensor firmly against its mounting point or probe.
• Maintains consistent contact to support accurate temperature sensing and control.
• Can help stop intermittent temperature-related issues caused by a loose or damaged clip.
• Designed for direct replacement where a spring-style or formed metal retainer is required.

• One bi-metal retaining clip (single clip).

• Disconnect power to the appliance before attempting any repair.
• Removal/installation typically requires small pliers or a flat screwdriver; avoid excessive force to prevent damage.
• Verify clip orientation and that the sensor/thermostat is seated fully before securing.

This 48-inch defrost heater melts frost and ice off the evaporator coil so the refrigerator can maintain proper cooling. Replaces a failed or broken evaporator heater to help restore normal defrost cycles and airflow. What it does:

• Heats the evaporator coil during the defrost cycle to remove built-up ice
• Helps restore proper airflow and consistent cooling when frost is blocking the coil
• Commonly used when you see heavy frost buildup, extended cooling cycles, or a warm refrigerator/freezer compartment
• Works with the appliance's defrost control and thermostat to operate only during defrost cycles

• One 48-inch defrost heater

• Disconnect power to the appliance before servicing to avoid electric shock
• Access the evaporator by removing the back panel inside the freezer; handle the heater and evaporator fins carefully to avoid damage
• Reassemble panels and restore power; run a manual defrost cycle to confirm operation

This heater clamp secures a heating element in the correct position within the appliance. Proper support keeps the element stable so it operates quietly and melts frost as designed for consistent, reliable performance.

• Holds the heater firmly in place to maintain correct alignment
• Reduces movement and vibration that can cause noise or wear
• Helps promote even frost melt during defrost for steady cooling
• Symptoms of a damaged or missing clamp can include recurring frost/ice buildup, a heater out of position, or rattling from the freezer area

• Disconnect power before servicing; wear cut-resistant gloves
• Access the heater/evaporator by removing the freezer panel as applicable
• Note the original clamp orientation and routing before removal
• Use needle-nose pliers to install; avoid damaging evaporator fins and do not deform the heater—position it exactly as originally placed

A replacement drain pan that captures defrost and condensation water to keep it contained and away from the cabinet and floor. Restores the appliance's normal water-collection path and helps reduce leaks. What it does:

• Collects melting ice and condensation from the evaporator to prevent water from pooling under the appliance.
• Channels collected water toward the drain system so it evaporates or exits as designed.
• Stops common symptoms like puddles or moisture under the unit and musty odors caused by standing water.
• Fits under the evaporator/coil area to restore proper water management.

• Disconnect power to the appliance before service to avoid electrical hazards.
• Remove the required access panels or move the appliance per the manufacturer's guidance to reach the pan.
• Lift out the old pan carefully—it may contain standing water—and position the replacement so the drain outlet and routing match the OEM layout.
• After installation, restore power and check for proper water flow during a defrost cycle; inspect surrounding seals and tubing for proper seating.

This damper heater is the heater element used with the refrigerator air-damper assembly to help prevent frost and condensation buildup around the damper. Replaces a failed heater to restore proper damper operation and airflow. What it does:

• Warms the damper area to reduce ice and condensation that can block the damper
• Helps ensure the fresh-food and freezer compartments share airflow as intended
• Commonly replaced when frost or ice accumulates near the damper or when the damper fails to open/close smoothly
• Works as part of the damper/air control system; does not include the full damper housing or actuators unless specified

• Disconnect power to the appliance before replacing this part to avoid shock or injury
• Access may require removing interior panels or the damper housing; follow OEM instructions for your model
• Inspect the damper housing and actuator for damage or ice buildup when replacing the heater
