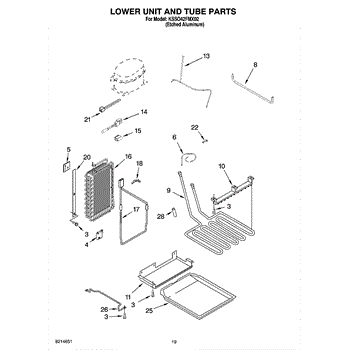

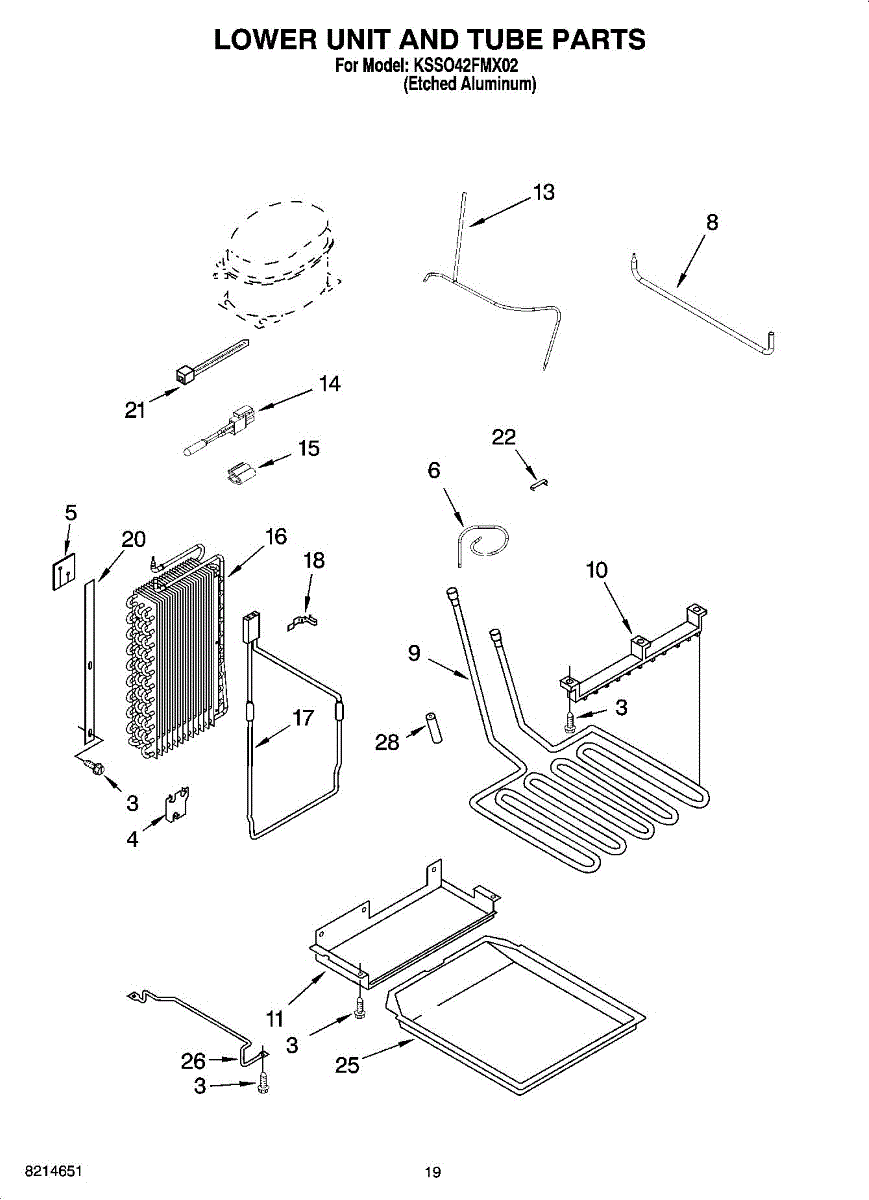

Parts for Kitchenaid KSSO42FMX02: 12 - Lower Unit And Tube Parts

The Whirlpool EveryDrop Refrigerator Water Filter 5 is an OEM replacement filter for Whirlpool refrigerators. This filter is used in Whirlpool bottom freezer and side-by-side refrigerators which accept Filter 5.

• Single Port Filter
• Simple turn installation requires no special tools
• For best performance, replace every six months
• Micron Rating: 0.5
• Filter Media: Coconut Carbon Block
• Flow Rate: 0.5 GPM
• Capacity: 300 gallons
• Temp Range: 33 - 100 °F
• Pressure Range: 30 - 120 psi
• Approximate dimensions: 2.30 x 3.00 x 11.60 Inches
• Meets NSF Standard: 42
• Approved for WQA Gold Seal
• Reduces 16 contaminants, including lead, mercury, asbestos, etc

This screw is used to secure the handle end cap to the center of the door. The screw size measures 8-18 x 1/2 inches.

This thermistor is the refrigerator's temperature sensor. It continuously measures compartment temperature and sends resistance signals to the control, helping the system regulate cooling for steady performance and consistent food preservation.

• Senses compartment air temperature through resistance changes
• Reports to the electronic control to regulate cooling components
• Failure can cause temperatures that are too warm or too cold
• May lead to extended run times, short cycling, or erratic temperature swings
• Some models display a sensor/thermistor error code

• Disconnect power before servicing and wear appropriate PPE.
• Match the original sensor location and wire routing; secure any clips or retainers.
• Ensure the connector is fully seated and wires are not pinched.
• Restore power and allow the refrigerator time to stabilize before evaluating temperatures.

A small metal retaining clip that secures a bi-metal thermostat or temperature sensor in place, helping maintain proper contact and accurate temperature sensing for reliable appliance operation. Simple, durable replacement part. What it does

• Holds a bi-metal thermostat or temperature sensor firmly against its mounting point or probe.
• Maintains consistent contact to support accurate temperature sensing and control.
• Can help stop intermittent temperature-related issues caused by a loose or damaged clip.
• Designed for direct replacement where a spring-style or formed metal retainer is required.

• One bi-metal retaining clip (single clip).

• Disconnect power to the appliance before attempting any repair.
• Removal/installation typically requires small pliers or a flat screwdriver; avoid excessive force to prevent damage.
• Verify clip orientation and that the sensor/thermostat is seated fully before securing.

This part is a replacement evaporator made by Whirlpool and sourced directly from the manufacturer. This part can be used to replace a faulty or broken evaporator in a variety of different refrigerator models. The evaporator works to cool the refrigerator itself by acting as a heat exchanger. If this part is malfunctioning, the refrigerator likely will not be able to maintain cold temperatures or may stop working all together. In order to successfully repair this part, the refrigerant will need to be recovered and recharged within the sealed system. Always disconnect power from the appliance before starting any work or repairs. It is recommended that work gloves are worn to protect the hands. As an authentic replacement part, this evaporator is suitable for use on several different models of refrigerators that have been manufactured by Whirlpool, Maytag, Kitchenaid, and several other brands. This is a genuine part made of high-quality, durable materials and is sold individually.

A 42-inch defrost heater that melts frost buildup on the evaporator to help restore proper airflow and cooling. Replaces a broken or open heater element to reduce icing and improve freezer performance. What it does:

• Warms the evaporator coil during the defrost cycle to remove frost and ice buildup.
• Helps restore normal airflow and cooling when frost is preventing proper refrigeration.
• Common symptom fixes: excessive frost or ice on the evaporator, poor cooling, or a freezer that runs but over-ices.
• If the heater tests good but frost returns, check the defrost thermostat and control for related issues.

• One 42-inch defrost heater assembly.

• Disconnect power to the appliance before beginning any repair to avoid shock or injury.
• Inspect wiring, connectors, and harnesses for damage; replace any damaged components.
• Test the heater for continuity with a multimeter before and after installation.
• Handle the element carefully to avoid bending or damaging the tubing; follow OEM instructions for routing and mounting.

This heater clamp secures a heating element in the correct position within the appliance. Proper support keeps the element stable so it operates quietly and melts frost as designed for consistent, reliable performance.

• Holds the heater firmly in place to maintain correct alignment
• Reduces movement and vibration that can cause noise or wear
• Helps promote even frost melt during defrost for steady cooling
• Symptoms of a damaged or missing clamp can include recurring frost/ice buildup, a heater out of position, or rattling from the freezer area

• Disconnect power before servicing; wear cut-resistant gloves
• Access the heater/evaporator by removing the freezer panel as applicable
• Note the original clamp orientation and routing before removal
• Use needle-nose pliers to install; avoid damaging evaporator fins and do not deform the heater—position it exactly as originally placed

A replacement drain pan that captures defrost and condensation water to keep it contained and away from the cabinet and floor. Restores the appliance's normal water-collection path and helps reduce leaks. What it does:

• Collects melting ice and condensation from the evaporator to prevent water from pooling under the appliance.
• Channels collected water toward the drain system so it evaporates or exits as designed.
• Stops common symptoms like puddles or moisture under the unit and musty odors caused by standing water.
• Fits under the evaporator/coil area to restore proper water management.

• Disconnect power to the appliance before service to avoid electrical hazards.
• Remove the required access panels or move the appliance per the manufacturer's guidance to reach the pan.
• Lift out the old pan carefully—it may contain standing water—and position the replacement so the drain outlet and routing match the OEM layout.
• After installation, restore power and check for proper water flow during a defrost cycle; inspect surrounding seals and tubing for proper seating.

This damper heater is the heater element used with the refrigerator air-damper assembly to help prevent frost and condensation buildup around the damper. Replaces a failed heater to restore proper damper operation and airflow. What it does:

• Warms the damper area to reduce ice and condensation that can block the damper
• Helps ensure the fresh-food and freezer compartments share airflow as intended
• Commonly replaced when frost or ice accumulates near the damper or when the damper fails to open/close smoothly
• Works as part of the damper/air control system; does not include the full damper housing or actuators unless specified

• Disconnect power to the appliance before replacing this part to avoid shock or injury
• Access may require removing interior panels or the damper housing; follow OEM instructions for your model
• Inspect the damper housing and actuator for damage or ice buildup when replacing the heater
