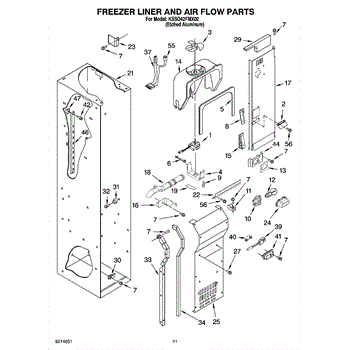

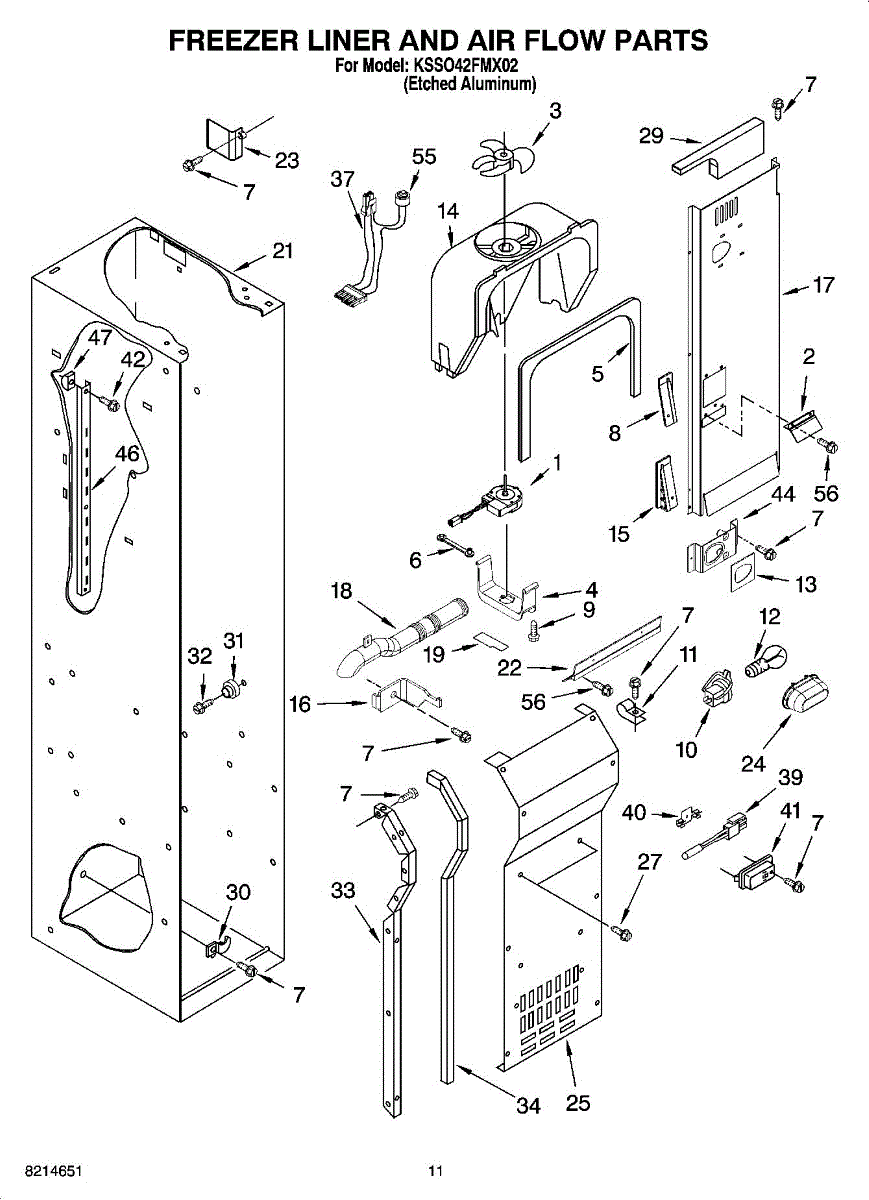

Parts for Kitchenaid KSSO42FMX02: 08 - Freezer Liner And Air Flow Parts

The Whirlpool EveryDrop Refrigerator Water Filter 5 is an OEM replacement filter for Whirlpool refrigerators. This filter is used in Whirlpool bottom freezer and side-by-side refrigerators which accept Filter 5.

• Single Port Filter
• Simple turn installation requires no special tools
• For best performance, replace every six months
• Micron Rating: 0.5
• Filter Media: Coconut Carbon Block
• Flow Rate: 0.5 GPM
• Capacity: 300 gallons
• Temp Range: 33 - 100 °F
• Pressure Range: 30 - 120 psi
• Approximate dimensions: 2.30 x 3.00 x 11.60 Inches
• Meets NSF Standard: 42
• Approved for WQA Gold Seal
• Reduces 16 contaminants, including lead, mercury, asbestos, etc

This evaporator fan motor circulates cold air across the evaporator coils and throughout the fresh food and freezer compartments. Replacing a weak or failed motor restores proper airflow for consistent cooling and ice production.

• Moves air over the evaporator to maintain even temperatures
• Common failure signs: freezer getting warm, fridge section not cooling well, weak or no airflow from vents, intermittent humming or squealing, motor not running
• May help resolve frost buildup around the evaporator due to poor airflow
• Electrical component; match connectors and orientation during install

• Unplug refrigerator before service; wear cut-resistant gloves
• Access from the rear of the freezer/evaporator cover; remove shelves/panels as needed
• Transfer any mounting hardware, grommets, or fan blade from the original if not reusable
• Ensure fan spins freely and blade is correctly oriented before reassembly

The Evaporator Fan Motor Blade is an OEM part for Whirlpool refrigerators. It is a crucial component of the refrigerator's cooling system, attached to the evaporator fan motor to circulate air over the evaporator coils. This circulation helps distribute cold air throughout the refrigerator and freezer compartments, ensuring consistent temperatures and efficient operation.

Symptoms of a bad Evaporator Fan Motor Blade include:

• Unusual noise coming from the fan area, indicating the blade may be hitting another component or is unbalanced,
• Insufficient cooling in the refrigerator or freezer compartments,
• The refrigerator running longer than usual to maintain the desired temperature.

Causes of evaporator fan motor blade failure typically include physical damage from interference with other components, wear from continuous use, or buildup of ice or debris that unbalances the blade.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Instruction sheet included.

Instruction sheet included.

This screw is used to secure the handle end cap to the center of the door. The screw size measures 8-18 x 1/2 inches.

Screw: 8-16 x 3/8 inch.

The Light Socket Kit is an OEM part for Whirlpool refrigerators. This kit includes the light socket and necessary components to ensure proper installation and functionality. It is designed to hold the refrigerator light bulb securely and provide reliable electrical connections to illuminate the interior of the refrigerator.

Common causes of failure include wear and tear, corrosion from moisture, or damage from handling or bulb replacement.

Symptoms of a bad Light Socket Kit include:

• Refrigerator light not turning on
• Flickering or intermittent lighting
• Visible damage or corrosion on the socket
• Burned or melted areas around the socket

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Original Whirlpool light bulb, 40 watt.

Symptoms of needing to replace the light bulb include:

• Dimming or flickering light
• Complete lack of illumination inside the appliance
• Visible signs of damage or burnout on the bulb itself

Causes of a faulty light bulb can include normal burnout over time, electrical issues, or physical damage due to impact or vibrations.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Kenmore, Frigidaire, GE, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore appliances.

This fan scroll is the plastic housing that surrounds the evaporator fan in the freezer section. It directs air across the evaporator coils and into the ducts, helping your refrigerator move cold air evenly and maintain stable temperatures.

• Channels airflow from the evaporator fan through the coils and into the air ducts
• Helps balance cooling between freezer and fresh food compartments
• Positions the fan motor and blade for proper clearance and reduced vibration
• If cracked, warped, or missing, you may notice weak airflow, temperature swings, rattling noises, or frost buildup on the evaporator cover

• Disconnect power before servicing; wear cut-resistant gloves
• Remove freezer shelves/bins and the rear panel to access the fan area
• Transfer the existing fan motor, blade, and hardware to the new scroll
• The fan spins freely and wiring is clear before reassembly and restoring power

Left hand side

Right hand side

This replacement screw secures panels, brackets, and internal components within your appliance. Replacing a missing or damaged fastener restores a tight fit, reduces vibration and noise, and helps keep parts properly aligned during operation.

• Fastens panels, trim, brackets, or internal components to the chassis
• Maintains proper alignment and stability during normal use
• Replaces missing, rusted, or stripped hardware
• Common symptoms: loose or rattling panels, vibration, difficulty fastening, or a visibly missing screw

• Disconnect power; for gas appliances, also shut off the gas supply
• Match length and thread to the original; replace one-for-one in the same location
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• If the receiving hole is stripped, repair threads or replace the clip/nut before installing

The Shelf Stud is an OEM part for Whirlpool refrigerators. It serves as a support peg that holds the refrigerator shelves in place, ensuring they remain stable and properly positioned.

Causes of a bad shelf stud can include wear and tear from regular use, accidental impact that causes the stud to break, or repeated removal and reinstallation of shelves leading to loosening or damage.

Symptoms of a bad shelf stud include:

• Shelves not staying securely in place
• Shelves tilting or collapsing
• Visible cracks or damage to the stud
• Difficulty in inserting or removing shelves

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This is a rear stud with a screw. For the front stud with screw use part number W11223328. For studs with no screw use kit part number 4388538.

This is a replacement #8-18 screw used to fasten components in compatible Whirlpool appliances. It restores worn or missing fasteners so panels and parts stay securely mounted and function safely. What it does

• Secures panels, brackets, and small appliance components to the frame or mounting points
• Restores proper fit where a stripped, missing, or corroded screw causes rattling or loose parts
• Provides the correct thread engagement to prevent backing out under normal use
• Small fastener intended for interior and light-duty exterior appliance applications

• One #8-18 screw

• Use the matching screwdriver or bit to avoid damaging the screw head
• Tighten until snug; avoid over-torquing which can strip threads or crack plastic parts
• Replace any damaged mating clips or inserts for a secure repair
• Disconnect power and follow appliance safety instructions before accessing internal components

Right hand side

Left hand side

This evaporator cover gasket seals the evaporator cover to the refrigerator cabinet, helping maintain proper airflow and reducing frost buildup behind the back wall. It restores a tight seal for more reliable cooling performance. What it does:

• Seals the evaporator cover to prevent air leaks that can cause frost or ice buildup
• Helps maintain consistent cold-air circulation in the freezer/refrigerator compartment
• Reduces chances of excessive frost, water pooling, or longer run cycles tied to air infiltration
• Supports normal defrost operation by keeping warm, moist air out of the evaporator cavity

• Disconnect power before servicing and allow the appliance to defrost if needed
• Remove the evaporator cover carefully; watch for sharp sheet-metal edges and retain fasteners
• Position gasket evenly around the cover mating surface; avoid stretching or creasing the seal
• If adhesive or clips are used, replace or reapply per OEM guidance to ensure a secure fit

The Thermistor is an OEM replacement part for Whirlpool refrigerators. This temperature-sensitive sensor monitors conditions inside refrigerator and freezer compartments. It provides critical feedback to the electronic control module, regulating cool air temperature in both sections.

Symptoms of a faulty thermistor include:

• Fluctuating temperatures where sections become too warm or cold
• Frequent cycling of evaporator fans and cooling components
• Defrost issues or Er/Ed error codes shown on displays

Causes can involve regular exposure to changing interior environments over many years. Mineral deposits accumulating may lead to sensor surfaces becoming insulated. Physical stress from overloading could potentially crack the thermistor over time as well.

This OEM replacement part is compatible with some Kenmore Elite models too.

This thermistor clip secures the refrigerator/freezer temperature sensor in the correct position for accurate temperature readings and consistent cooling. It helps keep the sensor stable so the control can properly monitor and adjust appliance temperature. What it does:

• Holds the thermistor/sensor in place on evaporator or cabinet surfaces to ensure reliable contact
• Helps prevent sensor movement that can cause incorrect temperature readings or erratic cooling cycles
• Supports proper airflow around the sensor for accurate thermostat feedback
• Simple, passive mounting solution that maintains sensor location after service

• Includes: 1 thermistor clip

• Designed for a direct replacement; remove power to the appliance before servicing
• Handle the sensor and wiring gently to avoid damage to the probe or connector
• Confirm sensor location per manufacturer guidance before clipping to ensure correct placement

This replacement screw secures appliance panels and components to restore proper fit and stop loose or rattling parts. A simple, OEM-compatible fastener that helps maintain safe, stable operation and original assembly alignment. What it does:

• Secures panels, trim, brackets or components to prevent movement and vibration
• Restores proper fit when a screw is missing or stripped
• Helps eliminate rattling, gaps, or misaligned parts
• Fits the OEM threaded holes and fastening points

• Disconnect power (and gas if applicable) before accessing internal components
• Use the correct driver to avoid stripping the head; hand-start threads before final tightening
• Do not overtighten—stop when snug to avoid damaging threads or plastic parts
• Keep removed hardware organized to ensure correct reassembly

This defrost bi-metal thermostat senses evaporator temperature during the defrost cycle and opens to stop heater power at the safe cutoff. Replacing a failed thermostat restores reliable defrosting and helps prevent ice buildup that restricts airflow and cooling.

• Monitors evaporator temperature to control the defrost heater
• Closes when cold to allow defrost; opens at cutoff to terminate defrost and prevent overheating
• Helps maintain clear evaporator coils for proper airflow
• Common symptoms: heavy frost on the back wall/evaporator, poor cooling, or defrost heater not energizing

• Disconnect power before servicing; wear cut-resistant gloves
• Access the evaporator; mount the thermostat in the original location with firm contact on the tubing
• Transfer any original clip or insulation as found to ensure proper sensing
• Secure all connections and route wiring away from the heater and moving parts; clear existing ice before restoring power

This replacement screw fastens panels, brackets, and internal components so they stay secure during operation. Replace worn, rusted, or missing screws to restore a solid fit and help reduce vibration, rattles, and misalignment.

• Secures appliance parts to maintain proper fit and alignment
• Helps reduce noise and vibration from loose panels or trim
• Replaces stripped, corroded, or missing fasteners
• Can resolve issues like rattling, gaps, or shifting components

• Disconnect power; turn off gas/water if applicable before servicing
• Match to the original screw and start threads by hand to avoid cross-threading
• Use the correct driver and tighten snugly; do not overtighten into plastic or thin sheet metal
• Replace additional worn fasteners in the same location if needed for even clamping
