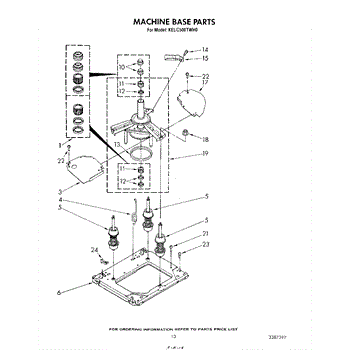

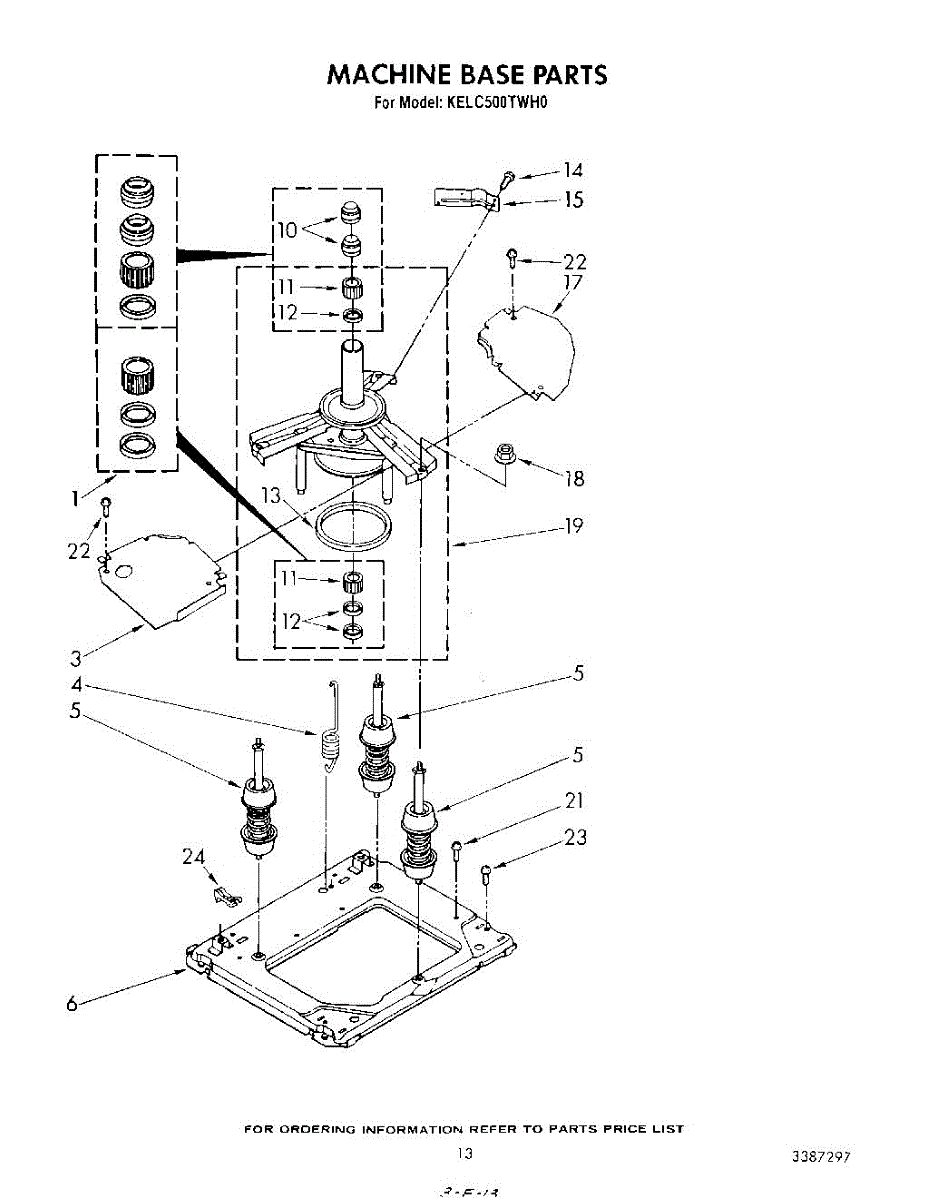

Parts for Kitchenaid KELC500TPL0: 10 - Machine Base Parts

The Bearing and Seal Kit is an OEM component for Whirlpool and KitchenAid front-load washing machines. The kit includes 2 center post bearings, 3 agitator shaft seals, and 1 center post seal.

These internal seals help retain lubrication inside the motor shaft housing, while the bearings allow for smooth rotation of critical components like the drive pulley. Continuous belt rubbing and water exposure diminish their lifespan over time.

Symptoms of worn motor seals or bearings include:

• Abnormal vibrations during the wash or spin cycles
• Noisy operation and grinding sounds from the motor
• Difficulty starting or stopping the cycle

This OEM kit is also compatible with Maytag, Jenn-Air, Magic Chef, and select Kenmore models.

The Suspension Spring is an OEM replacement part for Whirlpool washing machines. It is a critical component that helps to support and stabilize the outer tub during the wash and spin cycles, absorbing vibrations and minimizing excessive movement.

Symptoms of a bad suspension spring include:

• Excessive shaking or vibrating during the wash or spin cycle
• Loud banging or rattling noises from the washer
• The washer moving or "walking" across the floor during operation
• Leaks or potential damage to other components due to increased stress and movement

Causes of suspension spring failure can range from general wear and tear over time and exposure to high-speed spinning, to physical damage from overloading or unbalanced loads.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This welded base assembly forms the lower chassis of the unit, supporting the cabinet and mounted components. Replacing a bent, rusted, or damaged base restores structural integrity, alignment, and smoother, quieter operation.

• Serves as the main lower support structure for the cabinet/frame
• Provides mounting points for brackets, fasteners, and levelers as designed
• Helps maintain alignment of panels/doors and overall stability
• Common signs of failure: bent or rusted-through metal, excessive vibration or rattling, difficulty leveling, misaligned panels or drawer

• Disconnect power; also shut off water and/or gas before service
• Use proper lifting/support; sheet-metal edges can be sharp—wear cut-resistant gloves and eye protection
• Transfer any reusable fasteners, grommets, and brackets from the original base
• After reassembly, ensure the unit is square and level before returning to service

The Shaft Seal is an OEM part for Whirlpool washing machines. This seal is designed to fit around the shaft that connects the tub to the transmission or motor, preventing water from leaking out of the tub and into the machine's internal components.

Causes of damage to the Shaft Seal often involve normal wear and tear from regular use, as the constant motion of the shaft can gradually degrade the seal.

Symptoms of a bad Shaft Seal include:

• Water leaking from the underside of the washing machine, particularly during or after a wash cycle
• A noisy operation, especially during the spin cycle, can sometimes result from water leaking into the bearings and causing them to fail
• The presence of rust or corrosion around the area where the shaft enters the tub

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This centerpost bearing supports the washer's spin basket on the stationary center post, providing a low-friction surface for smooth, quiet rotation. Replacing a worn bearing helps restore proper spin performance and reduce noise and vibration.

• Supports and centers the spin basket on the tub centerpost/drive shaft
• Provides a low-friction bearing surface to reduce wear and noise
• Helps maintain basket alignment and stability during spin
• When worn, may cause grinding or squealing in spin, excessive vibration or wobble, and poor/slow spin

• Disconnect power and water supply before servicing; use proper PPE
• Access typically requires removing the agitator, inner basket, and related drive components
• Clean mating surfaces; inspect the centerpost/spin tube and tub seal and replace any worn seals per service guidance
• Seat the bearing fully and verify smooth basket rotation before reassembly

The Seal is an OEM part for Whirlpool washing machines. This part provides a tight seal around the washer shaft, preventing water from leaking out of the tub during the wash cycle.

Causes of a bad shaft seal can include wear and tear over time, exposure to harsh detergents or cleaning agents, or damage from foreign objects that may have gotten into the washer.

Symptoms of a bad shaft seal include:

• Water leaking from the bottom of the washing machine
• Excessive noise during operation
• Visible damage or wear on the seal
• Wet spots or puddles under the washer

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Sound Dampening Ring is an OEM replacement part for Whirlpool washing machines. Located within the clutch housing, it serves to minimize noise transmission from internal components.

Causes relate to years of absorbing internal impacts fatiguing the damping material. Buildup of grime and detergent residue in its ridges may diminish noise-isolating effectiveness over time.

Symptoms of failure include:

• Excessive humming or clanking sounds from the transmission area
• Increased cabinet vibrations felt externally during operation
• Improper sound insulation leads to a louder overall noise profile

This is a genuine Whirlpool OEM replacement this part is also compatible with Maytag, Jenn-Air and some Kenmore models.

A replacement mounting screw to secure appliance panels and components so parts stay properly fastened during normal use. Small but essential hardware for stable, rattle-free operation and reliable repairs. What it does:

• Fastens panels, brackets or components to the appliance chassis
• Prevents loose panels, vibration noise, or parts shifting during operation
• Used when original screw is lost, damaged, or stripped
• Restores proper fit and alignment after disassembly for service

• Disconnect power and water before starting any repair
• Use the correct screw type and length; do not force or substitute oversized fasteners
• Tighten until snug—avoid overtightening to prevent stripped threads or cracked parts
• Keep small parts away from children and pets

This replacement nut threads onto a stud or bolt to clamp appliance parts securely. Replace a stripped, rusted, or missing nut to restore a tight, rattle-free fit.

• Clamps components together by tightening onto a matching stud or bolt
• Helps maintain alignment and resists loosening from vibration and heat cycles
• Replaces damaged, corroded, or missing hardware during service
• Symptoms include loose or rattling parts, assemblies backing off, or difficulty keeping components secured

• Disconnect power (and shut off gas, if applicable) before servicing
• Match the thread type/direction to the original; start by hand to avoid cross-threading
• Tighten snugly; follow any model-specific torque guidance and avoid overtightening
• Inspect companion bolts/studs and washers; replace any worn or damaged hardware

This support is a replacement mounting bracket designed to secure and stabilize internal components. Restoring a damaged support helps keep panels and assemblies aligned for quieter, more reliable appliance operation. What it does:

• Provides a secure mounting point to hold panels or components in place
• Prevents movement that can cause rattling, vibration, or misalignment
• Helps maintain proper fit and operation of adjoining parts and panels
• Typically replaces worn, bent, or broken supports that allow looseness

• Disconnect power and, if applicable, water before starting any repair
• Inspect surrounding fasteners and mating surfaces; replace any damaged clips or screws
• Use proper tools and follow the appliance service manual for access and removal

Specs: 10-16 x 1/2 inch.

This block restraint is a small mounting block that secures internal components and limits movement to reduce noise and wear. It restores proper alignment and keeps parts from shifting during operation. What it does:

• Anchors and stabilizes nearby components to prevent excessive movement and vibration
• Helps reduce rattling or banging noises caused by loose internal parts
• Keeps parts aligned to prevent premature wear or abrasion
• Supports safe, reliable operation by holding components in the intended position

• One block restraint

• Disconnect power (and water for washers/dishwashers) before beginning any repair
• Access the mounting location by removing the appropriate panel(s); basic hand tools typically required
• Remove the old block and replace with the new restraint; ensure correct orientation and secure fit
• Inspect surrounding fasteners and mounting surfaces; do not overtighten plastic parts
