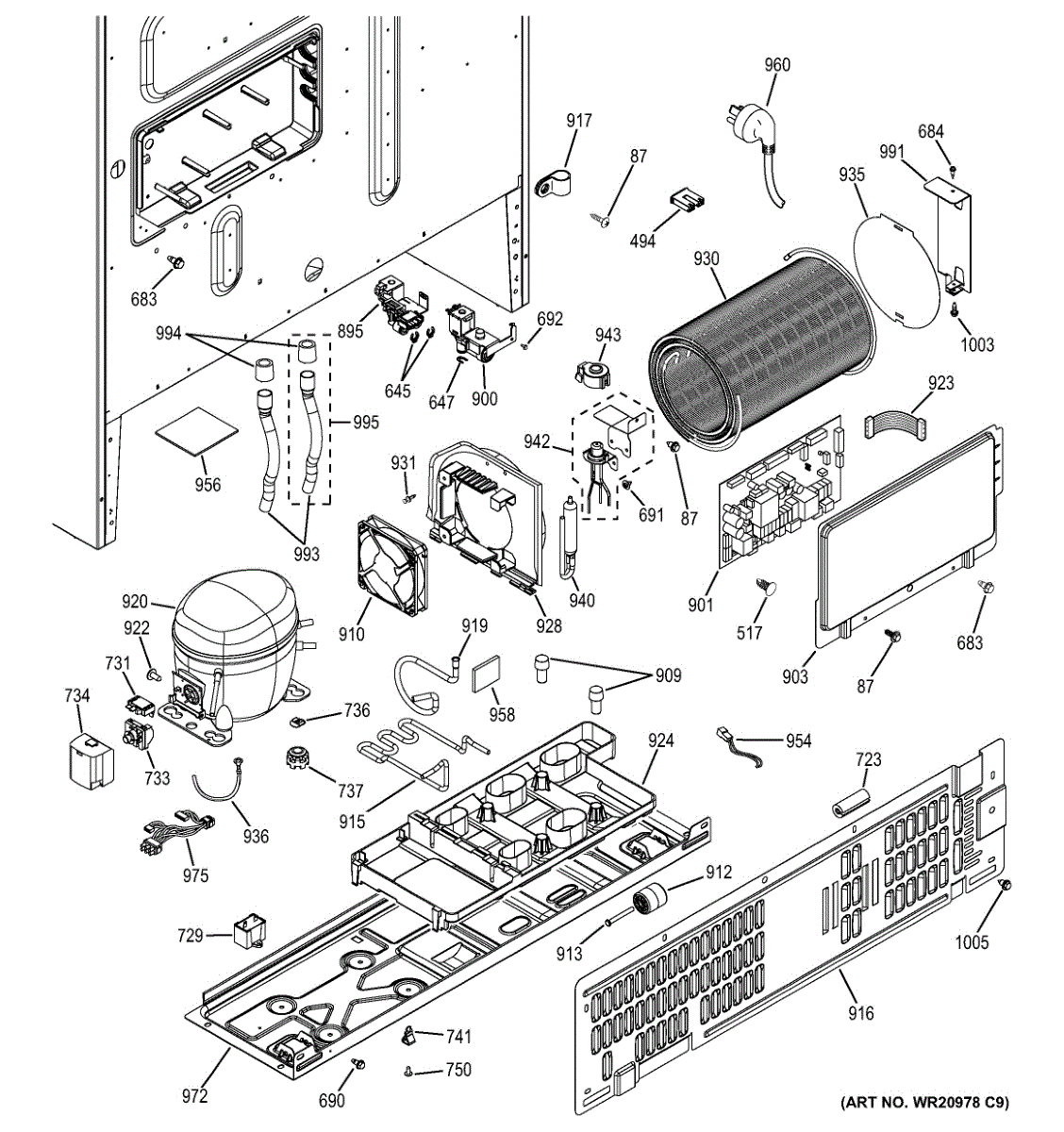

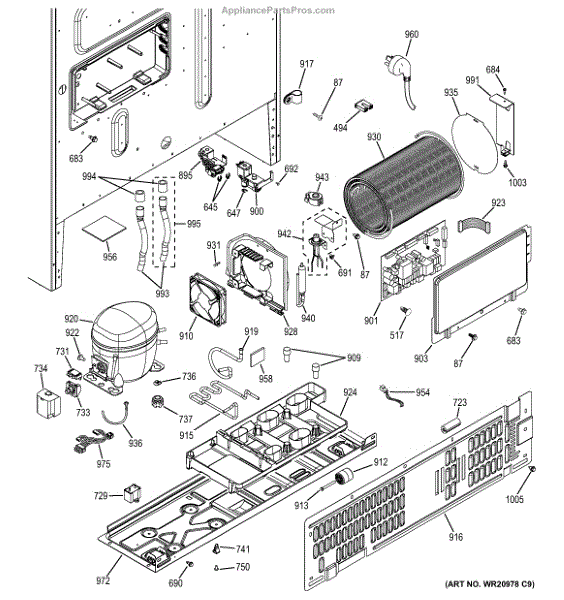

Parts for Ge DFE29JSDDSS: Machine Compartment Parts

Removes contaminants from your refrigerator's water and ice. Replace every 6 months or when the filter indicator activates. Confirm fit with your model.

Sheet metal screw secures refrigerator panels, trim, and brackets. Replace missing, stripped, or corroded screws to restore proper fit and assembly.

Dishwasher not powering on or experiencing electrical issues? This terminal block housing insulator protects wire connections. Simple repair part.

This push-in fastener secures trim, panels, and plastic components on compatible appliances to prevent rattling and hold parts in place. Simple clip design keeps panels aligned without screws or specialized hardware. What it does

• Holds plastic trim, interior panels, and lightweight assemblies in place
• Replaces worn or broken push retainers that cause loose or vibrating panels
• Helps restore proper fit of door liners, kick plates, and interior housings
• Commonly used where a snap-in plastic retainer is required

• Push into the matching hole until the head seats flush; no tools typically required
• Inspect mating hole and surrounding material for damage before installation
• Remove power and follow appliance safety instructions when working near electrical components
• If fastener does not seat correctly, confirm correct part and hole size before forcing

Fixes intermittent operation or no power to components. This 1/4" clip connector secures wire terminals for reliable electrical connections in your fridge.

Water leaking from connections? This locking clip secures 1/4-inch tubing in push-to-connect fittings on refrigerator water and ice systems.

Hex washer head screw secures panels, brackets, and small assemblies inside refrigerators and ranges. Replace stripped, missing, or damaged screws.

This SCR (silicon controlled rectifier) controls high-current switching in the appliance's power circuit to enable reliable on/off control of heating or motor circuits. Designed for direct replacement of the original SCR component. What it does:

• Acts as a solid-state switch to control power to heating elements or motors when triggered by the appliance control board.
• Helps regulate current during start-up and run cycles to maintain proper operation of the appliance.
• Failures can cause symptoms such as no heat, intermittent operation, or the appliance not powering its load.
• Matches the OEM mounting and stud terminal configuration for proper electrical connection.

• One SCR component (8-32 stud) as pictured.

• Disconnect power to the appliance before servicing to avoid shock or damage.
• Use proper tools for the 8-32 stud terminals and ensure secure electrical and heatsink connections.
• Inspect mounting surfaces and replace any damaged hardware or thermal pads as needed for safe operation.

Replace missing or stripped mounting screws in your refrigerator. This 12-pack of 8-32 thread screws secures panels, brackets, and components.

Rubber grommet that cushions and protects refrigerant or water tubing where it passes through sheet metal. Replace if cracked, worn, or missing.

Provides start and run voltage to the compressor. Replace if cracked, damaged, or failing. Installs near the compressor at the bottom of the unit.

The Compressor Overload Protector is an OEM part for GE refrigerators. This part protects the compressor from electrical overload and potential damage. The overload protector ensures the proper function of the compressor by monitoring the electrical current flowing through it. If the current exceeds safe levels, the overload protector will automatically shut off power to the compressor, preventing overheating and potential system failure.

A bad compressor overload protector can occur due to electrical faults or wear and tear over time. If you notice symptoms such as the refrigerator not cooling properly, frequent cycling of the compressor, or the compressor not running at all, it may be time to replace the overload protector.

Symptoms of a bad compressor overload protector include:

• Inadequate cooling in the refrigerator
• Frequent cycling on and off of the compressor
• Compressor not running or not starting

Ensure the reliable operation of your GE refrigerator's compressor by replacing the faulty overload protector with this genuine OEM part.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.


Fix a refrigerator that won't cool or start with a new compressor start relay. This part sends electrical signals to start the compressor each cycle.

Refrigerator clip secures components in place. Replace if broken, loose, or causing rattling noises. Verify fit with your model number before ordering.

Replacement shelf support stud for refrigerator shelves. Installs to hold shelves in place. Needed when original stud is broken, cracked, or missing.

Replacement mounting screw for securing panels, trim, and internal components in appliances. Needed when original screws are stripped, lost, or damaged.

Fix low ice production or no water flow to your ice maker. This inlet valve controls water supply to ensure proper ice maker filling and shut-off.

No water from dispenser or ice maker? The water inlet valve controls water flow to both. DIY-friendly repair takes about 2 minutes with basic tools.

Fridge completely dead with no lights or display? Main control board manages temperature, defrost cycles, and fan operation. Most DIYers complete in 10 min.

Replace a cracked or missing control board cover to protect electronics from moisture and dust. Simple snap-on installation takes 10-15 minutes.

This condenser support is the replacement mounting bracket that holds the refrigerator condenser or condenser coil securely in place, helping maintain proper clearance and airflow for reliable cooling performance. What it does:

• Secures the condenser or condenser coil to the cabinet to prevent movement or vibration
• Maintains correct condenser positioning to support consistent airflow and heat dissipation
• Helps reduce rattling or noise caused by a loose condenser assembly
• Supports overall cooling reliability by keeping components aligned

• One condenser support bracket

• Installation requires basic hand tools; disconnect power before beginning any repair
• Handle sharp sheet-metal edges carefully to avoid cuts
• Reinstall any removed panels or fasteners to restore proper airflow paths

Refrigerator not cooling properly? A failed condenser fan motor prevents heat dissipation. Most DIYers replace this in under 30 minutes with basic tools.

Roller wheel for bottom-mount refrigerators. Mounts to the base to allow smooth rolling movement. Replace if cracked, broken, or causing uneven gliding.

This clamp tube secures small appliance tubing and lines to the cabinet, keeping water and refrigerant hoses routed and held in place to prevent chafing or pinch-related leaks. Durable plastic construction fits designated mounting points. What it does:

• Holds water, drain or refrigerant tubing against the appliance frame to prevent movement
• Helps reduce rubbing and chafing that can lead to leaks or hose wear
• Keeps lines organized for reliable operation and easier service access
• Works at common tubing attachment locations such as cabinet walls and brackets

• One clamp tube (single piece as shown)

• Remove power and water supply to the appliance before servicing
• Fastens into a molded or screw-type mounting boss; inspect mating surface for damage
• Replace only with the same style clamp to ensure proper fit and secure routing
• If tubing is damaged, replace the tubing as well—clamp only secures, it does not repair leaks

Refrigerator not cooling or compressor clicking on and off? This compressor kit restores cooling. Requires certified technician with specialty tools.

Replace missing or damaged trim panel screws to secure exterior parts and maintain a clean appearance. Confirm fit with your refrigerator model number.

This personality harness is the OEM-style wiring assembly that links the refrigerator control board to sensors, switches and other components so the control can communicate and operate the appliance reliably. What it does:

• Routes signals between the main control board and connected components (sensors, switches, valves, lights)
• Restores proper control communication when a damaged harness causes intermittent or no operation
• Helps resolve symptoms such as unresponsive controls, intermittent component operation, or error/diagnostic faults tied to wiring
• Provides the correct connectors and color-coded wires to match the original factory harness

• Disconnect power to the appliance before inspecting or replacing the harness
• Handle connectors gently and match keyed plugs to their mating sockets; do not force
• Route and secure the harness away from sharp edges, moving parts and heat sources

Fix your refrigerator not cooling or running constantly with this condenser fan plenum assembly. Connects airflow from fan to condenser coils.

Fix a refrigerator that won't cool properly or runs constantly with this condenser coil assembly. Restores heat dissipation and cooling efficiency.

Plastic rivet for refrigerators. Secures panels, shelves, or trim pieces inside your refrigerator. Replace if cracked, broken, or missing to restore fit.

This ground harness is a factory-style wire assembly that provides a safe electrical return path to reduce shock and interference risks. It restores proper grounding for affected appliance circuits and helps maintain safe operation. What it does:

• Connects appliance metal chassis/components to the ground system to prevent stray voltage and reduce shock risk
• Provides the ground path for control boards and other electrical components to function correctly
• Common symptom: appliance shows electrical faults, intermittent operation, or visible arcing at connection points
• Used when original ground wire is damaged, corroded, or has a failed connector

• One ground harness (wire assembly) as pictured

• Always unplug the appliance or disconnect power at the breaker before starting work
• Match connector types and routing to the original harness; secure all fasteners and strain reliefs
• Inspect mounting points and mating terminals for corrosion; replace fasteners if damaged

Filter drier for refrigerator sealed systems. Removes moisture and contaminants from refrigerant. Replace if frozen, iced over, cracked, or restricted.

Leaking water at the back of your fridge? A failed valve body disrupts water flow to the dispenser and ice maker. Professional repair recommended.

Leaking water at the back of your fridge? A failed valve body disrupts water flow to the dispenser and ice maker. Professional repair recommended.

This pad mastic is an adhesive sealant used to secure foam pads and insulation inside the appliance, helping keep components in place and reducing vibration and air gaps for more consistent performance. What it does:

• Bonds foam pads, insulation and other non-structural components to appliance cabinet surfaces
• Helps reduce vibration and noise by holding pads firmly in place
• Seals small gaps to limit air movement and moisture around insulation
• Commonly used during panel, liner, or insulation repairs and reassembly

• Unplug the appliance or shut off power before starting any repair
• Clean and dry mounting surfaces; remove old adhesive and debris for best adhesion
• Press pad into place and hold as needed; allow adhesive to set per OEM recommendations
• Wear gloves and avoid skin/eye contact; ventilate area when working with adhesives

Reduces refrigerator vibration noise by damping component and panel contact. Replace deteriorated mastic to eliminate rattles and buzzing. Confirm fit.

Replacement power cord for refrigerators. Restores safe AC connection when original cord is damaged, frayed, or worn. Plugs into wall outlet and cabinet.

This harness jumper connects high-side wiring to restore power continuity to a refrigerator's high-side circuit. It replaces a damaged or broken jumper so high-side components can receive reliable power and resume normal operation. What it does:

• Provides a direct electrical connection for the high-side circuit where the original jumper is damaged
• Restores power continuity to high-side components that fail due to a broken or corroded jumper
• Helps eliminate intermittent power or connection issues caused by frayed or loose wiring
• Used as a targeted repair to avoid replacing larger wiring assemblies when only the jumper is faulty

• One harness jumper (hi side)

• Disconnect power to the appliance before inspection or replacement to avoid shock or injury
• Verify connector orientation and secure all terminals; avoid forcing connectors together
• Inspect surrounding wiring and terminals for heat or corrosion; replace damaged components as needed

Water leaking under your refrigerator? A clogged or cracked drain tube and valve causes leaks and ice buildup. Easy DIY fix—simply pull off and push on.

Water leaking under your refrigerator? A clogged or cracked drain tube and valve causes leaks and ice buildup. Easy DIY fix—simply pull off and push on.

Mounting screw fastens panels, brackets, and trim in refrigerators, dishwashers, and ranges. Replace missing, stripped, or rusty screws to secure parts.

Secures panels, brackets, and internal components in refrigerators. Replace if screw is missing, stripped, or corroded. 1/4-20 thread, 7/8" length.
