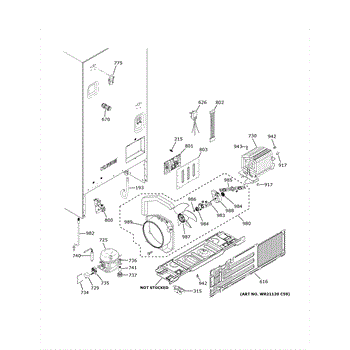

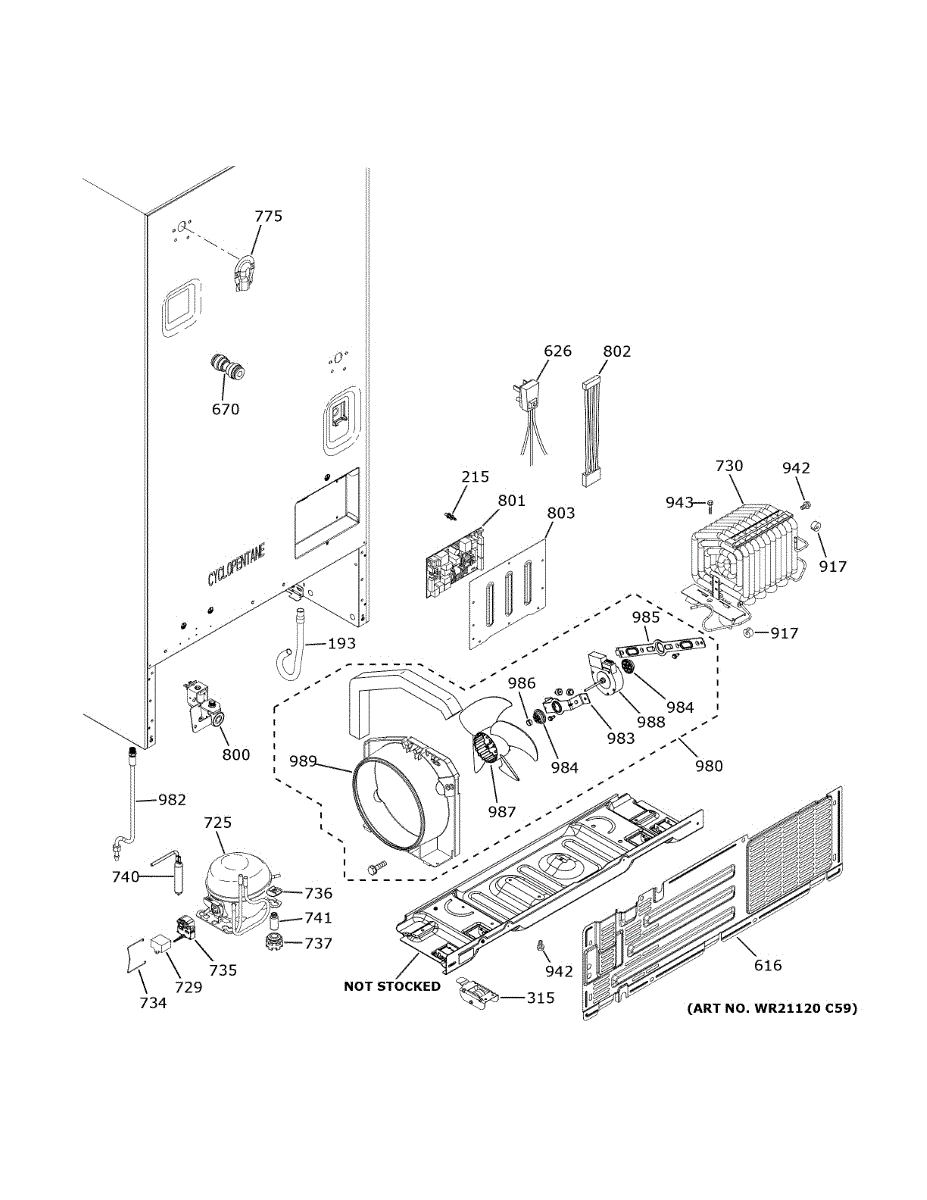

Parts for Ge GFE24JGKXFBB: Machine Compartment Parts

Directs defrost water from the evaporator to the drain pan below your refrigerator. Replace if cracked, damaged, or clogged to prevent water pooling.

Mounting standoff spacer secures internal components, panels, and circuit boards inside your refrigerator. Replace if cracked, broken, or missing.

Cardboard or metal cover that closes the machine compartment opening on your refrigerator back panel. Replace if cracked, missing, or water-damaged.

Fix electrical failures in your refrigerator's lower cabinet with this wiring harness. Connects components for proper operation. Moderate DIY repair.

Straight 1/4-inch coupler joins two sections of refrigerator water tubing. Replace when cracked, leaking, or missing to restore connections.

Provides start and run voltage to the compressor. Replace if cracked, damaged, or failing. Installs near the compressor at the bottom of the unit.

If your refrigerator won't cool or the compressor won't start, the overload protector may have failed. This start device helps the compressor run reliably.

Fix refrigerant flow issues and moisture contamination in your refrigerator's sealed system. This filter drier requires EPA-certified tech for installation.

Covers and conceals the water supply tube on your refrigerator for a clean appearance. Replace if cracked, broken, or missing to protect the line.

Fix water dispenser dripping or ice maker overflow issues. This valve and guard assembly controls water flow to your dispenser and ice maker.

This sound damper cushions the refrigerator compressor to reduce vibration and minimize noise for quieter operation. It helps protect the compressor from metal-on-metal contact and dampens normal operating sounds. What it does:

• Cushions compressor mounting to absorb vibration and reduce noise
• Prevents metal-on-metal contact that can cause rattling or buzzing
• Helps stabilize the compressor to reduce wear from vibration
• Commonly used when compressor noise, rattling, or increased vibration is noticed

• One sound damper

• Always disconnect power to the appliance before beginning any repair
• Access the compressor area (rear lower cabinet); remove any panels as needed
• Remove the old damper and press the replacement onto the compressor mounting foot until fully seated
• If mounting hardware is damaged or the compressor mount appears worn, replace mounting parts.

10-32 x 5/16 machine-thread screw secures refrigerator panels, trim, and internal brackets. Replaces missing or damaged fasteners to prevent rattles.

Hex washer head screw for securing refrigerator components. Replace if screw is stripped, missing, or damaged during maintenance or repair work.

If your refrigerator isn't cooling properly or runs constantly, the condenser fan assembly may have failed. This housing and fan unit restores airflow.

Internal water supply tube for refrigerators. Routes water between components inside the unit. Replace if cracked, split, or leaking at fittings.

Rubber grommet that seals and cushions where the evaporator fan motor shaft mounts. Replace if cracked, worn, or missing to eliminate noise and vibration.

Rear condenser fan mounting bracket for refrigerators and freezers. Replaces broken, cracked, or missing brackets that secure the fan assembly.

Secures and seals water line connections in your refrigerator's dispensing system. Replace if leaking or loose to prevent water damage. Confirm fit.

Refrigerator running hot or making loud noises? A worn condenser fan blade prevents proper airflow across coils. DIY repair in 30 minutes or less.

Fix a refrigerator that's not cooling or has an overheated compressor. This condenser fan motor circulates air over the compressor and coils. DIY-friendly.
