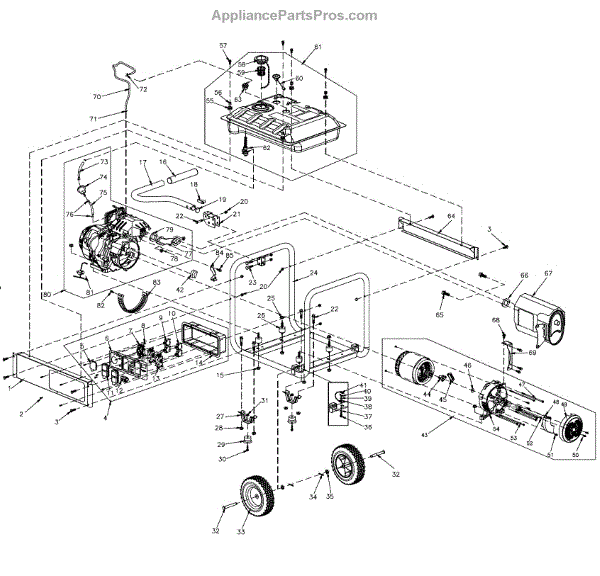

Parts for Generac 005940-2: Main Assy Parts

This is a high-quality anti-vibration mount that is located on many Generac portable generators. The anti-vibration mount is seated between the frame and motor and is not the same as the rubber mount found under the frame itself. The purpose of the anti-vibration mount is to cut down on the amount of vibration that the motor can put out. If this part is damaged or starts to malfunction, the generator may begin to make more noise or create more vibration than it previously did. It will need to be replaced to get the generator back into good shape.This part is simple to replace and requires only basic tools and work gloves. First, make sure the generator is unplugged and turned off. Gain access to the frame motor and locate the anti-vibration mount. It can be removed before a new part is placed in the same location. If there is more than one mount, replacing them at the same time is recommended.The anti-vibration mount is a genuine OEM replacement part that is directly sourced from the manufacturer. It is made to be used with Generac generators and is sold on an individual basis.

This is an M6 G8.8 screw that has been tempered for added strength. It is made of carbon steel and is ideal for use in lawn mower engines and other pieces of equipment. It measures 28 millimeters in length with an outside diameter of six millimeters. This Generac replacement screw can be used in any application where an M6 1.0 x 28 is required as a replacement for a broken or stripped screw. Routine maintenance may reveal missing or damaged screws that need to be replaced. Removal and replacement are simple. This M6 screw requires a hex wrench for removal. If the screw is in a difficult location, a socket with a hex wrench can be used. Install the new screw and tighten firmly but not overly tight as this can strip the threads. This M6 1.0 x 28 G8.8 screw is an individually sold Generac part. It is used in lawn mowers, lawn tractors, weed eaters, and other pieces of equipment that require heavy-duty screws for assembly.

This flange hex nut is a common piece of hardware used in a range of machines and engines. The flange on the nut helps to provide a secure connection, and it can reduce the amount of strain on the pieces that are being held together. If there is damage to these parts, or any are missing, it could cause vibrations in the machine or parts could become loose. Over time, flange hex nuts can become corroded or worn. Replacement is usually easy depending on the location of the nut.This flange hex nut is typically found in certain generator models from Generac. This OEM part is high-quality and has been sourced from the manufacturer. It is sold individually.

This replacement part is a "single" wheel typically used on generators. This is a genuine replacement part made by Generac. Wheels are an important part in this appliance as they allow the user to move the generator with ease. This type of appliance is made to be easily transported and the wheels make that possible. A new wheel might be needed if the current ones are worn down or broken in any way. It is not unusual for this part to require replacement after years of normal use as the wheels might lose traction overtime. Be sure the appliance is completely powered down and cooled off before attempting to replace this part as the user will need access to the bottom of the generator. This is an OEM part sourced directly from the manufacturer. It is sold individually. This replacement part is compatible with generators made by Generac.

This part is a replacement brush holder. It is intended to repair a defective or broken brush holder in generators.This part is intended to hold the carbon brushes and ensure that they are not easily lost or detached. This brush holder should be replaced if the current one is broken, cracked, detached, or otherwise rendered ineffective. Wear work gloves to protect the hands and check that equipment is powered off and cooled down before starting the repair process.This brush holder is a genuine OEM part from Generac made of durable materials and is sold individually. It is suitable for use with generator models that have been manufactured by Generac, Siemens, Honeywell, and some other brands.

This is an automatic voltage regulator that is used on many generators. Depending on the model of the generator, it can be located in the main control box, under the alternator rear cover, or in the alternator terminal box. It senses the voltage from the generator terminals and compares it to a stable reference. This is used to adjust the flow to the right level. If the automatic voltage regulator is damaged, the generator will experience a loss of voltage that causes the machine to shut down.A malfunctioning automatic voltage regulator will need to be replaced. If it isn't, the generator may not run. If it does run, it can cause serious damage to the generator. Test the main circuit breaker before testing the wiring. Next, adjust the automatic voltage regulator. If this doesn't help, check the rotor brushes. If the generator is still not working correctly, the automatic voltage regulator should be replaced. Make sure to turn it off and unplug it before doing so.This is a genuine OEM replacement part that is directly sourced from the manufacturer. The automatic voltage regulator is sold on an individual basis. The component is made for use with several generators manufactured by Generac.

This fuel filter keeps dirt and foreign objects out of the fuel system of Generac generators. Fuel, particularly when stored in portable fuel tanks, is prone to getting dirt and debris in it. Before using it in a generator or other piece of equipment, the debris needs to be removed. If the dirt and debris are not removed from the fuel, it can enter the fuel system and cause damage. The fuel filter prevents this from happening.Fuel filters need to be examined and replaced as part of routine maintenance. A visual inspection will show if the filter is dirty or not. If dirty, the filter is easily removed with a pair of pliers. The new filter can be put into place using your hands. The process normally takes less than twenty minutes. All dirt and contaminating particles are not visible to the naked eye. The fuel filter should be replaced according to a scheduled maintenance plan, regardless of visible dirt and debris. This OEM fuel filter comes directly from the manufacturer and is used in Generac portable generators. The overall part is made of plastic and contains a mesh filter. It is sold individually.

A fuel valve shut-off is an important piece that impacts the flow of fuel to the engine. It is designed specifically to be compatible with portable generators by the Generac brand.The fuel valve shut-off part is crucial because it manipulates the flow of oil. The purpose of the fuel valve shut-off is to attach to the fuel tank, and then it either allows fuel to pass to the engine, or it prevents the flow of fuel if the level is too low or if there is another problem. The replacement or repair process of the fuel valve shut-off should be straightforward, but the user replacing the part should always be sure to wear gloves during any assembly, replacement, or installation processes. The user should also refer to the owner's manual of their equipment and any guiding diagrams that clarify the placement location.This fuel valve shut-off is made out of metal and plastic. This fuel valve shut-off is an original OEM part sourced directly from the manufacturer, Generac. It is sold individually.

This replacement part is roll over valve intended for use in generators. This is a genuine replacement part made by Generac. This part is responsible for burning off fumes created by the generator.A new roll over valve might be needed if the current one is damaged or broken in any way. It is not unusual for this part to require replacement after years of normal use. Be sure the appliance is completely powered down and cooled off before attempting to replace this part. For more detailed instructions on how to replace this specific part, please reference the user guide or manual for the appliance. This is an OEM part sourced directly from the manufacturer. It is sold individually. This replacement part is compatible with generators made by Generac.

This exhaust gasket is an authentic OEM part sourced directly from the manufacturer specifically for use on Generac generators. The exhaust gasket seals the connection between the exhaust manifold and the side of the engine. The gasket prevents exhaust gasses from leaking out and prevents contaminants from coming into the exhaust system. If the generator's engine starts sounding very loud, loses power, has a burning smell, or loses fuel efficiency, the exhaust gasket could be worn and need to be replaced. All gaskets should be inspected on a regular basis to maintain the life of the generator.Allow the generator to cool before working on it. Wear safety gloves and remove the spark plug for safety. Use a screwdriver and remove the muffler housing. Next, remove the muffler and exhaust pipe. Pull the exhaust gasket off and install the new gasket. Reassemble the generator using reverse steps. Install the spark plug and start the generator to ensure it is back together correctly.This exhaust gasket is sold individually and is the muffler side gasket. This gasket is designed specifically for Generac generators.

This fuel filter is a very important piece of hardware designed for use with outdoor lawn and garden power equipment, specifically for Generac portable generators.The fuel filter part is crucial to keep the carburetor of the portable generator as healthy and functional as possible. The purpose of the fuel filter is to ensure that the fuel being supplied to the carburetor of the portable generator is completely free of dirt, debris, and other contaminants. Over time and with exposure to the elements, it is natural that the fuel filter will become dirty or get clogged. This is problematic because it restricts the fuel flow, and in the scenario where the engine is not getting enough fuel, the portable generator will not operate properly. If this happens, it means it is time to replace the fuel filter. The replacement or repair process of the fuel filter should be straightforward, but the user replacing the part should always be sure to wear gloves during any assembly, replacement, or installation processes. The user should also refer to the owner's manual of their equipment and any guiding diagrams that clarify the placement location.This fuel filter is made out of durable plastic and is designed to go in the body of the portable generator by Generac. The fuel filter is an original OEM part sourced directly from the manufacturer, Generac. It is sold individually.

This part is a replacement fuel line clamp. It is intended to repair a defective or broken fuel line clamp in generators.This part ensures that the equipment's fuel line is properly and safely secured in place. Clamps may become broken, worn, detached, or otherwise rendered ineffective over time, requiring replacement with a genuine OEM part. Wear work gloves to protect the hands and check that equipment is powered off and cooled down before starting the repair process.This fuel line clamp is a genuine OEM part from Generac made of durable materials and is sold individually. It is suitable for use with generator models that have been manufactured by Generac, Siemens, Honeywell, and some other brands.

Designed with wires ready for installation, this on/off switch includes the bold red handle with on and off indicators, grounding lines, and pre-stripped and seated wiring. With a rotary design, it may need replacement when a machine is used frequently or the on/off switch is handled roughly. Making the repair requires a screwdriver and pliers. It is necessary to disconnect power cables when doing this repair in order to remain safe at all times. Removing the entire outdated assembly and then reconnecting the new wires is necessary, and caps may be required but do not come with the unit. This genuine OEM on/off switch is made for Generac brand portable generators. It is also effective on some brands of pressure washers. This item ships individually.
