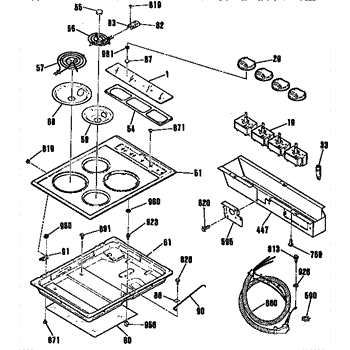

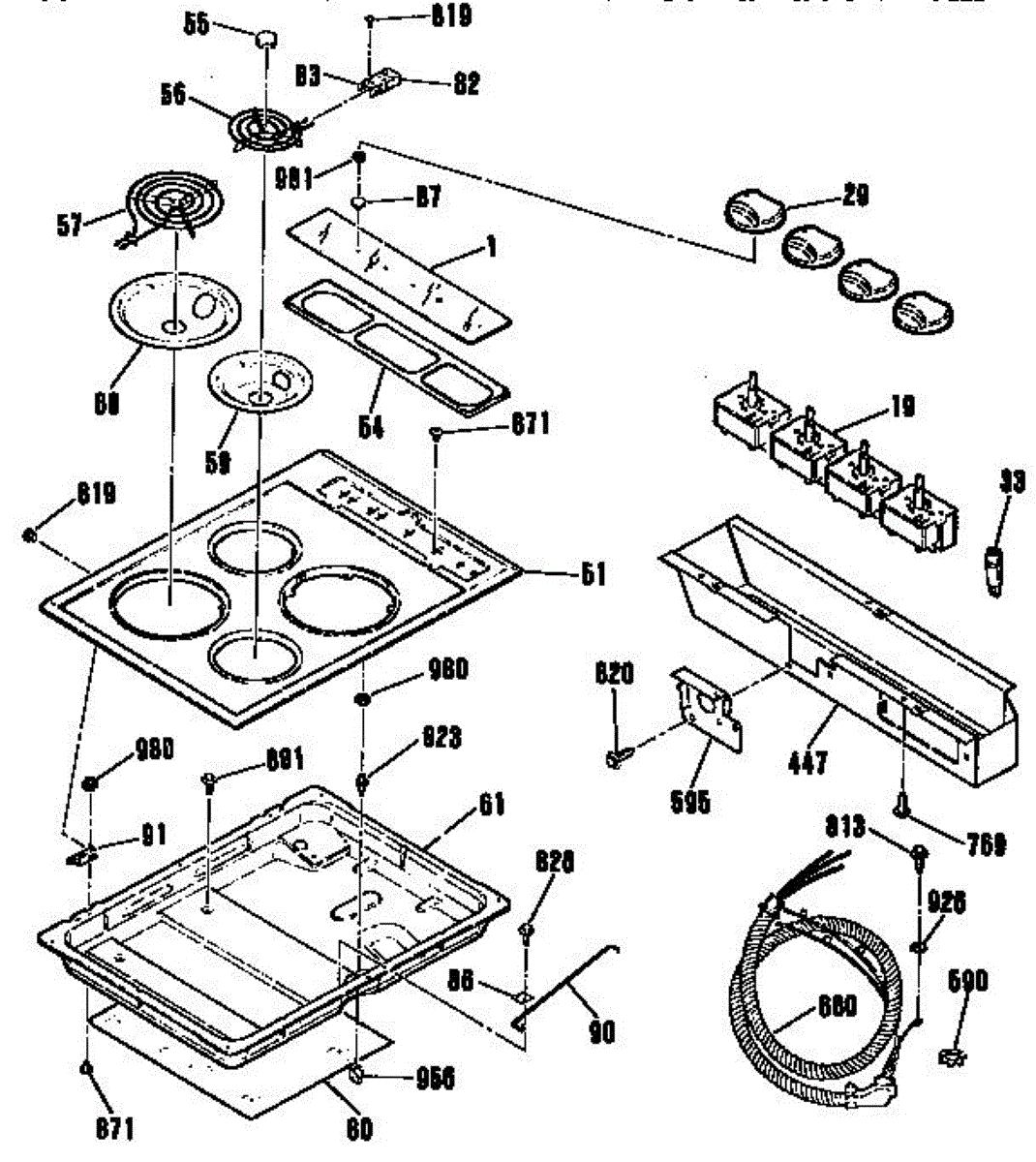

Parts for Kenmore 911.4242592 (9114242592, 911 4242592): Main Top Parts

Restore reliable heat on your range's small burner with this 6-inch surface coil element. Replacing a worn or burned-out coil brings back consistent temperature response and dependable everyday cooking performance.

• Supplies direct electric heat to a 6-inch cooktop burner
• Replaces a coil that is warped, cracked, or has an open/burned-out section
• Common symptoms include: burner won't heat, heats unevenly, or works intermittently
• Visible damage, hot spots, or arcing at the terminals can indicate failure

• Disconnect power by unplugging the range or switching off the circuit breaker
• Lift the old coil and pull straight out from the receptacle to remove
• Inspect the element receptacle/terminal block for discoloration or pitting; replace if damaged
• Align terminals and support, insert fully, and ensure the element sits level in the drip bowl

The 8" Surface Element is an OEM part for GE ranges. It is an 8-inch heating element that fits into the cooktop to provide heat for cooking.

Causes of a bad surface unit include wear and tear from regular use, damage due to heavy cookware, or electrical issues that prevent the element from heating correctly.

Symptoms of a bad surface unit include:

• The burner not heating up
• Uneven heating or hotspots
• Visible damage or burn marks on the element

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This 6" porcelain bowl is a direct-replacement interior bowl used in compatible appliances to restore a smooth, easy-clean surface and secure containment for food or liquids during operation. Durable porcelain helps maintain appliance appearance and function. What it does:

• Replaces a cracked, chipped, or stained porcelain bowl to restore a sealed, easy-to-clean surface
• Provides a stable container for holding food or liquids during normal appliance use
• Helps prevent leaks or drips from a damaged interior bowl
• Maintains the appliance's original finish and resists everyday wear

• One 6" porcelain bowl

• Disconnect power to the appliance and allow all surfaces to cool before handling
• Handle porcelain carefully to avoid chipping; wear gloves if needed
• Seat the bowl in the appliance according to the OEM alignment or mounting points

The Drip Pan is an OEM part for GE ranges. This part is located under the burner to catch spills, drips, and crumbs during cooking. The drip pan helps maintain cleanliness by containing messes, making it easier to keep the cooktop clean and preventing spills from reaching the internal components of the appliance. Note: This is the drip pan used with the 6-inch element. For the drip pan used with 8-inch element, order WB31K5025.

Causes of a bad drip pan can include regular wear and tear, discoloration from repeated use, or damage from heavy pots and pans.

Symptoms of a bad drip pan include:

• Visible cracks or holes in the pan
• Rust or significant discoloration
• Difficulty in cleaning the pan
• The pan not fitting securely under the burner

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This replacement burner box bottom is the lower housing that supports and protects the gas burners and oven components beneath the cooktop. It helps contain spills and directs heat away from the cabinet for safer operation. What it does:

• Provides the lower housing that supports burners and related components in gas ranges
• Helps contain drips and food spills to keep internal components cleaner
• Directs heat and flame away from the cabinet structure for improved safety
• Restores proper burner seating and alignment when damaged or corroded
• Can reduce smoke or odors caused by burning debris trapped under the cooktop

• One burner box bottom

• Disconnect power and turn off the gas supply before servicing; work in a well-ventilated area
• Installation typically requires removing the cooktop/grates and burner components; follow the manufacturer's service instructions
• Wear gloves and eye protection; replacement may require basic hand tools

The Top Burner Receptacle Kit is an OEM part for Whirlpool ranges and cooktops designed to provide a reliable electrical connection between the stove's top burners and the power source. This kit typically includes receptacles, wire terminals, and mounting hardware necessary for the installation, ensuring that each burner receives the proper electrical current to heat efficiently.

Causes of a bad top burner receptacle can include corrosion due to spills or moisture, physical damage from heavy use, or natural wear and tear over time.

Symptoms of a bad Top Burner Receptacle Kit include:

• A burner that doesn't heat up
• Intermittent heating or fluctuating temperatures
• Visible signs of damage or corrosion on the receptacle
• Sparks or short circuits when attempting to use a burner

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This mounting bracket secures the surface element terminal block to the cooktop. Replacing a bent or missing bracket helps keep the coil element connection aligned and stable so the burner plugs in firmly during use.

• Provides a fixed mount for the surface element receptacle beneath the burner opening
• Helps prevent the terminal block from shifting, sagging, or rotating when inserting/removing the element
• Common symptoms include a loose or wobbly receptacle, element not seating fully, or visible bracket damage/missing bracket
• Replace if the bracket is bent, broken, or cannot hold the receptacle in position

• Disconnect power at the breaker and allow the cooktop to cool completely
• Remove the surface element and lift/open the cooktop to access the terminal block area
• Transfer the receptacle/terminal block onto the new bracket and secure with existing hardware, ensuring correct alignment
• The element prongs insert smoothly before restoring power

These GE screws are a 12-pack of OEM replacement parts responsible for securing and fastening various components and panels in a GE range or oven. These screws are designed with a hexagonal head, which allows for the use of a compatible wrench or socket for tightening. They are commonly used to attach sheet metal panels, brackets, and other parts within the appliance, ensuring that these components remain securely in place during operation.

This part fixes the following symptoms:

• Loose or wobbly parts or panels within the appliance's interior or exterior
• Panels or components falling out of place, creating gaps or exposing internal parts
• Unusual noises or rattling sounds during the appliance's operation

The GE screws can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

ST10-16 X 7/16"

This replacement screw secures appliance components and helps keep panels, brackets, and controls firmly attached for reliable operation. It's a simple, direct fix when a mounting screw is missing, loose, or stripped. What it does:

• Fastens panels, trim, brackets or electrical components to reduce movement and rattling.
• Restores proper alignment of parts that shift when a screw is missing or worn.
• Helps maintain electrical and mechanical connections by keeping components seated.
• Common symptom: loose or vibrating panels, trim gaps, or visibly missing hardware.

• Disconnect power to the appliance before accessing internal components.
• Use the correct screwdriver or driver bit to avoid stripping the head.
• Thread gently and avoid overtightening to prevent stripping the mating threads or cracking surrounding parts.
• Keep any removed hardware organized to ensure placement of all required fasteners during reassembly.

Nickel

Package of 12

This replacement screw secures panels and small components on your appliance to restore proper fit and help prevent rattling or loose parts. Use it wherever the original fastener has been lost or damaged. What it does:

• Secures trim, panels, or mounting brackets to keep components aligned
• Prevents vibration and rattling caused by loose fasteners
• Replaces missing or stripped screws that compromise panel fit
• Restores reliable fastening so doors and controls sit correctly

• Disconnect power before accessing internal panels or components
• Use the correct driver to avoid stripping the screw head
• Thread carefully and do not overtighten to prevent damage
• Keep small parts away from children and pets
