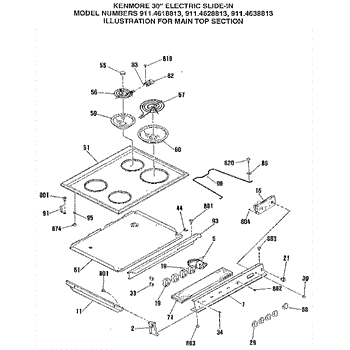

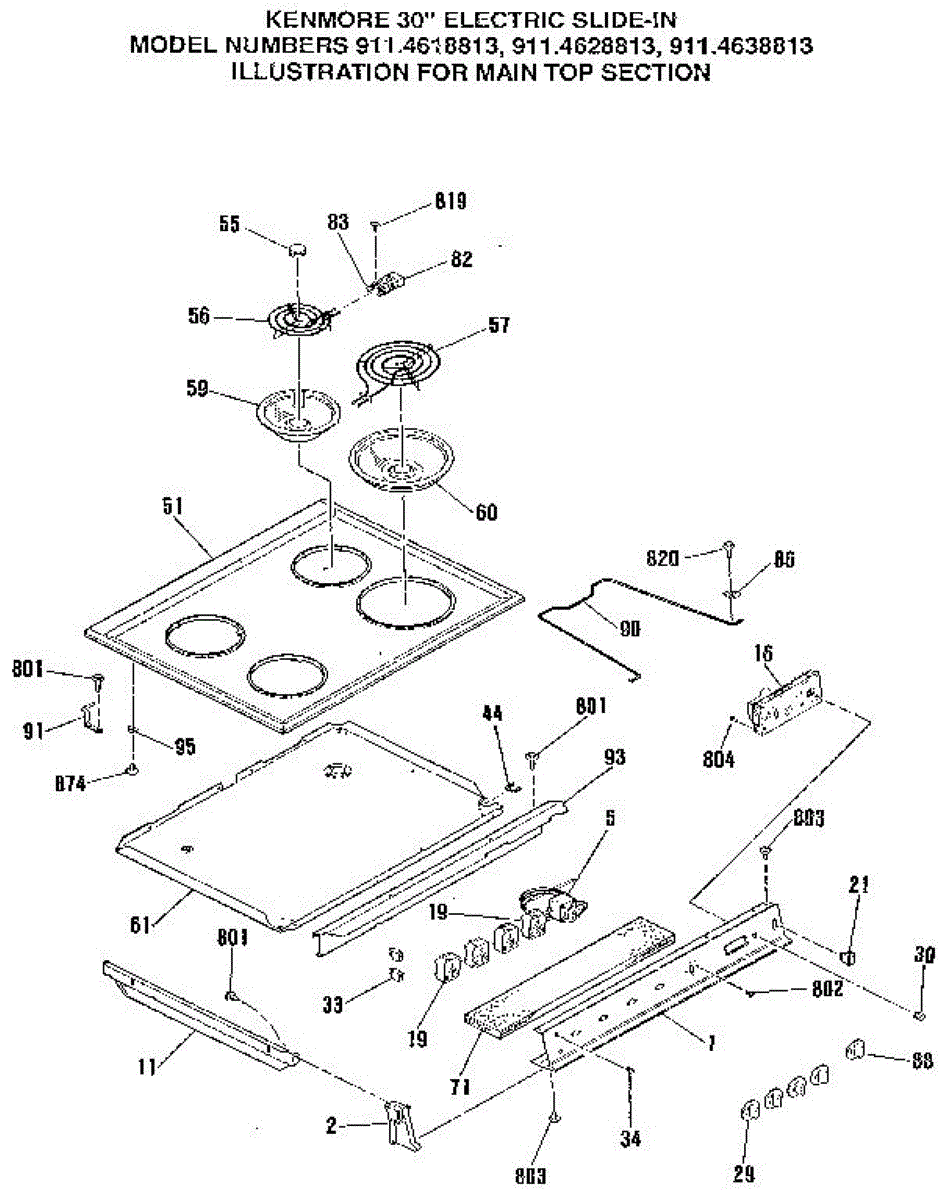

Parts for Kenmore 911.4628813 (9114628813, 911 4628813): Main Top Section Parts

8" element switch

The Infinite Heat Switch Kit is an OEM part for GE ranges and cooktops. This kit is essential for controlling the temperature of the burners on your range or cooktop, allowing you to adjust the heat level from low to high.

Causes of damage to the infinite heat switch can include normal wear and tear from frequent use, electrical issues such as short circuits or power surges, and physical damage from cleaning or impact.

Symptoms of a bad Infinite Heat Switch include:

• Burners not heating to the desired temperature, either staying too hot or not getting hot enough.
• The burner not turning on at all, indicating a possible failure in the switch's electrical contacts or circuit.
• Inconsistent cooking temperatures, where the burner cycles on and off too frequently or not often enough, affecting cooking performance.

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

Color: Black

Oven indicator light not working? This control panel lamp shows when heating elements are active. Simple DIY fix restores visual status feedback.

Range indicator light shows when your oven is heating or in operation. Replace if the light fails to illuminate or stays on constantly. Verify fit with your model.

Indicator light lens covers and diffuses the panel light on your range or oven. Replace when cracked, discolored, or missing to restore visibility.

Burner not heating or heating unevenly? This 6-inch surface coil element restores consistent heat to your range's small burner. Simple plug-in install.

If your burner won't heat or has stopped working, this 8-inch surface heating element restores cooktop function. Easy plug-in installation in minutes.

Chrome drip bowl that sits under your range's 6-inch surface burner. Replaces cracked, warped, or discolored pans. Measures 8 inches across at top rim.

Replacement drip pan sits beneath the heating element on electric ranges and cooktops. Catches spills and overflow. Replaces cracked, warped, or worn pans.

Insulation pad that installs behind the range control panel to reduce heat and dampen sound. Replace if cracked, compressed, or missing for proper protection.

Burner not heating or making poor contact? A damaged terminal block disrupts power to heating elements. DIY-friendly repair, takes about 10 minutes.

Fix loose or wobbly burner connections with this terminal block mounting bracket. Secures the element receptacle so coils plug in firmly and heat properly.

Support rod clip secures internal components in your range. Replace if loose, broken, or causing rattling noises. Verify fit with your model number.

Right-side hinge for range oven doors. Installs on the door frame to support opening and closing. Replace if cracked, bent, or causing door misalignment.

Range hinge bracket that secures the oven door hinge assembly. Replace this mounting bracket if it's cracked, broken, or bent causing door misalignment.

ST10-16 X 7/16"

Replacement screw for securing panels, trim, and mounting brackets on appliances. Use when original fastener is lost, stripped, or damaged.

Mounting screw for ranges and ovens. Secures panels, brackets, or internal components. Replace if stripped, missing, or damaged during repair work.

Replacement mounting screw secures panels, brackets, and components in place. Needed when original fasteners are missing, stripped, or damaged.

Nickel

Package of 12

Secures the igniter to the burner assembly in gas ranges and ovens. Replace if stripped, missing, or damaged during igniter replacement or repair.

This replacement user manual provides the original equipment manufacturer's operating, safety, and maintenance instructions so you can use and care for your appliance correctly and safely. Keeps essential info on hand for reference. What it does:

• Explains basic operation, control settings, and normal use to help restore proper user guidance.
• Lists safety warnings and cautions to reduce risk during routine use or maintenance.
• Provides maintenance and cleaning recommendations to help prevent common issues.
• Includes basic troubleshooting tips for common symptoms like control confusion, unexpected sounds, or operation errors.

• No tools required; store manual near the appliance or in a safe, accessible place.
• Follow all safety warnings in the manual before performing any service or maintenance.
• For electrical or gas repairs, always disconnect power and/or gas.

Speed nut for ovens and ranges. Secures internal components and panels. Replace if stripped, missing, or damaged during appliance maintenance or repair.
