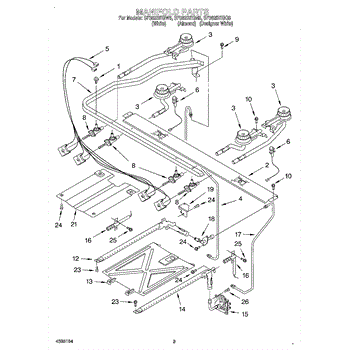

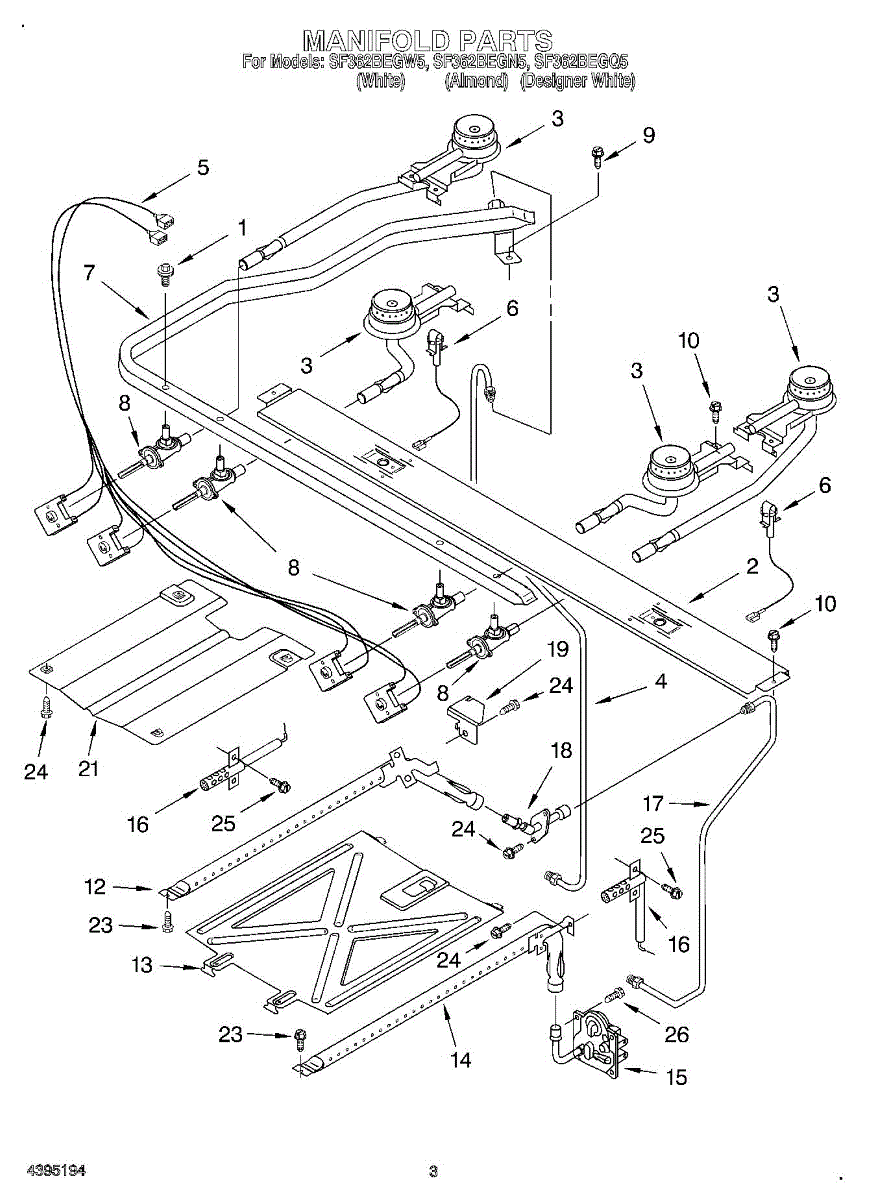

Parts for Whirlpool SF362BEGN5: 03 - Manifold Parts

Left Front

Left Rear

Right Front

Right Rear

This factory screw secures appliance components to their mounting points. Replace missing, worn, or stripped hardware to restore a tight fit, proper alignment, and quieter operation across the affected assembly.

• Fastens panels, brackets, covers, or internal parts to the chassis or frame
• Helps maintain alignment and support, reducing rattle, vibration, or looseness
• Replaces missing or damaged screws that have backed out, broken, or stripped
• Restores secure mounting after service when original hardware is lost

• Disconnect power; shut off water or gas supplies before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Match length and thread to the original location; do not substitute with longer hardware
• Tighten snugly; do not overtighten into plastic or thin metal

The Range Screw is an OEM part for Whirlpool ranges. It is a small but essential component used to secure various parts and panels of the range. It is designed to fit securely into pre-drilled holes, holding components tightly in place.

There are a few factors that can lead to a bad Range Screw. Over time, screws may become loose or stripped due to frequent use or inadequate tightening. Accidental cross-threading or overtightening can also damage the screw or the surrounding components.

Symptoms of a bad screw may include loose or wobbly parts, rattling noises during operation, or difficulty in keeping components securely attached. This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This broiler burner provides the gas flame for the oven's broil function, restoring high-heat cooking performance for searing and browning. Designed for direct-spark-ignition (DSI) ranges, it replaces a worn or damaged broil element. What it does:

• Produces the high, direct flame used for broiling food on the oven's top rack
• Replaces a cracked, rusted, or clogged burner that causes uneven or weak broiling
• Stops burner-related ignition issues when the burner tube or ports are damaged
• Helps restore proper heat distribution for faster browning and searing

• One broiler burner

• Disconnect electrical power and shut off the gas supply before starting work
• Handle gas connections and igniter areas carefully; inspect for leaks after installation
• Use basic hand tools; ensure the burner seats and aligns with the gas orifice and igniter

The Oven Bake Burner with Spark Igniter is an OEM part for Whirlpool ovens. This component is essential for igniting the gas in the oven, allowing it to produce the necessary heat for baking.

Please note: The igniter is only available with this kit and not separately.

You should replace the oven bake burner with spark igniter if it becomes defective. Causes of a bad bake burner or igniter can include wear and tear from regular use, exposure to high temperatures, or damage from food spills and debris. Electrical issues or a malfunctioning igniter can also lead to failure.

Symptoms of a bad oven bake burner with spark igniter include:

• The oven not heating up or taking a long time to reach the desired temperature
• Uneven baking or inconsistent cooking results
• The igniter not sparking or clicking
• Gas smell without ignition indicating the igniter is not working properly

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Gas Valve is an OEM part for Whirlpool ovens and ranges. It regulates the flow of gas to the oven burner, ensuring safe and efficient operation by controlling the amount of gas released for ignition and maintaining a steady flame during cooking.

Causes of a bad gas valve can include wear and tear from regular use, exposure to high temperatures, or damage from gas impurities.

Symptoms of a bad gas valve include:

• The oven not heating or taking a long time to heat up
• The smell of gas when the oven is turned on
• Inconsistent or uneven heating
• The oven failing to maintain the set temperature

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Oven Bake Burner with Spark Igniter is an OEM part for Whirlpool ovens. This component is essential for igniting the gas in the oven, allowing it to produce the necessary heat for baking.

Please note: The igniter is only available with this kit and not separately.

You should replace the oven bake burner with spark igniter if it becomes defective. Causes of a bad bake burner or igniter can include wear and tear from regular use, exposure to high temperatures, or damage from food spills and debris. Electrical issues or a malfunctioning igniter can also lead to failure.

Symptoms of a bad oven bake burner with spark igniter include:

• The oven not heating up or taking a long time to reach the desired temperature
• Uneven baking or inconsistent cooking results
• The igniter not sparking or clicking
• Gas smell without ignition indicating the igniter is not working properly

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Spark Igniter is an OEM replacement part for Whirlpool gas ranges. Located inside the oven cavity it initiates combustion using high-voltage electricity. This is a broil igniter for the upper (broil) burner.

Causes of malfunction relate primarily to element degradation from extended heating cycles. Exposure to grease or other residue accumulation shortens the service life by insulating the hot surface.

Symptoms involve:

• Inability to ignite gas burners using the automatic igniter
• Safety issues arise requiring manual lighting with matches or lighters
• Difficulties baking or broiling without consistent flame generation
• Element replacement prevents further problems and safety hazards

This is a genuine Whirlpool OEM replacement this part is also compatible with Maytag, Jenn-Air and some Kenmore models.

This factory screw secures appliance components to their mounting points. Replace missing, worn, or stripped hardware to restore a tight fit, proper alignment, and quieter operation across the affected assembly.

• Fastens panels, brackets, covers, or internal parts to the chassis or frame
• Helps maintain alignment and support, reducing rattle, vibration, or looseness
• Replaces missing or damaged screws that have backed out, broken, or stripped
• Restores secure mounting after service when original hardware is lost

• Disconnect power; shut off water or gas supplies before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Match length and thread to the original location; do not substitute with longer hardware
• Tighten snugly; do not overtighten into plastic or thin metal

This is a genuine replacement screw used to secure appliance components. It provides a simple, reliable fastener for reattaching panels, brackets, or assemblies so parts stay properly mounted and stable during operation. What it does

• Secures panels, trim, brackets or small assemblies in place
• Restores proper fastening where a missing or damaged screw causes loose parts or rattling
• Prevents movement that can lead to noise or misalignment of adjacent components
• Used wherever the original screw was removed or lost during repairs

• One replacement screw

• Use the matching screw head and thread engagement; do not force if it does not seat smoothly
• Tighten until snug—avoid overtightening to prevent stripping or cracking plastic parts
• Disconnect power before working on electrical appliances and follow basic safety precautions
• If original screw was rusted, check mating threads for damage before installing new fastener
