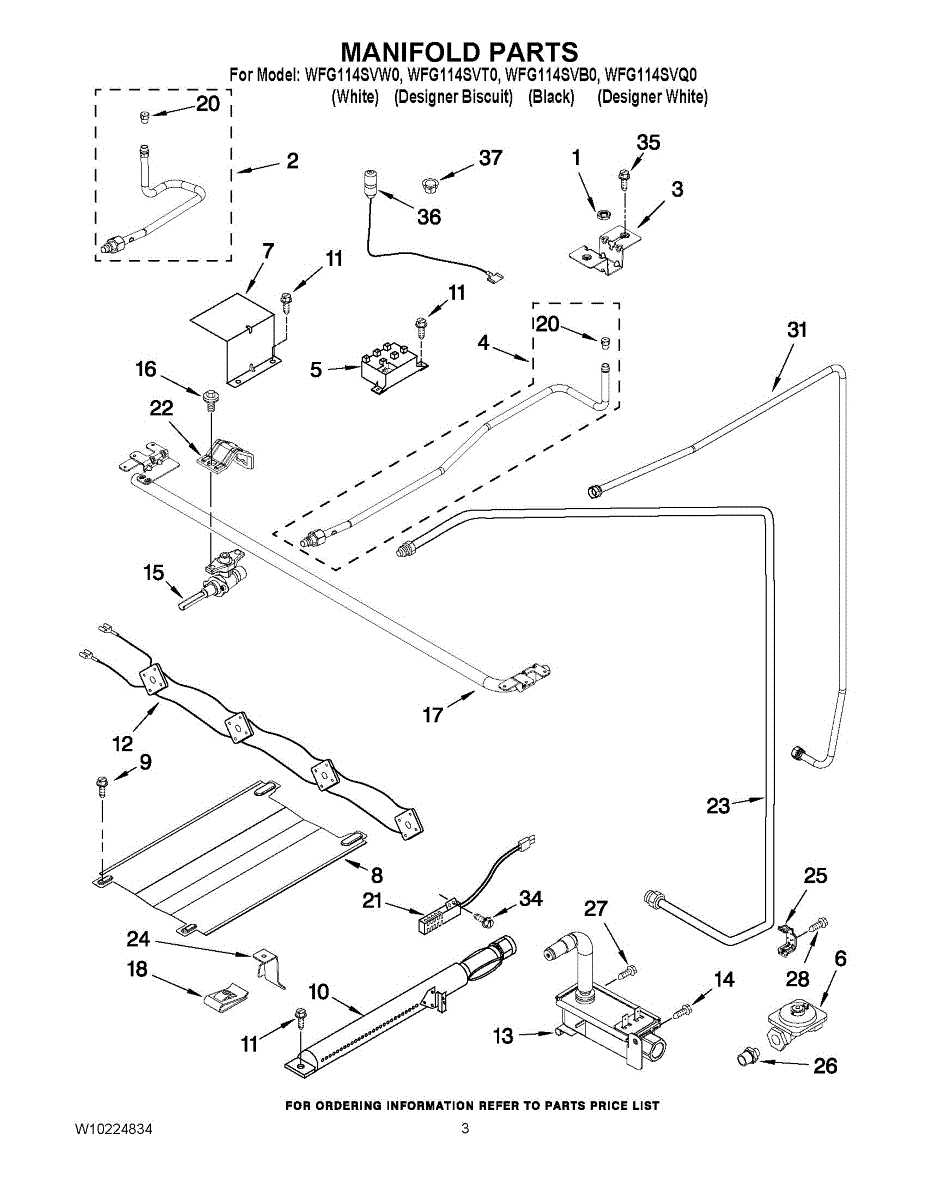

Parts for Whirlpool WFG114SVB0: 03 - Manifold Parts

Fix rattling or loose components caused by vibration with this jam nut. Secures threaded connections on gas ranges and cooktops to prevent backing off.

Fix gas leaks or burners not working with this range venturi tube. Common repair after lifting stovetop during cleaning. DIY-friendly installation.

Venturi tube for gas range front burner. Replaces cracked, broken, or leaking tubes damaged during cleaning or stove top lifting. Essential gas supply part.

Secures surface burner assembly to cooktop for stable, even cooking. Replace if bracket is cracked, broken, or worn to restore proper burner alignment.

Fix cracked or leaking gas venturi tubes on your range burner. Simple repair requiring basic tools and 3 screws. Connects burner valve to orifice.

Fix burners that won't light or have no clicking sound with this gas range spark module. Generates electrical current for reliable ignition.

This oven burner baffle is a metal heat shield that directs heat and protects the oven floor and internal components for reliable cooking performance. It helps maintain even heating and keeps burner flames contained away from oven panels. What it does:

• Shields oven bottom and internal components from direct flame and high heat
• Helps stabilize burner flames for more consistent cooking and baking
• Prevents heat-related damage to oven floor and nearby parts
• Reduces hotspots that can cause uneven baking or browning

• One oven burner baffle

• Disconnect power and shut off gas supply before servicing;
• Handle carefully—edges may be sharp; wear gloves and eye protection
• Ensure the baffle is seated and secured per the oven's parts diagram to avoid rattling or interference with the burner

This factory screw secures appliance components to their mounting points. Replace missing, worn, or stripped hardware to restore a tight fit, proper alignment, and quieter operation across the affected assembly.

• Fastens panels, brackets, covers, or internal parts to the chassis or frame
• Helps maintain alignment and support, reducing rattle, vibration, or looseness
• Replaces missing or damaged screws that have backed out, broken, or stripped
• Restores secure mounting after service when original hardware is lost

• Disconnect power; shut off water or gas supplies before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Match length and thread to the original location; do not substitute with longer hardware
• Tighten snugly; do not overtighten into plastic or thin metal

If your oven won't heat evenly or ignite properly, the burner assembly may be burned out. This part channels gas to create a stable flame for consistent baking.

Factory replacement screw that secures appliance components and hardware. Use it to replace a missing, stripped, or corroded fastener to restore a tight, rattle-free fit and help prevent loosening or damage from vibration.

• Fastens brackets, panels, or internal parts at the original mounting points
• Replaces worn or missing hardware to correct loose or misaligned components
• Helps reduce vibration-related noise and movement
• Matches the original thread and length specified for the application

• Disconnect power; shut off water or gas if applicable before servicing
• Compare to the original for thread and length match before installation
• Start threads by hand to avoid cross-threading; tighten snugly—do not overtighten
• Reuse any original spacers/washers if present; replace if damaged

A cooktop ignition switch harness for 30-inch models, this assembly links the burner knob switches to the spark module so each burner sparks and lights reliably—restoring consistent ignition and eliminating unwanted, continuous clicking.

• Routes power from each control switch to the spark ignition system
• Initiates spark at the electrodes when a knob is turned to Lite
• Common fix for no-spark on one or all burners, intermittent ignition, or continuous clicking with knobs off
• Replaces heat-brittled, shorted, or damaged wiring to restore safe operation

• Disconnect electrical power and shut off gas before servicing
• Remove knobs and lift the cooktop per service information; transfer wires one at a time to match original routing
• Inspect igniters and the spark module while accessible; replace any visibly damaged components
• Test burner ignition on all positions before reassembly

Fix an oven that won't heat or ignite even when the igniter glows. This gas safety valve controls gas flow to your range burner. DIY repair in 20 minutes.

Factory replacement screw that secures appliance components and hardware. Use it to replace a missing, stripped, or corroded fastener to restore a tight, rattle-free fit and help prevent loosening or damage from vibration.

• Fastens brackets, panels, or internal parts at the original mounting points
• Replaces worn or missing hardware to correct loose or misaligned components
• Helps reduce vibration-related noise and movement
• Matches the original thread and length specified for the application

• Disconnect power; shut off water or gas if applicable before servicing
• Compare to the original for thread and length match before installation
• Start threads by hand to avoid cross-threading; tighten snugly—do not overtighten
• Reuse any original spacers/washers if present; replace if damaged

Replace a worn surface burner valve to restore smooth flame adjustment and prevent gas leaks. Rated 2/5 difficulty for DIY replacement on gas ranges.

Replacement screw for gas ranges. Used to secure panels, brackets, and internal components. Order a new screw if yours is stripped, missing, or damaged.

Replacement U-nut for electric and gas ranges. Secures components and panels in place. Order a new nut if yours is stripped, missing, or damaged.

Natural gas.

Natural gas.

Oven won't heat or takes forever to light? This igniter draws current to ignite the gas burner. DIY-friendly repair, typically 20-30 minutes with basic tools.

Mounting bracket for gas ranges. Secures components in place. Replace if bent, broken, or missing. Direct fit for compatible range models.

Support bracket for gas ranges. Secures internal components in place. Replace if bracket is bent, cracked, or broken to restore proper structural support.

Mounting bracket for gas ranges. Secures components in place. Replace if bracket is bent, cracked, broken, or missing to ensure proper installation.

Gas supply tube fitting for range connection. Replaces worn, damaged, or missing fittings. Essential for secure gas line installation and connections.

Gas tubing for gas ranges. Connects gas supply to burner components. Replace if cracked, kinked, or leaking to restore safe gas flow to your range.

This is a replacement screw used to secure panels, trim, or small components on compatible Whirlpool appliances. Installing the correct fastener restores proper fit and helps stop rattles or loose trim. What it does:

• Secures trim, panels, or control components to prevent movement and rattling
• Replaces missing or damaged hardware that can cause gaps or loose parts
• Helps maintain proper alignment of panels and movement-free operation
• Used wherever a factory screw of this size and head style is specified

• Always disconnect power (and water, if applicable) before servicing the appliance
• Use the correct screwdriver or driver bit to avoid stripping the head
• Install by hand until threads engage, then tighten snugly—do not overtighten
• Keep removed hardware organized before final reassembly

Secures panels, brackets, and internal components in your range. Replace stripped, missing, or damaged screws to keep parts properly aligned and secured.

Fix a burner that won't light or clicks repeatedly with a new spark electrode. Creates the electrical arc that ignites gas at your cooktop burner.

Fix burners that click but won't light with this gas range surface burner igniter. DIY-friendly repair takes about 10 minutes with basic tools.

This is a small metal mounting clip used to secure the spark electrode (igniter) in place near a surface burner on a gas range. It holds the igniter at the correct position so the spark can reliably ignite the gas when the burner knob is turned. Replace this clip if the igniter is loose, misaligned, or has fallen out of position, causing unreliable burner ignition.

LP gas conversion orifice kit for range top burners and oven. Includes orifices needed to convert from natural gas to propane. Essential hardware.

LP gas conversion orifice kit for range top burners and oven. Includes orifices needed to convert from natural gas to propane. Essential hardware.
