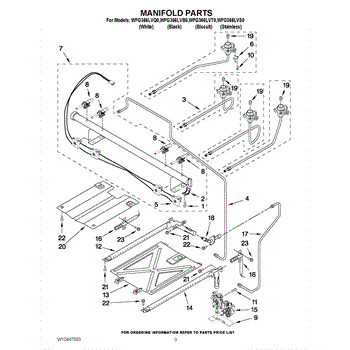

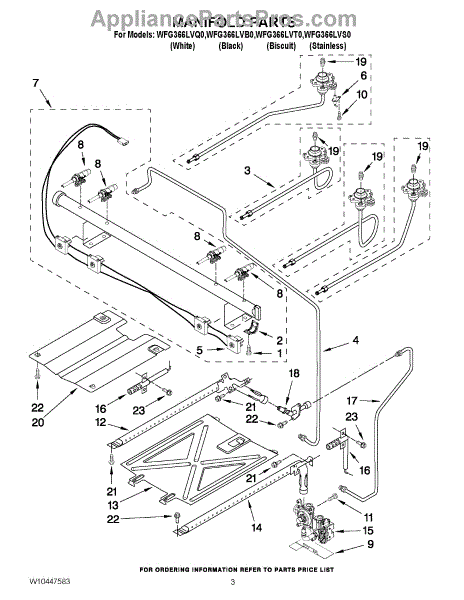

Parts for Whirlpool WFG366LVB0: 03 - Manifold Parts

Screw for gas ranges and ovens. Used to secure panels, brackets, or internal components. Replace if lost, stripped, or corroded during repairs.

Secures the gas orifice in your range burner assembly. Replace this holder if it's cracked, broken, or missing to properly mount the orifice component.

Fix weak or uneven flames on your range's left-front burner. This orifice holder assembly secures the gas orifice for proper fuel delivery.

If your range controls are unresponsive or work intermittently, this wire harness connects the switch manifold to restore reliable control operation.

Burner won't light or clicks continuously? This spark electrode creates the arc that ignites gas at the burner. Simple DIY repair restores ignition.

Controls gas flow to your range's top burner. Replace if the valve stem breaks, knob won't turn, or gas won't adjust properly for simmering or boiling.

This range screw is an OEM replacement part sourced directly from the manufacturer for gas stove burners. These screws attach the ignitor to the burner. Screws may corrode and rust during everyday use. Spills and accidents on the range top may leak down to the screws and cause them to become worn. Screws are not considered part of the ignitor kit or burner kit and will need to be purchased separately. If the screws appear rusty or corroded while replacing the ignitor, it is beneficial to replace them. It is a good idea to purchase the screws at the same time as the parts are purchased so that they are available when needed. A Phillips head screwdriver is necessary to remove and replace the old screws. Make sure the power and gas are disconnected before installing the new screws.This screw is made of silver metal and is a Phillips head screw that is sold individually. Verify the number of screws needed before ordering. This screw is designed for use in gas ranges manufactured by Whirlpool, KitchenAid, Roper, Estate, Inglis, Maytag, Amana, Jenn-Air, and Crosley.

Self-tapping screw secures panels, brackets, and trim to range frames and housings. Replace worn, missing, or stripped fasteners to restore fit.

Broiler won't ignite or heat? This broiler burner restores high-heat flame for searing and browning. Fits gas ranges with direct-spark ignition systems.

Fix uneven baking and hot spots in your gas oven. This flame spreader restores proper flame distribution for uniform heating and better baking results.

Replacement oven bake burner for gas ranges with direct spark ignition. Distributes gas evenly under the oven floor. Replace if cracked, corroded, or damaged.

Range oven won't ignite or heat? Gas valve controls gas flow to burners. Common fix when igniter sparks but no flame appears. 10-15 minute repair.

The Spark Igniter is an OEM replacement part for Whirlpool gas ranges. Located inside the oven cavity it initiates combustion using high-voltage electricity. This is a broil igniter for the upper (broil) burner.

Causes of malfunction relate primarily to element degradation from extended heating cycles. Exposure to grease or other residue accumulation shortens the service life by insulating the hot surface.

Symptoms involve:

• Inability to ignite gas burners using the automatic igniter
• Safety issues arise requiring manual lighting with matches or lighters
• Difficulties baking or broiling without consistent flame generation
• Element replacement prevents further problems and safety hazards

This is a genuine Whirlpool OEM replacement this part is also compatible with Maytag, Jenn-Air and some Kenmore models.

The Oven Igniter is an OEM part for Whirlpool ovens. It is designed to ignite the gas in the oven burner, providing the heat necessary for baking or broiling. This igniter is critical for the oven’s functionality, as it must heat up to a specific temperature to open the gas valve and begin the combustion process.

Symptoms of a bad Oven Igniter include:

• The oven failing to heat up despite the gas being turned on.
• A gas smell indicating that gas is being released without ignition.
• Intermittent heating, where the oven fails to maintain a consistent temperature.

Causes of a bad oven igniter can include aging and wear that reduce the igniter’s ability to reach the required temperature, electrical issues such as faulty wiring or connections, or a malfunctioning safety valve that doesn’t open properly.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This orifice spud directs natural gas to a burner for correct flame size and consistent heating on compatible gas ranges and cooktops. It replaces a worn or damaged orifice so burners can operate more reliably. What it does:

• Metering point that controls gas flow to the burner for proper combustion
• Helps restore normal flame height and even heating when the orifice is clogged or damaged
• Commonly used when burners show weak, uneven, yellow/sooty flames or fail to light reliably
• Matches the natural gas #13 sizing specified for certain burner assemblies

• Turn off the gas supply and unplug the appliance before starting any work
• Allow the range to cool completely and remove grates/burner caps to access the orifice
• Use the correct-size wrench; thread carefully and avoid overtightening to prevent damage

Burner orifice spud for gas ranges. Meters gas flow to control flame height. Replace if clogged, damaged, or when converting between natural gas and LP.

Precision-machined orifice spud that meters natural gas to a range or cooktop burner. The #9 size restores correct fuel flow and flame characteristics when replacing a clogged or damaged orifice or when installing the model's specified natural-gas orifice.

• Regulates gas flow to the burner for proper flame size with natural gas
• Replaces a worn, blocked, or stripped orifice to improve flame quality
• Used during fuel conversion when the model calls for a #9 NG orifice
• Helps with symptoms: small/weak flame, uneven flame pattern, or a burner that won't stay lit

• Disconnect power and shut off the gas supply; allow the appliance to cool
• Hand-start threads, then snug gently—do not overtighten; keep the orifice and holder free of debris
• Restore gas, check all connections for leaks with a soapy-water solution, and verify proper flame

Burner baffle for gas ranges. Sits under the burner cap to distribute flames evenly. Replace if cracked, warped, or corroded for proper heat distribution.

Mounting screw for gas ranges. Secures components and panels in place. Order a replacement if your original screw is lost, stripped, or damaged.

This factory screw secures appliance components to their mounting points. Replace missing, worn, or stripped hardware to restore a tight fit, proper alignment, and quieter operation across the affected assembly.

• Fastens panels, brackets, covers, or internal parts to the chassis or frame
• Helps maintain alignment and support, reducing rattle, vibration, or looseness
• Replaces missing or damaged screws that have backed out, broken, or stripped
• Restores secure mounting after service when original hardware is lost

• Disconnect power; shut off water or gas supplies before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Match length and thread to the original location; do not substitute with longer hardware
• Tighten snugly; do not overtighten into plastic or thin metal

Replacement mounting screw for securing panels, brackets, and internal components. Needed when original screws are stripped, missing, or damaged during repair.

Converts your gas range from natural gas to liquid propane (LP). Includes orifices needed for safe operation on propane fuel. Required when switching fuel types.
